551 Low Back Pressure
Modular Belts
Description
Basic features
| Series: | 551 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 12.7 mm |
| Increments: | 85 mm |
| Surface Type: | LBP - Low Back Pressure |
| Functionality: | Straight |
| Unit of measure: | Meter |
551 Low Back Pressure
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||

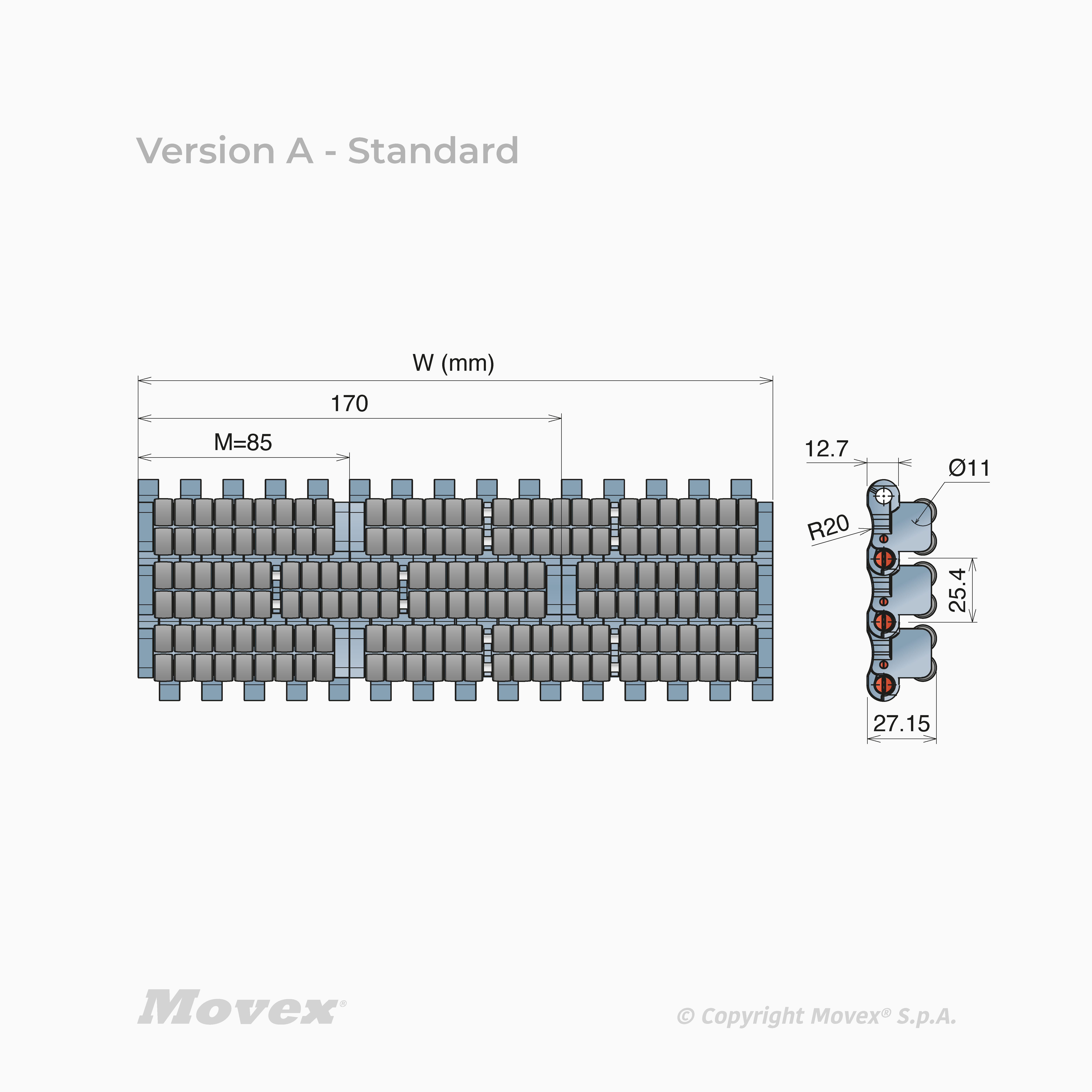

| P5234010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|

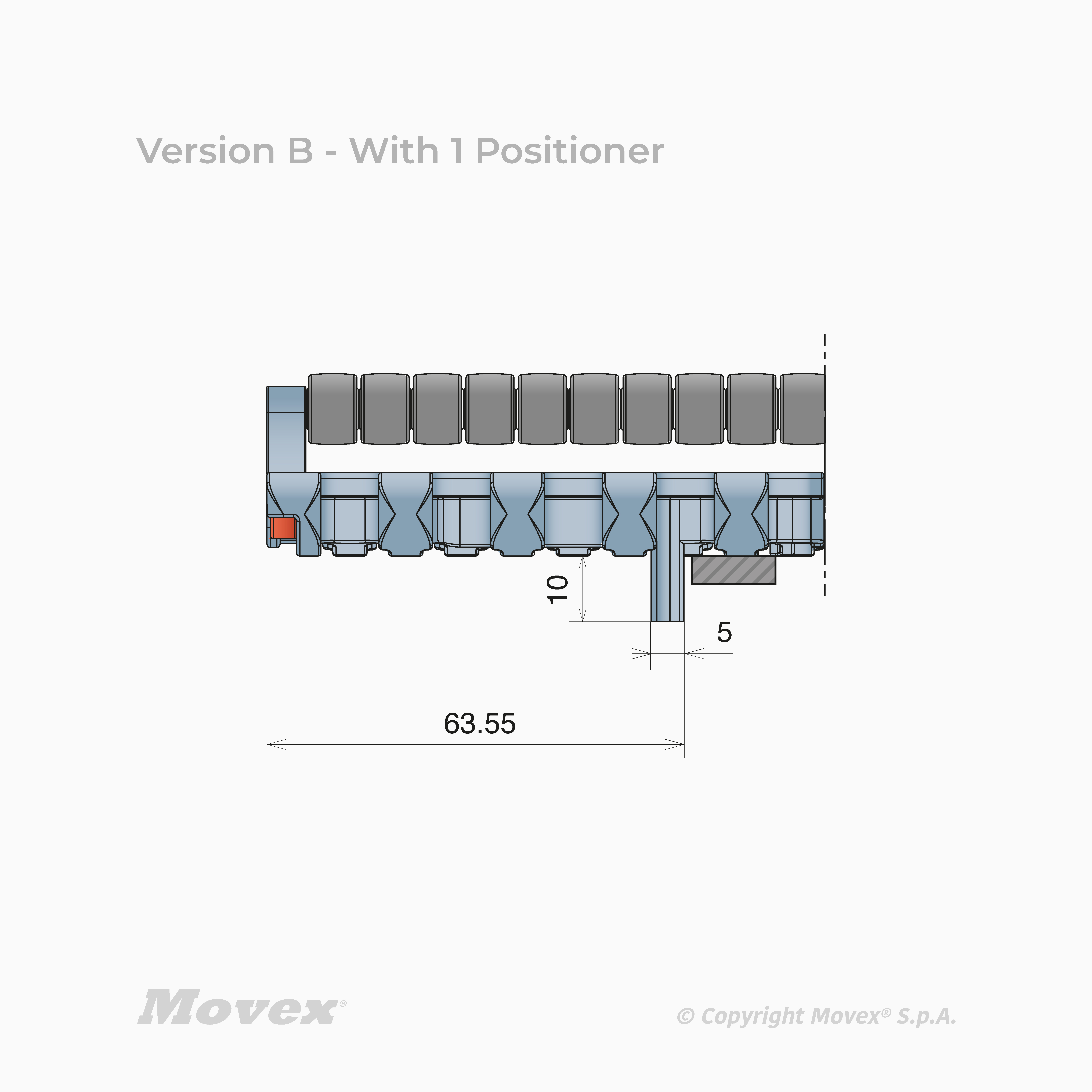

| P5234010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|

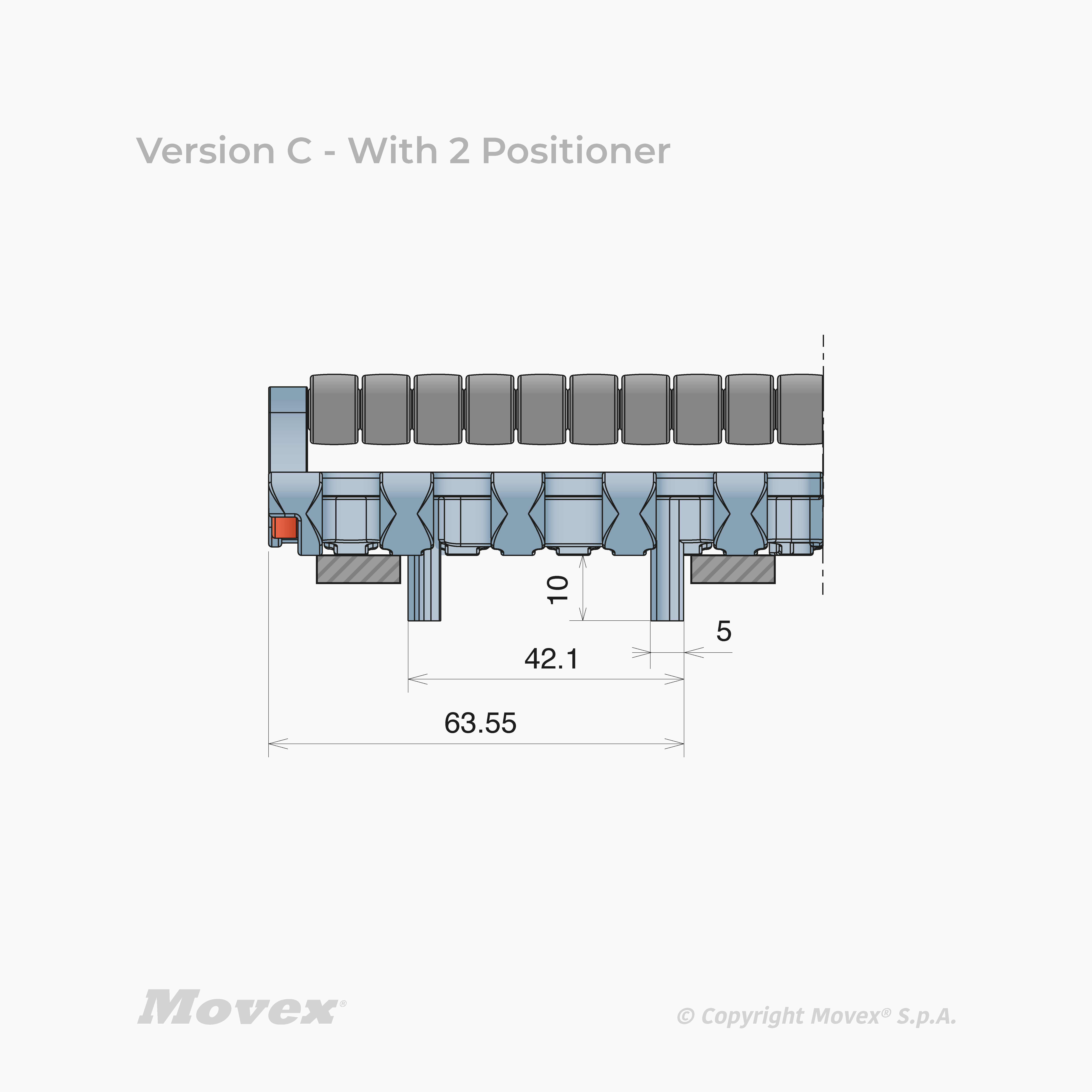

| P5234010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C |
|
| P5234010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C |
|
| P5234010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
| P5234011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5234 | 120 mm | 41500 N/m | 26.9 kg/m^2 | PBT white | Snap-in Clip | 2,5 ft - 0,762 m | -40÷80 °C | -40÷65 °C |
|
