551 machined sprocket

Belt sprockets

Enquire Now

Description

Basic features

Series:	551
Pitch:	25.4 mm
Unit of measure:	Ea

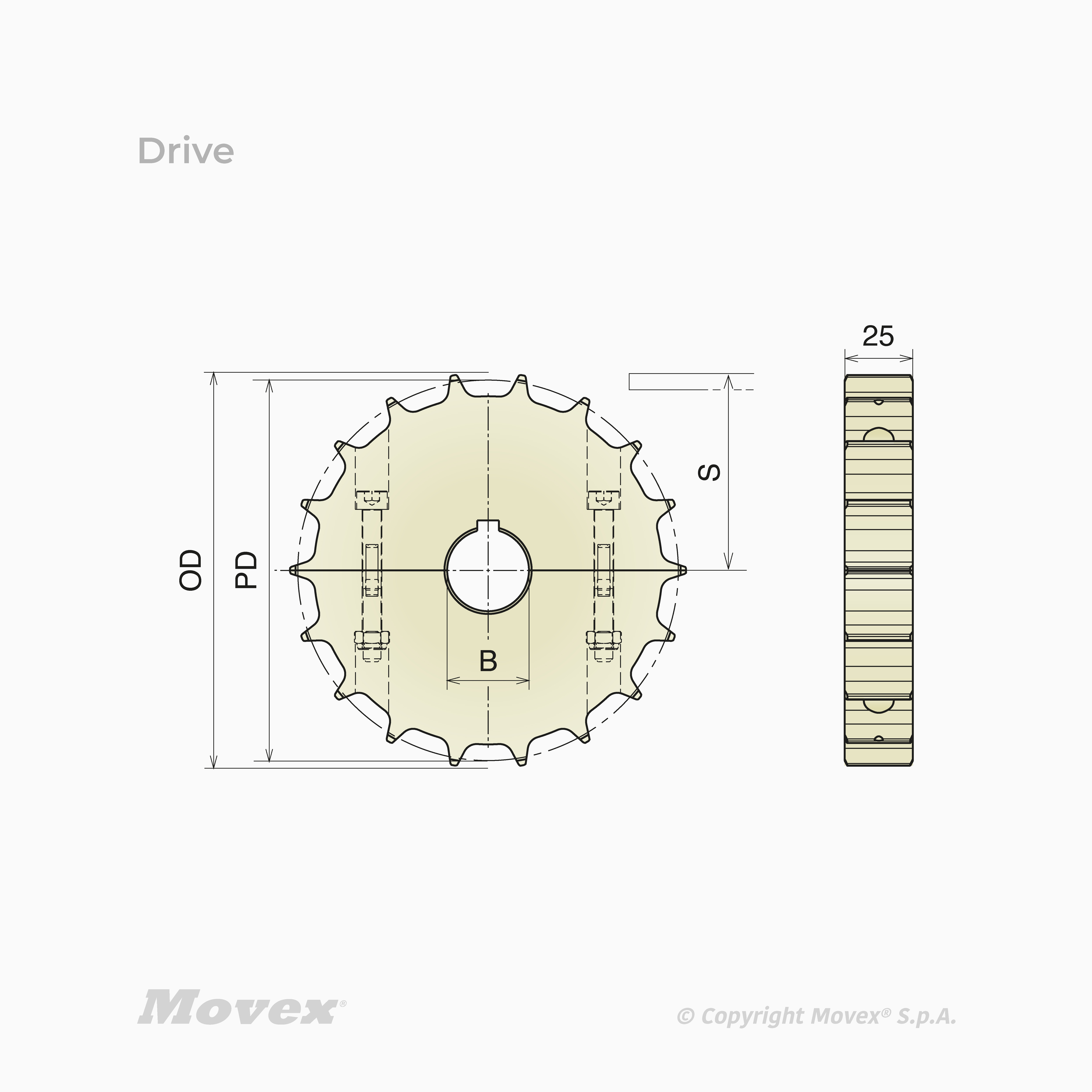

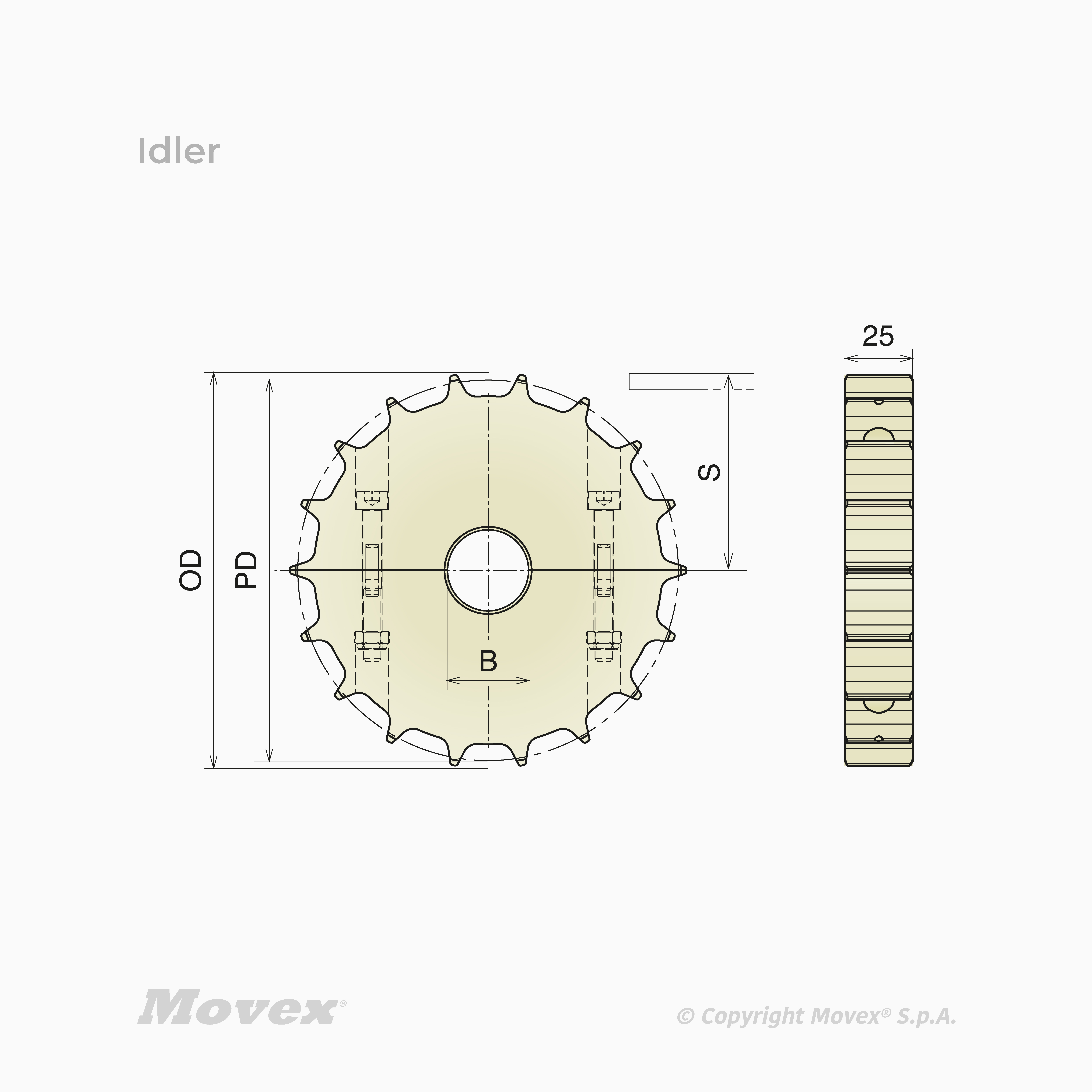

551 machined sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet	Supplementary informations
Code														Actions
P153101	14	○ 25 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153102	14	○ 30 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153103	14	○ 35 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153104	14	○ 40 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153106	14	☐ 25 x 25 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153107	14	☐ 30 x 30 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153108	14	☐ 40 x 40 mm	Drive	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153150	14	○ 18 mm	Idler	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153151	14	○ 25 mm	Idler	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153152	14	○ 30 mm	Idler	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153153	14	○ 35 mm	Idler	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153154	14	○ 40 mm	Idler	4	Split	Machined	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153201	16	○ 25 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153202	16	○ 30 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153203	16	○ 35 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153204	16	○ 40 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153206	16	☐ 25 x 25 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153207	16	☐ 30 x 30 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153208	16	☐ 40 x 40 mm	Drive	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153250	16	○ 18 mm	Idler	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153251	16	○ 25 mm	Idler	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153252	16	○ 30 mm	Idler	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153253	16	○ 35 mm	Idler	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153254	16	○ 40 mm	Idler	4	Split	Machined	130.2 mm	129 mm	58.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153301	18	○ 25 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153302	18	○ 30 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153303	18	○ 35 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153304	18	○ 40 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153306	18	☐ 25 x 25 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153307	18	☐ 30 x 30 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153308	18	☐ 40 x 40 mm	Drive	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153350	18	○ 18 mm	Idler	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153351	18	○ 25 mm	Idler	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153352	18	○ 30 mm	Idler	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153353	18	○ 35 mm	Idler	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153354	18	○ 40 mm	Idler	4	Split	Machined	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153401	20	○ 25 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153402	20	○ 30 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153403	20	○ 35 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153404	20	○ 40 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153406	20	☐ 25 x 25 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153407	20	☐ 30 x 30 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153408	20	☐ 40 x 40 mm	Drive	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153450	20	○ 18 mm	Idler	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153451	20	○ 25 mm	Idler	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P153452	20	○ 30 mm	Idler	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153453	20	○ 35 mm	Idler	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153454	20	○ 40 mm	Idler	4	Split	Machined	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P153901	11	○ 25 mm	Drive	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153902	11	○ 30 mm	Drive	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153903E	11	○ 35 mm	Drive	4	One-piece	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153904E	11	○ 40 mm	Drive	4	One-piece	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153906	11	☐ 25 x 25 mm	Drive	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153907	11	☐ 30 x 30 mm	Drive	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153908E	11	☐ 40 x 40 mm	Drive	4	One-piece	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153950	11	○ 18 mm	Idler	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153951	11	○ 25 mm	Idler	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153952	11	○ 30 mm	Idler	4	Split	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153953E	11	○ 35 mm	Idler	4	One-piece	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P153954E	11	○ 40 mm	Idler	4	One-piece	Machined	90.2 mm	92 mm	39.7 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163401	21	○ 25 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163402	21	○ 30 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163403	21	○ 35 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163404	21	○ 40 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163406	21	☐ 25 x 25 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163407	21	☐ 30 x 30 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163408	21	☐ 40 x 40 mm	Drive	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163450	21	○ 18 mm	Idler	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P163451	21	○ 25 mm	Idler	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163452	21	○ 30 mm	Idler	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P163453	21	○ 35 mm	Idler	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P163454	21	○ 40 mm	Idler	4	Split	Machined	170.4 mm	169.7 mm	78.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
