551 molded sprocket

Belt sprockets

Enquire Now

Description

Basic features

Series:	551
Pitch:	25.4 mm
Unit of measure:	Ea

551 molded sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions

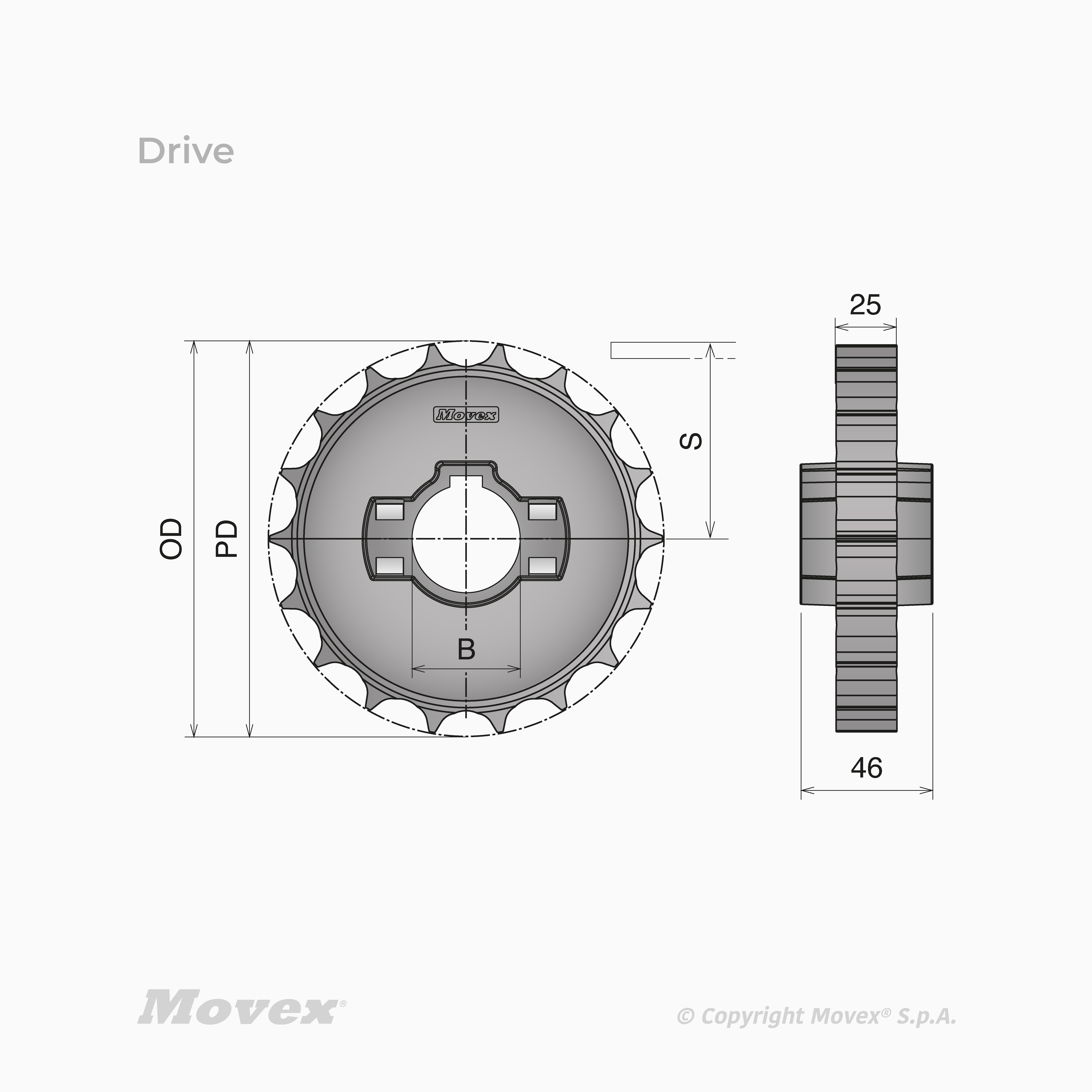

P153501	14	○ 25 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153502	14	○ 30 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153503	14	○ 35 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153504	14	○ 40 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153506	14	☐ 25 x 25 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153507	14	☐ 30 x 30 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153508	14	☐ 40 x 40 mm	Drive	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

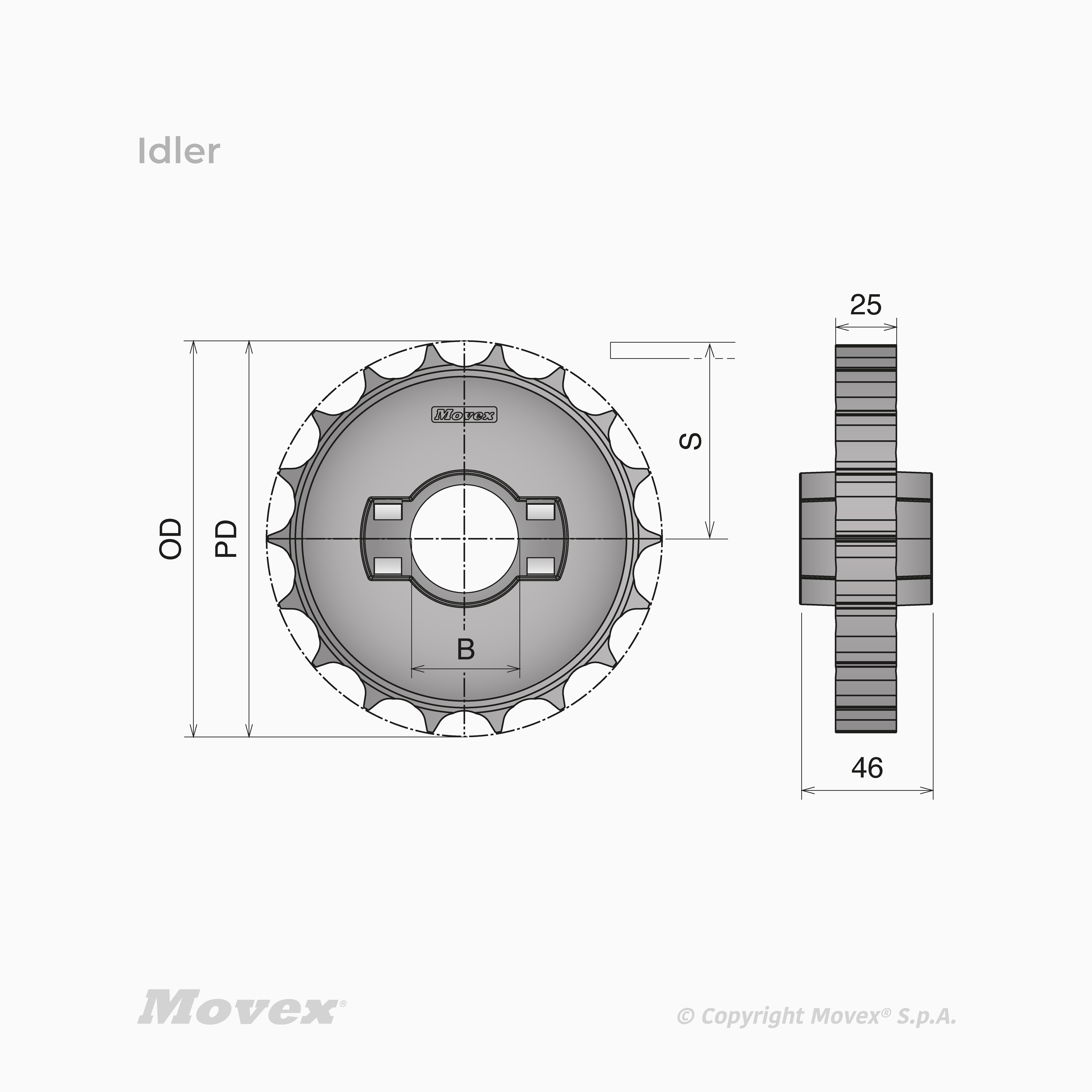

P153551	14	○ 25 mm	Idler	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153552	14	○ 30 mm	Idler	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153553	14	○ 35 mm	Idler	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153554	14	○ 40 mm	Idler	4	Split	Molded	114.2 mm	113.5 mm	50.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153601	16	○ 25 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153602	16	○ 30 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153603	16	○ 35 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153604	16	○ 40 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153606	16	☐ 25 x 25 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153607	16	☐ 30 x 30 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153608	16	☐ 40 x 40 mm	Drive	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153651	16	○ 25 mm	Idler	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153652	16	○ 30 mm	Idler	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153653	16	○ 35 mm	Idler	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153654	16	○ 40 mm	Idler	4	Split	Molded	130.2 mm	129 mm	58.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153701	18	○ 25 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153702	18	○ 30 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153703	18	○ 35 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153704	18	○ 40 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153706	18	☐ 25 x 25 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153707	18	☐ 30 x 30 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153708	18	☐ 40 x 40 mm	Drive	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153751	18	○ 25 mm	Idler	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153752	18	○ 30 mm	Idler	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153753	18	○ 35 mm	Idler	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153754	18	○ 40 mm	Idler	4	Split	Molded	146.3 mm	145.3 mm	66.7 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153801	20	○ 25 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153802	20	○ 30 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153803	20	○ 35 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153804	20	○ 40 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153806	20	☐ 25 x 25 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153807	20	☐ 30 x 30 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153808	20	☐ 40 x 40 mm	Drive	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153851	20	○ 25 mm	Idler	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153852	20	○ 30 mm	Idler	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153853	20	○ 35 mm	Idler	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P153854	20	○ 40 mm	Idler	4	Split	Molded	162.4 mm	161.7 mm	74.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
