551 Grip Top Side Indent
Modular Belts
Description
Description
Modular belt with over-molded high-grip rubber, for inclines, declines or acceleration applications, guaranteeing high performances and superior durability.
Basic features
| Series: | 551 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 12.7 mm |
| Increments: | 85 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

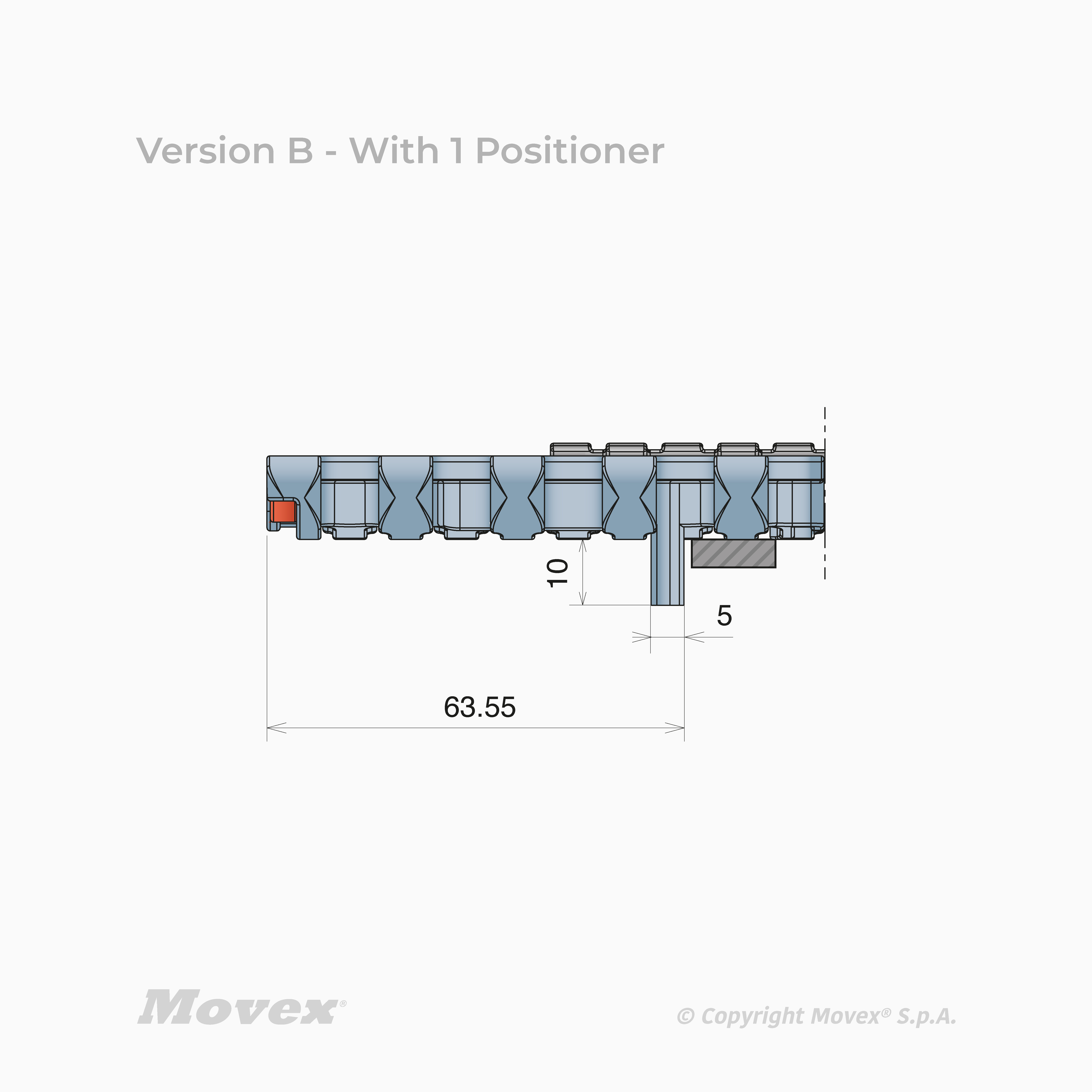

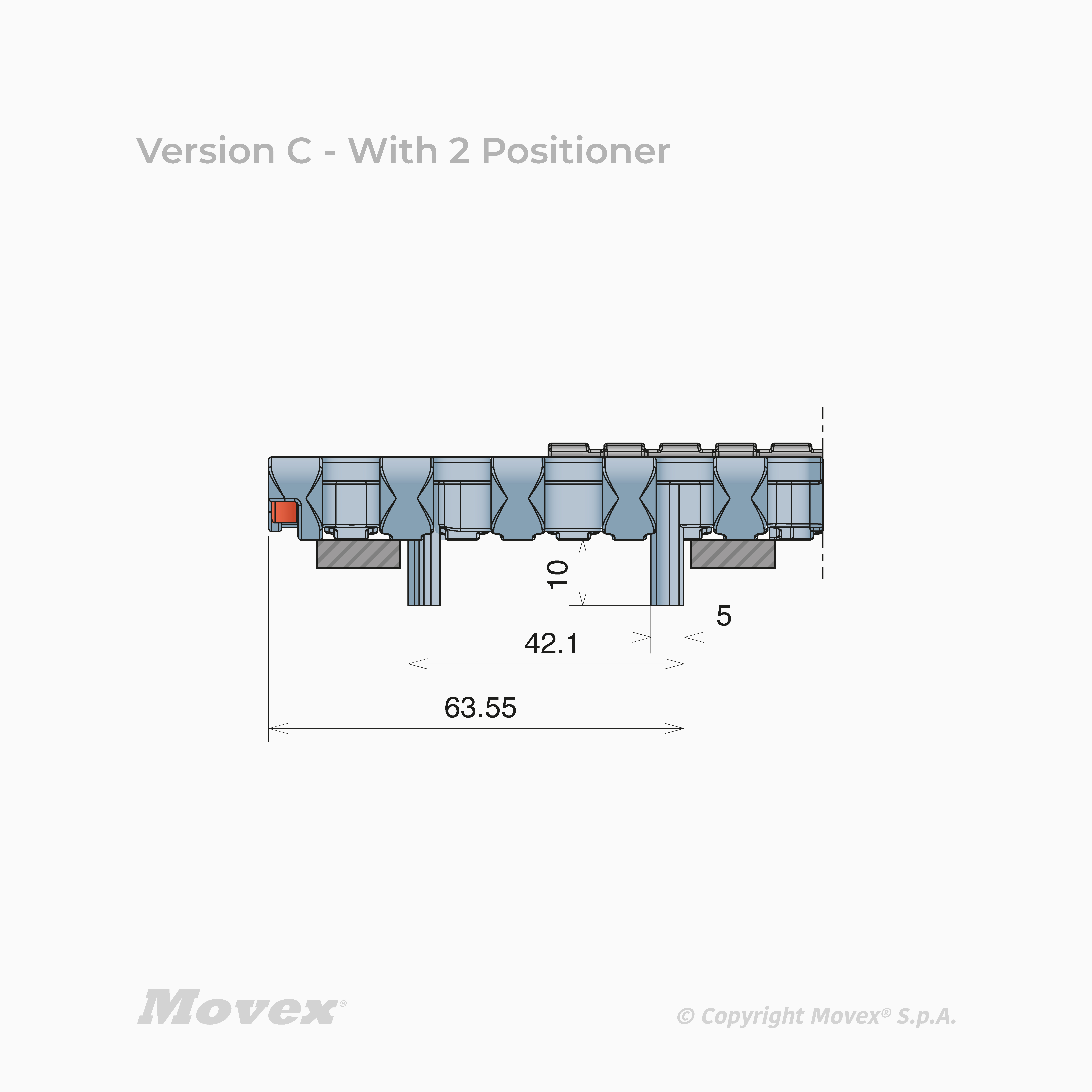

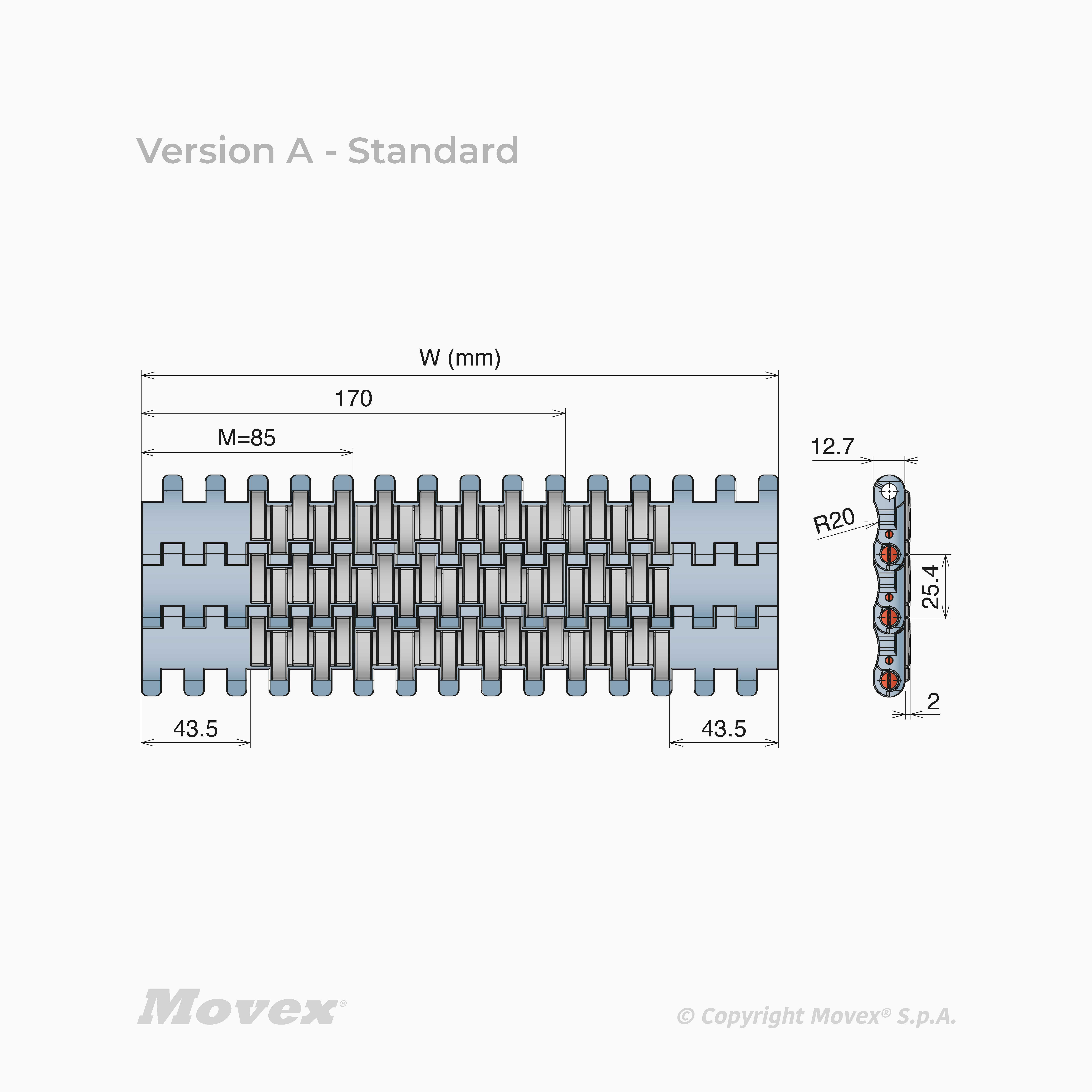

551 Grip Top Side Indent
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5235010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5235011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5235 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235020255A | 255 mm (10,04") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235020255B | 255 mm (10,04") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020255C | 255 mm (10,04") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020340A | 340 mm (13,39") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235020340B | 340 mm (13,39") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020340C | 340 mm (13,39") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020425A | 425 mm (16,73") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235020425B | 425 mm (16,73") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020425C | 425 mm (16,73") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020510A | 510 mm (20,08") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235020510B | 510 mm (20,08") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020510C | 510 mm (20,08") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020595A | 595 mm (23,43") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235020595B | 595 mm (23,43") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020595C | 595 mm (23,43") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020680A | 680 mm (26,77") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020680B | 680 mm (26,77") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020680C | 680 mm (26,77") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020765A | 765 mm (30,12") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020765B | 765 mm (30,12") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020765C | 765 mm (30,12") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020850A | 850 mm (33,46") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020850B | 850 mm (33,46") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020850C | 850 mm (33,46") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020935A | 935 mm (36,81") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020935B | 935 mm (36,81") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235020935C | 935 mm (36,81") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021020A | 1020 mm (40,16") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021020B | 1020 mm (40,16") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021020C | 1020 mm (40,16") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021105A | 1105 mm (43,50") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021105B | 1105 mm (43,50") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021105C | 1105 mm (43,50") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021190A | 1190 mm (46,85") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021190B | 1190 mm (46,85") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021190C | 1190 mm (46,85") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021275A | 1275 mm (50,20") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021275B | 1275 mm (50,20") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021275C | 1275 mm (50,20") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021360A | 1360 mm (53,54") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021360B | 1360 mm (53,54") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021360C | 1360 mm (53,54") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021445A | 1445 mm (56,89") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021445B | 1445 mm (56,89") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021445C | 1445 mm (56,89") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021530A | 1530 mm (60,24") | PP - Polypropylene (02) | A - No positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021530B | 1530 mm (60,24") | PP - Polypropylene (02) | B - 1 Positioner | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235021530C | 1530 mm (60,24") | PP - Polypropylene (02) | C - 2 Positioners | P5235 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5235030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5235030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5235031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5235 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
