551 Grip Top
Modular Belts
Description
Description
Modular belt with over-molded high-grip rubber, for inclines, declines or acceleration applications, guaranteeing high performances and superior durability.
Basic features
| Series: | 551 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 12.7 mm |
| Increments: | 85 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
551 Grip Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

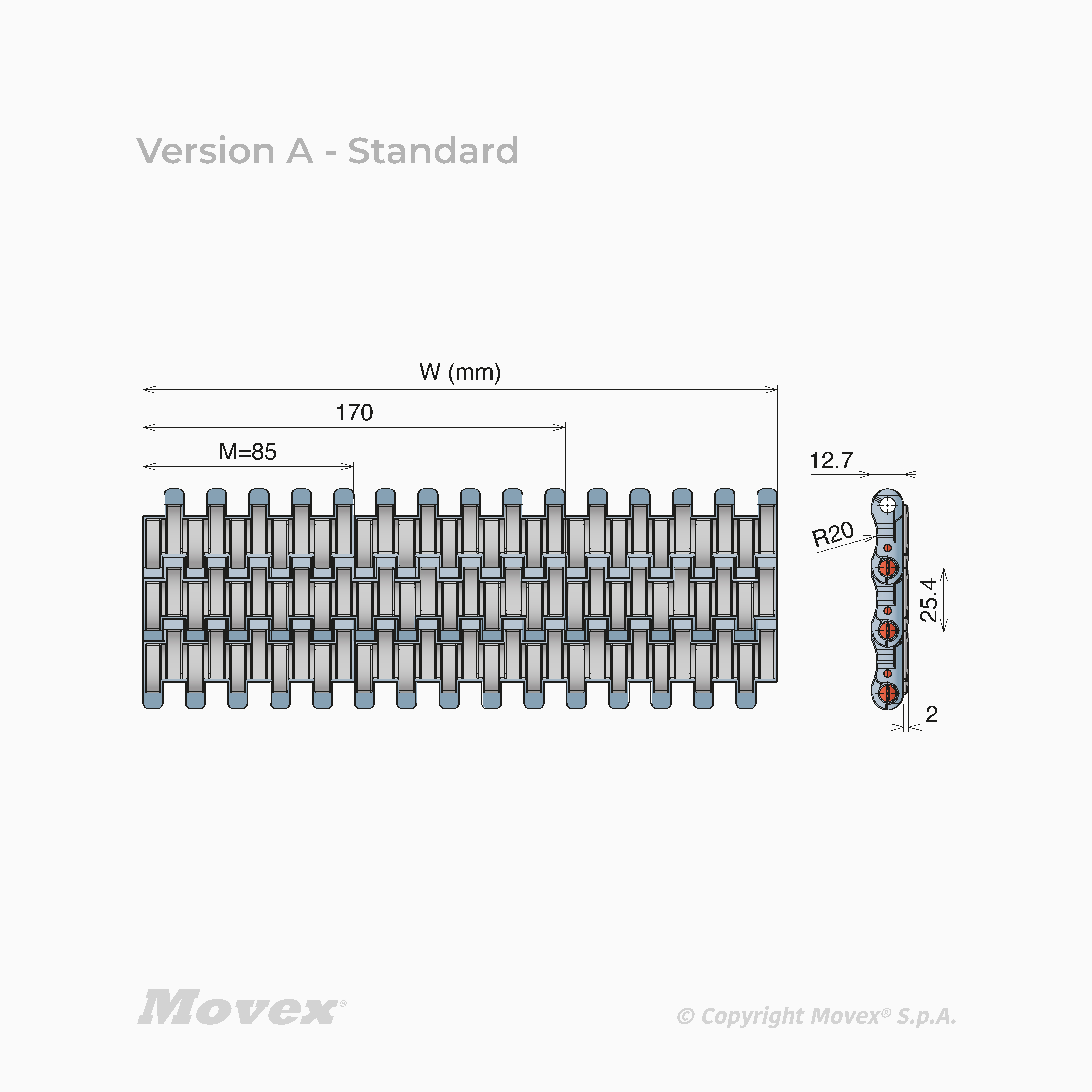

| P5233010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Pigeon Blue |
|

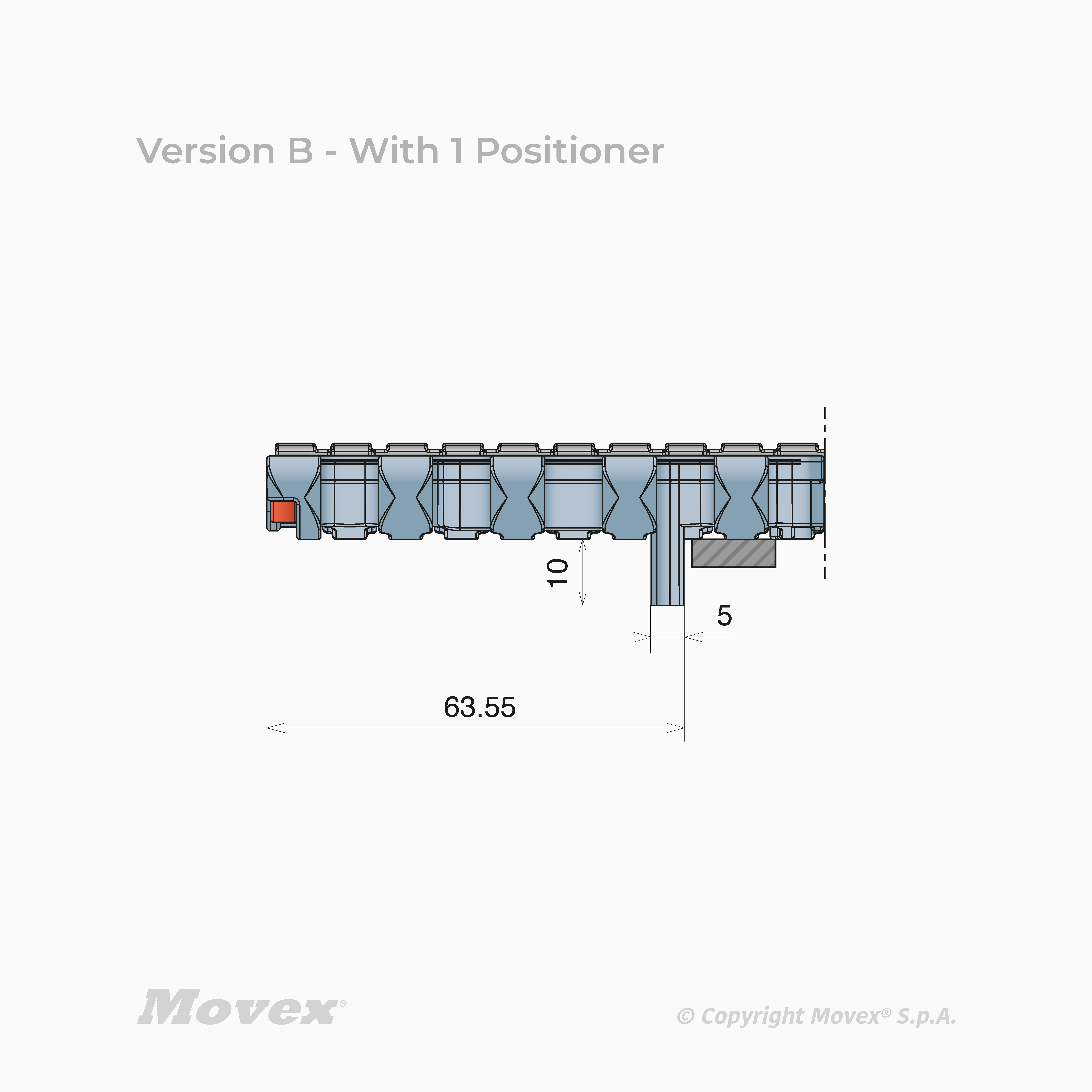

| P5233010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|

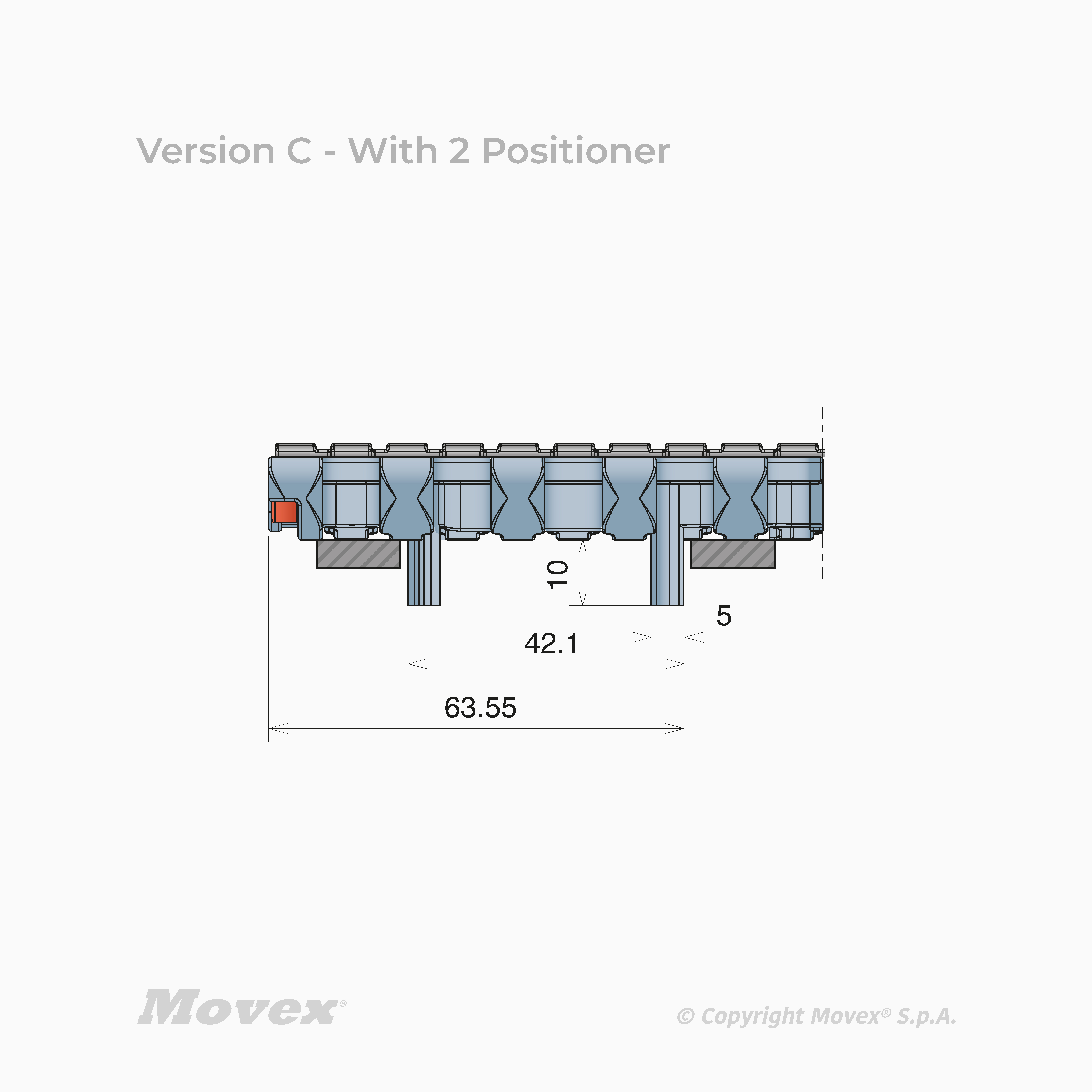

| P5233010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5233010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5233010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5233010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5233010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5233010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5233010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5233 | 50 mm | 41500 N/m | 13.5 kg/m^2 | PBT white | Snap-in Clip | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233020085A | 85 mm (3,35") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233020085B | 85 mm (3,35") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020085C | 85 mm (3,35") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020170A | 170 mm (6,69") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233020170B | 170 mm (6,69") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020170C | 170 mm (6,69") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020255A | 255 mm (10,04") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233020255B | 255 mm (10,04") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020255C | 255 mm (10,04") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020340A | 340 mm (13,39") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233020340B | 340 mm (13,39") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020340C | 340 mm (13,39") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020425A | 425 mm (16,73") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233020425B | 425 mm (16,73") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020425C | 425 mm (16,73") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020510A | 510 mm (20,08") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233020510B | 510 mm (20,08") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020510C | 510 mm (20,08") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020595A | 595 mm (23,43") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020595B | 595 mm (23,43") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020595C | 595 mm (23,43") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020680A | 680 mm (26,77") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020680B | 680 mm (26,77") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020680C | 680 mm (26,77") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020765A | 765 mm (30,12") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020765B | 765 mm (30,12") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020765C | 765 mm (30,12") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020850A | 850 mm (33,46") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020850B | 850 mm (33,46") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020850C | 850 mm (33,46") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020935A | 935 mm (36,81") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020935B | 935 mm (36,81") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233020935C | 935 mm (36,81") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021020A | 1020 mm (40,16") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021020B | 1020 mm (40,16") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021020C | 1020 mm (40,16") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021105A | 1105 mm (43,50") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021105B | 1105 mm (43,50") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021105C | 1105 mm (43,50") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021190A | 1190 mm (46,85") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021190B | 1190 mm (46,85") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021190C | 1190 mm (46,85") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021275A | 1275 mm (50,20") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021275B | 1275 mm (50,20") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021275C | 1275 mm (50,20") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021360A | 1360 mm (53,54") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021360B | 1360 mm (53,54") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021360C | 1360 mm (53,54") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021445A | 1445 mm (56,89") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021445B | 1445 mm (56,89") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021445C | 1445 mm (56,89") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021530A | 1530 mm (60,24") | PP - Polypropylene (02) | A - No positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021530B | 1530 mm (60,24") | PP - Polypropylene (02) | B - 1 Positioner | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233021530C | 1530 mm (60,24") | PP - Polypropylene (02) | C - 2 Positioners | P5233 | 50 mm | 27000 N/m | 11 kg/m^2 | PP Blue | Snap-in Clip | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5233030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233030085B | 85 mm (3,35") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233030170B | 170 mm (6,69") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030170C | 170 mm (6,69") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5233030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5233031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5233 | 50 mm | 33500 N/m | 12.7 kg/m^2 | POM grey | Snap-in Clip | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
