Zero Contact S
Zero Contact
Description
Description
Zero Contact™ S is ideal for logistic / handling and distribution centers as well as can also be adopted for all types of product transportation, like wood or ceramic applications, dry conditions.
Painted steel frames can be customized with every type of color.
The Zero Contact™ S can be quickly installed into existing layout and fixed to the floor thanks to the leveling feet with double-floor fixation.
Basic features
| Type: | Conveyors |
|---|---|
| Functionality: | Curve |
| Unit of measure: | Ea |
| Box: | - |
Zero Contact S

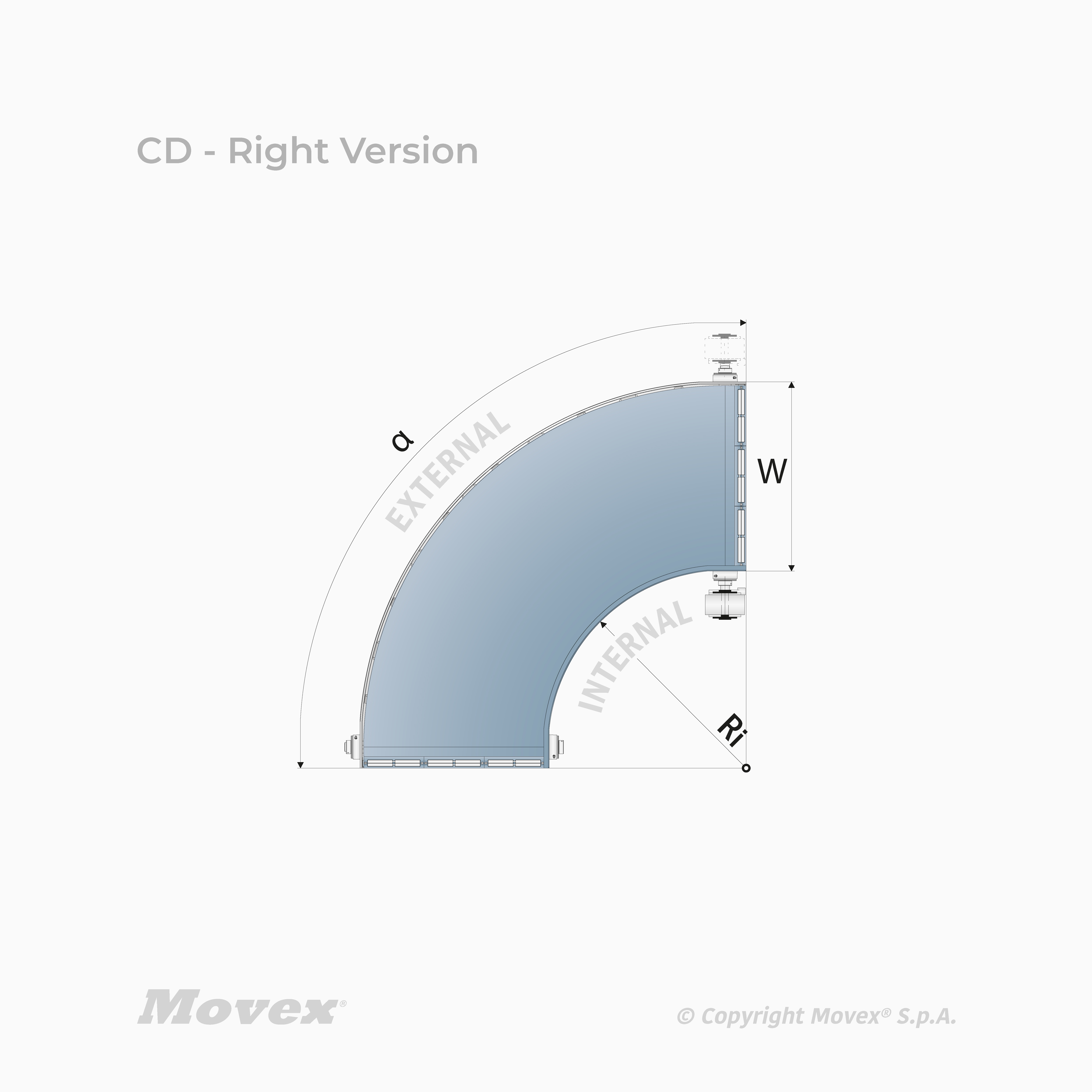

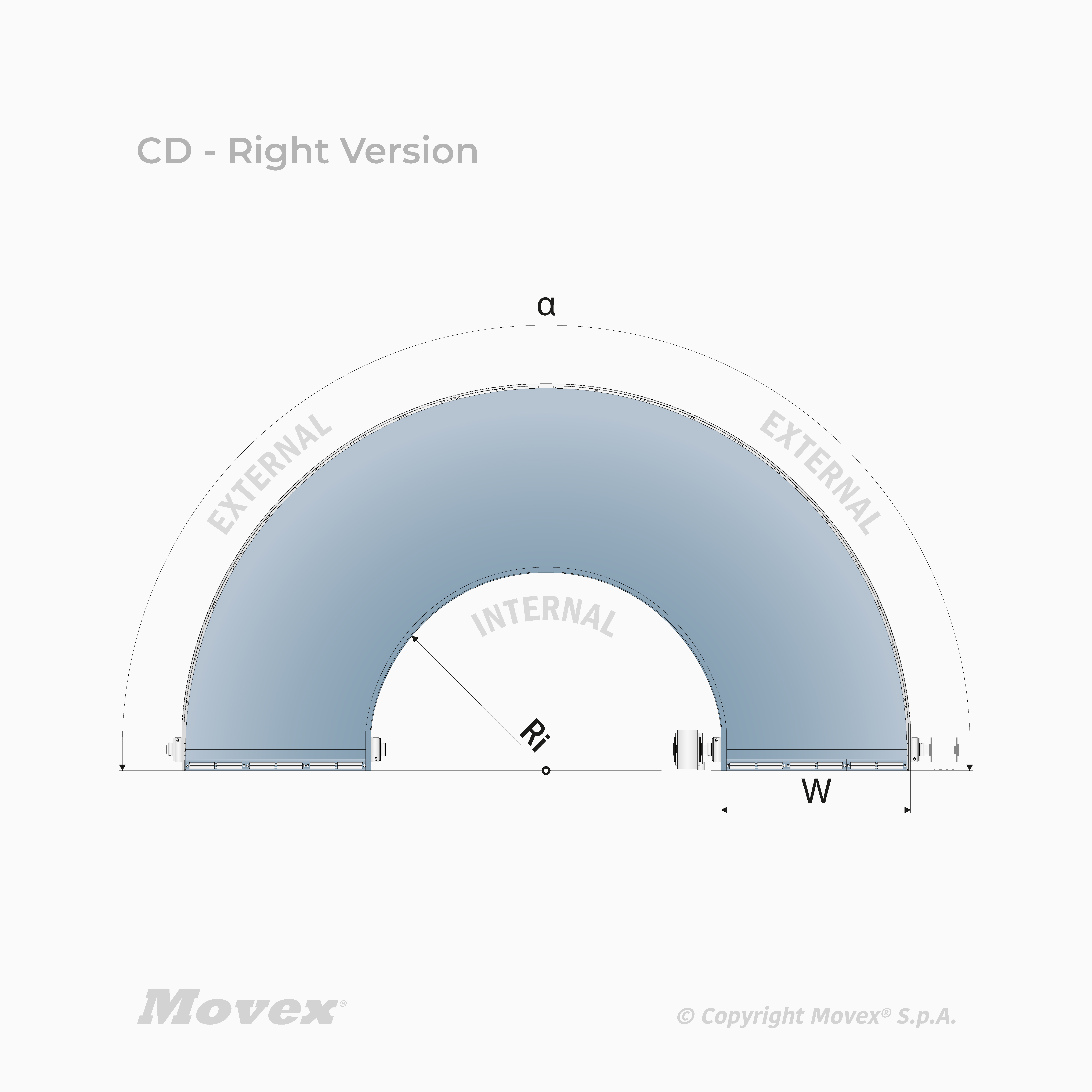

| Internal Radius | Width | Angle | Material | Version | Max working load | Pin material | Fixation | Design | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P-W02R06G090-CDS | 600 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R06G090-CSS | 600 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R06G180-CDS | 600 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R06G180-CSS | 600 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R08G090-CDS | 800 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R08G090-CSS | 800 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R08G180-CDS | 800 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R08G180-CSS | 800 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R10G090-CDS | 1000 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R10G090-CSS | 1000 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R10G180-CDS | 1000 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R10G180-CSS | 1000 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R12G090-CDS | 1200 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R12G090-CSS | 1200 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R12G180-CDS | 1200 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R12G180-CSS | 1200 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R14G090-CDS | 1400 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R14G090-CSS | 1400 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R14G180-CDS | 1400 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R14G180-CSS | 1400 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R16G090-CDS | 1600 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R16G090-CSS | 1600 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R16G180-CDS | 1600 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R16G180-CSS | 1600 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R18G090-CDS | 1800 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R18G090-CSS | 1800 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R18G180-CDS | 1800 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R18G180-CSS | 1800 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R20G090-CDS | 2000 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | - |
|
| P-W02R20G090-CSS | 2000 mm | 200 mm (7,87") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R20G180-CDS | 2000 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W02R20G180-CSS | 2000 mm | 200 mm (7,87") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R06G090-CDS | 600 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R06G090-CSS | 600 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R06G180-CDS | 600 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R06G180-CSS | 600 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R08G090-CDS | 800 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R08G090-CSS | 800 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R08G180-CDS | 800 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R08G180-CSS | 800 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R10G090-CDS | 1000 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R10G090-CSS | 1000 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R10G180-CDS | 1000 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R10G180-CSS | 1000 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R12G090-CDS | 1200 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R12G090-CSS | 1200 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R12G180-CDS | 1200 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R12G180-CSS | 1200 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R14G090-CDS | 1400 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R14G090-CSS | 1400 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R14G180-CDS | 1400 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R14G180-CSS | 1400 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R16G090-CDS | 1600 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R16G090-CSS | 1600 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R16G180-CDS | 1600 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R16G180-CSS | 1600 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R18G090-CDS | 1800 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R18G090-CSS | 1800 mm | 400 mm (15,75") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R18G180-CDS | 1800 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W04R18G180-CSS | 1800 mm | 400 mm (15,75") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R06G090-CDS | 600 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R06G090-CSS | 600 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R06G180-CDS | 600 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R06G180-CSS | 600 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R08G090-CDS | 800 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R08G090-CSS | 800 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R08G180-CDS | 800 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R08G180-CSS | 800 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R10G090-CDS | 1000 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R10G090-CSS | 1000 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R10G180-CDS | 1000 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R10G180-CSS | 1000 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R12G090-CDS | 1200 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R12G090-CSS | 1200 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R12G180-CDS | 1200 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R12G180-CSS | 1200 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R14G090-CDS | 1400 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R14G090-CSS | 1400 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R14G180-CDS | 1400 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R14G180-CSS | 1400 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R16G090-CDS | 1600 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R16G090-CSS | 1600 mm | 600 mm (23,62") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R16G180-CDS | 1600 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W06R16G180-CSS | 1600 mm | 600 mm (23,62") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R06G090-CDS | 600 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R06G090-CSS | 600 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R06G180-CDS | 600 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R06G180-CSS | 600 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R08G090-CDS | 800 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R08G090-CSS | 800 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R08G180-CDS | 800 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R08G180-CSS | 800 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R10G090-CDS | 1000 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R10G090-CSS | 1000 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R10G180-CDS | 1000 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R10G180-CSS | 1000 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R12G090-CDS | 1200 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R12G090-CSS | 1200 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R12G180-CDS | 1200 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R12G180-CSS | 1200 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R14G090-CDS | 1400 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R14G090-CSS | 1400 mm | 800 mm (31,50") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R14G180-CDS | 1400 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W08R14G180-CSS | 1400 mm | 800 mm (31,50") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R06G090-CDS | 600 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R06G090-CSS | 600 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R06G180-CDS | 600 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R06G180-CSS | 600 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R08G090-CDS | 800 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R08G090-CSS | 800 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R08G180-CDS | 800 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R08G180-CSS | 800 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R10G090-CDS | 1000 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R10G090-CSS | 1000 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R10G180-CDS | 1000 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R10G180-CSS | 1000 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R12G090-CDS | 1200 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R12G090-CSS | 1200 mm | 1000 mm (39,37") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R12G180-CDS | 1200 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W10R12G180-CSS | 1200 mm | 1000 mm (39,37") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R06G090-CDS | 600 mm | 1200 mm (47,24") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R06G090-CSS | 600 mm | 1200 mm (47,24") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R06G180-CDS | 600 mm | 1200 mm (47,24") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R06G180-CSS | 600 mm | 1200 mm (47,24") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R08G090-CDS | 800 mm | 1200 mm (47,24") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R08G090-CSS | 800 mm | 1200 mm (47,24") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R08G180-CDS | 800 mm | 1200 mm (47,24") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R08G180-CSS | 800 mm | 1200 mm (47,24") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R10G090-CDS | 1000 mm | 1200 mm (47,24") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R10G090-CSS | 1000 mm | 1200 mm (47,24") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R10G180-CDS | 1000 mm | 1200 mm (47,24") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W12R10G180-CSS | 1000 mm | 1200 mm (47,24") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R06G090-CDS | 600 mm | 1400 mm (55,12") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R06G090-CSS | 600 mm | 1400 mm (55,12") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R06G180-CDS | 600 mm | 1400 mm (55,12") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R06G180-CSS | 600 mm | 1400 mm (55,12") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R08G090-CDS | 800 mm | 1400 mm (55,12") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R08G090-CSS | 800 mm | 1400 mm (55,12") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R08G180-CDS | 800 mm | 1400 mm (55,12") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W14R08G180-CSS | 800 mm | 1400 mm (55,12") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W16R06G090-CDS | 600 mm | 1600 mm (62,99") | 90° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W16R06G090-CSS | 600 mm | 1600 mm (62,99") | 90° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W16R06G180-CDS | 600 mm | 1600 mm (62,99") | 180° | LFA - Low friction acetal (01) | Right | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
| P-W16R06G180-CSS | 600 mm | 1600 mm (62,99") | 180° | LFA - Low friction acetal (01) | Left | 13500 N/m | PBT white | Snap-in Clip | Zero Contact - Painted steel RAL 7031 | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Pigeon Blue (RAL 5014) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. |
|
