Zero Contact PRO 2 Tracks
Zero Contact PRO
Description
Description
The Zero Contact™ PRO is available also with “two-tracks” design; by keeping the same advantages of the Zero Contact™ PRO, with the Zero Contact™ PRO “two tracks“ the maximum working load can be even higher thanks to the increased number of bearings.
Moreover, the two belts can work at different / independent speeds and can be activated independently thanks to the double shaft.
The two belts can also be used for accelerating goods or can be also stopped independently, in case there is a double track infeed conveyor.
Basic features
| Type: | Conveyors |
|---|---|
| Functionality: | Curve |
| Unit of measure: | Ea |
| Box: | - |
Zero Contact PRO 2 Tracks

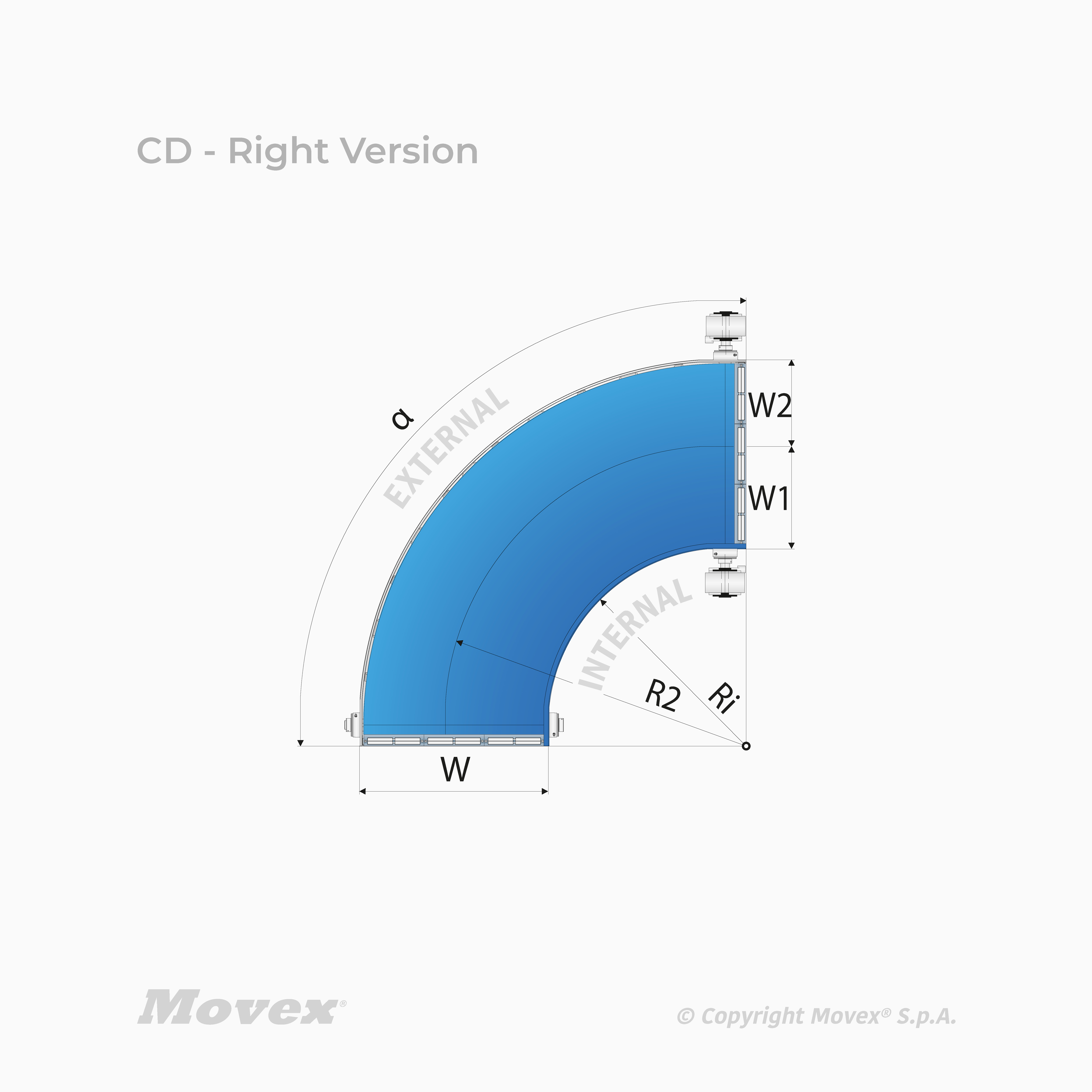

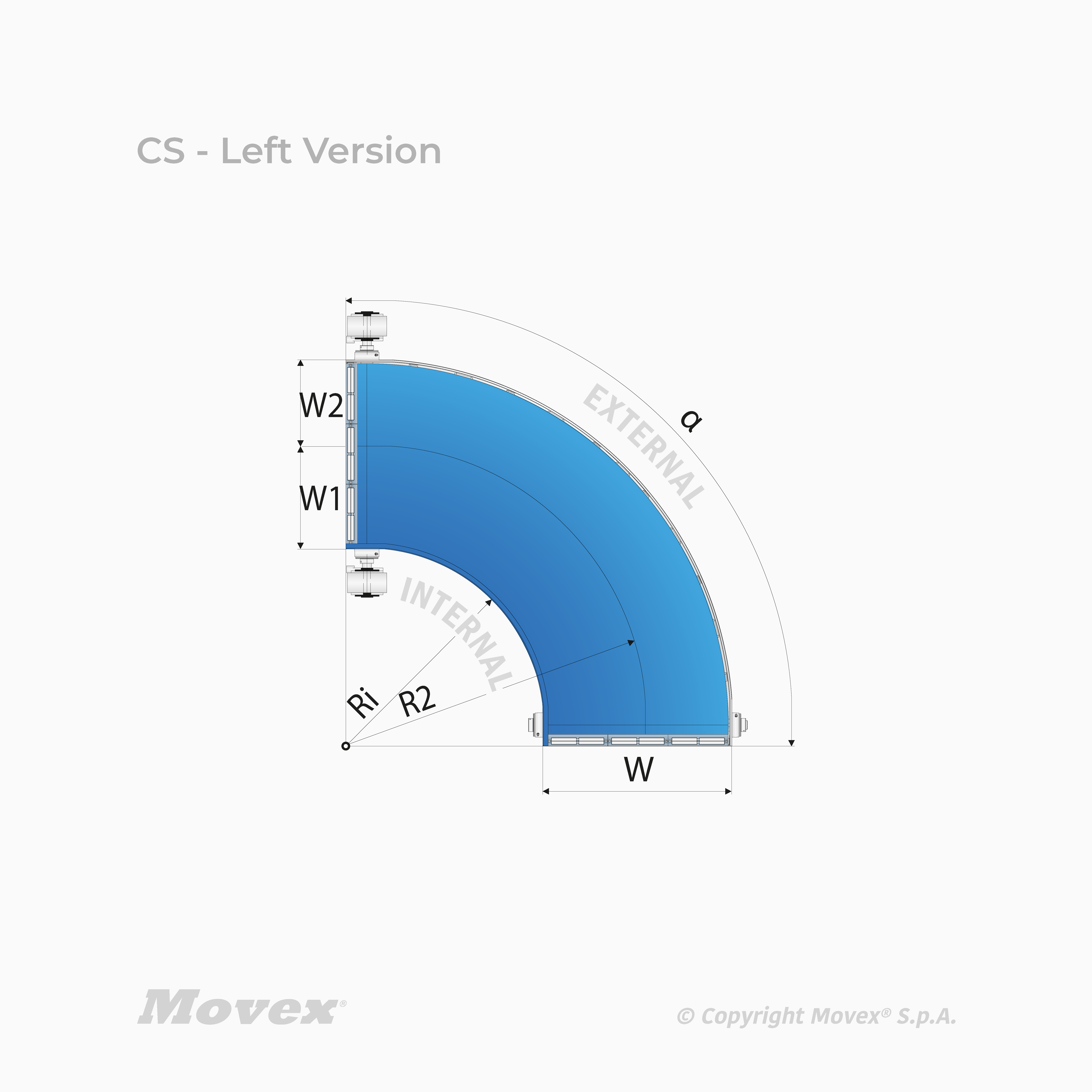

| Internal Radius | Width | Angle | Material | Version | Max working load | Pin material | Fixation | Design | W1 | R2 | W2 | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| P-W96R92G090-CD2 | 756 mm | 524 mm (20,63") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1031 mm | 249 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W96R92G090-CS2 | 756 mm | 524 mm (20,63") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1031 mm | 249 mm | -5÷45 (non condensing) °C | - |
|
| P-W96R92G180-CD2 | 756 mm | 524 mm (20,63") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1031 mm | 249 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W96R92G180-CS2 | 756 mm | 524 mm (20,63") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1031 mm | 249 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W96R93G090-CD2 | 1011 mm | 524 mm (20,63") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1286 mm | 249 mm | -5÷45 (non condensing) °C | - |
|
| P-W96R93G090-CS2 | 1011 mm | 524 mm (20,63") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1286 mm | 249 mm | -5÷45 (non condensing) °C | - |
|
| P-W96R93G180-CD2 | 1011 mm | 524 mm (20,63") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1286 mm | 249 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W96R93G180-CS2 | 1011 mm | 524 mm (20,63") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 269 mm | 1286 mm | 249 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W97R91G090-CD2 | 586 mm | 864 mm (34,02") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1031 mm | 419 mm | -5÷45 (non condensing) °C | - |
|
| P-W97R91G090-CS2 | 586 mm | 864 mm (34,02") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1031 mm | 419 mm | -5÷45 (non condensing) °C | - |
|
| P-W97R91G180-CD2 | 586 mm | 864 mm (34,02") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1031 mm | 419 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W97R91G180-CS2 | 586 mm | 864 mm (34,02") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1031 mm | 419 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W97R92G090-CD2 | 756 mm | 864 mm (34,02") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1201 mm | 419 mm | -5÷45 (non condensing) °C | - |
|
| P-W97R92G090-CS2 | 756 mm | 864 mm (34,02") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1201 mm | 419 mm | -5÷45 (non condensing) °C | - |
|
| P-W97R92G180-CD2 | 756 mm | 864 mm (34,02") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1201 mm | 419 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W97R92G180-CS2 | 756 mm | 864 mm (34,02") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1201 mm | 419 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W97R93G090-CD2 | 1011 mm | 864 mm (34,02") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1456 mm | 419 mm | -5÷45 (non condensing) °C | - |
|
| P-W97R93G090-CS2 | 1011 mm | 864 mm (34,02") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1456 mm | 419 mm | -5÷45 (non condensing) °C | - |
|
| P-W97R93G180-CD2 | 1011 mm | 864 mm (34,02") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1456 mm | 419 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W97R93G180-CS2 | 1011 mm | 864 mm (34,02") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 439 mm | 1456 mm | 419 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R91G090-CD2 | 586 mm | 1034 mm (40,71") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1116 mm | 504 mm | -5÷45 (non condensing) °C | - |
|
| P-W98R91G090-CS2 | 586 mm | 1034 mm (40,71") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1116 mm | 504 mm | -5÷45 (non condensing) °C | - |
|
| P-W98R91G180-CD2 | 586 mm | 1034 mm (40,71") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1116 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R91G180-CS2 | 586 mm | 1034 mm (40,71") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1116 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R92G090-CD2 | 756 mm | 1034 mm (40,71") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1286 mm | 504 mm | -5÷45 (non condensing) °C | - |
|
| P-W98R92G090-CS2 | 756 mm | 1034 mm (40,71") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1286 mm | 504 mm | -5÷45 (non condensing) °C | - |
|
| P-W98R92G180-CD2 | 756 mm | 1034 mm (40,71") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1286 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R92G180-CS2 | 756 mm | 1034 mm (40,71") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1286 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R93G090-CD2 | 1011 mm | 1034 mm (40,71") | 90° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1541 mm | 504 mm | -5÷45 (non condensing) °C | - |
|
| P-W98R93G090-CS2 | 1011 mm | 1034 mm (40,71") | 90° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1541 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R93G180-CD2 | 1011 mm | 1034 mm (40,71") | 180° | PA - Glass Fiber Reinforced (28) | Right | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1541 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
| P-W98R93G180-CS2 | 1011 mm | 1034 mm (40,71") | 180° | PA - Glass Fiber Reinforced (28) | Left | 21000 N/m | Stainless steel | Grub Screw | Zero Contact PRO 2 Tracks | 524 mm | 1541 mm | 504 mm | -5÷45 (non condensing) °C | OPEN AREA 0% Color of modules: Dark Pigeon Blue (RAL 5017) These codes mean complete curve, except floor supports and gearmotor, if you need to include them please see the dedicated section. The gap between the two belts is always 6mm. |
|
