VVO-60

Round vacuum cups with one bellow

Diameter 60 mm, with support, vulcanised rubber

Enquire Now

VVO-60-T-A

Round vacuum cups with one bellow

Oil-proof rubber

VVO-60-T-N

Round vacuum cups with one bellow

Natural rubber

VVO-60-T-S

Round vacuum cups with one bellow

Silicone rubber

Description

Main specifications

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Support in anodised aluminium.

Standard executions

VVO-60-T-A: oil-proof rubber.

VVO-60-T-N: natural rubber.

VVO-60-T-S: silicone rubber.

General information

Features and applications

They are specifically indicated for picking up thin sheet metal or glass sheets.

The vacuum cup has a vulcanised treatment which makes it more resistant to abrasion and above all to traction forces, as well as allowing the rubber to degrade less easily following wear and making it more resistant to aggressive environmental agents.

The bellows configuration makes the vacuum cup suitable for different surfaces, even irregular ones, with imperfect flatness or inclined, allowing its use in different applications including the handling of wooden panels (chipboard or pressed) or plastic laminates.

The effective stroke of the bellows is 14 mm.

See Technical Data for vacuum cups.

VVO-60-T-A

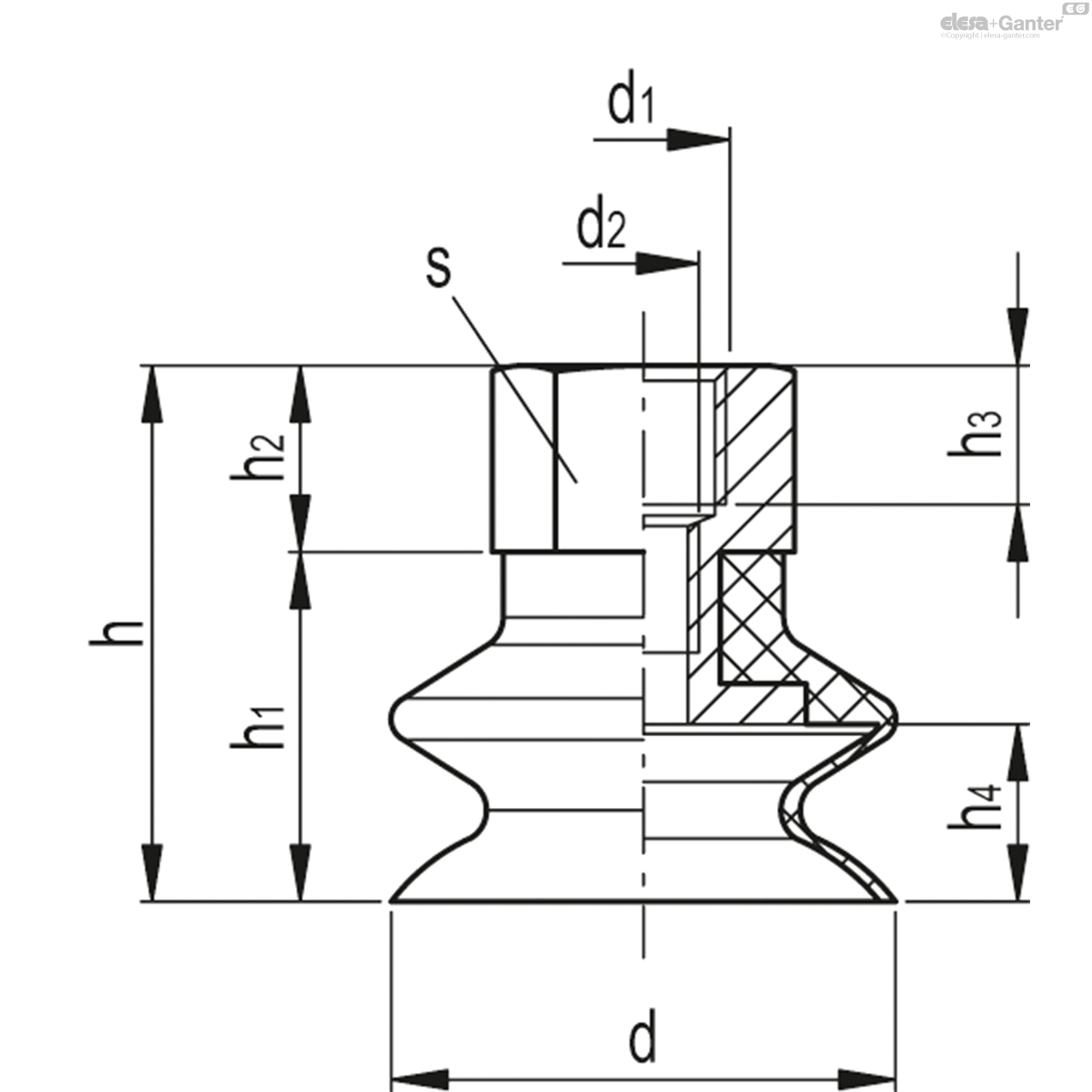

		d	d₁	d₂	h	h₁	h₂	h₃	h₄	s	F* [Kg]	Volume# [cm3]
Code	Description													Actions
VV.59007	VVO-60-G1/4-T-A	60	G1/4	M8	56	39	17	13	21	20	7	46.8	54
