Elliptical flat vacuum cups with one bellow - High Grip

With support, rubber

Enquire Now

Description

Main specifications

Material

Vacuum cup in hydrogenated nitrile rubber (HNBR).

Steel support.

General information

Features and applications

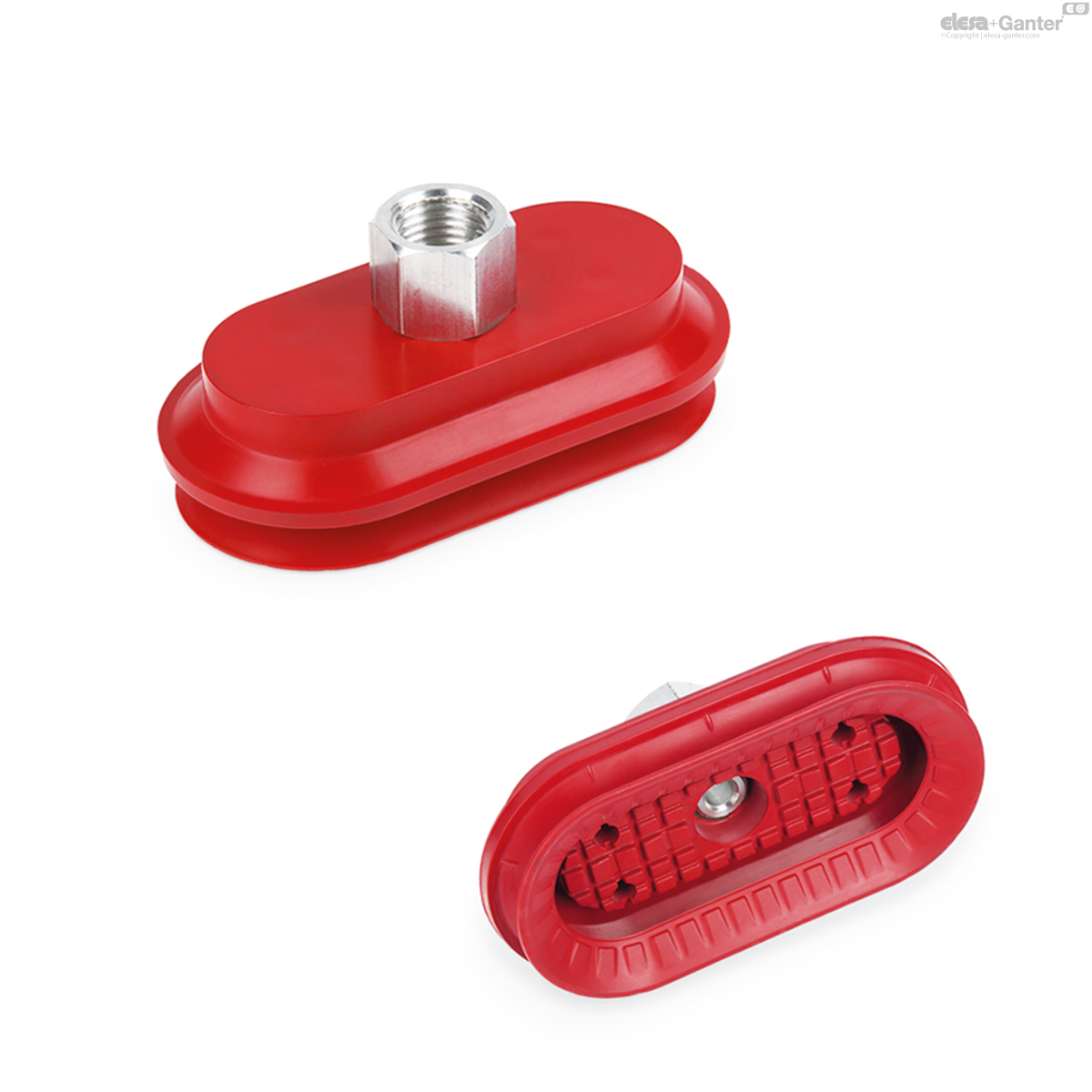

The elliptical shape makes them suitable for handling elongated products such as steel tubes, copper bars, or metal parts with irregular surfaces.

The bellows shape means that when in contact with the surface of the load the vacuum cup folds quickly on itself, lifting the load from the support surface.

The labyrinth moulded onto the support surface of the vacuum cup facilitates the drainage of liquids (oil, water), guaranteeing a high grip between the vacuum cup and the surface area of the product (metal, glass, or marble).

This feature guarantees a safe and stable grip on the product in all conditions.

Hardness 60÷75 Shore A;

Operating temperature between -40 e +170 °C;

Stain proof;

Excellent resistance to abrasion, water and drawing oils containing chlorine.

See Technical Data for vacuum cups.

VVE

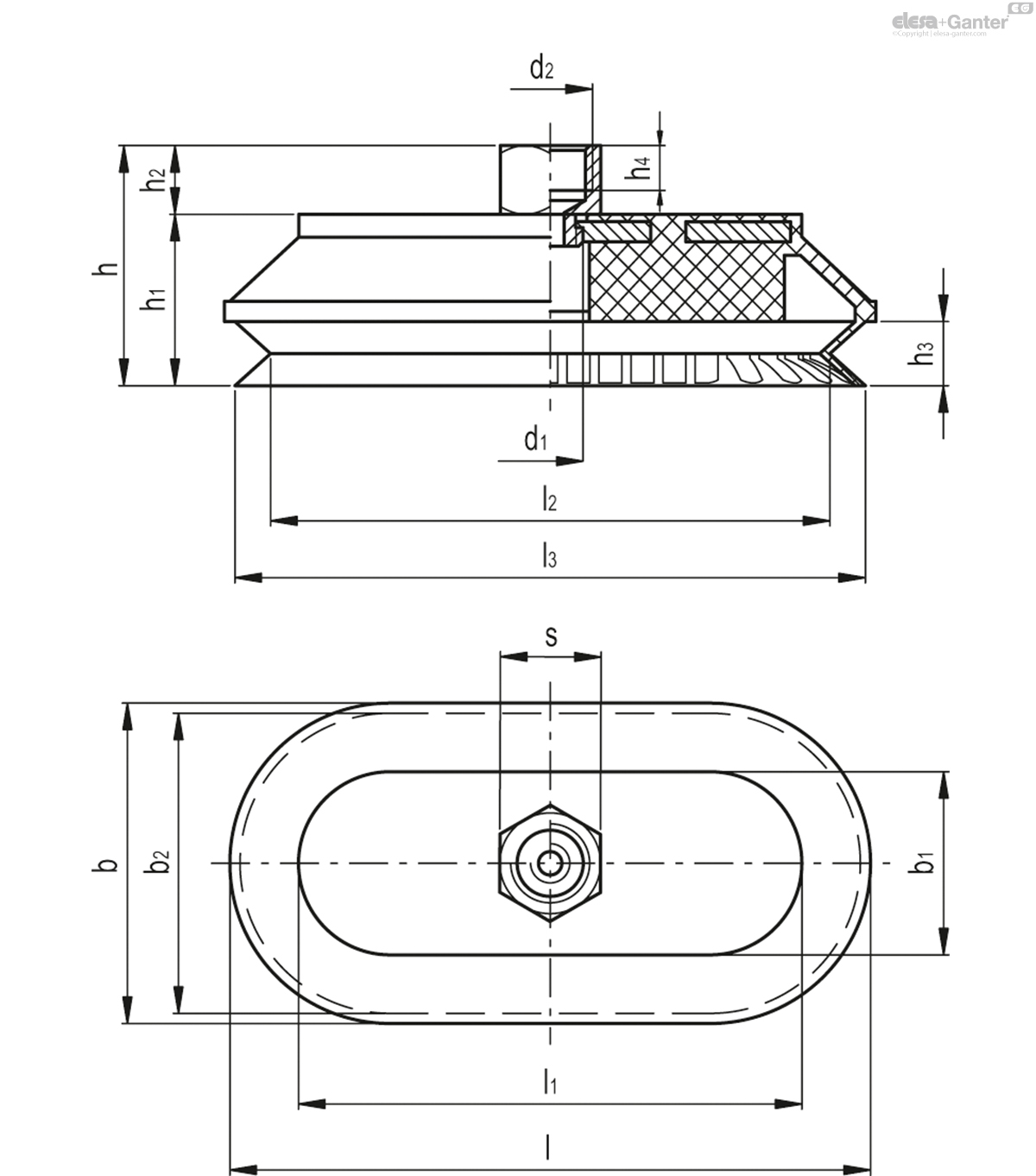

		d₁	d₂	h	h₁	h₂	h₃	h₄	b	b₁	b₂	l	l₁	l₂	l₃	s	F* [Kg]	Volume# [cm3]
Code	Description																			Actions
VV.49001	VVE-30-60-G1/4-B	G1/8	G1/4	35	21	14	7	10	33	20	30	63	50	44.5	60	17	4	12.6	50
VV.49002	VVE-40-80-G1/4-B	G1/8	G1/4	37	23	14	9	10	43	30	40	83	70	64	80	17	7.1	24.8	92
VV.49003	VVE-50-100-G3/8-B	G1/4	G3/8	44	29	15	13	10	53	30	50	103	80	79	100	17	11.1	57.6	126
VV.49004	VVE-70-140-G3/8-B	G1/4	G3/8	48	33	15	16.5	10	73	40	70	143	110	109	140	22	21.8	122.8	228
