VTT-C

Lobe knobs

with cap, technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Boss cap

CA.VCT: polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied.

Available also as accessory sold separately (see table).

Standard executions

VTT-C-B: brass boss, threaded pass-through hole.

VTT-C-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

The three-lobe shape with large recesses is particularly ergonomic also for smaller knobs, ensuring an effective grip even with work gloves.

Other executions

Special executions on request

Handwheels with stainless steel metal parts.

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

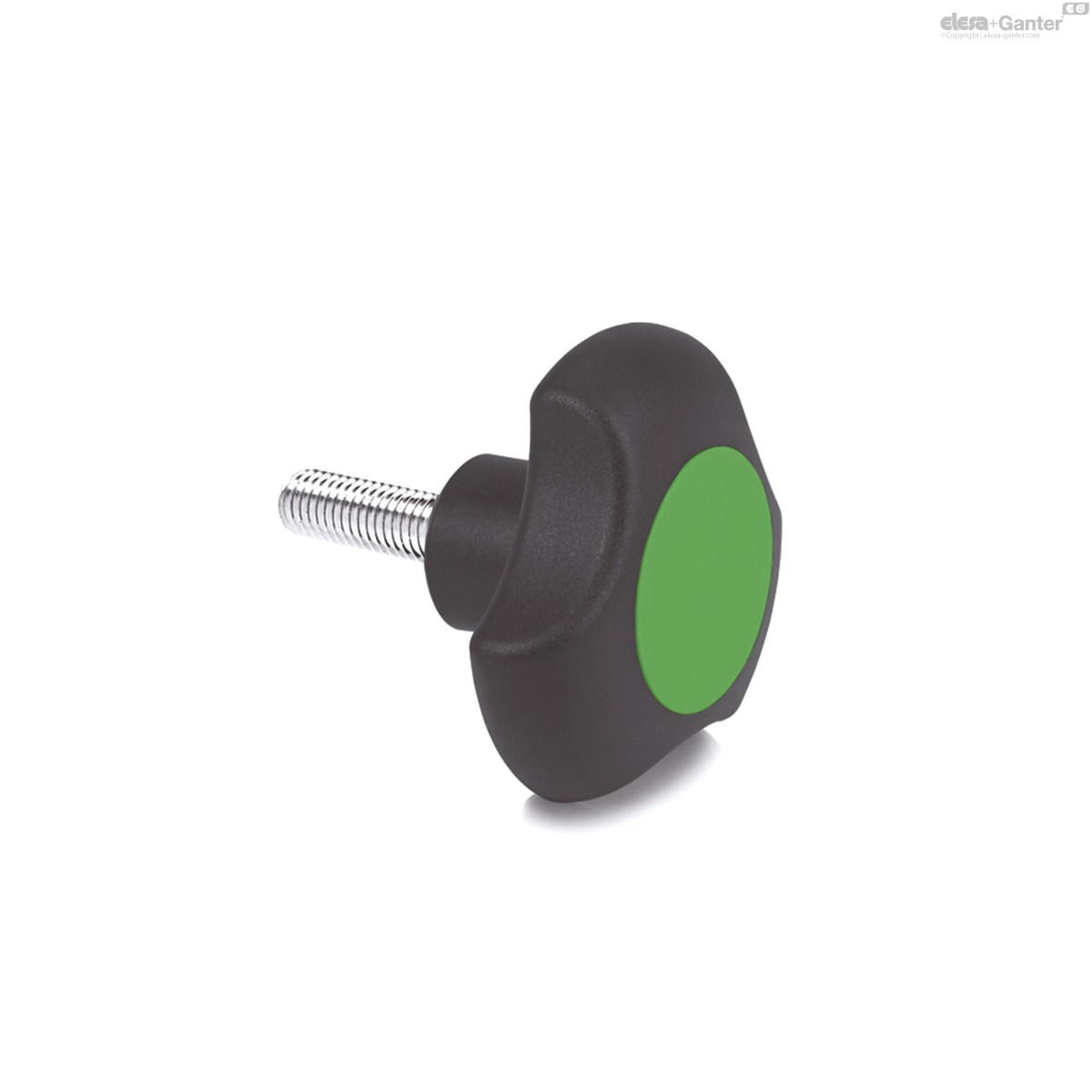

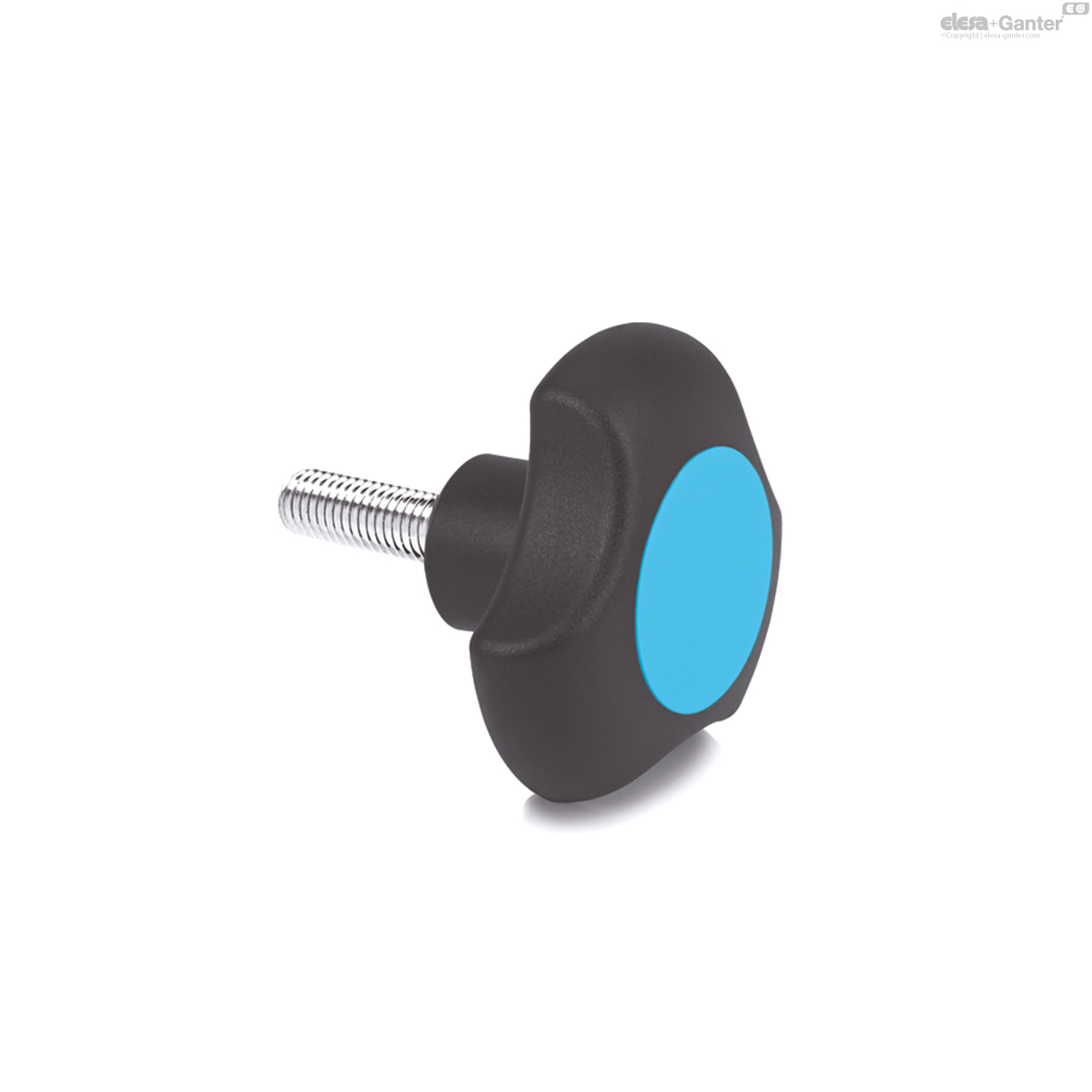

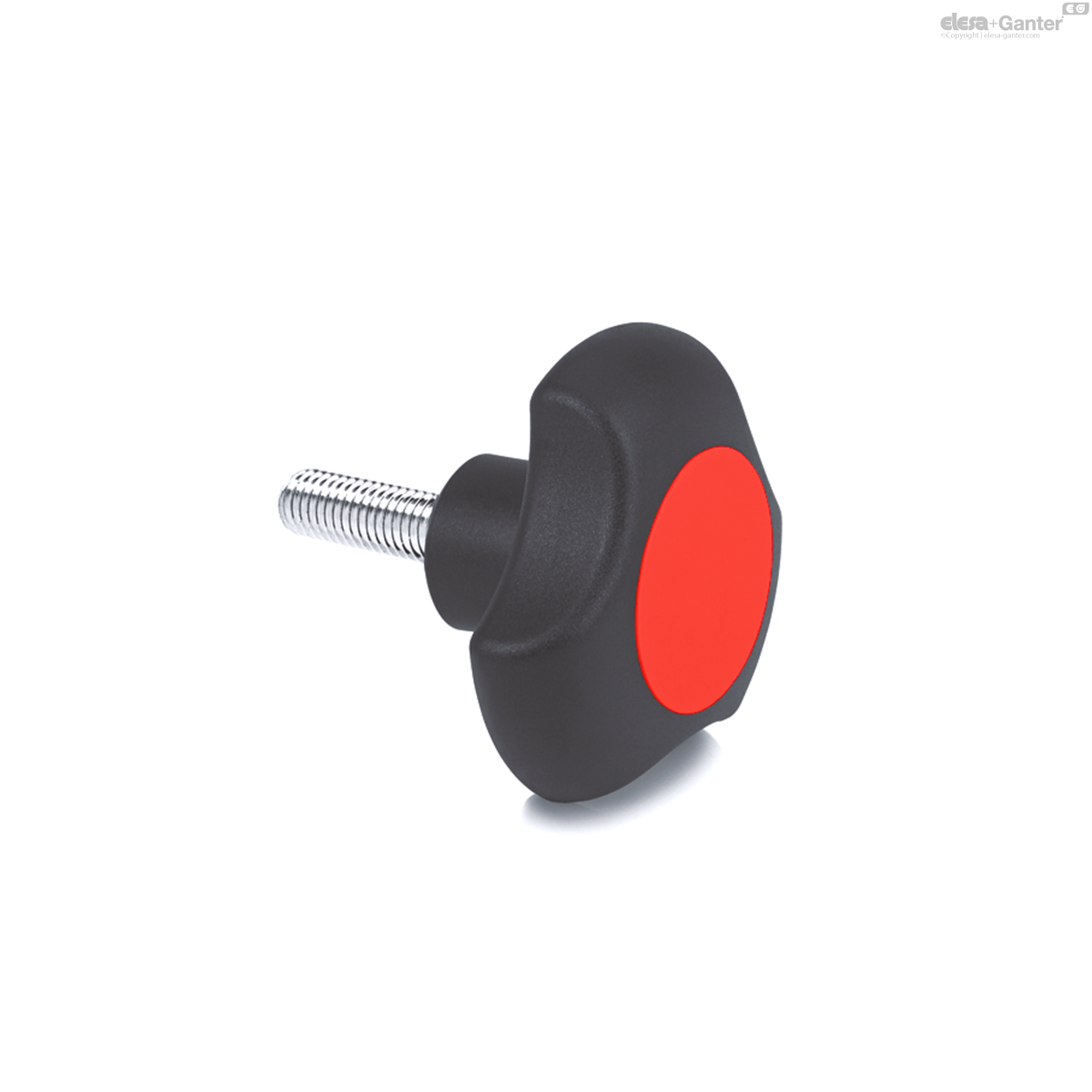

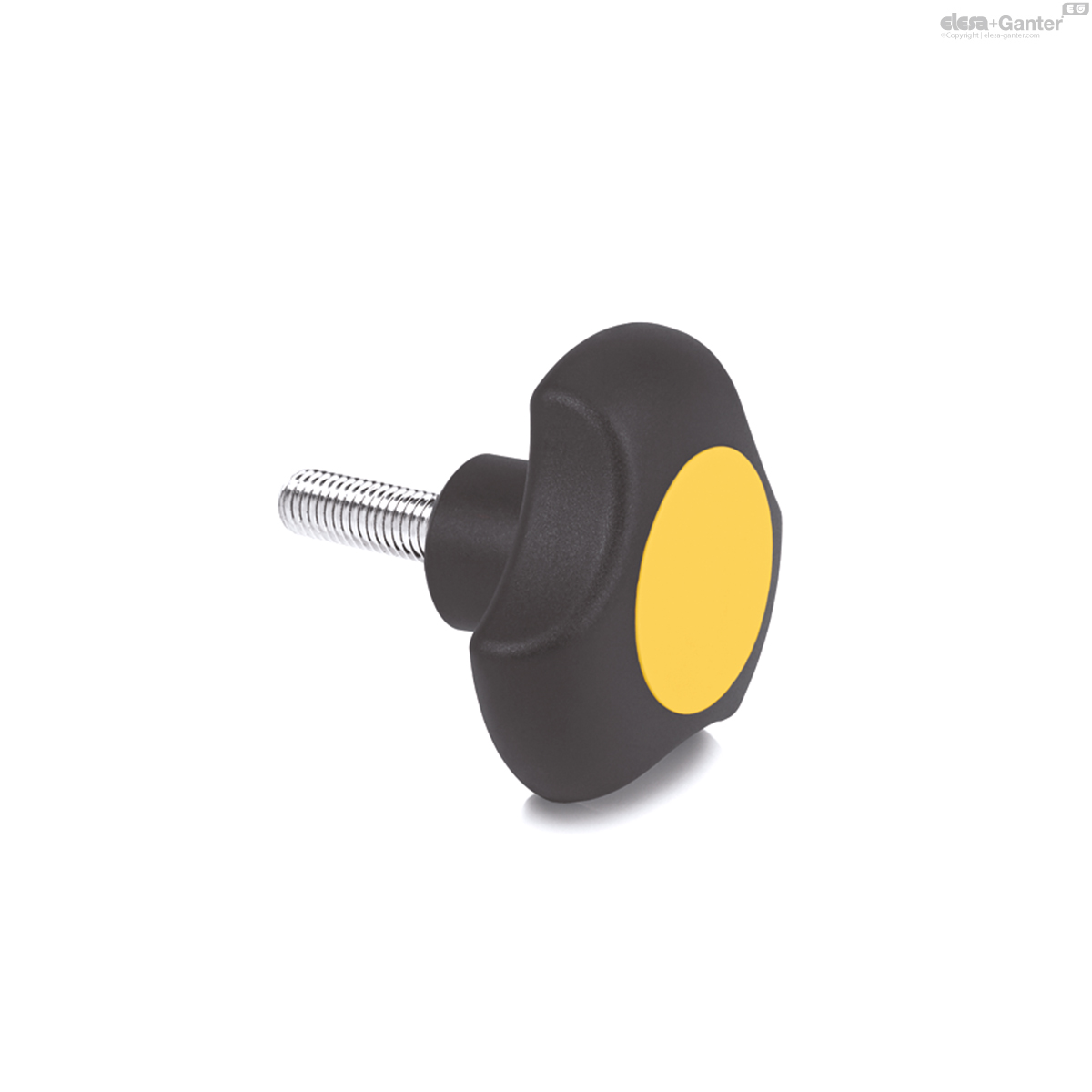

VTT-C-p

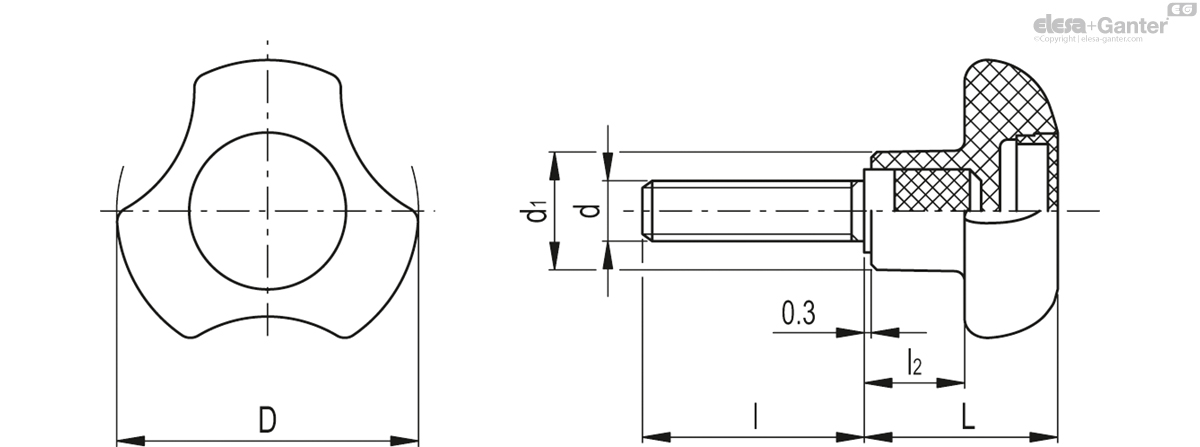

		Color	D	d_6g	L	d₁	l	l₂
Code	Description									Actions
167752-C2	VTT.32-C-p-M6x16-C2	C2 - RAL 2004	32	M6	22	14	16	11.5	17
167752-C3	VTT.32-C-p-M6x16-C3	C3 - RAL 7035	32	M6	22	14	16	11.5	17
167752-C4	VTT.32-C-p-M6x16-C4	C4 - RAL 1021	32	M6	22	14	16	11.5	17
167752-C5	VTT.32-C-p-M6x16-C5	C5 - RAL 5024	32	M6	22	14	16	11.5	17
167752-C6	VTT.32-C-p-M6x16-C6	C6 - RAL 3000	32	M6	22	14	16	11.5	17
167752-C17	VTT.32-C-p-M6x16-C17	C17 - RAL 6017	32	M6	22	14	16	11.5	16
167753-C2	VTT.32-C-p-M6x20-C2	C2 - RAL 2004	32	M6	22	14	20	11.5	18
167753-C3	VTT.32-C-p-M6x20-C3	C3 - RAL 7035	32	M6	22	14	20	11.5	18
167753-C4	VTT.32-C-p-M6x20-C4	C4 - RAL 1021	32	M6	22	14	20	11.5	18
167753-C5	VTT.32-C-p-M6x20-C5	C5 - RAL 5024	32	M6	22	14	20	11.5	18
167753-C6	VTT.32-C-p-M6x20-C6	C6 - RAL 3000	32	M6	22	14	20	11.5	18
167753-C17	VTT.32-C-p-M6x20-C17	C17 - RAL 6017	32	M6	22	14	20	11.5	18
167754-C2	VTT.32-C-p-M6x30-C2	C2 - RAL 2004	32	M6	22	14	30	11.5	20
167754-C3	VTT.32-C-p-M6x30-C3	C3 - RAL 7035	32	M6	22	14	30	11.5	20
167754-C4	VTT.32-C-p-M6x30-C4	C4 - RAL 1021	32	M6	22	14	30	11.5	20
167754-C5	VTT.32-C-p-M6x30-C5	C5 - RAL 5024	32	M6	22	14	30	11.5	20
167754-C6	VTT.32-C-p-M6x30-C6	C6 - RAL 3000	32	M6	22	14	30	11.5	20
167754-C17	VTT.32-C-p-M6x30-C17	C17 - RAL 6017	32	M6	22	14	30	11.5	20
167755-C2	VTT.32-C-p-M6x25-C2	C2 - RAL 2004	32	M6	22	14	25	11.5	18
167755-C3	VTT.32-C-p-M6x25-C3	C3 - RAL 7035	32	M6	22	14	25	11.5	18
167755-C4	VTT.32-C-p-M6x25-C4	C4 - RAL 1021	32	M6	22	14	25	11.5	18
167755-C5	VTT.32-C-p-M6x25-C5	C5 - RAL 5024	32	M6	22	14	25	11.5	18
167755-C6	VTT.32-C-p-M6x25-C6	C6 - RAL 3000	32	M6	22	14	25	11.5	18
167755-C17	VTT.32-C-p-M6x25-C17	C17 - RAL 6017	32	M6	22	14	25	11.5	18
167757-C2	VTT.32-C-p-M6x35-C2	C2 - RAL 2004	32	M6	22	14	35	11.5	18
167757-C3	VTT.32-C-p-M6x35-C3	C3 - RAL 7035	32	M6	22	14	35	11.5	18
167757-C4	VTT.32-C-p-M6x35-C4	C4 - RAL 1021	32	M6	22	14	35	11.5	18
167757-C5	VTT.32-C-p-M6x35-C5	C5 - RAL 5024	32	M6	22	14	35	11.5	18
167757-C6	VTT.32-C-p-M6x35-C6	C6 - RAL 3000	32	M6	22	14	35	11.5	18
167757-C17	VTT.32-C-p-M6x35-C17	C17 - RAL 6017	32	M6	22	14	35	11.5	18
167758-C2	VTT.32-C-p-M6x40-C2	C2 - RAL 2004	32	M6	22	14	40	11.5	18
167758-C3	VTT.32-C-p-M6x40-C3	C3 - RAL 7035	32	M6	22	14	40	11.5	18
167758-C4	VTT.32-C-p-M6x40-C4	C4 - RAL 1021	32	M6	22	14	40	11.5	18
167758-C5	VTT.32-C-p-M6x40-C5	C5 - RAL 5024	32	M6	22	14	40	11.5	18
167758-C6	VTT.32-C-p-M6x40-C6	C6 - RAL 3000	32	M6	22	14	40	11.5	18
167758-C17	VTT.32-C-p-M6x40-C17	C17 - RAL 6017	32	M6	22	14	40	11.5	18
167759-C2	VTT.32-C-p-M6x45-C2	C2 - RAL 2004	32	M6	22	14	45	11.5	20
167759-C3	VTT.32-C-p-M6x45-C3	C3 - RAL 7035	32	M6	22	14	45	11.5	20
167759-C4	VTT.32-C-p-M6x45-C4	C4 - RAL 1021	32	M6	22	14	45	11.5	20
167759-C5	VTT.32-C-p-M6x45-C5	C5 - RAL 5024	32	M6	22	14	45	11.5	20
167759-C6	VTT.32-C-p-M6x45-C6	C6 - RAL 3000	32	M6	22	14	45	11.5	20
167759-C17	VTT.32-C-p-M6x45-C17	C17 - RAL 6017	32	M6	22	14	45	11.5	20
167772-C2	VTT.32-C-p-M8x16-C2	C2 - RAL 2004	32	M8	22	14	16	11.5	18
167772-C3	VTT.32-C-p-M8x16-C3	C3 - RAL 7035	32	M8	22	14	16	11.5	18
167772-C4	VTT.32-C-p-M8x16-C4	C4 - RAL 1021	32	M8	22	14	16	11.5	18
167772-C5	VTT.32-C-p-M8x16-C5	C5 - RAL 5024	32	M8	22	14	16	11.5	18
167772-C6	VTT.32-C-p-M8x16-C6	C6 - RAL 3000	32	M8	22	14	16	11.5	18
167772-C17	VTT.32-C-p-M8x16-C17	C17 - RAL 6017	32	M8	22	14	16	11.5	18
167773-C2	VTT.32-C-p-M8x20-C2	C2 - RAL 2004	32	M8	22	14	20	11.5	18
167773-C3	VTT.32-C-p-M8x20-C3	C3 - RAL 7035	32	M8	22	14	20	11.5	18
167773-C4	VTT.32-C-p-M8x20-C4	C4 - RAL 1021	32	M8	22	14	20	11.5	18
167773-C5	VTT.32-C-p-M8x20-C5	C5 - RAL 5024	32	M8	22	14	20	11.5	18
167773-C6	VTT.32-C-p-M8x20-C6	C6 - RAL 3000	32	M8	22	14	20	11.5	18
167773-C17	VTT.32-C-p-M8x20-C17	C17 - RAL 6017	32	M8	22	14	20	11.5	18
167774-C2	VTT.32-C-p-M8x25-C2	C2 - RAL 2004	32	M8	22	14	25	11.5	18
167774-C3	VTT.32-C-p-M8x25-C3	C3 - RAL 7035	32	M8	22	14	25	11.5	18
167774-C4	VTT.32-C-p-M8x25-C4	C4 - RAL 1021	32	M8	22	14	25	11.5	18
167774-C5	VTT.32-C-p-M8x25-C5	C5 - RAL 5024	32	M8	22	14	25	11.5	18
167774-C6	VTT.32-C-p-M8x25-C6	C6 - RAL 3000	32	M8	22	14	25	11.5	18
167774-C17	VTT.32-C-p-M8x25-C17	C17 - RAL 6017	32	M8	22	14	25	11.5	18
167775-C2	VTT.32-C-p-M8x30-C2	C2 - RAL 2004	32	M8	22	14	30	11.5	18
167775-C3	VTT.32-C-p-M8x30-C3	C3 - RAL 7035	32	M8	22	14	30	11.5	18
167775-C4	VTT.32-C-p-M8x30-C4	C4 - RAL 1021	32	M8	22	14	30	11.5	18
167775-C5	VTT.32-C-p-M8x30-C5	C5 - RAL 5024	32	M8	22	14	30	11.5	18
167775-C6	VTT.32-C-p-M8x30-C6	C6 - RAL 3000	32	M8	22	14	30	11.5	18
167775-C17	VTT.32-C-p-M8x30-C17	C17 - RAL 6017	32	M8	22	14	30	11.5	18
167776-C2	VTT.32-C-p-M8x35-C2	C2 - RAL 2004	32	M8	22	14	35	11.5	18
167776-C3	VTT.32-C-p-M8x35-C3	C3 - RAL 7035	32	M8	22	14	35	11.5	18
167776-C4	VTT.32-C-p-M8x35-C4	C4 - RAL 1021	32	M8	22	14	35	11.5	18
167776-C5	VTT.32-C-p-M8x35-C5	C5 - RAL 5024	32	M8	22	14	35	11.5	18
167776-C6	VTT.32-C-p-M8x35-C6	C6 - RAL 3000	32	M8	22	14	35	11.5	18
167776-C17	VTT.32-C-p-M8x35-C17	C17 - RAL 6017	32	M8	22	14	35	11.5	18
167851-C2	VTT.40-C-p-M6x10-C2	C2 - RAL 2004	40	M6	25	16	10	13.5	30
167851-C3	VTT.40-C-p-M6x10-C3	C3 - RAL 7035	40	M6	25	16	10	13.5	30
167851-C4	VTT.40-C-p-M6x10-C4	C4 - RAL 1021	40	M6	25	16	10	13.5	30
167851-C5	VTT.40-C-p-M6x10-C5	C5 - RAL 5024	40	M6	25	16	10	13.5	30
167851-C6	VTT.40-C-p-M6x10-C6	C6 - RAL 3000	40	M6	25	16	10	13.5	30
167851-C17	VTT.40-C-p-M6x10-C17	C17 - RAL 6017	40	M6	25	16	10	13.5	30
167853-C2	VTT.40-C-p-M6x16-C2	C2 - RAL 2004	40	M6	25	16	16	13.5	30
167853-C3	VTT.40-C-p-M6x16-C3	C3 - RAL 7035	40	M6	25	16	16	13.5	30
167853-C4	VTT.40-C-p-M6x16-C4	C4 - RAL 1021	40	M6	25	16	16	13.5	30
167853-C5	VTT.40-C-p-M6x16-C5	C5 - RAL 5024	40	M6	25	16	16	13.5	30
167853-C6	VTT.40-C-p-M6x16-C6	C6 - RAL 3000	40	M6	25	16	16	13.5	30
167853-C17	VTT.40-C-p-M6x16-C17	C17 - RAL 6017	40	M6	25	16	16	13.5	30
167855-C2	VTT.40-C-p-M6x20-C2	C2 - RAL 2004	40	M6	25	16	20	13.5	30
167855-C3	VTT.40-C-p-M6x20-C3	C3 - RAL 7035	40	M6	25	16	20	13.5	30
167855-C4	VTT.40-C-p-M6x20-C4	C4 - RAL 1021	40	M6	25	16	20	13.5	30
167855-C5	VTT.40-C-p-M6x20-C5	C5 - RAL 5024	40	M6	25	16	20	13.5	30
167855-C6	VTT.40-C-p-M6x20-C6	C6 - RAL 3000	40	M6	25	16	20	13.5	30
167855-C17	VTT.40-C-p-M6x20-C17	C17 - RAL 6017	40	M6	25	16	20	13.5	30
167857-C2	VTT.40-C-p-M6x25-C2	C2 - RAL 2004	40	M6	25	16	25	13.5	30
167857-C3	VTT.40-C-p-M6x25-C3	C3 - RAL 7035	40	M6	25	16	25	13.5	30
167857-C4	VTT.40-C-p-M6x25-C4	C4 - RAL 1021	40	M6	25	16	25	13.5	30
167857-C5	VTT.40-C-p-M6x25-C5	C5 - RAL 5024	40	M6	25	16	25	13.5	30
167857-C6	VTT.40-C-p-M6x25-C6	C6 - RAL 3000	40	M6	25	16	25	13.5	30
167857-C17	VTT.40-C-p-M6x25-C17	C17 - RAL 6017	40	M6	25	16	25	13.5	30
167859-C2	VTT.40-C-p-M6x30-C2	C2 - RAL 2004	40	M6	25	16	30	13.5	30
167859-C3	VTT.40-C-p-M6x30-C3	C3 - RAL 7035	40	M6	25	16	30	13.5	30
167859-C4	VTT.40-C-p-M6x30-C4	C4 - RAL 1021	40	M6	25	16	30	13.5	30
167859-C5	VTT.40-C-p-M6x30-C5	C5 - RAL 5024	40	M6	25	16	30	13.5	30
167859-C6	VTT.40-C-p-M6x30-C6	C6 - RAL 3000	40	M6	25	16	30	13.5	30
167859-C17	VTT.40-C-p-M6x30-C17	C17 - RAL 6017	40	M6	25	16	30	13.5	30
167861-C2	VTT.40-C-p-M6x40-C2	C2 - RAL 2004	40	M6	25	16	40	13.5	30
167861-C3	VTT.40-C-p-M6x40-C3	C3 - RAL 7035	40	M6	25	16	40	13.5	30
167861-C4	VTT.40-C-p-M6x40-C4	C4 - RAL 1021	40	M6	25	16	40	13.5	30
167861-C5	VTT.40-C-p-M6x40-C5	C5 - RAL 5024	40	M6	25	16	40	13.5	30
167861-C6	VTT.40-C-p-M6x40-C6	C6 - RAL 3000	40	M6	25	16	40	13.5	30
167861-C17	VTT.40-C-p-M6x40-C17	C17 - RAL 6017	40	M6	25	16	40	13.5	30
167870-C2	VTT.40-C-p-M8x16-C2	C2 - RAL 2004	40	M8	25	16	16	13.5	30
167870-C3	VTT.40-C-p-M8x16-C3	C3 - RAL 7035	40	M8	25	16	16	13.5	30
167870-C4	VTT.40-C-p-M8x16-C4	C4 - RAL 1021	40	M8	25	16	16	13.5	30
167870-C5	VTT.40-C-p-M8x16-C5	C5 - RAL 5024	40	M8	25	16	16	13.5	30
167870-C6	VTT.40-C-p-M8x16-C6	C6 - RAL 3000	40	M8	25	16	16	13.5	30
167870-C17	VTT.40-C-p-M8x16-C17	C17 - RAL 6017	40	M8	25	16	16	13.5	30
167871-C2	VTT.40-C-p-M8x20-C2	C2 - RAL 2004	40	M8	25	16	20	13.5	30
167871-C3	VTT.40-C-p-M8x20-C3	C3 - RAL 7035	40	M8	25	16	20	13.5	30
167871-C4	VTT.40-C-p-M8x20-C4	C4 - RAL 1021	40	M8	25	16	20	13.5	30
167871-C5	VTT.40-C-p-M8x20-C5	C5 - RAL 5024	40	M8	25	16	20	13.5	30
167871-C6	VTT.40-C-p-M8x20-C6	C6 - RAL 3000	40	M8	25	16	20	13.5	30
167871-C17	VTT.40-C-p-M8x20-C17	C17 - RAL 6017	40	M8	25	16	20	13.5	30
167872-C2	VTT.40-C-p-M8x25-C2	C2 - RAL 2004	40	M8	25	16	25	13.5	30
167872-C3	VTT.40-C-p-M8x25-C3	C3 - RAL 7035	40	M8	25	16	25	13.5	30
167872-C4	VTT.40-C-p-M8x25-C4	C4 - RAL 1021	40	M8	25	16	25	13.5	30
167872-C5	VTT.40-C-p-M8x25-C5	C5 - RAL 5024	40	M8	25	16	25	13.5	30
167872-C6	VTT.40-C-p-M8x25-C6	C6 - RAL 3000	40	M8	25	16	25	13.5	30
167872-C17	VTT.40-C-p-M8x25-C17	C17 - RAL 6017	40	M8	25	16	25	13.5	30
167873-C2	VTT.40-C-p-M8x30-C2	C2 - RAL 2004	40	M8	25	16	30	13.5	30
167873-C3	VTT.40-C-p-M8x30-C3	C3 - RAL 7035	40	M8	25	16	30	13.5	30
167873-C4	VTT.40-C-p-M8x30-C4	C4 - RAL 1021	40	M8	25	16	30	13.5	30
167873-C5	VTT.40-C-p-M8x30-C5	C5 - RAL 5024	40	M8	25	16	30	13.5	30
167873-C6	VTT.40-C-p-M8x30-C6	C6 - RAL 3000	40	M8	25	16	30	13.5	30
167873-C17	VTT.40-C-p-M8x30-C17	C17 - RAL 6017	40	M8	25	16	30	13.5	30
167874-C2	VTT.40-C-p-M8x35-C2	C2 - RAL 2004	40	M8	25	16	35	13.5	30
167874-C3	VTT.40-C-p-M8x35-C3	C3 - RAL 7035	40	M8	25	16	35	13.5	30
167874-C4	VTT.40-C-p-M8x35-C4	C4 - RAL 1021	40	M8	25	16	35	13.5	30
167874-C5	VTT.40-C-p-M8x35-C5	C5 - RAL 5024	40	M8	25	16	35	13.5	30
167874-C6	VTT.40-C-p-M8x35-C6	C6 - RAL 3000	40	M8	25	16	35	13.5	30
167874-C17	VTT.40-C-p-M8x35-C17	C17 - RAL 6017	40	M8	25	16	35	13.5	30
167875-C2	VTT.40-C-p-M8x40-C2	C2 - RAL 2004	40	M8	25	16	40	13.5	30
167875-C3	VTT.40-C-p-M8x40-C3	C3 - RAL 7035	40	M8	25	16	40	13.5	30
167875-C4	VTT.40-C-p-M8x40-C4	C4 - RAL 1021	40	M8	25	16	40	13.5	30
167875-C5	VTT.40-C-p-M8x40-C5	C5 - RAL 5024	40	M8	25	16	40	13.5	30
167875-C6	VTT.40-C-p-M8x40-C6	C6 - RAL 3000	40	M8	25	16	40	13.5	30
167875-C17	VTT.40-C-p-M8x40-C17	C17 - RAL 6017	40	M8	25	16	40	13.5	30
167877-C2	VTT.40-C-p-M8x50-C2	C2 - RAL 2004	40	M8	25	16	50	13.5	30
167877-C3	VTT.40-C-p-M8x50-C3	C3 - RAL 7035	40	M8	25	16	50	13.5	30
167877-C4	VTT.40-C-p-M8x50-C4	C4 - RAL 1021	40	M8	25	16	50	13.5	30
167877-C5	VTT.40-C-p-M8x50-C5	C5 - RAL 5024	40	M8	25	16	50	13.5	30
167877-C6	VTT.40-C-p-M8x50-C6	C6 - RAL 3000	40	M8	25	16	50	13.5	30
167877-C17	VTT.40-C-p-M8x50-C17	C17 - RAL 6017	40	M8	25	16	50	13.5	30
167878-C2	VTT.40-C-p-M8x60-C2	C2 - RAL 2004	40	M8	25	16	60	13.5	30
167878-C3	VTT.40-C-p-M8x60-C3	C3 - RAL 7035	40	M8	25	16	60	13.5	30
167878-C4	VTT.40-C-p-M8x60-C4	C4 - RAL 1021	40	M8	25	16	60	13.5	30
167878-C5	VTT.40-C-p-M8x60-C5	C5 - RAL 5024	40	M8	25	16	60	13.5	30
167878-C6	VTT.40-C-p-M8x60-C6	C6 - RAL 3000	40	M8	25	16	60	13.5	30
167878-C17	VTT.40-C-p-M8x60-C17	C17 - RAL 6017	40	M8	25	16	60	13.5	30
167879-C2	VTT.40-C-p-M8x70-C2	C2 - RAL 2004	40	M8	25	16	70	13.5	30
167879-C3	VTT.40-C-p-M8x70-C3	C3 - RAL 7035	40	M8	25	16	70	13.5	30
167879-C4	VTT.40-C-p-M8x70-C4	C4 - RAL 1021	40	M8	25	16	70	13.5	30
167879-C5	VTT.40-C-p-M8x70-C5	C5 - RAL 5024	40	M8	25	16	70	13.5	30
167879-C6	VTT.40-C-p-M8x70-C6	C6 - RAL 3000	40	M8	25	16	70	13.5	30
167879-C17	VTT.40-C-p-M8x70-C17	C17 - RAL 6017	40	M8	25	16	70	13.5	30
167880-C2	VTT.40-C-p-M8x55-C2	C2 - RAL 2004	40	M8	25	16	55	13.5	30
167880-C3	VTT.40-C-p-M8x55-C3	C3 - RAL 7035	40	M8	25	16	55	13.5	30
167880-C4	VTT.40-C-p-M8x55-C4	C4 - RAL 1021	40	M8	25	16	55	13.5	30
167880-C5	VTT.40-C-p-M8x55-C5	C5 - RAL 5024	40	M8	25	16	55	13.5	30
167880-C6	VTT.40-C-p-M8x55-C6	C6 - RAL 3000	40	M8	25	16	55	13.5	30
167880-C17	VTT.40-C-p-M8x55-C17	C17 - RAL 6017	40	M8	25	16	55	13.5	30
167941-C2	VTT.50-C-p-M8x16-C2	C2 - RAL 2004	50	M8	29	19	16	15	53
167941-C3	VTT.50-C-p-M8x16-C3	C3 - RAL 7035	50	M8	29	19	16	15	53
167941-C4	VTT.50-C-p-M8x16-C4	C4 - RAL 1021	50	M8	29	19	16	15	53
167941-C5	VTT.50-C-p-M8x16-C5	C5 - RAL 5024	50	M8	29	19	16	15	53
167941-C6	VTT.50-C-p-M8x16-C6	C6 - RAL 3000	50	M8	29	19	16	15	53
167941-C17	VTT.50-C-p-M8x16-C17	C17 - RAL 6017	50	M8	29	19	16	15	53
167943-C2	VTT.50-C-p-M8x20-C2	C2 - RAL 2004	50	M8	29	19	20	15	53
167943-C3	VTT.50-C-p-M8x20-C3	C3 - RAL 7035	50	M8	29	19	20	15	53
167943-C4	VTT.50-C-p-M8x20-C4	C4 - RAL 1021	50	M8	29	19	20	15	53
167943-C5	VTT.50-C-p-M8x20-C5	C5 - RAL 5024	50	M8	29	19	20	15	53
167943-C6	VTT.50-C-p-M8x20-C6	C6 - RAL 3000	50	M8	29	19	20	15	53
167943-C17	VTT.50-C-p-M8x20-C17	C17 - RAL 6017	50	M8	29	19	20	15	53
167945-C2	VTT.50-C-p-M8x25-C2	C2 - RAL 2004	50	M8	29	19	25	15	53
167945-C3	VTT.50-C-p-M8x25-C3	C3 - RAL 7035	50	M8	29	19	25	15	53
167945-C4	VTT.50-C-p-M8x25-C4	C4 - RAL 1021	50	M8	29	19	25	15	53
167945-C5	VTT.50-C-p-M8x25-C5	C5 - RAL 5024	50	M8	29	19	25	15	53
167945-C6	VTT.50-C-p-M8x25-C6	C6 - RAL 3000	50	M8	29	19	25	15	53
167945-C17	VTT.50-C-p-M8x25-C17	C17 - RAL 6017	50	M8	29	19	25	15	53
167947-C2	VTT.50-C-p-M8x30-C2	C2 - RAL 2004	50	M8	29	19	30	15	53
167947-C3	VTT.50-C-p-M8x30-C3	C3 - RAL 7035	50	M8	29	19	30	15	53
167947-C4	VTT.50-C-p-M8x30-C4	C4 - RAL 1021	50	M8	29	19	30	15	53
167947-C5	VTT.50-C-p-M8x30-C5	C5 - RAL 5024	50	M8	29	19	30	15	53
167947-C6	VTT.50-C-p-M8x30-C6	C6 - RAL 3000	50	M8	29	19	30	15	53
167947-C17	VTT.50-C-p-M8x30-C17	C17 - RAL 6017	50	M8	29	19	30	15	53
167949-C2	VTT.50-C-p-M8x40-C2	C2 - RAL 2004	50	M8	29	19	40	15	53
167949-C3	VTT.50-C-p-M8x40-C3	C3 - RAL 7035	50	M8	29	19	40	15	53
167949-C4	VTT.50-C-p-M8x40-C4	C4 - RAL 1021	50	M8	29	19	40	15	53
167949-C5	VTT.50-C-p-M8x40-C5	C5 - RAL 5024	50	M8	29	19	40	15	53
167949-C6	VTT.50-C-p-M8x40-C6	C6 - RAL 3000	50	M8	29	19	40	15	53
167949-C17	VTT.50-C-p-M8x40-C17	C17 - RAL 6017	50	M8	29	19	40	15	53
167951-C2	VTT.50-C-p-M8x45-C2	C2 - RAL 2004	50	M8	29	19	45	15	53
167951-C3	VTT.50-C-p-M8x45-C3	C3 - RAL 7035	50	M8	29	19	45	15	53
167951-C4	VTT.50-C-p-M8x45-C4	C4 - RAL 1021	50	M8	29	19	45	15	53
167951-C5	VTT.50-C-p-M8x45-C5	C5 - RAL 5024	50	M8	29	19	45	15	53
167951-C6	VTT.50-C-p-M8x45-C6	C6 - RAL 3000	50	M8	29	19	45	15	53
167951-C17	VTT.50-C-p-M8x45-C17	C17 - RAL 6017	50	M8	29	19	45	15	53
167953-C2	VTT.50-C-p-M8x50-C2	C2 - RAL 2004	50	M8	29	19	50	15	53
167953-C3	VTT.50-C-p-M8x50-C3	C3 - RAL 7035	50	M8	29	19	50	15	53
167953-C4	VTT.50-C-p-M8x50-C4	C4 - RAL 1021	50	M8	29	19	50	15	53
167953-C5	VTT.50-C-p-M8x50-C5	C5 - RAL 5024	50	M8	29	19	50	15	53
167953-C6	VTT.50-C-p-M8x50-C6	C6 - RAL 3000	50	M8	29	19	50	15	53
167953-C17	VTT.50-C-p-M8x50-C17	C17 - RAL 6017	50	M8	29	19	50	15	53
167955-C2	VTT.50-C-p-M8x60-C2	C2 - RAL 2004	50	M8	29	19	60	15	53
167955-C3	VTT.50-C-p-M8x60-C3	C3 - RAL 7035	50	M8	29	19	60	15	53
167955-C4	VTT.50-C-p-M8x60-C4	C4 - RAL 1021	50	M8	29	19	60	15	53
167955-C5	VTT.50-C-p-M8x60-C5	C5 - RAL 5024	50	M8	29	19	60	15	53
167955-C6	VTT.50-C-p-M8x60-C6	C6 - RAL 3000	50	M8	29	19	60	15	53
167955-C17	VTT.50-C-p-M8x60-C17	C17 - RAL 6017	50	M8	29	19	60	15	53
167981-C2	VTT.50-C-p-M10x20-C2	C2 - RAL 2004	50	M10	29	19	20	15	53
167981-C3	VTT.50-C-p-M10x20-C3	C3 - RAL 7035	50	M10	29	19	20	15	53
167981-C4	VTT.50-C-p-M10x20-C4	C4 - RAL 1021	50	M10	29	19	20	15	53
167981-C5	VTT.50-C-p-M10x20-C5	C5 - RAL 5024	50	M10	29	19	20	15	53
167981-C6	VTT.50-C-p-M10x20-C6	C6 - RAL 3000	50	M10	29	19	20	15	53
167981-C17	VTT.50-C-p-M10x20-C17	C17 - RAL 6017	50	M10	29	19	20	15	53
167982-C2	VTT.50-C-p-M10x25-C2	C2 - RAL 2004	50	M10	29	19	25	15	53
167982-C3	VTT.50-C-p-M10x25-C3	C3 - RAL 7035	50	M10	29	19	25	15	53
167982-C4	VTT.50-C-p-M10x25-C4	C4 - RAL 1021	50	M10	29	19	25	15	53
167982-C5	VTT.50-C-p-M10x25-C5	C5 - RAL 5024	50	M10	29	19	25	15	53
167982-C6	VTT.50-C-p-M10x25-C6	C6 - RAL 3000	50	M10	29	19	25	15	53
167982-C17	VTT.50-C-p-M10x25-C17	C17 - RAL 6017	50	M10	29	19	25	15	53
167983-C2	VTT.50-C-p-M10x30-C2	C2 - RAL 2004	50	M10	29	19	30	15	63
167983-C3	VTT.50-C-p-M10x30-C3	C3 - RAL 7035	50	M10	29	19	30	15	63
167983-C4	VTT.50-C-p-M10x30-C4	C4 - RAL 1021	50	M10	29	19	30	15	63
167983-C5	VTT.50-C-p-M10x30-C5	C5 - RAL 5024	50	M10	29	19	30	15	63
167983-C6	VTT.50-C-p-M10x30-C6	C6 - RAL 3000	50	M10	29	19	30	15	63
167983-C17	VTT.50-C-p-M10x30-C17	C17 - RAL 6017	50	M10	29	19	30	15	63
167984-C2	VTT.50-C-p-M10x35-C2	C2 - RAL 2004	50	M10	29	19	35	15	73
167984-C3	VTT.50-C-p-M10x35-C3	C3 - RAL 7035	50	M10	29	19	35	15	73
167984-C4	VTT.50-C-p-M10x35-C4	C4 - RAL 1021	50	M10	29	19	35	15	73
167984-C5	VTT.50-C-p-M10x35-C5	C5 - RAL 5024	50	M10	29	19	35	15	73
167984-C6	VTT.50-C-p-M10x35-C6	C6 - RAL 3000	50	M10	29	19	35	15	73
167984-C17	VTT.50-C-p-M10x35-C17	C17 - RAL 6017	50	M10	29	19	35	15	73
167985-C2	VTT.50-C-p-M10x40-C2	C2 - RAL 2004	50	M10	29	19	40	15	63
167985-C3	VTT.50-C-p-M10x40-C3	C3 - RAL 7035	50	M10	29	19	40	15	63
167985-C4	VTT.50-C-p-M10x40-C4	C4 - RAL 1021	50	M10	29	19	40	15	63
167985-C5	VTT.50-C-p-M10x40-C5	C5 - RAL 5024	50	M10	29	19	40	15	63
167985-C6	VTT.50-C-p-M10x40-C6	C6 - RAL 3000	50	M10	29	19	40	15	63
167985-C17	VTT.50-C-p-M10x40-C17	C17 - RAL 6017	50	M10	29	19	40	15	63
167986-C2	VTT.50-C-p-M10x45-C2	C2 - RAL 2004	50	M10	29	19	45	15	70
167986-C3	VTT.50-C-p-M10x45-C3	C3 - RAL 7035	50	M10	29	19	45	15	70
167986-C4	VTT.50-C-p-M10x45-C4	C4 - RAL 1021	50	M10	29	19	45	15	70
167986-C5	VTT.50-C-p-M10x45-C5	C5 - RAL 5024	50	M10	29	19	45	15	70
167986-C6	VTT.50-C-p-M10x45-C6	C6 - RAL 3000	50	M10	29	19	45	15	70
167986-C17	VTT.50-C-p-M10x45-C17	C17 - RAL 6017	50	M10	29	19	45	15	70
167988-C2	VTT.50-C-p-M10x55-C2	C2 - RAL 2004	50	M10	29	19	55	15	72
167988-C3	VTT.50-C-p-M10x55-C3	C3 - RAL 7035	50	M10	29	19	55	15	72
167988-C4	VTT.50-C-p-M10x55-C4	C4 - RAL 1021	50	M10	29	19	55	15	72
167988-C5	VTT.50-C-p-M10x55-C5	C5 - RAL 5024	50	M10	29	19	55	15	72
167988-C6	VTT.50-C-p-M10x55-C6	C6 - RAL 3000	50	M10	29	19	55	15	72
167988-C17	VTT.50-C-p-M10x55-C17	C17 - RAL 6017	50	M10	29	19	55	15	72

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
