VTT-C

Lobe knobs

with cap, technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Boss cap

CA.VCT: polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied.

Available also as accessory sold separately (see table).

Standard executions

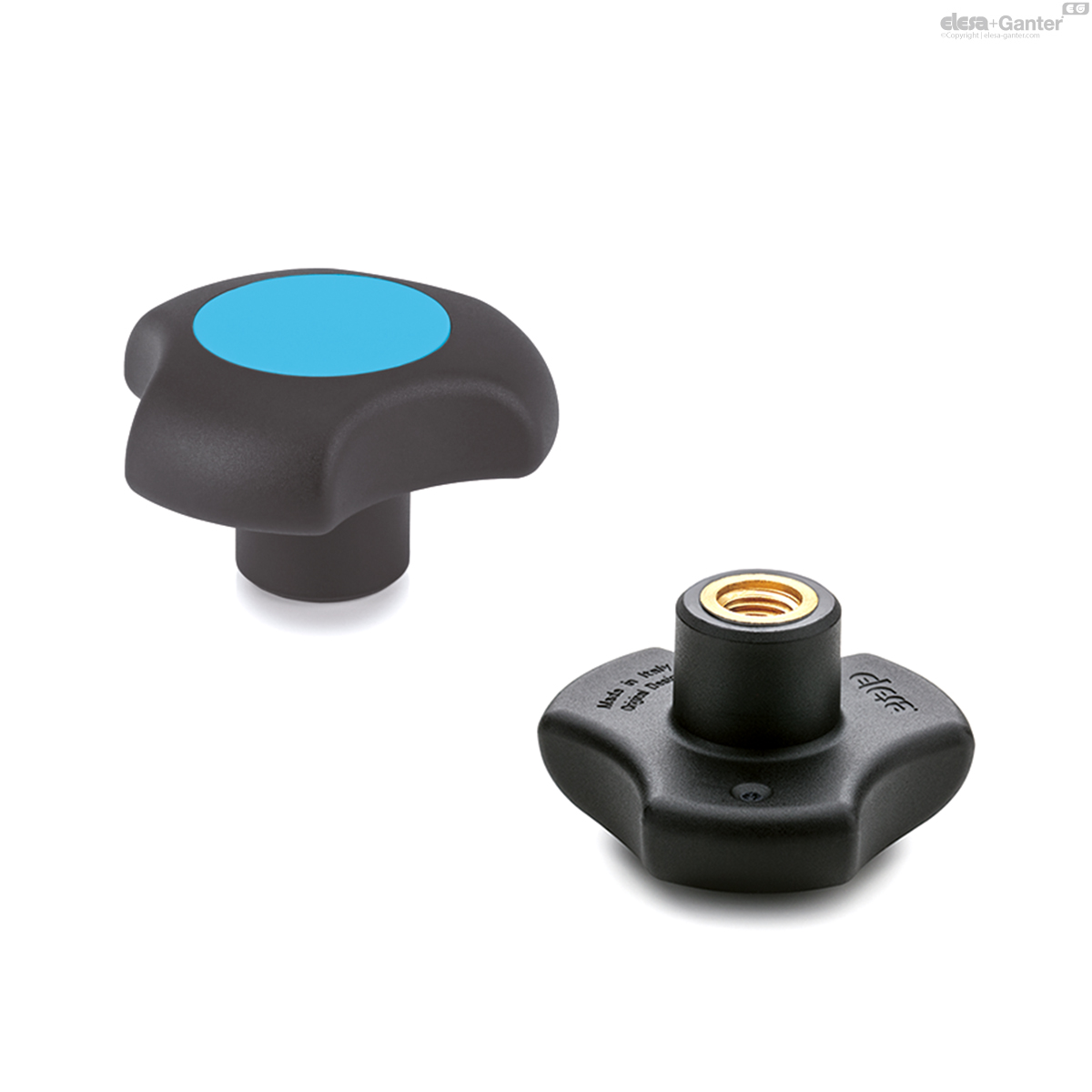

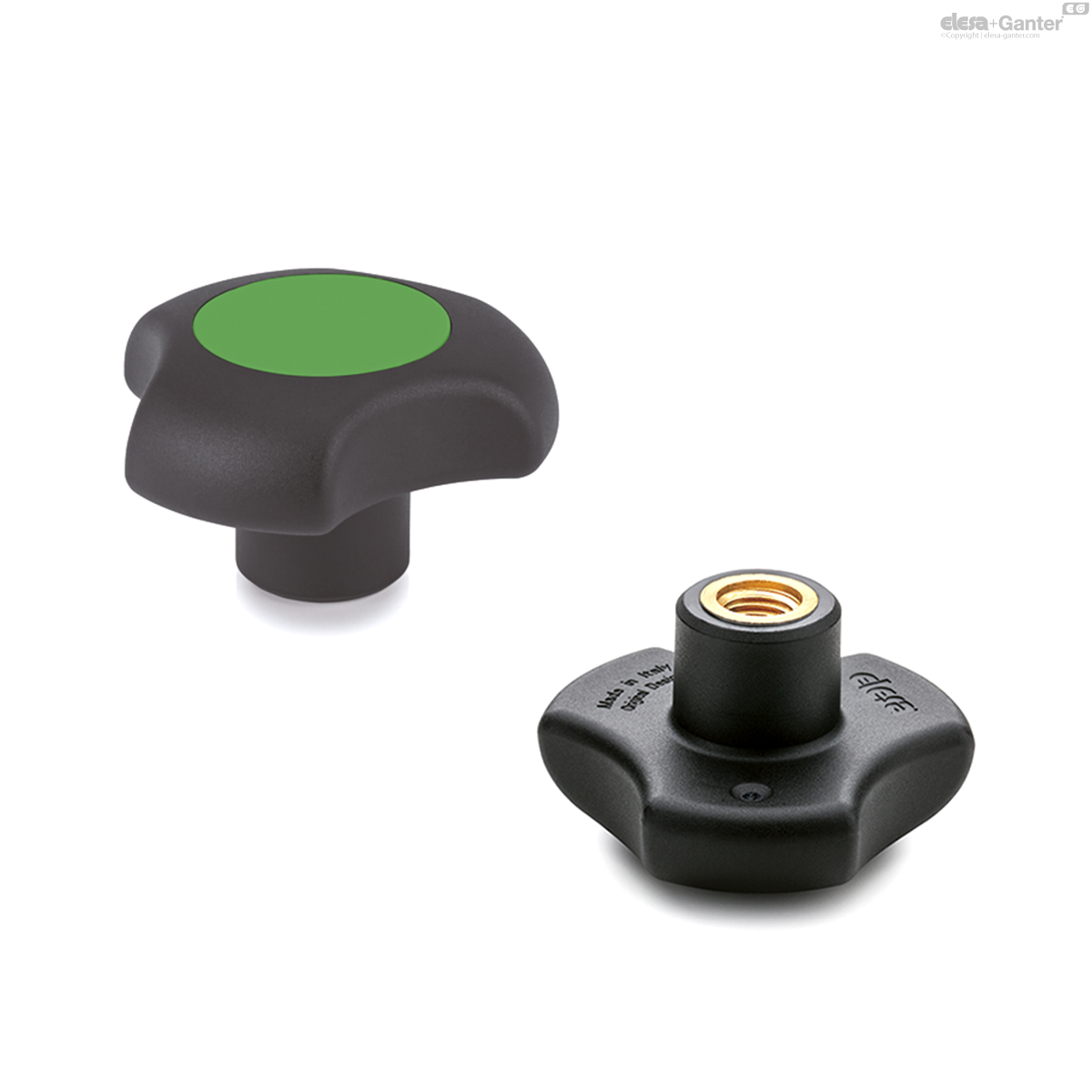

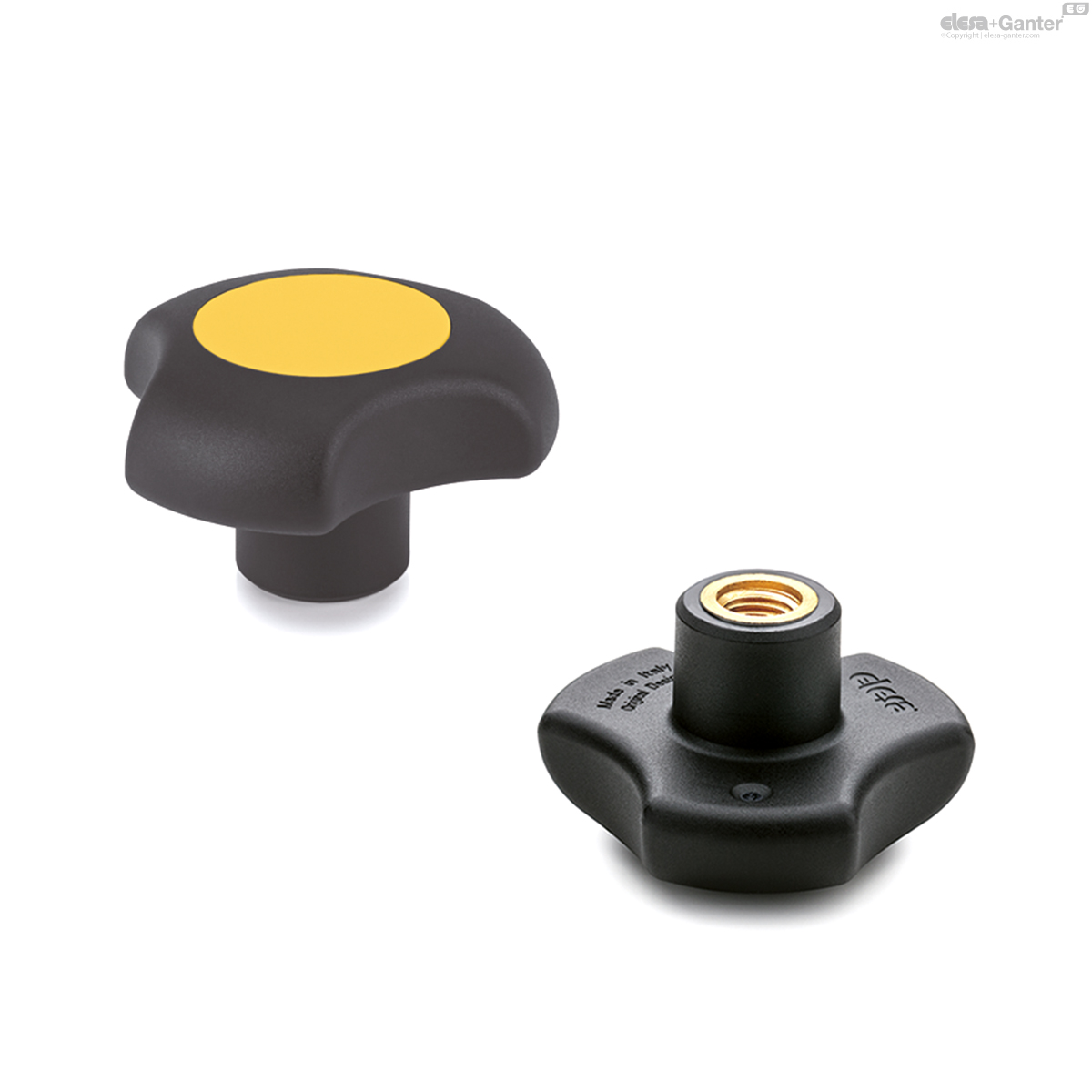

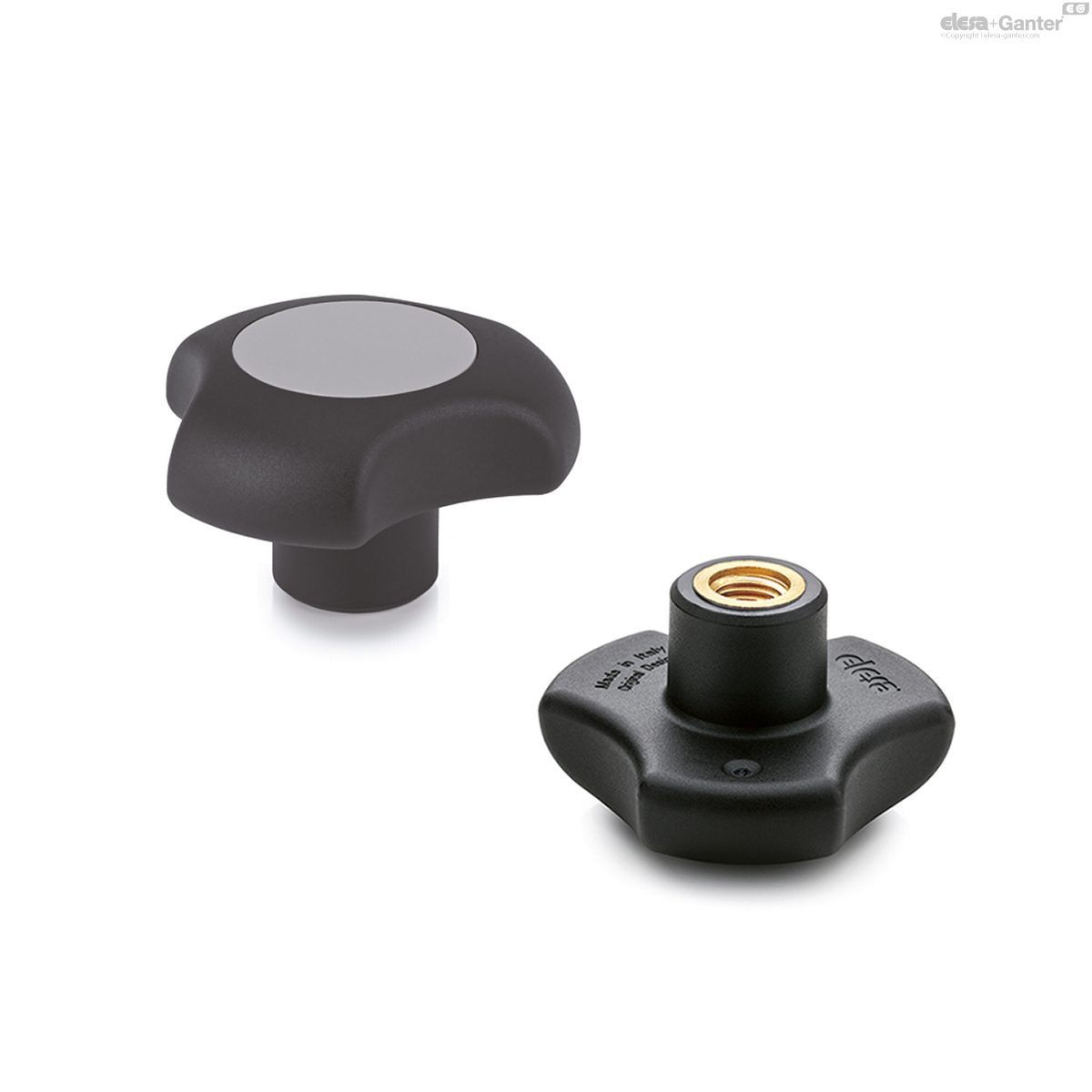

VTT-C-B: brass boss, threaded pass-through hole.

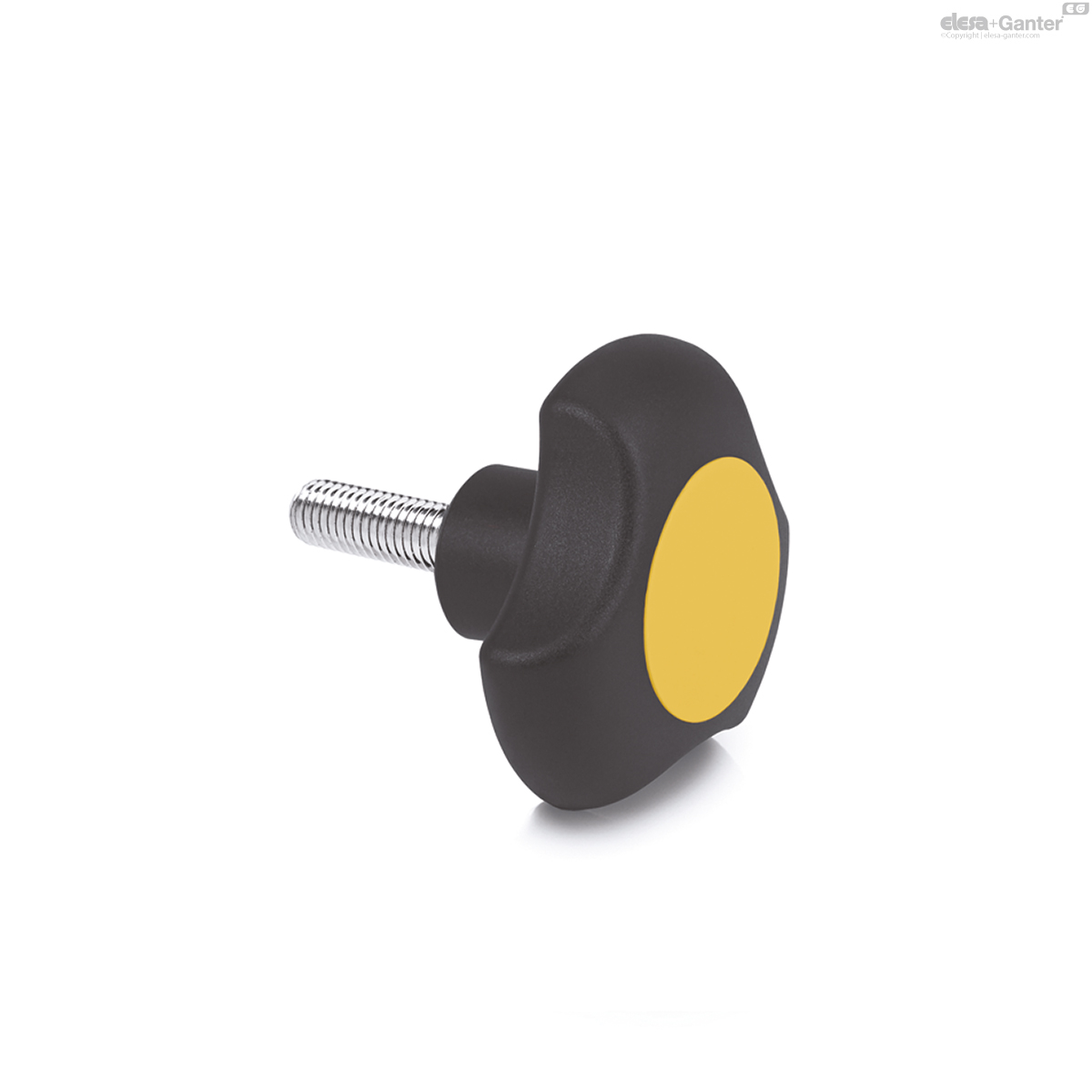

VTT-C-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

The three-lobe shape with large recesses is particularly ergonomic also for smaller knobs, ensuring an effective grip even with work gloves.

Other executions

Special executions on request

Handwheels with stainless steel metal parts.

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

VTT-C-B

		Color	D	d_6H	L	d₁	l₂	h
Code	Description									Actions
167716-C2	VTT.32-C-B-M6-C2	C2 - RAL 2004	32	M6	22	14	11.5	14	15
167716-C3	VTT.32-C-B-M6-C3	C3 - RAL 7035	32	M6	22	14	11.5	14	15
167716-C4	VTT.32-C-B-M6-C4	C4 - RAL 1021	32	M6	22	14	11.5	14	15
167716-C5	VTT.32-C-B-M6-C5	C5 - RAL 5024	32	M6	22	14	11.5	14	15
167716-C6	VTT.32-C-B-M6-C6	C6 - RAL 3000	32	M6	22	14	11.5	14	15
167716-C17	VTT.32-C-B-M6-C17	C17 - RAL 6017	32	M6	22	14	11.5	14	15
167717-C2	VTT.32-C-B-M8-C2	C2 - RAL 2004	32	M8	22	14	11.5	14	15
167717-C3	VTT.32-C-B-M8-C3	C3 - RAL 7035	32	M8	22	14	11.5	14	15
167717-C4	VTT.32-C-B-M8-C4	C4 - RAL 1021	32	M8	22	14	11.5	14	15
167717-C5	VTT.32-C-B-M8-C5	C5 - RAL 5024	32	M8	22	14	11.5	14	15
167717-C6	VTT.32-C-B-M8-C6	C6 - RAL 3000	32	M8	22	14	11.5	14	15
167717-C17	VTT.32-C-B-M8-C17	C17 - RAL 6017	32	M8	22	14	11.5	14	15
167835-C2	VTT.40-C-B-M6-C2	C2 - RAL 2004	40	M6	25	16	13.5	18	24
167835-C3	VTT.40-C-B-M6-C3	C3 - RAL 7035	40	M6	25	16	13.5	18	24
167835-C4	VTT.40-C-B-M6-C4	C4 - RAL 1021	40	M6	25	16	13.5	18	24
167835-C5	VTT.40-C-B-M6-C5	C5 - RAL 5024	40	M6	25	16	13.5	18	24
167835-C6	VTT.40-C-B-M6-C6	C6 - RAL 3000	40	M6	25	16	13.5	18	24
167835-C17	VTT.40-C-B-M6-C17	C17 - RAL 6017	40	M6	25	16	13.5	18	24
167836-C2	VTT.40-C-B-M8-C2	C2 - RAL 2004	40	M8	25	16	13.5	18	24
167836-C3	VTT.40-C-B-M8-C3	C3 - RAL 7035	40	M8	25	16	13.5	18	24
167836-C4	VTT.40-C-B-M8-C4	C4 - RAL 1021	40	M8	25	16	13.5	18	24
167836-C5	VTT.40-C-B-M8-C5	C5 - RAL 5024	40	M8	25	16	13.5	18	24
167836-C6	VTT.40-C-B-M8-C6	C6 - RAL 3000	40	M8	25	16	13.5	18	24
167836-C17	VTT.40-C-B-M8-C17	C17 - RAL 6017	40	M8	25	16	13.5	18	24
167965-C2	VTT.50-C-B-M8-C2	C2 - RAL 2004	50	M8	29	19	15	20	43
167965-C3	VTT.50-C-B-M8-C3	C3 - RAL 7035	50	M8	29	19	15	20	43
167965-C4	VTT.50-C-B-M8-C4	C4 - RAL 1021	50	M8	29	19	15	20	43
167965-C5	VTT.50-C-B-M8-C5	C5 - RAL 5024	50	M8	29	19	15	20	43
167965-C6	VTT.50-C-B-M8-C6	C6 - RAL 3000	50	M8	29	19	15	20	43
167965-C17	VTT.50-C-B-M8-C17	C17 - RAL 6017	50	M8	29	19	15	20	43
167966-C2	VTT.50-C-B-M10-C2	C2 - RAL 2004	50	M10	29	19	15	20	43
167966-C3	VTT.50-C-B-M10-C3	C3 - RAL 7035	50	M10	29	19	15	20	43
167966-C4	VTT.50-C-B-M10-C4	C4 - RAL 1021	50	M10	29	19	15	20	43
167966-C5	VTT.50-C-B-M10-C5	C5 - RAL 5024	50	M10	29	19	15	20	43
167966-C6	VTT.50-C-B-M10-C6	C6 - RAL 3000	50	M10	29	19	15	20	43
167966-C17	VTT.50-C-B-M10-C17	C17 - RAL 6017	50	M10	29	19	15	20	43
