VRTP.

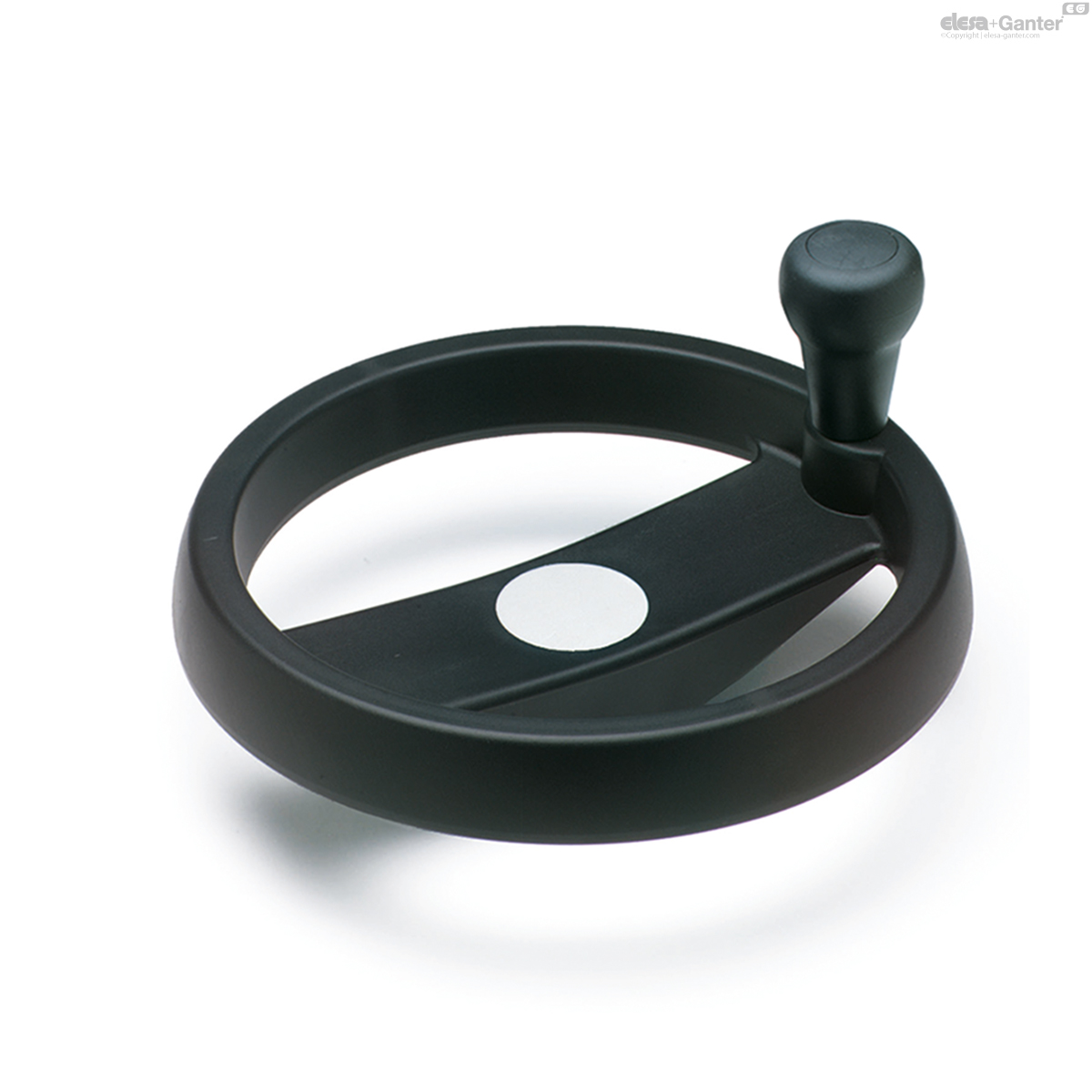

Spoked handwheels

Technopolymer

Enquire Now

Description

Main specifications

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Anodised aluminium self-adhesive front plate.
VRTP. 375: cover in polyester based technopolymer (PBT), RAL 7035 grey colour, glossy finish, press-fit assembly.

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

VRTP.: without handle.
VRTP+I: with revolving handle I.621+x in technopolymer.
VRTP+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft-touch' thermoplastic elastomer (TPE).
VRTP+IR: with fold-away handle IR.620 in technopolymer.
K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

78411-R-K VRTP.80 A-8-K

Accessories on request

ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VRTP.125, VRTP.160 and VRTP.200 (see table).

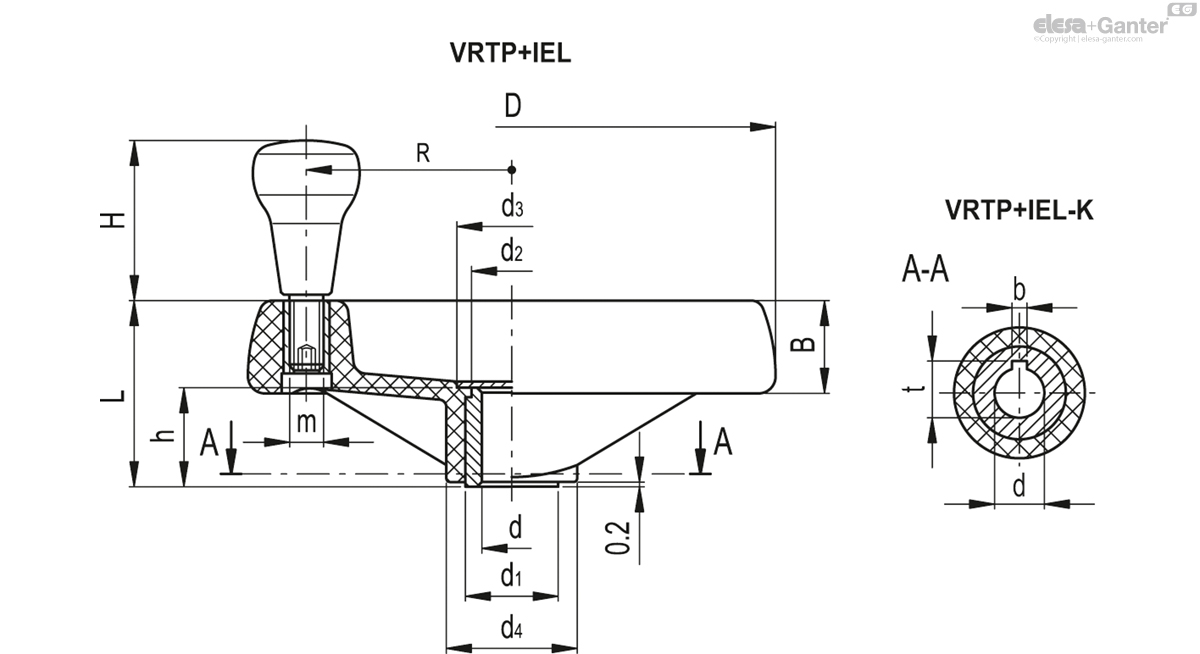

		D	d_H7	L	B	d₁	d₂	d₃	d₄	h	H	m	R	C# [Nm]	L# [J]
Code	Description																Actions
78926-R	VRTP.250+IEL-A20	250	20	69	32	35	33	45	58	38	65	M10	103	420	28	825
78928-R	VRTP.250+IEL-A24	250	24	69	32	35	33	45	58	38	65	M10	103	420	28	784
78964-R	VRTP.300+IEL-A20	300	20	78	35.5	40	37	52	66	43	65	M10	127	480	36	1052
78966-R	VRTP.300+IEL-A26	300	26	78	35.5	40	37	52	66	43	65	M10	127	480	36	1113
79026-R	VRTP.375+IEL-A26	375	26	87	39	35	33	70	81	43	65	M10	160	380	55	1260

		D	d_H9	L	B	d₁	d₂	d₃	d₄	h	H	m	t	R	b	C# [Nm]	L# [J]
Code	Description																		Actions
78926-R-K	VRTP.250+IEL-A20-K	250	20	69	32	35	33	45	58	38	65	M10	22.8	103	6	420	28	825
78928-R-K	VRTP.250+IEL-A24-K	250	24	69	32	35	33	45	58	38	65	M10	27.3	103	8	420	28	784
78964-R-K	VRTP.300+IEL-A20-K	300	20	78	35.5	40	37	52	66	43	65	M10	22.8	127	6	480	36	1052
78966-R-K	VRTP.300+IEL-A26-K	300	26	78	35.5	40	37	52	66	43	65	M10	29.3	127	8	480	36	1113
79026-R-K	VRTP.375+IEL-A26-K	375	26	87	39	35	33	70	81	43	65	M10	29.3	160	8	380	55	1260
