VRTP.

Spoked handwheels

Technopolymer

Enquire Now

Description

Main specifications

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Anodised aluminium self-adhesive front plate.
VRTP. 375: cover in polyester based technopolymer (PBT), RAL 7035 grey colour, glossy finish, press-fit assembly.

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

VRTP.: without handle.

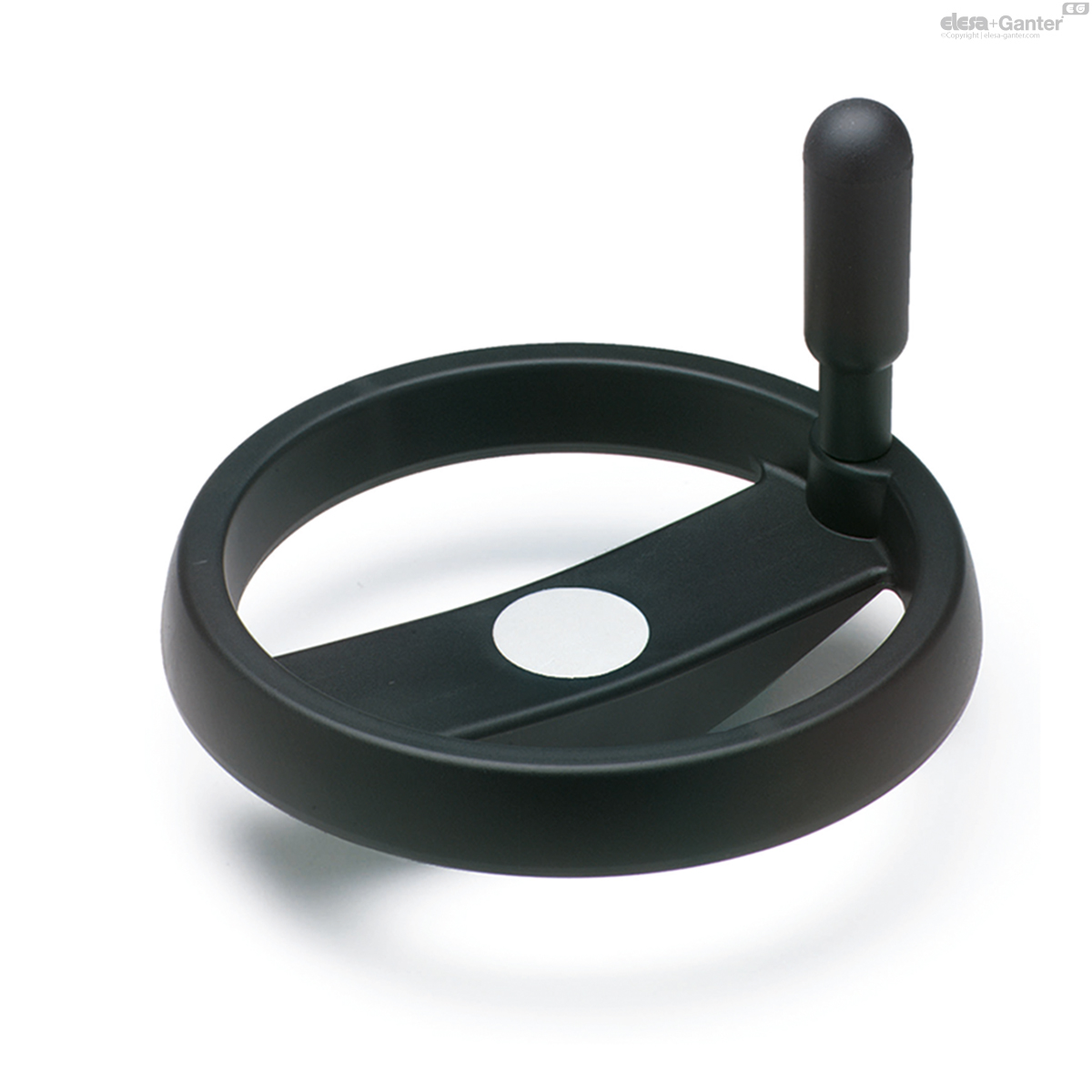

VRTP+I: with revolving handle I.621+x in technopolymer.
VRTP+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft-touch' thermoplastic elastomer (TPE).
VRTP+IR: with fold-away handle IR.620 in technopolymer.

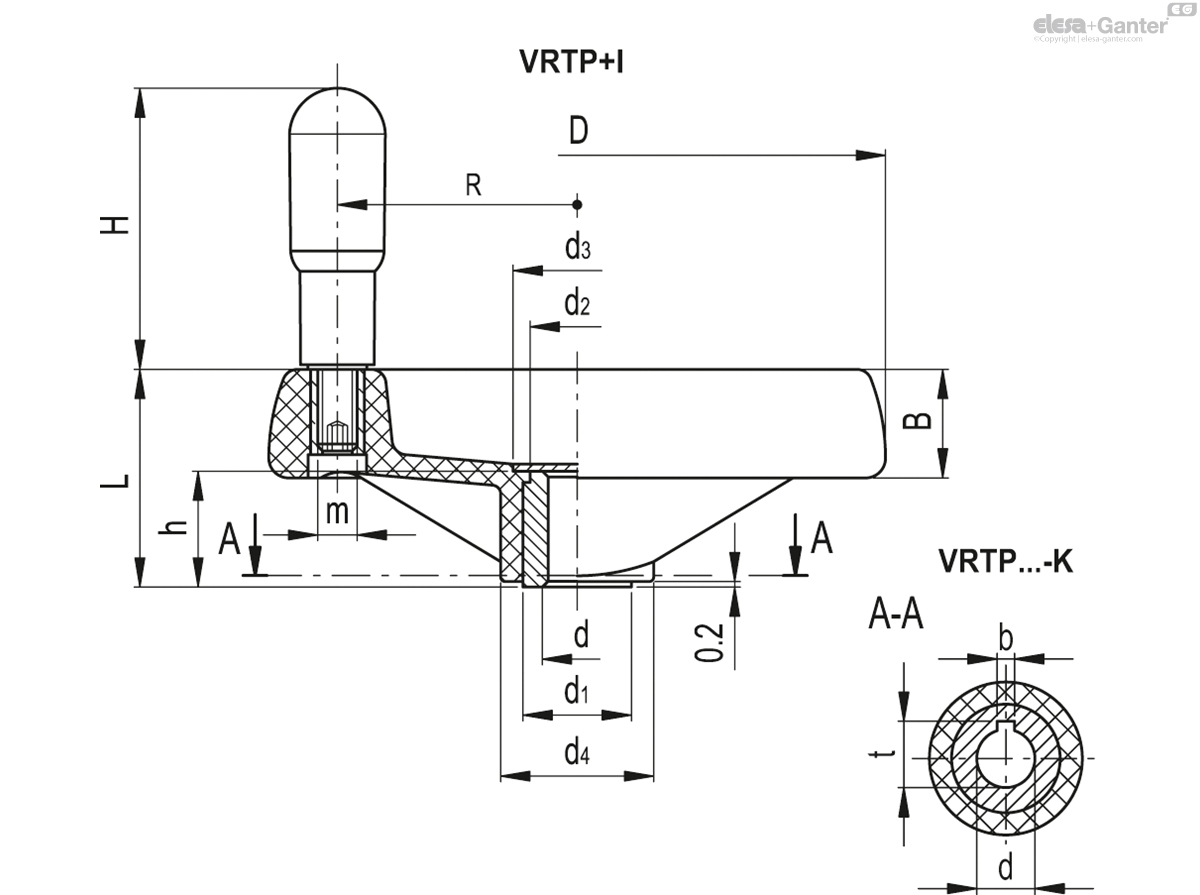

K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

78411-R-K VRTP.80 A-8-K

Accessories on request

ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VRTP.125, VRTP.160 and VRTP.200 (see table).

		D	d_H7	d_H9	L	B	d₁	d₂	d₃	d₄	h	H	m	R	C# [Nm]	L# [J]
Code	Description																	Actions
78421-R	VRTP.80+I-A8	80	8	-	35	18	18	16	20.5	25	17	45	M6	29	32	5	98
78422-R	VRTP.80+I-A10	80	10	-	35	18	18	16	20.5	25	17	45	M6	29	32	5	96
78520-R	VRTP.100+I-A8	99	8	-	37	20	18	16	20.5	25.5	17	60	M6	37	54	7	127
78521-R	VRTP.100+I-A10	99	10	-	37	20	18	16	20.5	25.5	17	60	M6	37	54	7	124
78522-R	VRTP.100+I-A12	99	12	-	37	20	18	16	20.5	25.5	17	60	M6	37	54	7	120
78620-R	VRTP.125+I-A8	125	8	-	44	22	22	20	26	31	22	65	M8	48	94	10	264
78621-R	VRTP.125+I-A12	125	12	-	44	22	22	20	26	31	22	65	M8	48	94	10	251
78622-R	VRTP.125+I-A14	125	14	-	44	22	22	20	26	31	22	65	M8	48	94	10	245
78720-R	VRTP.160+I-A8	160	8	-	51	25	26	24	32	40	27	73	M8	65	185	15	353
78721-R	VRTP.160+I-A14	160	14	-	51	25	26	24	32	40	27	73	M8	65	185	15	366
78722-R	VRTP.160+I-A16	160	16	-	51	25	26	24	32	40	27	73	M8	65	185	15	364
78820-R	VRTP.200+I-A8	200	8	-	61	28	30	28	36	48.5	34	80	M8	84	300	24	577
78821-R	VRTP.200+I-A16	200	16	-	61	28	30	28	36	48.5	34	80	M8	84	300	24	539
78823-R	VRTP.200+I-A20	200	20	-	61	28	30	28	36	48.5	34	80	M8	84	300	24	501
78921-R	VRTP.250+I-A20	250	20	-	69	32	35	33	45	58	38	90	M10	103	420	28	825
78923-R	VRTP.250+I-A24	250	24	-	69	32	35	33	45	58	38	90	M10	103	420	28	782
78958-R	VRTP.300+I-A20	300	20	-	78	35.5	40	37	52	66	43	90	M10	127	480	36	1050
78961-R	VRTP.300+I-A26	300	26	-	78	35.5	40	37	52	66	43	90	M10	123	480	36	1069
79021-R	VRTP.375+I-A26	375	26	26	87	39	35	33	70	81	43	90	M10	160	380	55	1240

		D	d_H9	L	B	d₁	d₂	d₃	d₄	h	H	m	t	R	b	C# [Nm]	L# [J]
Code	Description																		Actions
78421-R-K	VRTP.80+I-A8-K	80	8	35	18	18	16	20.5	25	17	45	M6	9	29	2	32	5	99
78422-R-K	VRTP.80+I-A10-K	80	10	35	18	18	16	20.5	25	17	45	M6	11.4	29	3	32	5	93
78520-R-K	VRTP.100+I-A8-K	99	8	37	20	18	16	20.5	25.5	17	60	M6	9	37	2	54	7	143
78521-R-K	VRTP.100+I-A10-K	99	10	37	20	18	16	20.5	25.5	17	60	M6	11.4	37	3	54	7	124
78522-R-K	VRTP.100+I-A12-K	99	12	37	20	18	16	20.5	25.5	17	60	M6	13.8	37	4	54	7	119
78620-R-K	VRTP.125+I-A8-K	125	8	44	22	22	20	26	31	22	65	M8	9	48	2	94	10	239
78621-R-K	VRTP.125+I-A12-K	125	12	44	22	22	20	26	31	22	65	M8	13.8	48	4	94	10	249
78622-R-K	VRTP.125+I-A14-K	125	14	44	22	22	20	26	31	22	65	M8	16.3	48	5	94	10	243
78720-R-K	VRTP.160+I-A8-K	160	8	51	25	26	24	32	40	27	73	M8	9	65	2	185	15	353
78721-R-K	VRTP.160+I-A14-K	160	14	51	25	26	24	32	40	27	73	M8	16.3	65	5	185	15	370
78722-R-K	VRTP.160+I-A16-K	160	16	51	25	26	24	32	40	27	73	M8	18.3	65	5	185	15	359
78820-R-K	VRTP.200+I-A8-K	200	8	61	28	30	28	36	48.5	34	80	M8	9	84	2	300	24	514
78821-R-K	VRTP.200+I-A16-K	200	16	61	28	30	28	36	48.5	34	80	M8	18.3	84	5	300	24	514
78823-R-K	VRTP.200+I-A20-K	200	20	61	28	30	28	36	48.5	34	80	M8	22.8	84	6	300	24	500
78921-R-K	VRTP.250+I-A20-K	250	20	69	32	35	33	45	58	38	90	M10	22.8	103	6	420	28	823
78923-R-K	VRTP.250+I-A24-K	250	24	69	32	35	33	45	58	38	90	M10	27.3	103	8	420	28	773
78958-R-K	VRTP.300+I-A20-K	300	20	78	35.5	40	37	52	66	43	90	M10	22.8	127	6	480	36	1111
78961-R-K	VRTP.300+I-A26-K	300	26	78	35.5	40	37	52	66	43	90	M10	29.3	123	8	480	36	1111
79021-R-K	VRTP.375+I-A26-K	375	26	87	39	35	33	70	81	43	90	M10	29.3	160	8	380	55	1240
