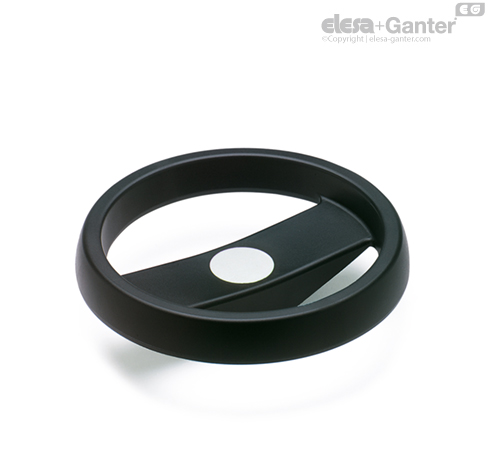

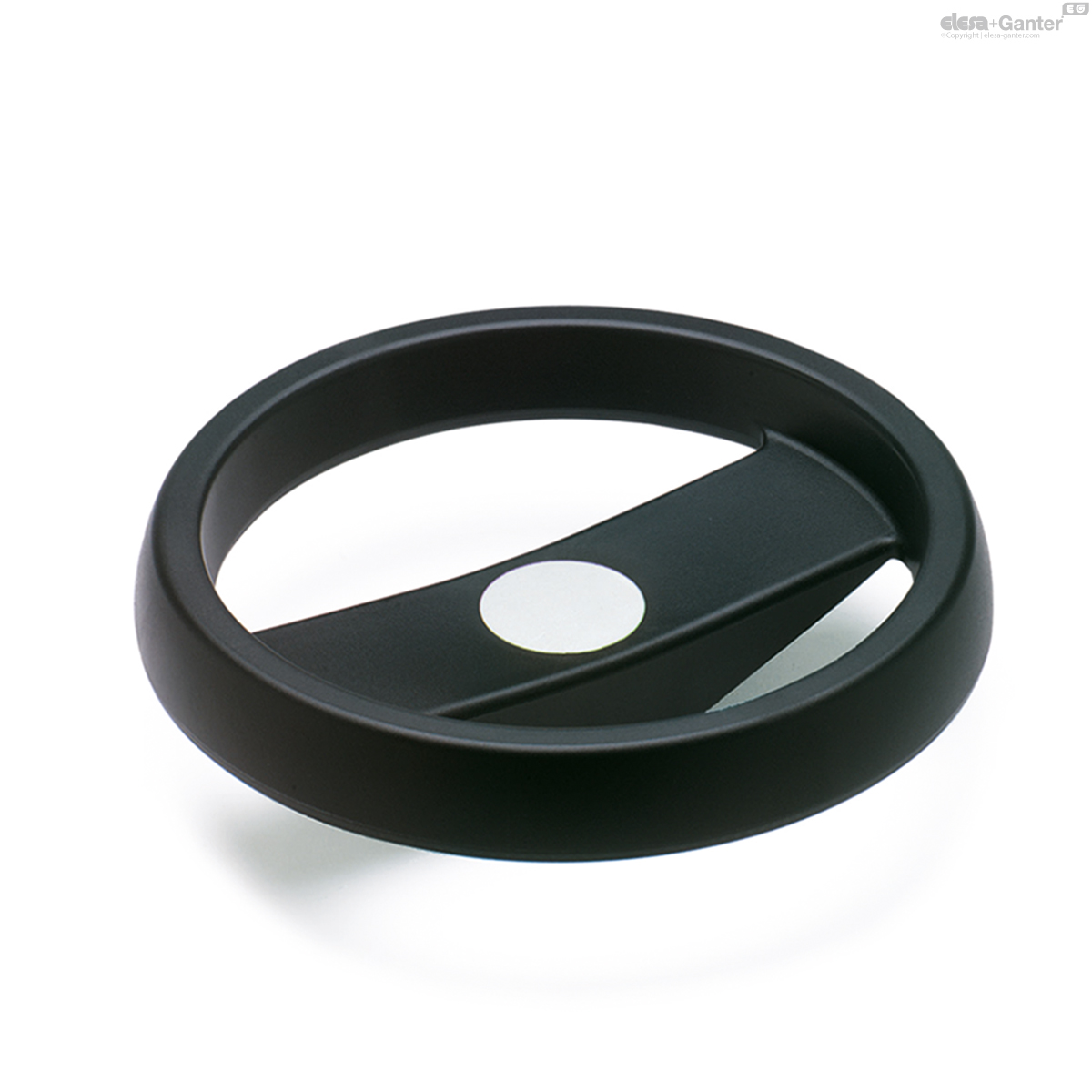

VRTP.

Spoked handwheels

Technopolymer

Enquire Now

Description

Main specifications

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Anodised aluminium self-adhesive front plate.

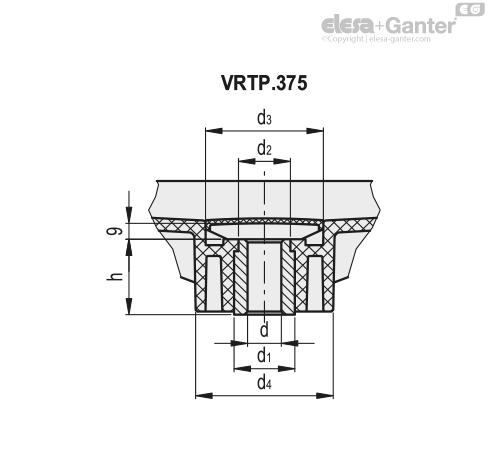

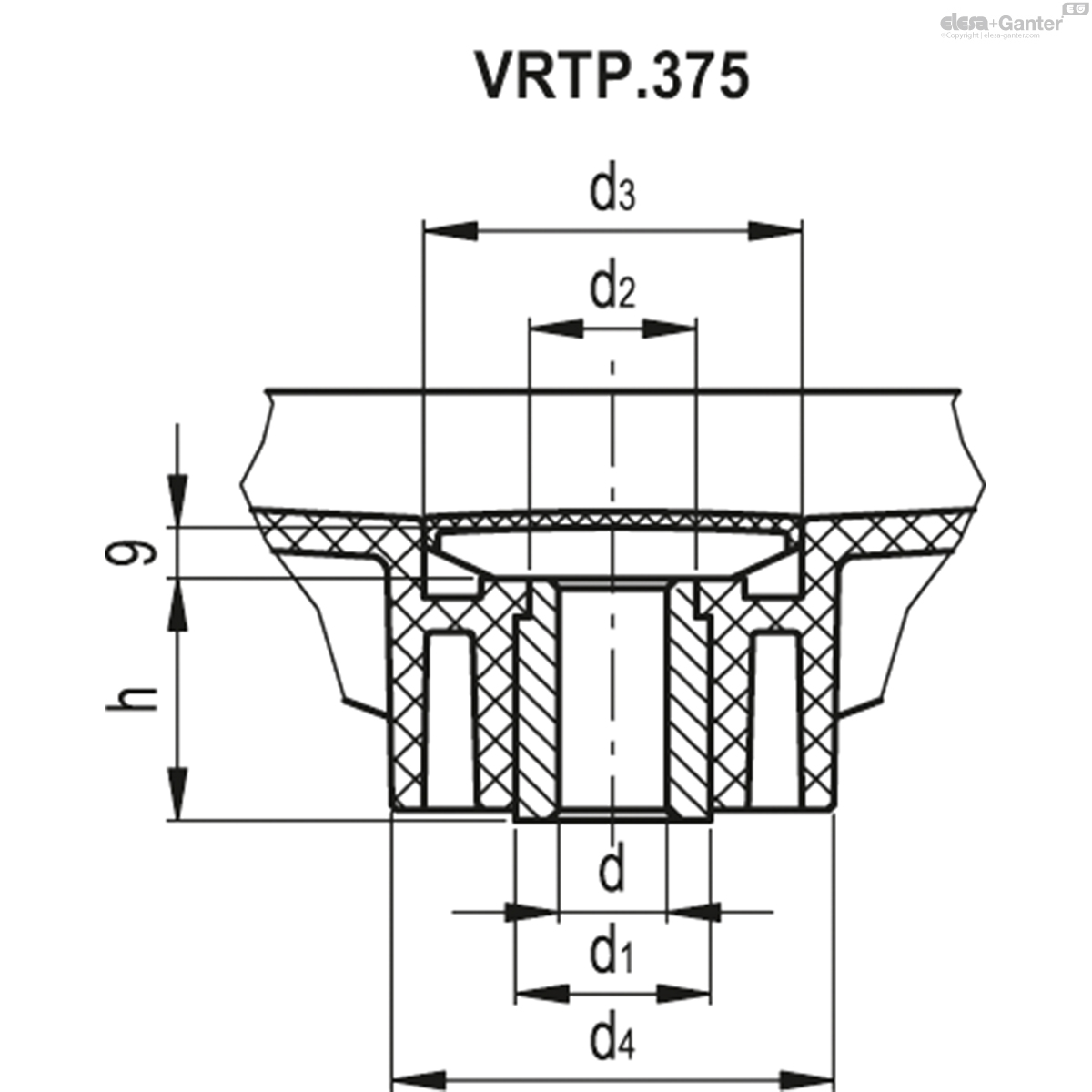

VRTP. 375: cover in polyester based technopolymer (PBT), RAL 7035 grey colour, glossy finish, press-fit assembly.

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

VRTP.: without handle.
VRTP+I: with revolving handle I.621+x in technopolymer.
VRTP+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft-touch' thermoplastic elastomer (TPE).
VRTP+IR: with fold-away handle IR.620 in technopolymer.
K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

78411-R-K VRTP.80 A-8-K

Accessories on request

ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VRTP.125, VRTP.160 and VRTP.200 (see table).

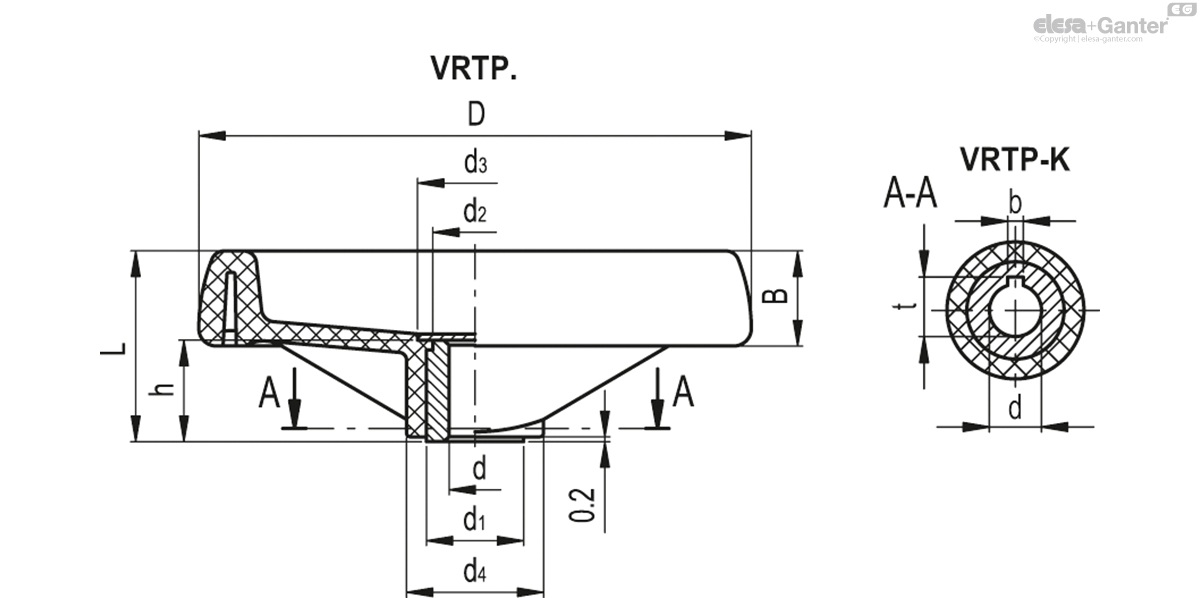

		D	d_H7	L	B	d₁	d₂	d₃	d₄	h	C# [Nm]	L# [J]
Code	Description													Actions
78411-R	VRTP.80-A8	80	8	35	18	18	16	20.5	25	17	32	5	66
78412-R	VRTP.80-A10	80	10	35	18	18	16	20.5	25	17	32	5	62
78510-R	VRTP.100-A8	99	8	37	20	18	16	20.5	25.5	17	54	7	90
78511-R	VRTP.100-A10	99	10	37	20	18	16	20.5	25.5	17	54	7	86
78512-R	VRTP.100-A12	99	12	37	20	18	16	20.5	25.5	17	54	7	81
78610-R	VRTP.125-A8	125	8	44	22	22	20	26	31	22	94	10	175
78611-R	VRTP.125-A12	125	12	44	22	22	20	26	31	22	94	10	163
78612-R	VRTP.125-A14	125	14	44	22	22	20	26	31	22	94	10	157
78710-R	VRTP.160-A8	160	8	51	25	26	24	32	40	27	185	15	293
78711-R	VRTP.160-A14	160	14	51	25	26	24	32	40	27	185	15	270
78712-R	VRTP.160-A16	160	16	51	25	26	24	32	40	27	185	15	268
78810-R	VRTP.200-A8	200	8	61	28	30	28	36	48.5	34	300	24	470
78811-R	VRTP.200-A16	200	16	61	28	30	28	36	48.5	34	300	24	432
78813-R	VRTP.200-A20	200	20	61	28	30	28	36	48.5	34	300	24	404
78911-R	VRTP.250-A20	250	20	69	32	35	33	45	58	38	420	28	692
78913-R	VRTP.250-A24	250	24	69	32	35	33	45	58	38	420	28	687
78948-R	VRTP.300-A20	300	20	78	35.5	40	37	52	66	43	480	36	1010
78951-R	VRTP.300-A26	300	26	78	35.5	40	37	52	66	43	480	36	985
79011-R	VRTP.375-A26	375	26	87	39	35	33	70	81	43	380	55	1350

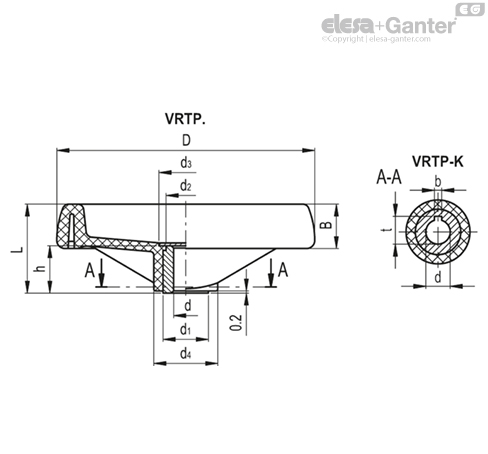

		D	d_H9	L	B	d₁	d₂	d₃	d₄	h	t	b	C# [Nm]	L# [J]
Code	Description															Actions
78411-R-K	VRTP.80-A8-K	80	8	35	18	18	16	20.5	25	17	9	2	32	5	69
78412-R-K	VRTP.80-A10-K	80	10	35	18	18	16	20.5	25	17	11.4	3	32	5	63
78510-R-K	VRTP.100-A8-K	99	8	37	20	18	16	20.5	25.5	17	9	2	54	7	99
78511-R-K	VRTP.100-A10-K	99	10	37	20	18	16	20.5	25.5	17	11.4	3	54	7	88
78512-R-K	VRTP.100-A12-K	99	12	37	20	18	16	20.5	25.5	17	13.8	4	54	7	82
78610-R-K	VRTP.125-A8-K	125	8	44	22	22	20	26	31	22	9	2	94	10	227
78611-R-K	VRTP.125-A12-K	125	12	44	22	22	20	26	31	22	13.8	4	94	10	164
78612-R-K	VRTP.125-A14-K	125	14	44	22	22	20	26	31	22	16.3	5	94	10	156
78710-R-K	VRTP.160-A8-K	160	8	51	25	26	24	32	40	27	9	2	185	15	296
78711-R-K	VRTP.160-A14-K	160	14	51	25	26	24	32	40	27	16.3	5	185	15	250
78712-R-K	VRTP.160-A16-K	160	16	51	25	26	24	32	40	27	18.3	5	185	15	265
78810-R-K	VRTP.200-A8-K	200	8	61	28	30	28	36	48.5	34	9	2	300	24	460
78811-R-K	VRTP.200-A16-K	200	16	61	28	30	28	36	48.5	34	18.3	5	300	24	424
78813-R-K	VRTP.200-A20-K	200	20	61	28	30	28	36	48.5	34	22.8	6	300	24	400
78911-R-K	VRTP.250-A20-K	250	20	69	32	35	33	45	58	38	22.8	6	420	28	683
78913-R-K	VRTP.250-A24-K	250	24	69	32	35	33	45	58	38	27.3	8	420	28	628
78948-R-K	VRTP.300-A20-K	300	20	78	35.5	40	37	52	66	43	22.8	6	480	36	1060
78951-R-K	VRTP.300-A26-K	300	26	78	35.5	40	37	52	66	43	29.3	8	480	36	985
79011-R-K	VRTP.375-A26-K	375	26	87	39	35	33	70	81	43	29.3	8	380	55	1350
