VPD
Mini vacuum cup spring suspensions
Threaded connection male or female, steel, aluminium and brass
VPD-F
Mini vacuum cup spring suspensions
Female threaded connection and straight quick fitting
VPD-F-L
Mini vacuum cup spring suspensions
Female threaded connection and L-shaped quick fitting
VPD-F-T
Mini vacuum cup spring suspensions
Female threaded connection and T-shaped quick fitting
VPD-M
Mini vacuum cup spring suspensions
Male threaded connection and straight quick fitting
VPD-M-L
Mini vacuum cup spring suspensions
Male threaded connection and L-shaped quick fitting
VPD-M-T
Mini vacuum cup spring suspensions
Male threaded connection and T-shaped quick fitting
VPD-FR
Mini vacuum cup spring suspensions
Adjustable female threaded connection and straight quick fitting
VPD-FR-L
Mini vacuum cup spring suspensions
Adjustable female threaded connection and L-shaped quick fitting
Description
Main specifications
Material
Brass stem.
Steel spring.
Zinc-plated steel threaded sleeve and hexagonal nuts.
Quick fitting in blue anodised aluminium.
Standard executions
- VPD-F:Â with female threaded connection and straight quick fitting.
- VPD-F-L:Â with female threaded connection and L-shaped quick fitting.
- VPD-F-T:Â with female threaded connection and T-shaped quick fitting.
- VPD-M:Â with male threaded connection and straight quick fitting.
- VPD-M-L:Â with male threaded connection and L-shaped quick fitting.
- VPD-M-T:Â with male threaded connection and T-shaped quick fitting.
- VPD-FR:Â with adjustable female threaded connection and straight quick fitting.
- VPD-FR-L:Â with adjustable female threaded connection and L-shaped quick fitting.
General information
Features
VPD vacuum cup suspensions comprise:
- a brass stem to fix the vacuum cup;
- a steel threaded sleeve, equipped with two hexagonal nuts, for quick assembly of the vacuum cup suspension to the automation device;
- a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;
- a quick fitting for connection to the suction hose.
Characterised by small dimensions, which allow a reduction in weight and space on the automation device on which they are installed.
These features allow it to be used even with small vacuum cups
The effective spring stroke in relation to the length l2 is equal to 25.5 mm
Compatible with 4x6 diameter plastic tube.
See Technical Data for vacuum cups .

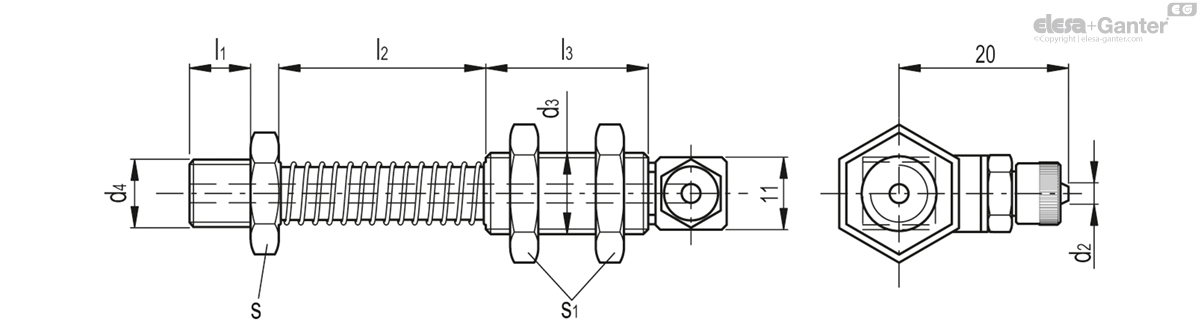

VPD-M-L
| d2* | d3 | d4 | l1 | l2 | l3 | s | s1 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| VV.42054 | VPD-10-38-G1/8-M-L | 4 | M12x1.25 | G1/8 | 8 | 35.5 | 30 | 17 | 19 | 83 |
|
| VV.42062 | VPD-10-48-G1/4-M-L | 4 | M12x1.25 | G1/4 | 10 | 35.5 | 30 | 17 | 19 | 81 |
|
| VV.42063 | VPD-10-58-G3/8-M-L | 4 | M12x1.25 | G3/8 | 10 | 35.5 | 30 | 17 | 19 | 81 |
|
