VL.140+I
Control handwheels
with revolving handle, Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Revolving handle
I.281+x in Duroplast.
Standard execution
Black-oxide steel hub, with pre-drilled blind hole.

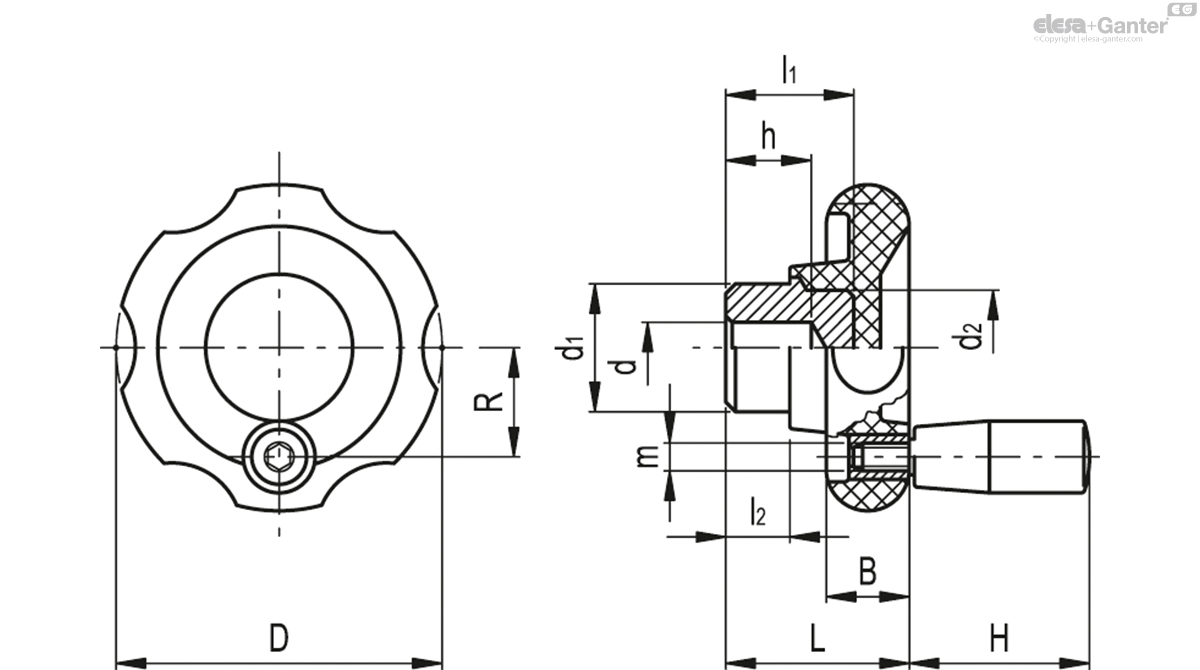

| D | dH9 | d-0.1 | L | B | l1 | l2 | d1 | d2 | h | H | m | R |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||||
| 74431 | VL.140/80+I | 82 | - | 6 | 40 | 19 | 23 | 12 | 24 | 20 | 15 | 40 | M6 | 26 | 183 |
|
| 74521 | VL.140/100+I | 99 | 8 | - | 44 | 20 | 31 | 14 | 36 | 30 | 22 | 50 | M8 | 32 | 387 |
|
| 74621 | VL.140/130+I | 129 | 8 | - | 47 | 22 | 30 | 13 | 40 | 40 | 20 | 65 | M8 | 43 | 584 |
|
