Home Rotary Controls Handwheels with indicator VHT-XX

VHT-XX

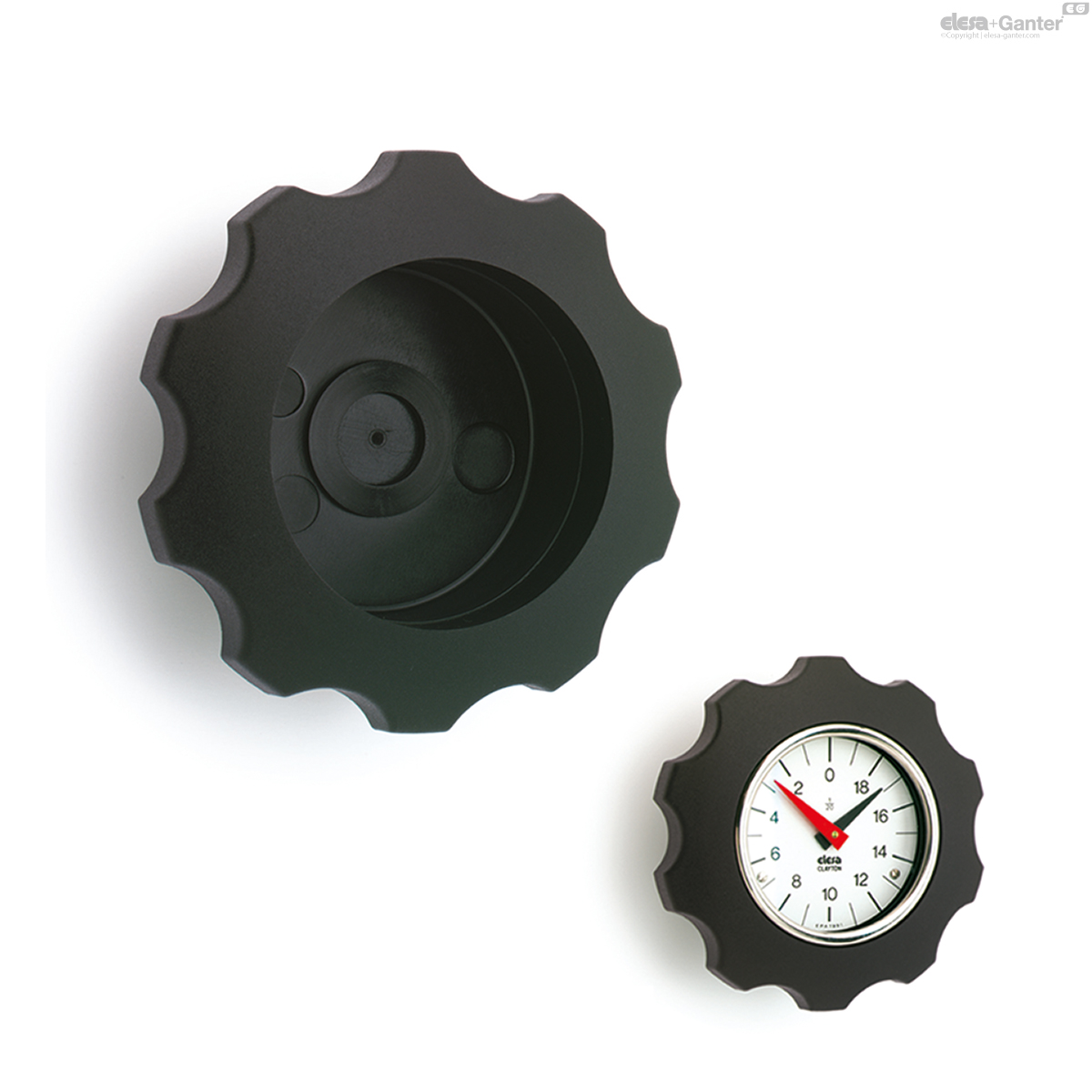

Lobe knobs for position indicators

Technopolymer

Enquire Now

VHT-GXX

Lobe knobs for position indicators

For gravity drive indicators, black-oxide steel boss

VHT-GXX-SST

Lobe knobs for position indicators

For gravity drive indicators, stainless steel boss

VHT-PXX

Lobe knobs for position indicators

For positive drive indicators, black-oxide steel boss

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

Boss H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.

VHT-GXX: for gravity indicators.

Black-oxide steel boss.

VHT-GXX-SST: for gravity indicators.

AISI 303 stainless steel boss.

VHT-PXX: for positive drive indicators.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

Black-oxide steel boss.

General information

Features and applications

The lobed shape with no cavities prevents unhealthy residues from depositing. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.

Indicator choice (to be ordered separately)

To choose the indicator see the table below for possible assembly with indicators.

See also 'Assembly instructions' for gravity indicators type G or positive drive indicators type P.

Accessories on request

Cover CP-XX- for fitting instead of the indicator.

VHT-GXX

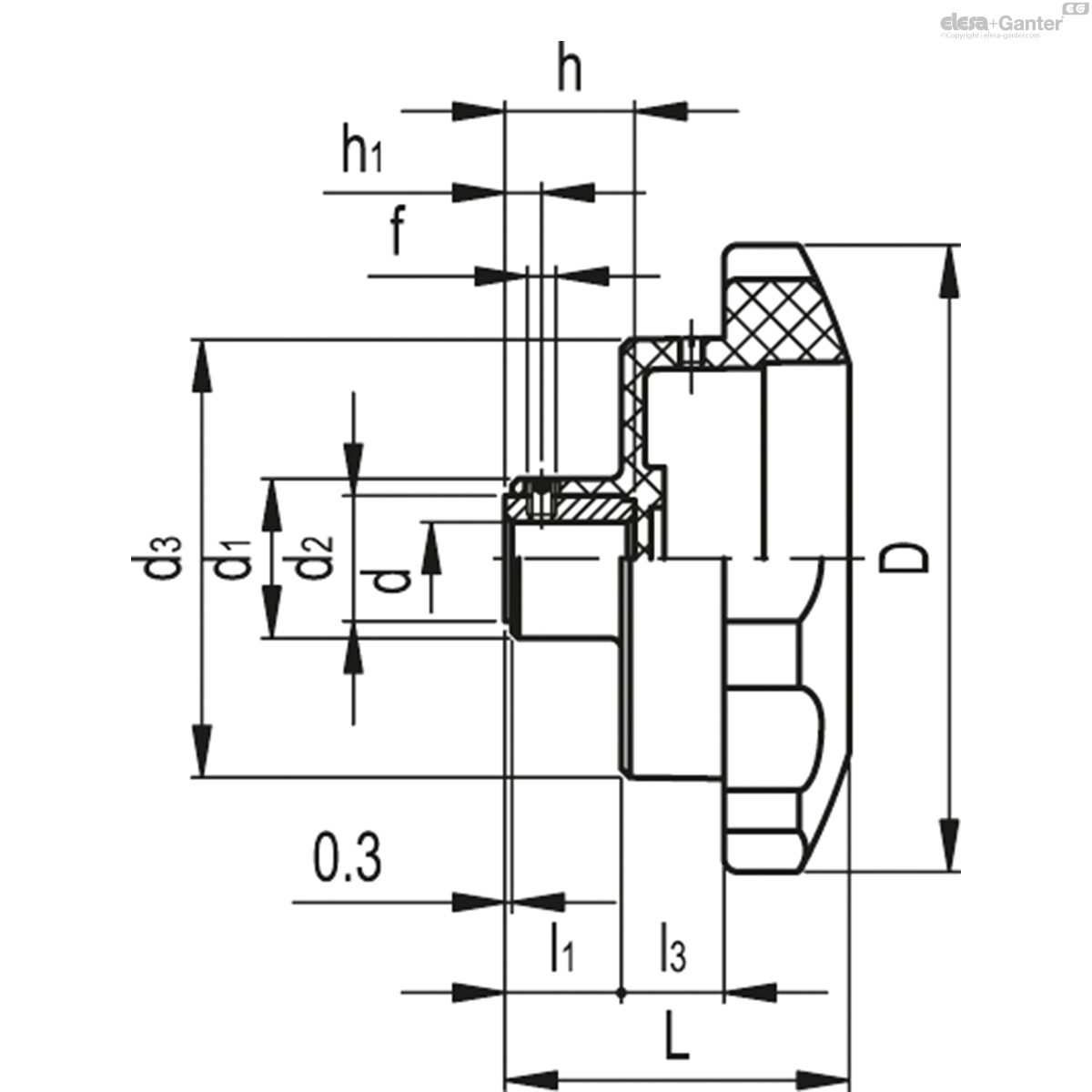

		D	L	d_H7	h	d₁	d₂	d₃	f	h₁	l₁	l₃		Handwheel indicator combinations
Code	Description														Actions
CE.30251	VHT.85-GXX1 A-10	85	51	10	17	24	18	58	M5	6	15.5	18	120	GA01 - GA11
CE.30351	VHT.110-GXX2 A-12	110	58	12	22	28	22	77	M5	6	20	18	203	GA02 - GA12 - GW12
