VH.153
Lobe knobs
Duroplast
VH.153-A
Lobe knobs
Black-oxide steel boss, plain hole
VH.153-B
Lobe knobs
Brass boss, plain or threaded hole

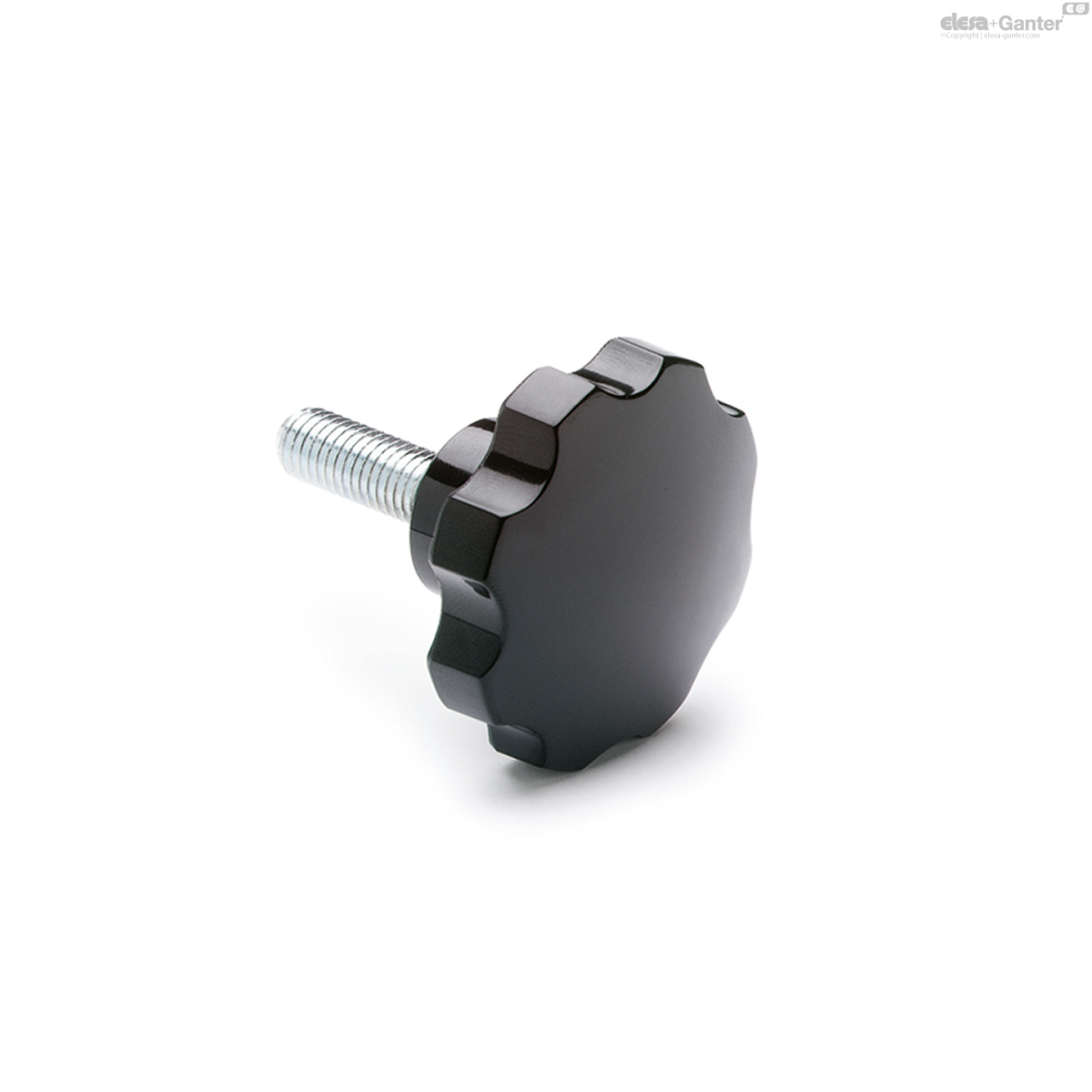

VH.153-p
Lobe knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Standard executions
- VH.153-A: black-oxide steel boss, plain blind hole.
- VH.153-B: brass boss, plain or threaded blind hole.
- VH.153-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

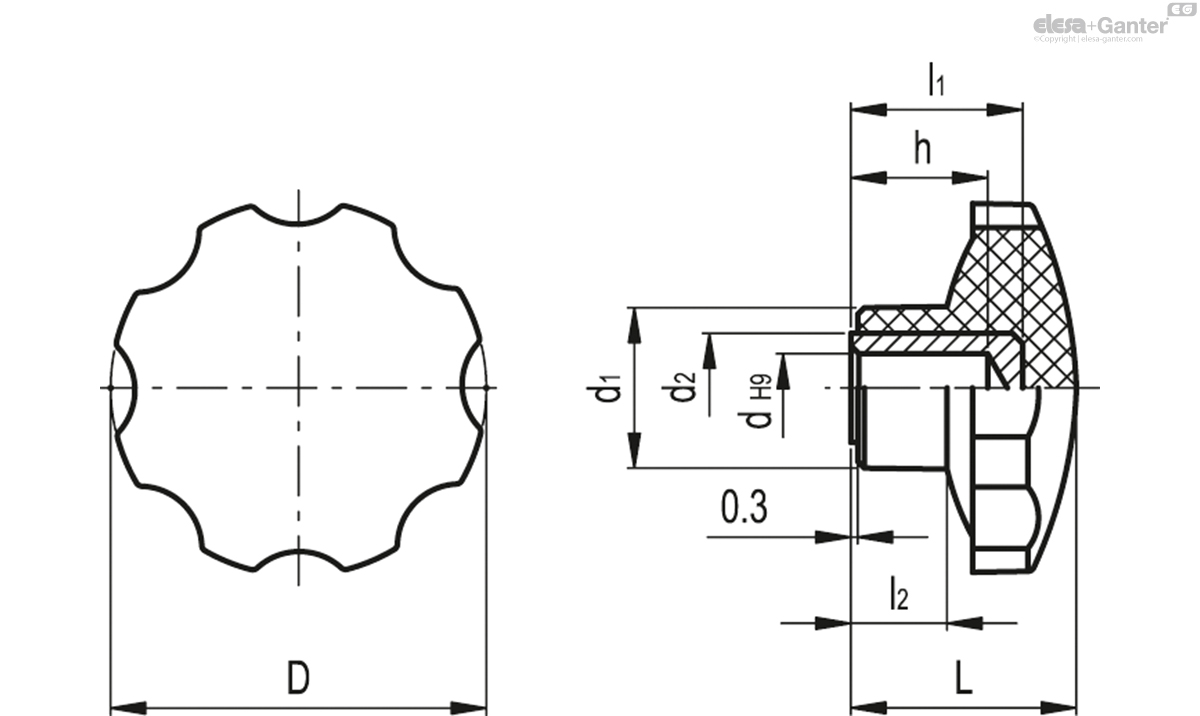

VH.153-A
| D | dH9 | L | d1 | d2 | l1 | l2 | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 73302 | VH.153/54 A-8 | 54 | 8 | 32 | 24 | 15 | 25 | 13 | 20 | 68 |
|
| 73303 | VH.153/54 A-10 | 54 | 10 | 32 | 24 | 16 | 25 | 13 | 21 | 67 |
|
| 73402 | VH.153/62 A-10 | 62 | 10 | 35 | 24 | 16 | 25 | 13 | 21 | 86 |
|
| 73501 | VH.153/74 A-8 | 72 | 8 | 46 | 32 | 20 | 35 | 21 | 26 | 175 |
|
| 73601 | VH.153/85 A-8 | 85 | 8 | 49 | 32 | 20 | 35 | 21 | 26 | 225 |
|
