VCT.
Lobe knobs
Technopolymer
VCT-A
Lobe knobs
Black-oxide steel boss, plain hole, with cap
VCT-B
Lobe knobs
Brass boss, threaded hole, with cap
VCT-AZ
Lobe knobs
Zinc-plated steel boss, threaded hole, with cap
VCT-SST
Lobe knobs
Stainless steel boss, threaded hole, with cap
VCT.FP
Lobe knobs
Brass boss, threaded hole, without cap
VCT-SST-FP
Lobe knobs
Stainless steel boss, threaded hole, without cap
VCT-AZ-FP
Lobe knobs
Zinc-plated steel boss, threaded hole, without cap
VCT-p
Lobe knobs
Zinc-plated steel threaded stud, with cap

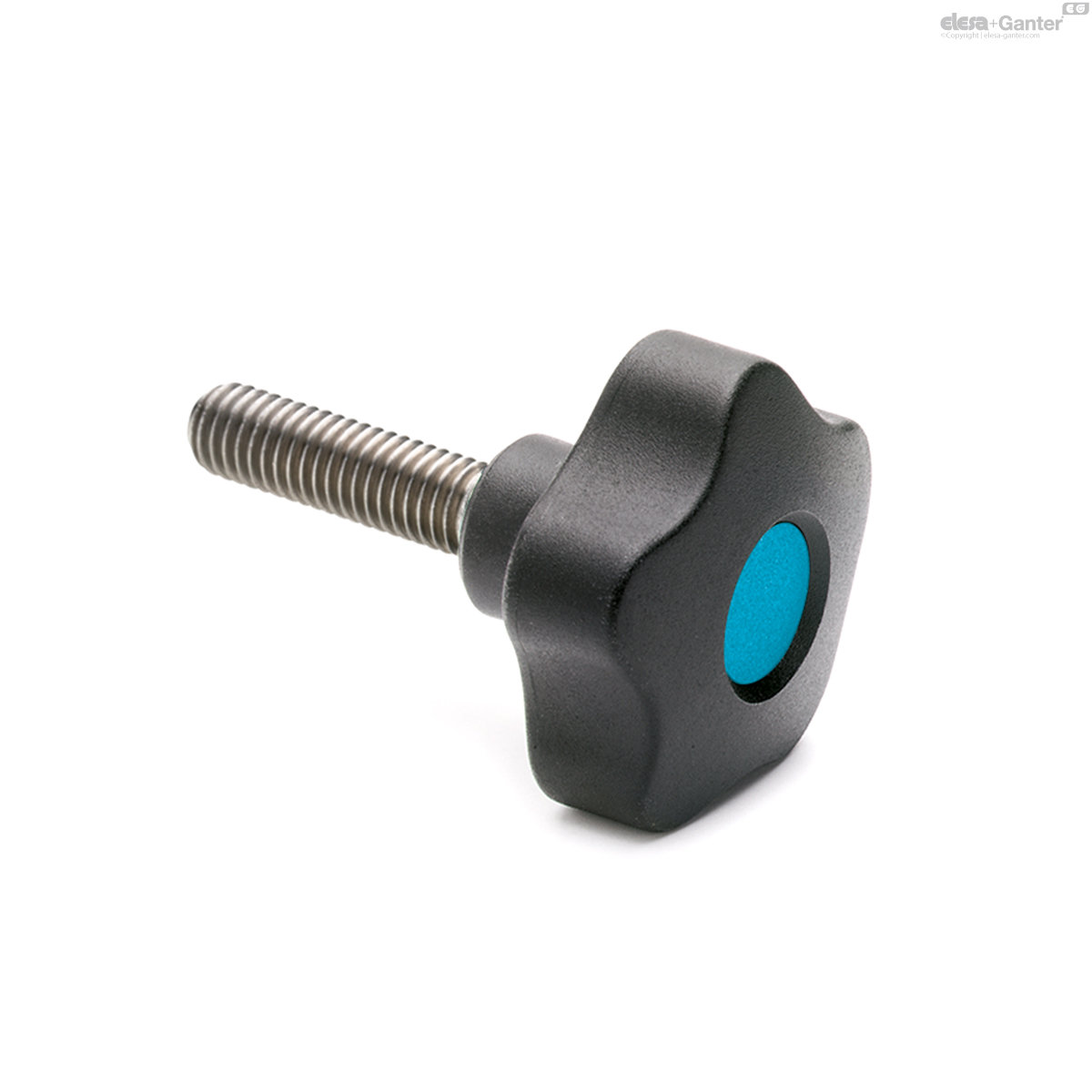

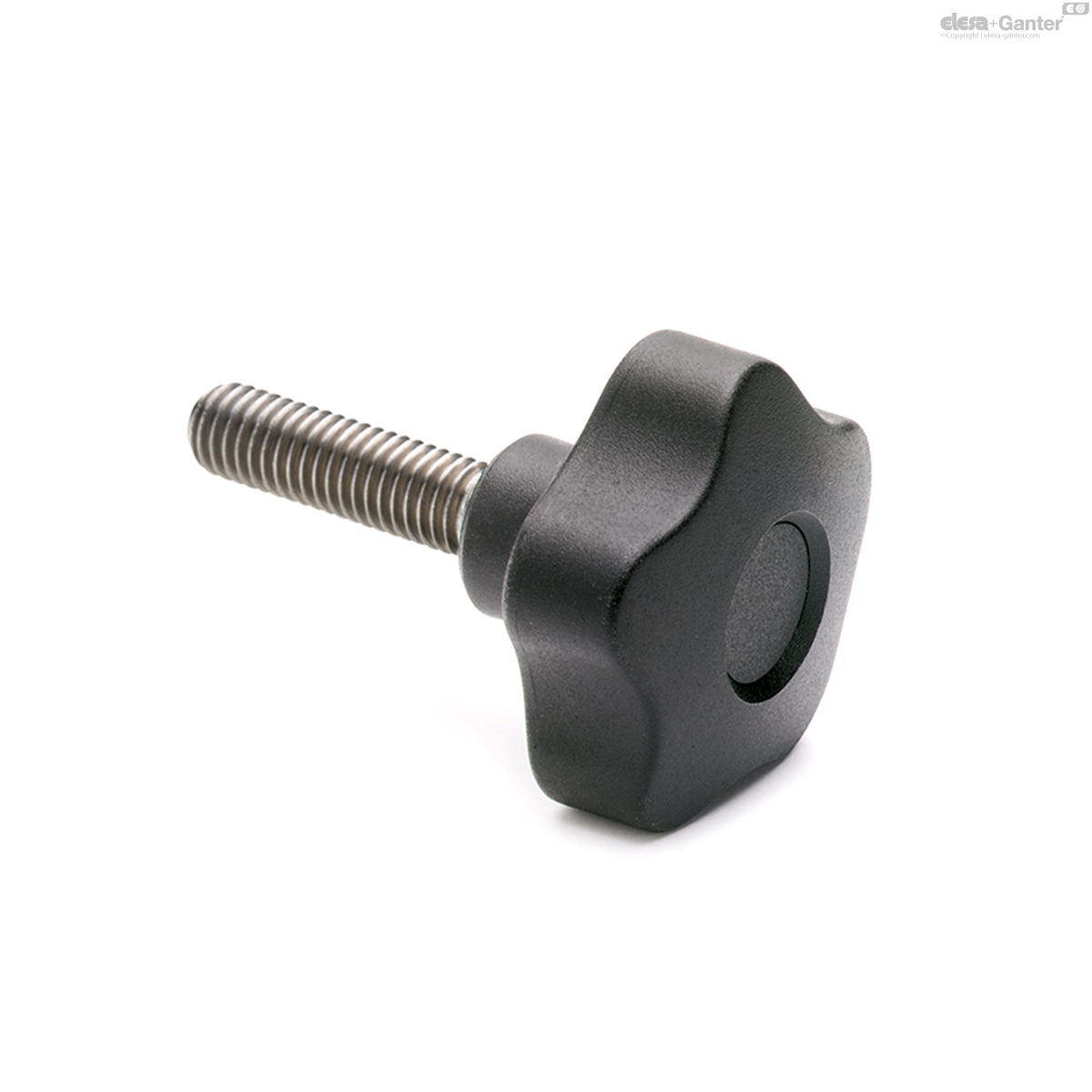

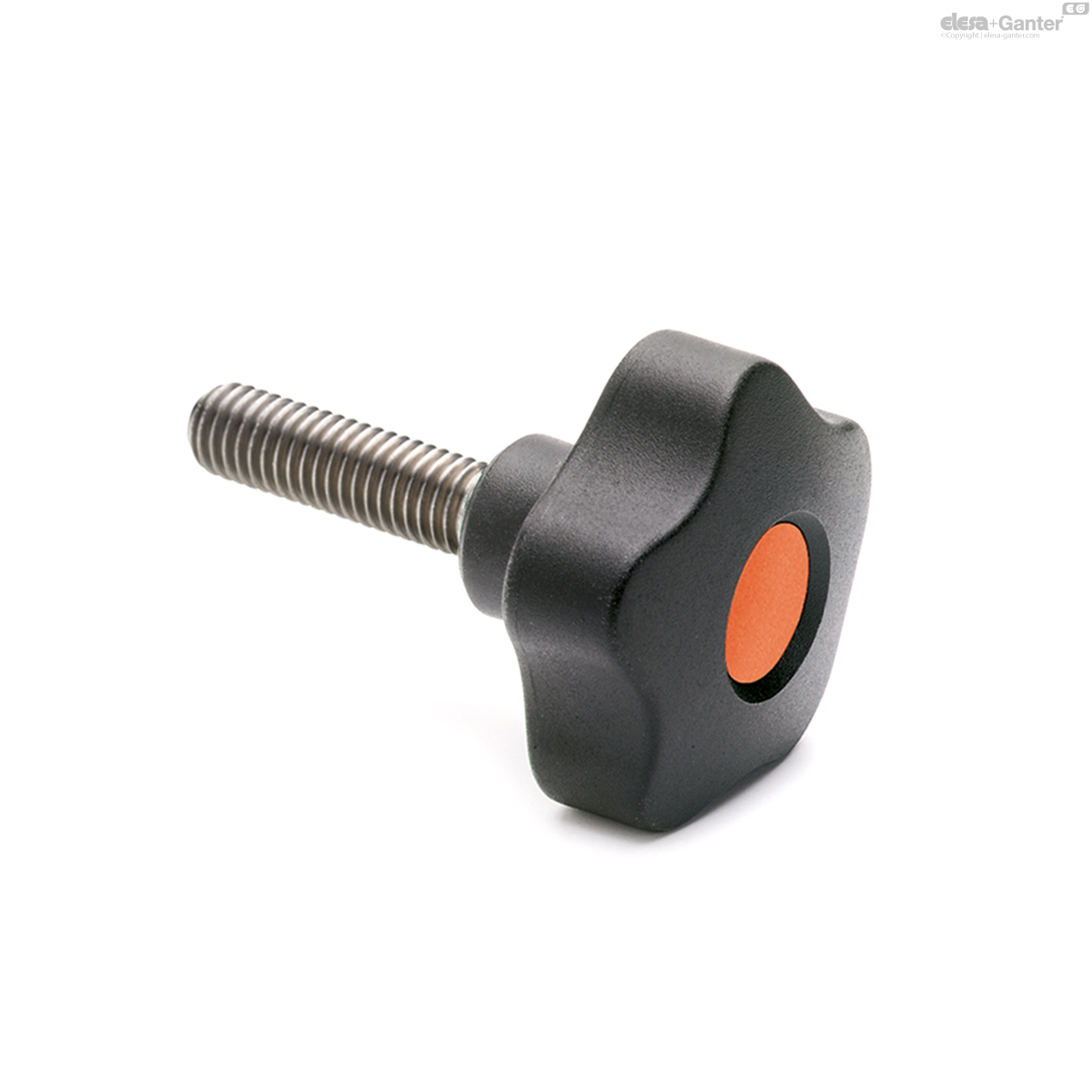

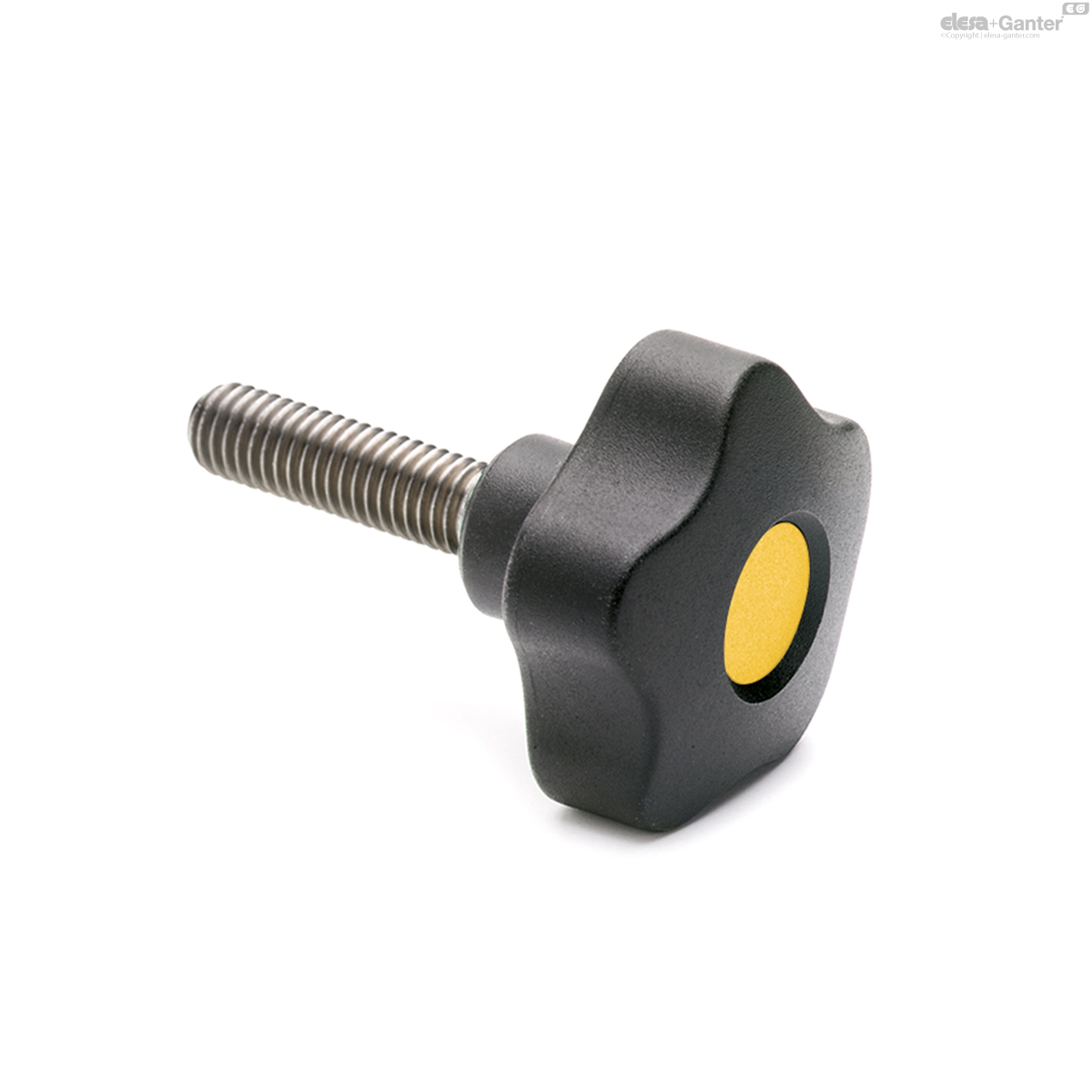

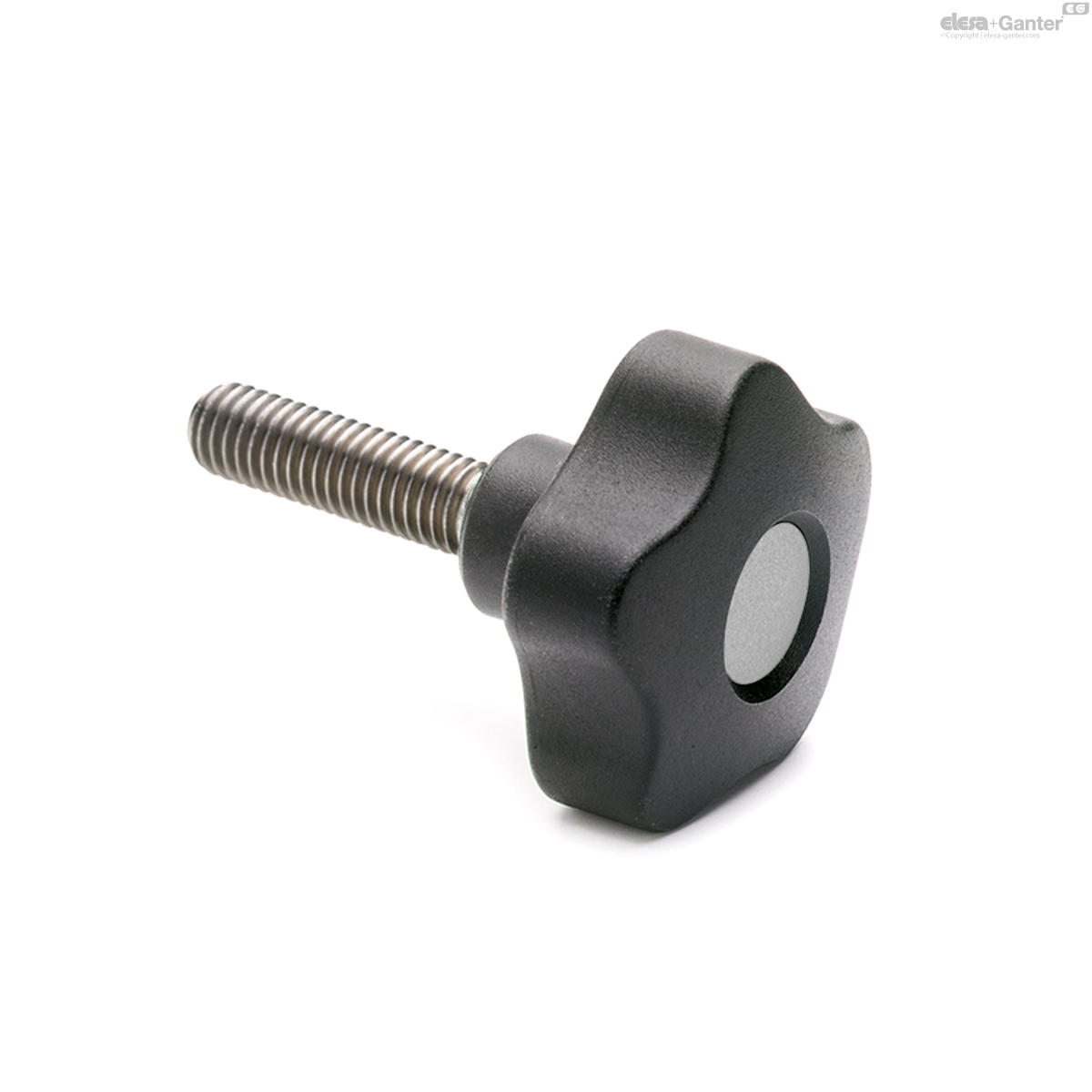

VCT-SST-p
Lobe knobs
Stainless steel threaded stud, with cap
Description
Main specifications
Material
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
VCT.25: glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Boss cap
- CA.VCT:Â polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied. Not available for VCT.25.
Available also as accessory sold separately (see table).
Standard executions
- VCT-A: black-oxide steel boss, plain blind hole.
- VCT-B:Â brass boss, threaded blind hole (VCT.25 - 95) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
- VCT-AZ:Â zinc-plated steel boss, threaded pass-through hole.
- VCT-SST:Â AISI 303 stainless steel boss, threaded blind hole (VCT.25) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
- VCT.FP:Â brass boss, threaded pass-through hole, without cap.
- VCT-AZ-FP:Â zinc-plated steel boss, threaded pass-through hole, without cap.
- VCT-SST-FP:Â AISI 303 stainless steel boss, threaded pass-through hole, without cap.
- VCT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
- VCT-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
Accessories on request
Accessories on request
- CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, not available for VCT.25 (see table). For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.
VCT-SST-p

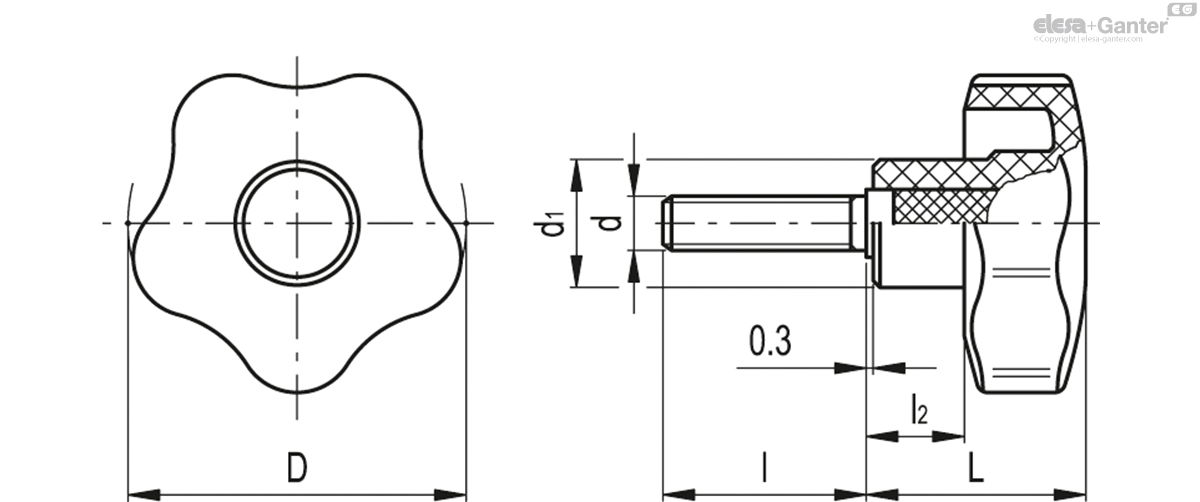

| Color | D | d6g | L | d1 | l | l2 | C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 69837-C9 | VCT.25-SST-p-M5x10-C9Â Â Â Â Â Â Â Â Â | C9 - RAL 9005 | 25 | M5 | 19 | 13 | 10 | 8 | 6 | 8 |
|
| 69838-C9 | VCT.25-SST-p-M5x16-C9 | C9 - RAL 9005 | 25 | M5 | 19 | 13 | 16 | 8 | 6 | 11 |
|
| 69839-C9 | VCT.25-SST-p-M5x20-C9 | C9 - RAL 9005 | 25 | M5 | 19 | 13 | 20 | 8 | 6 | 9 |
|
| 69840-C9 | VCT.25-SST-p-M5x25-C9 | C9 - RAL 9005 | 25 | M5 | 19 | 13 | 25 | 8 | 6 | 12 |
|
| 69881-C2 | VCT.32-SST-p-M6x16-C2 | C2 - RAL 2004 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 14 |
|
| 69881-C3 | VCT.32-SST-p-M6x16-C3 | C3 - RAL 7035 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 14 |
|
| 69881-C4 | VCT.32-SST-p-M6x16-C4 | C4 - RAL 1021 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 14 |
|
| 69881-C5 | VCT.32-SST-p-M6x16-C5 | C5 - RAL 5024 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 14 |
|
| 69881-C6 | VCT.32-SST-p-M6x16-C6 | C6 - RAL 3000 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 14 |
|
| 69881-C9 | VCT.32-SST-p-M6x16-C9 | C9 - RAL 9005 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 15 |
|
| 69881-C17 | VCT.32-SST-p-M6x16-C17 | C17 - RAL 6017 | 32 | M6 | 23 | 15 | 16 | 10 | 8 | 14 |
|
| 69882-C2 | VCT.32-SST-p-M6x20-C2 | C2 - RAL 2004 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 16 |
|
| 69882-C3 | VCT.32-SST-p-M6x20-C3 | C3 - RAL 7035 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 14 |
|
| 69882-C4 | VCT.32-SST-p-M6x20-C4 | C4 - RAL 1021 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 14 |
|
| 69882-C5 | VCT.32-SST-p-M6x20-C5 | C5 - RAL 5024 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 14 |
|
| 69882-C6 | VCT.32-SST-p-M6x20-C6 | C6 - RAL 3000 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 14 |
|
| 69882-C9 | VCT.32-SST-p-M6x20-C9 | C9 - RAL 9005 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 15 |
|
| 69882-C17 | VCT.32-SST-p-M6x20-C17 | C17 - RAL 6017 | 32 | M6 | 23 | 15 | 20 | 10 | 8 | 14 |
|
| 69883-C2 | VCT.32-SST-p-M6x25-C2 | C2 - RAL 2004 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 16 |
|
| 69883-C3 | VCT.32-SST-p-M6x25-C3 | C3 - RAL 7035 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 16 |
|
| 69883-C4 | VCT.32-SST-p-M6x25-C4 | C4 - RAL 1021 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 16 |
|
| 69883-C5 | VCT.32-SST-p-M6x25-C5 | C5 - RAL 5024 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 16 |
|
| 69883-C6 | VCT.32-SST-p-M6x25-C6 | C6 - RAL 3000 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 16 |
|
| 69883-C9 | VCT.32-SST-p-M6x25-C9 | C9 - RAL 9005 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 18 |
|
| 69883-C17 | VCT.32-SST-p-M6x25-C17 | C17 - RAL 6017 | 32 | M6 | 23 | 15 | 25 | 10 | 8 | 16 |
|
| 69884-C2 | VCT.32-SST-p-M6x30-C2 | C2 - RAL 2004 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 16 |
|
| 69884-C3 | VCT.32-SST-p-M6x30-C3 | C3 - RAL 7035 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 16 |
|
| 69884-C4 | VCT.32-SST-p-M6x30-C4 | C4 - RAL 1021 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 16 |
|
| 69884-C5 | VCT.32-SST-p-M6x30-C5 | C5 - RAL 5024 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 16 |
|
| 69884-C6 | VCT.32-SST-p-M6x30-C6 | C6 - RAL 3000 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 16 |
|
| 69884-C9 | VCT.32-SST-p-M6x30-C9 | C9 - RAL 9005 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 18 |
|
| 69884-C17 | VCT.32-SST-p-M6x30-C17 | C17 - RAL 6017 | 32 | M6 | 23 | 15 | 30 | 10 | 8 | 16 |
|
| 69945-C2 | VCT.40-SST-p-M8x20-C2 | C2 - RAL 2004 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 25 |
|
| 69945-C3 | VCT.40-SST-p-M8x20-C3 | C3 - RAL 7035 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 25 |
|
| 69945-C4 | VCT.40-SST-p-M8x20-C4 | C4 - RAL 1021 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 25 |
|
| 69945-C5 | VCT.40-SST-p-M8x20-C5 | C5 - RAL 5024 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 25 |
|
| 69945-C6 | VCT.40-SST-p-M8x20-C6 | C6 - RAL 3000 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 25 |
|
| 69945-C9 | VCT.40-SST-p-M8x20-C9 | C9 - RAL 9005 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 26 |
|
| 69945-C17 | VCT.40-SST-p-M8x20-C17 | C17 - RAL 6017 | 40 | M8 | 27 | 17 | 20 | 12 | 18 | 25 |
|
| 69946-C2 | VCT.40-SST-p-M8x25-C2 | C2 - RAL 2004 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 26 |
|
| 69946-C3 | VCT.40-SST-p-M8x25-C3 | C3 - RAL 7035 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 26 |
|
| 69946-C4 | VCT.40-SST-p-M8x25-C4 | C4 - RAL 1021 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 26 |
|
| 69946-C5 | VCT.40-SST-p-M8x25-C5 | C5 - RAL 5024 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 26 |
|
| 69946-C6 | VCT.40-SST-p-M8x25-C6 | C6 - RAL 3000 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 26 |
|
| 69946-C9 | VCT.40-SST-p-M8x25-C9 | C9 - RAL 9005 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 29 |
|
| 69946-C17 | VCT.40-SST-p-M8x25-C17 | C17 - RAL 6017 | 40 | M8 | 27 | 17 | 25 | 12 | 18 | 26 |
|
| 69947-C2 | VCT.40-SST-p-M8x30-C2 | C2 - RAL 2004 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 31 |
|
| 69947-C3 | VCT.40-SST-p-M8x30-C3 | C3 - RAL 7035 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 33 |
|
| 69947-C4 | VCT.40-SST-p-M8x30-C4 | C4 - RAL 1021 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 28 |
|
| 69947-C5 | VCT.40-SST-p-M8x30-C5 | C5 - RAL 5024 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 28 |
|
| 69947-C6 | VCT.40-SST-p-M8x30-C6 | C6 - RAL 3000 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 28 |
|
| 69947-C9 | VCT.40-SST-p-M8x30-C9 | C9 - RAL 9005 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 30 |
|
| 69947-C17 | VCT.40-SST-p-M8x30-C17 | C17 - RAL 6017 | 40 | M8 | 27 | 17 | 30 | 12 | 18 | 28 |
|
| 69948-C2 | VCT.40-SST-p-M8x40-C2 | C2 - RAL 2004 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 32 |
|
| 69948-C3 | VCT.40-SST-p-M8x40-C3 | C3 - RAL 7035 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 32 |
|
| 69948-C4 | VCT.40-SST-p-M8x40-C4 | C4 - RAL 1021 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 32 |
|
| 69948-C5 | VCT.40-SST-p-M8x40-C5 | C5 - RAL 5024 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 32 |
|
| 69948-C6 | VCT.40-SST-p-M8x40-C6 | C6 - RAL 3000 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 34 |
|
| 69948-C9 | VCT.40-SST-p-M8x40-C9 | C9 - RAL 9005 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 35 |
|
| 69948-C17 | VCT.40-SST-p-M8x40-C17 | C17 - RAL 6017 | 40 | M8 | 27 | 17 | 40 | 12 | 18 | 34 |
|
| 69995-C2 | VCT.50-SST-p-M10x20-C2 | C2 - RAL 2004 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 36 |
|
| 69995-C3 | VCT.50-SST-p-M10x20-C3 | C3 - RAL 7035 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 36 |
|
| 69995-C4 | VCT.50-SST-p-M10x20-C4 | C4 - RAL 1021 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 36 |
|
| 69995-C5 | VCT.50-SST-p-M10x20-C5 | C5 - RAL 5024 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 41 |
|
| 69995-C6 | VCT.50-SST-p-M10x20-C6 | C6 - RAL 3000 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 41 |
|
| 69995-C9 | VCT.50-SST-p-M10x20-C9 | C9 - RAL 9005 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 40 |
|
| 69995-C17 | VCT.50-SST-p-M10x20-C17 | C17 - RAL 6017 | 50 | M10 | 32 | 19 | 20 | 14 | 25 | 41 |
|
| 69996-C2 | VCT.50-SST-p-M10x25-C2 | C2 - RAL 2004 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 36 |
|
| 69996-C3 | VCT.50-SST-p-M10x25-C3 | C3 - RAL 7035 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 36 |
|
| 69996-C4 | VCT.50-SST-p-M10x25-C4 | C4 - RAL 1021 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 36 |
|
| 69996-C5 | VCT.50-SST-p-M10x25-C5 | C5 - RAL 5024 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 41 |
|
| 69996-C6 | VCT.50-SST-p-M10x25-C6 | C6 - RAL 3000 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 41 |
|
| 69996-C9 | VCT.50-SST-p-M10x25-C9 | C9 - RAL 9005 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 40 |
|
| 69996-C17 | VCT.50-SST-p-M10x25-C17 | C17 - RAL 6017 | 50 | M10 | 32 | 19 | 25 | 14 | 25 | 41 |
|
| 69997-C2 | VCT.50-SST-p-M10x30-C2 | C2 - RAL 2004 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 41 |
|
| 69997-C3 | VCT.50-SST-p-M10x30-C3 | C3 - RAL 7035 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 41 |
|
| 69997-C4 | VCT.50-SST-p-M10x30-C4 | C4 - RAL 1021 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 41 |
|
| 69997-C5 | VCT.50-SST-p-M10x30-C5 | C5 - RAL 5024 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 41 |
|
| 69997-C6 | VCT.50-SST-p-M10x30-C6 | C6 - RAL 3000 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 46 |
|
| 69997-C9 | VCT.50-SST-p-M10x30-C9 | C9 - RAL 9005 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 46 |
|
| 69997-C17 | VCT.50-SST-p-M10x30-C17 | C17 - RAL 6017 | 50 | M10 | 32 | 19 | 30 | 14 | 25 | 46 |
|
| 69998-C2 | VCT.50-SST-p-M10x45-C2 | C2 - RAL 2004 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 52 |
|
| 69998-C3 | VCT.50-SST-p-M10x45-C3 | C3 - RAL 7035 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 52 |
|
| 69998-C4 | VCT.50-SST-p-M10x45-C4 | C4 - RAL 1021 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 52 |
|
| 69998-C5 | VCT.50-SST-p-M10x45-C5 | C5 - RAL 5024 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 52 |
|
| 69998-C6 | VCT.50-SST-p-M10x45-C6 | C6 - RAL 3000 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 52 |
|
| 69998-C9 | VCT.50-SST-p-M10x45-C9 | C9 - RAL 9005 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 57 |
|
| 69998-C17 | VCT.50-SST-p-M10x45-C17 | C17 - RAL 6017 | 50 | M10 | 32 | 19 | 45 | 14 | 25 | 52 |
|
| 69999-C2 | VCT.50-SST-p-M10x55-C2 | C2 - RAL 2004 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 59 |
|
| 69999-C3 | VCT.50-SST-p-M10x55-C3 | C3 - RAL 7035 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 61 |
|
| 69999-C4 | VCT.50-SST-p-M10x55-C4 | C4 - RAL 1021 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 57 |
|
| 69999-C5 | VCT.50-SST-p-M10x55-C5 | C5 - RAL 5024 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 57 |
|
| 69999-C6 | VCT.50-SST-p-M10x55-C6 | C6 - RAL 3000 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 57 |
|
| 69999-C9 | VCT.50-SST-p-M10x55-C9 | C9 - RAL 9005 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 62 |
|
| 69999-C17 | VCT.50-SST-p-M10x55-C17 | C17 - RAL 6017 | 50 | M10 | 32 | 19 | 55 | 14 | 25 | 57 |
|
| 70000-C2 | VCT.50-SST-p-M10x40-C2 | C2 - RAL 2004 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 52 |
|
| 70000-C3 | VCT.50-SST-p-M10x40-C3 | C3 - RAL 7035 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 52 |
|
| 70000-C4 | VCT.50-SST-p-M10x40-C4 | C4 - RAL 1021 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 52 |
|
| 70000-C5 | VCT.50-SST-p-M10x40-C5 | C5 - RAL 5024 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 52 |
|
| 70000-C6 | VCT.50-SST-p-M10x40-C6 | C6 - RAL 3000 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 52 |
|
| 70000-C9 | VCT.50-SST-p-M10x40-C9 | C9 - RAL 9005 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 57 |
|
| 70000-C17 | VCT.50-SST-p-M10x40-C17 | C17 - RAL 6017 | 50 | M10 | 32 | 19 | 40 | 14 | 25 | 52 |
|
| 70042-C2 | VCT.63-SST-p-M12x30-C2 | C2 - RAL 2004 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 71 |
|
| 70042-C3 | VCT.63-SST-p-M12x30-C3 | C3 - RAL 7035 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 67 |
|
| 70042-C4 | VCT.63-SST-p-M12x30-C4 | C4 - RAL 1021 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 67 |
|
| 70042-C5 | VCT.63-SST-p-M12x30-C5 | C5 - RAL 5024 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 70 |
|
| 70042-C6 | VCT.63-SST-p-M12x30-C6 | C6 - RAL 3000 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 70 |
|
| 70042-C9 | VCT.63-SST-p-M12x30-C9 | C9 - RAL 9005 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 71 |
|
| 70042-C17 | VCT.63-SST-p-M12x30-C17 | C17 - RAL 6017 | 63 | M12 | 37 | 22 | 30 | 16 | 46 | 70 |
|
| 70043-C2 | VCT.63-SST-p-M12x40-C2 | C2 - RAL 2004 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 71 |
|
| 70043-C3 | VCT.63-SST-p-M12x40-C3 | C3 - RAL 7035 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 67 |
|
| 70043-C4 | VCT.63-SST-p-M12x40-C4 | C4 - RAL 1021 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 67 |
|
| 70043-C5 | VCT.63-SST-p-M12x40-C5 | C5 - RAL 5024 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 70 |
|
| 70043-C6 | VCT.63-SST-p-M12x40-C6 | C6 - RAL 3000 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 70 |
|
| 70043-C9 | VCT.63-SST-p-M12x40-C9 | C9 - RAL 9005 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 71 |
|
| 70043-C17 | VCT.63-SST-p-M12x40-C17 | C17 - RAL 6017 | 63 | M12 | 37 | 22 | 40 | 16 | 46 | 70 |
|
| 70046-C2 | VCT.63-SST-p-M12x50-C2 | C2 - RAL 2004 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 84 |
|
| 70046-C3 | VCT.63-SST-p-M12x50-C3 | C3 - RAL 7035 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 84 |
|
| 70046-C4 | VCT.63-SST-p-M12x50-C4 | C4 - RAL 1021 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 84 |
|
| 70046-C5 | VCT.63-SST-p-M12x50-C5 | C5 - RAL 5024 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 84 |
|
| 70046-C6 | VCT.63-SST-p-M12x50-C6 | C6 - RAL 3000 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 84 |
|
| 70046-C9 | VCT.63-SST-p-M12x50-C9 | C9 - RAL 9005 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 83 |
|
| 70046-C17 | VCT.63-SST-p-M12x50-C17 | C17 - RAL 6017 | 63 | M12 | 37 | 22 | 50 | 16 | 46 | 84 |
|
| 70073-C2 | VCT.74-SST-p-M12x30-C2 | C2 - RAL 2004 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 86 |
|
| 70073-C3 | VCT.74-SST-p-M12x30-C3 | C3 - RAL 7035 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 86 |
|
| 70073-C4 | VCT.74-SST-p-M12x30-C4 | C4 - RAL 1021 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 86 |
|
| 70073-C5 | VCT.74-SST-p-M12x30-C5 | C5 - RAL 5024 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 86 |
|
| 70073-C6 | VCT.74-SST-p-M12x30-C6 | C6 - RAL 3000 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 86 |
|
| 70073-C9 | VCT.74-SST-p-M12x30-C9 | C9 - RAL 9005 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 101 |
|
| 70073-C17 | VCT.74-SST-p-M12x30-C17 | C17 - RAL 6017 | 74 | M12 | 43.5 | 26 | 30 | 22 | 68 | 86 |
|
| 70075-C2 | VCT.74-SST-p-M12x50-C2 | C2 - RAL 2004 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 98 |
|
| 70075-C3 | VCT.74-SST-p-M12x50-C3 | C3 - RAL 7035 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 98 |
|
| 70075-C4 | VCT.74-SST-p-M12x50-C4 | C4 - RAL 1021 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 98 |
|
| 70075-C5 | VCT.74-SST-p-M12x50-C5 | C5 - RAL 5024 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 98 |
|
| 70075-C6 | VCT.74-SST-p-M12x50-C6 | C6 - RAL 3000 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 98 |
|
| 70075-C9 | VCT.74-SST-p-M12x50-C9 | C9 - RAL 9005 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 108 |
|
| 70075-C17 | VCT.74-SST-p-M12x50-C17 | C17 - RAL 6017 | 74 | M12 | 43.5 | 26 | 50 | 22 | 68 | 98 |
|
| 70191-C2 | VCT.84-SST-p-M16x30-C2 | C2 - RAL 2004 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 175 |
|
| 70191-C3 | VCT.84-SST-p-M16x30-C3 | C3 - RAL 7035 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 175 |
|
| 70191-C4 | VCT.84-SST-p-M16x30-C4 | C4 - RAL 1021 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 175 |
|
| 70191-C5 | VCT.84-SST-p-M16x30-C5 | C5 - RAL 5024 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 175 |
|
| 70191-C6 | VCT.84-SST-p-M16x30-C6 | C6 - RAL 3000 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 175 |
|
| 70191-C9 | VCT.84-SST-p-M16x30-C9 | C9 - RAL 9005 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 104 |
|
| 70191-C17 | VCT.84-SST-p-M16x30-C17 | C17 - RAL 6017 | 84 | M16 | 44 | 28 | 30 | 21 | 85 | 175 |
|
| 70194-C2 | VCT.84-SST-p-M16x50-C2 | C2 - RAL 2004 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 109 |
|
| 70194-C3 | VCT.84-SST-p-M16x50-C3 | C3 - RAL 7035 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 109 |
|
| 70194-C4 | VCT.84-SST-p-M16x50-C4 | C4 - RAL 1021 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 109 |
|
| 70194-C5 | VCT.84-SST-p-M16x50-C5 | C5 - RAL 5024 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 109 |
|
| 70194-C6 | VCT.84-SST-p-M16x50-C6 | C6 - RAL 3000 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 109 |
|
| 70194-C9 | VCT.84-SST-p-M16x50-C9 | C9 - RAL 9005 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 104 |
|
| 70194-C17 | VCT.84-SST-p-M16x50-C17 | C17 - RAL 6017 | 84 | M16 | 44 | 28 | 50 | 21 | 85 | 109 |
|
| 70197-C2 | VCT.84-SST-p-M16x70-C2 | C2 - RAL 2004 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 109 |
|
| 70197-C3 | VCT.84-SST-p-M16x70-C3 | C3 - RAL 7035 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 109 |
|
| 70197-C4 | VCT.84-SST-p-M16x70-C4 | C4 - RAL 1021 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 175 |
|
| 70197-C5 | VCT.84-SST-p-M16x70-C5 | C5 - RAL 5024 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 175 |
|
| 70197-C6 | VCT.84-SST-p-M16x70-C6 | C6 - RAL 3000 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 175 |
|
| 70197-C9 | VCT.84-SST-p-M16x70-C9 | C9 - RAL 9005 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 104 |
|
| 70197-C17 | VCT.84-SST-p-M16x70-C17 | C17 - RAL 6017 | 84 | M16 | 44 | 28 | 70 | 21 | 85 | 175 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
CA.VCTBoss capsfor VCT., VCRT.,VCHT. and VTT-C, technopolymerView Product -
VC.692Lobe knobs with solid sectionTechnopolymer, easy cleaningView Product
-
VCT.SOFTLobe knobs'Soft-touch' technopolymerView Product
-
GN 5345Stainless Steel-Three lobe knobsMaterial AISI 303 (A1)View Product
-
GN 5335Stainless Steel-Star knobsStainless Steel AISI 303 (A1)View Product
-
VCRT.Shortened lobe knobsTechnopolymer, square or threaded holeView Product
-
VCT-LPLobe knobswith retaining chain, technopolymerView Product
