VCT.SOFT

Lobe knobs

'Soft-touch' technopolymer

Enquire Now

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, coated with thermoplastic elastomer (TPE) 'soft-touch' chemically bonded, hardness 70 Shore A, black colour, matte finish.

Raw material coating suitable for contact with food (FDA CFR.21 and EU 10/2011).

Coloured centre cap

Polypropylene based (PP) technopolymer, in the standard colours, matte finish.

On request and for sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

Standard executions

VCT-B-SOFT: brass boss, threaded blind hole.
VCT-p-SOFT: zinc-plated steel threaded stud with chamfered flat end as in UNI 947 : ISO 4753 (see Technical data).

VCT-p-SOFT

		Color	D	d_6g	L	d₁	l	l₂	C# [Nm]
Code	Description										Actions

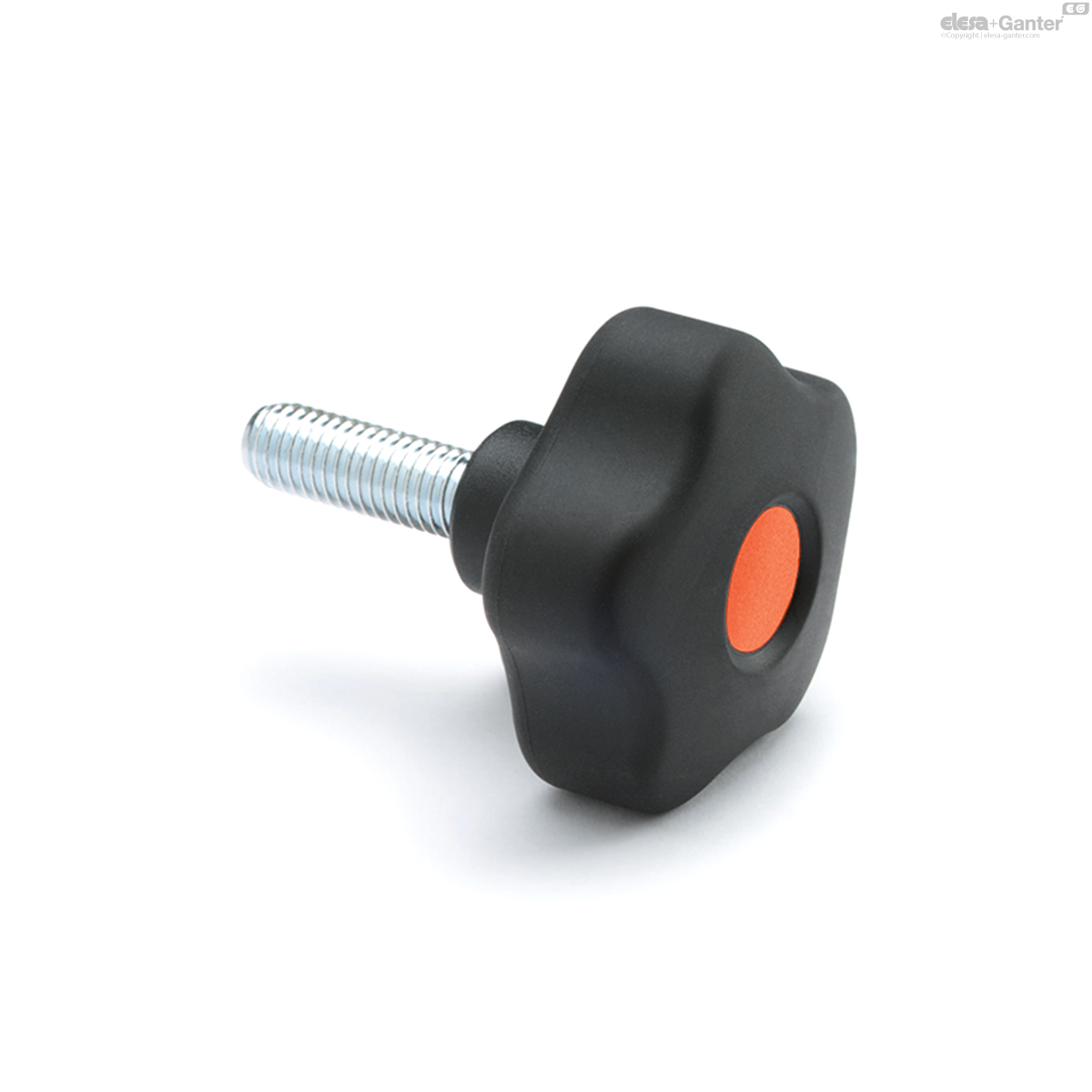

169901-C2	VCT.43 p-M6x16-SOFT-C2	C2 - RAL 2004	43	M6	29	17	16	11	13	31

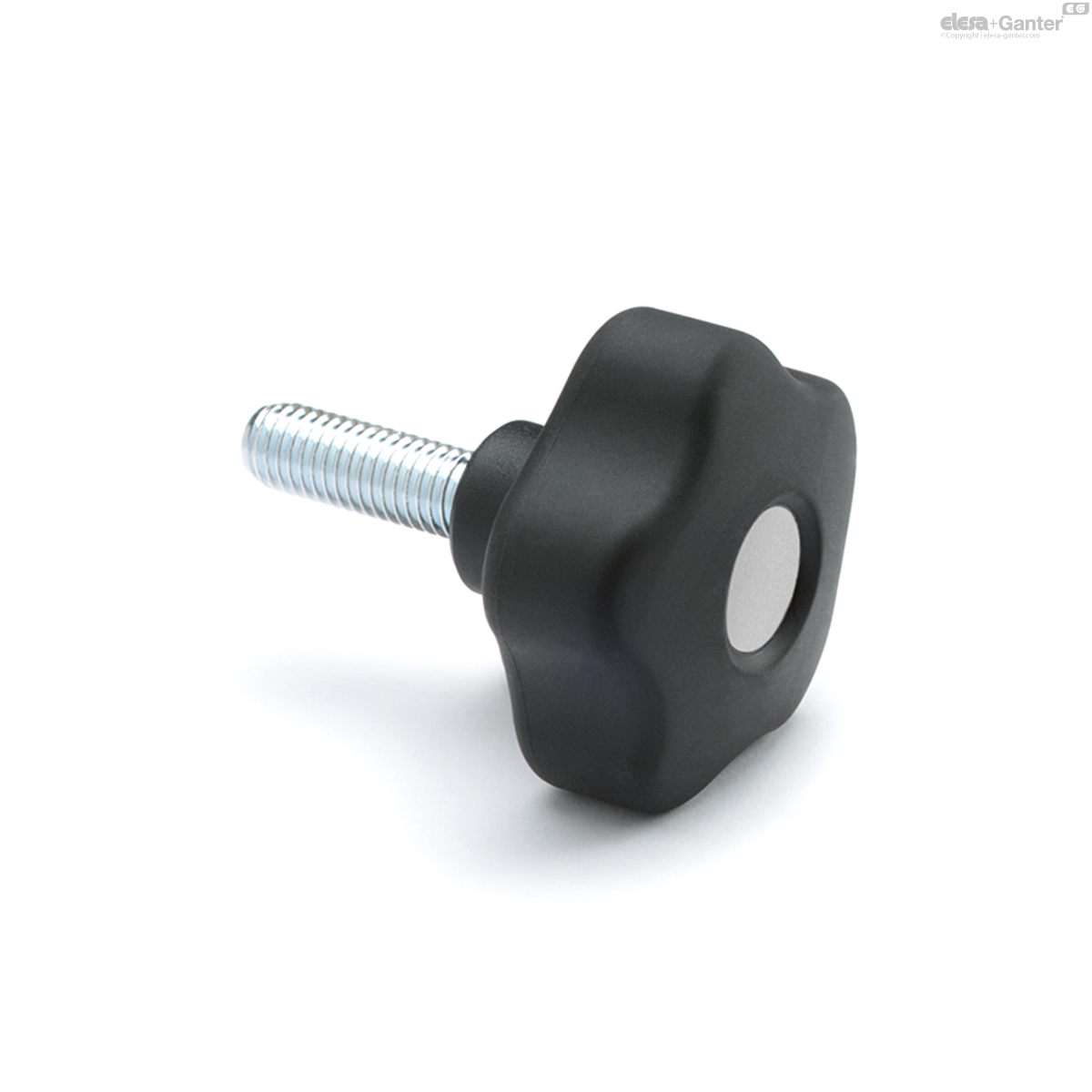

169901-C3	VCT.43 p-M6x16-SOFT-C3	C3 - RAL 7035	43	M6	29	17	16	11	13	31

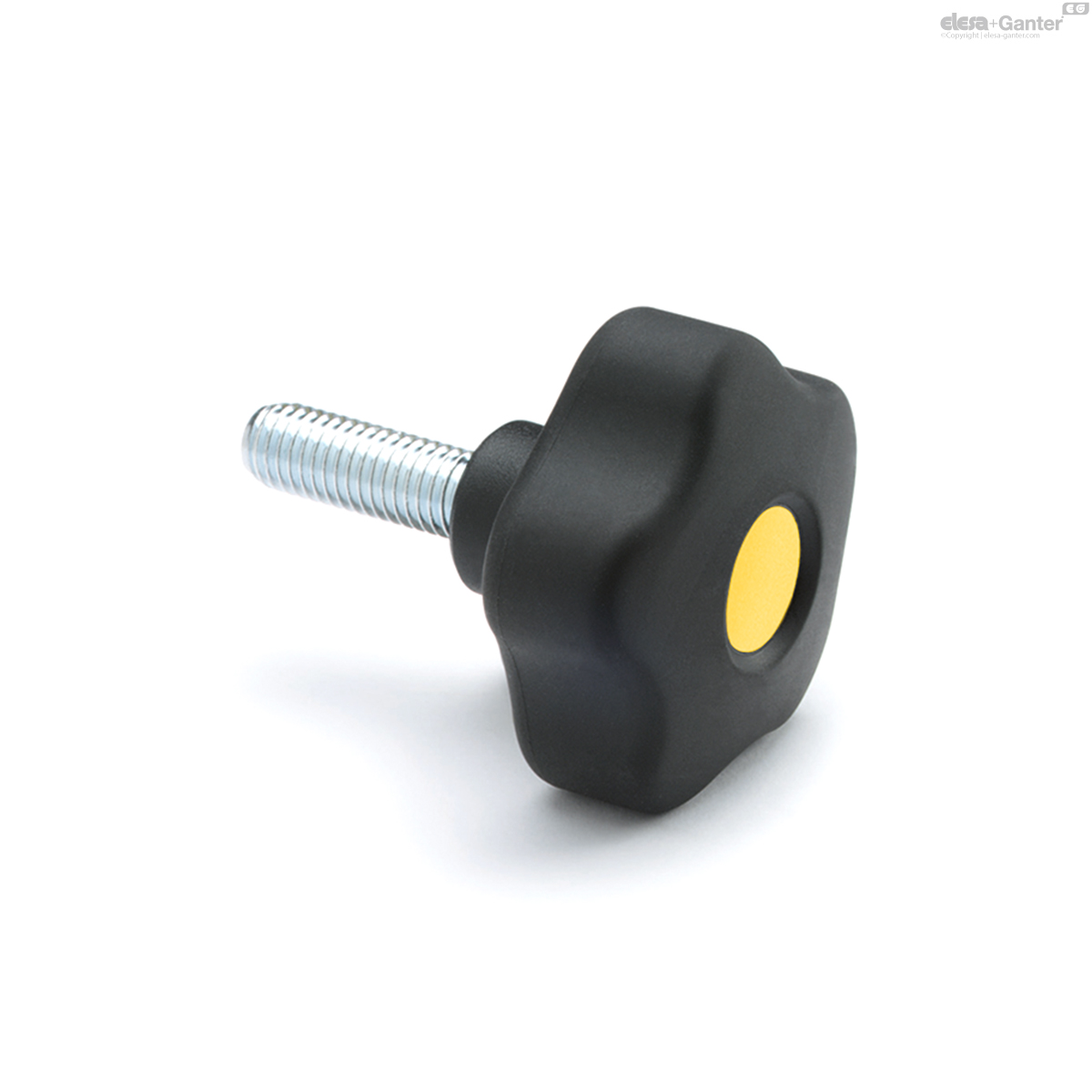

169901-C4	VCT.43 p-M6x16-SOFT-C4	C4 - RAL 1021	43	M6	29	17	16	11	13	31

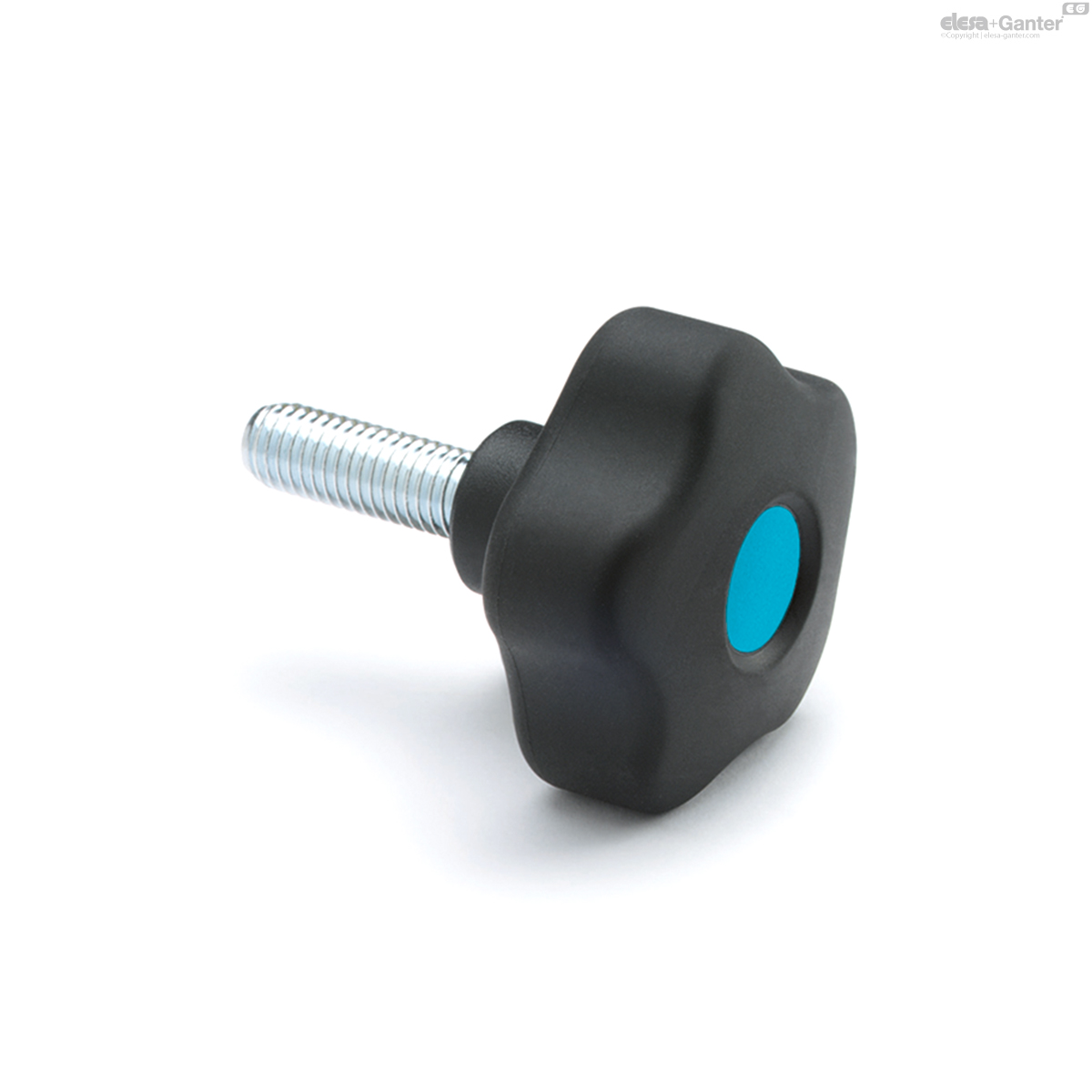

169901-C5	VCT.43 p-M6x16-SOFT-C5	C5 - RAL 5024	43	M6	29	17	16	11	13	31
169901-C6	VCT.43 p-M6x16-SOFT-C6	C6 - RAL 3000	43	M6	29	17	16	11	13	31

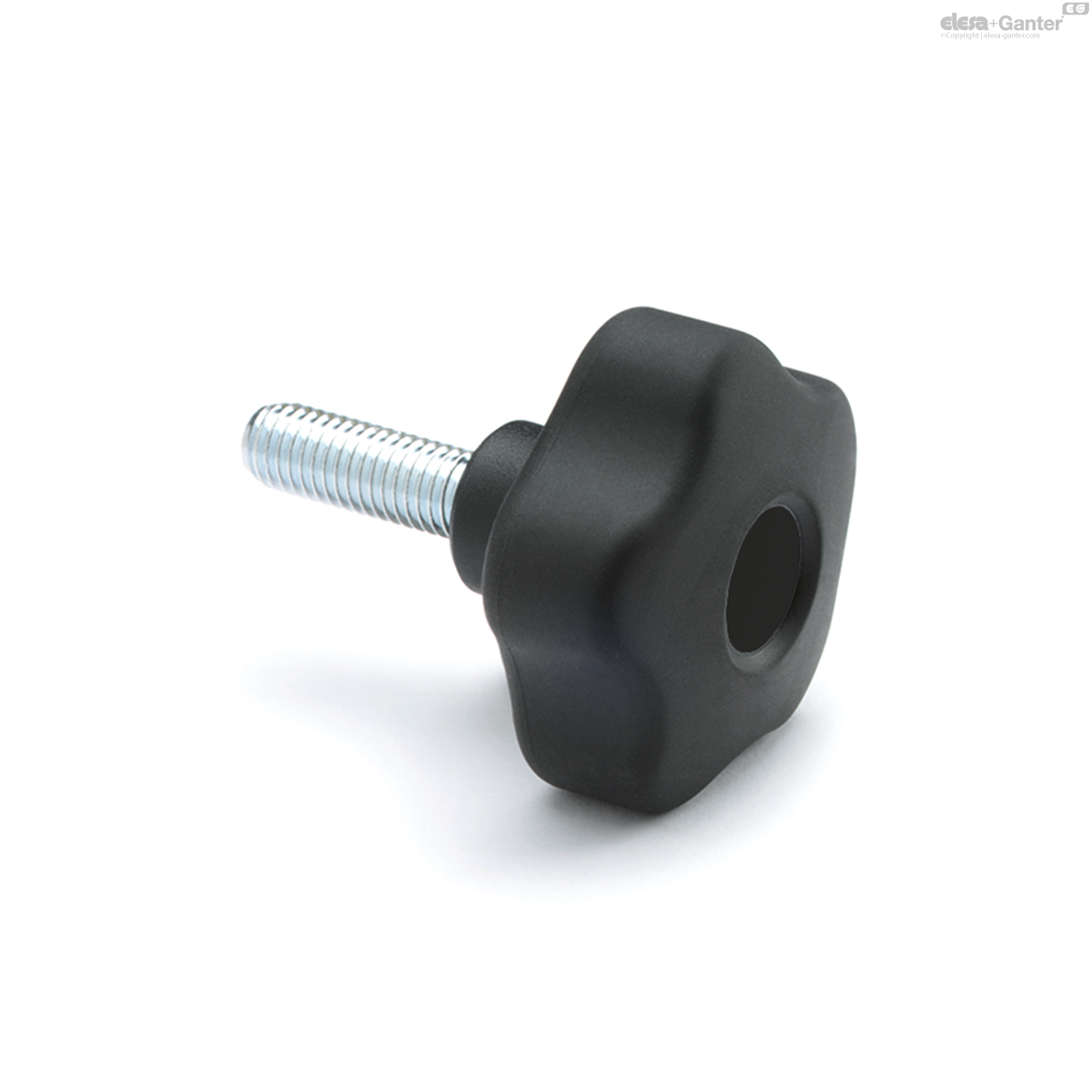

169901-C9	VCT.43 p-M6x16-SOFT-C9	C9 - RAL 9005	43	M6	29	17	16	11	13	31

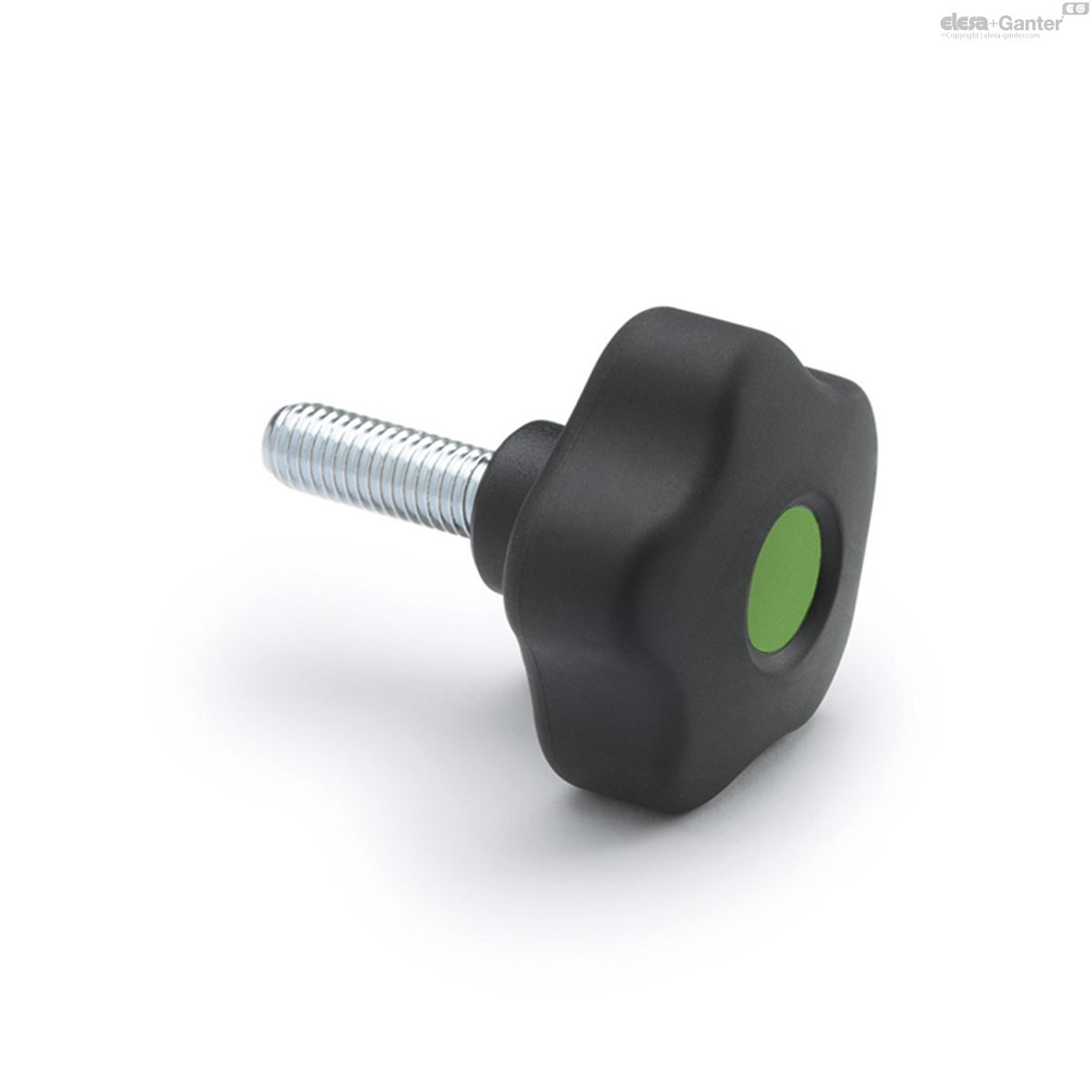

169901-C17	VCT.43 p-M6x16-SOFT-C17	C17 - RAL 6017	43	M6	29	17	16	11	13	31
169902-C2	VCT.43 p-M6x20-SOFT-C2	C2 - RAL 2004	43	M6	29	17	20	11	13	31
169902-C3	VCT.43 p-M6x20-SOFT-C3	C3 - RAL 7035	43	M6	29	17	20	11	13	31
169902-C4	VCT.43 p-M6x20-SOFT-C4	C4 - RAL 1021	43	M6	29	17	20	11	13	31
169902-C5	VCT.43 p-M6x20-SOFT-C5	C5 - RAL 5024	43	M6	29	17	20	11	13	31
169902-C6	VCT.43 p-M6x20-SOFT-C6	C6 - RAL 3000	43	M6	29	17	20	11	13	31
169902-C9	VCT.43 p-M6x20-SOFT-C9	C9 - RAL 9005	43	M6	29	17	20	11	13	31
169902-C17	VCT.43 p-M6x20-SOFT-C17	C17 - RAL 6017	43	M6	29	17	20	11	13	31
169903-C2	VCT.43 p-M6x25-SOFT-C2	C2 - RAL 2004	43	M6	29	17	25	11	13	29
169903-C3	VCT.43 p-M6x25-SOFT-C3	C3 - RAL 7035	43	M6	29	17	25	11	13	29
169903-C4	VCT.43 p-M6x25-SOFT-C4	C4 - RAL 1021	43	M6	29	17	25	11	13	29
169903-C5	VCT.43 p-M6x25-SOFT-C5	C5 - RAL 5024	43	M6	29	17	25	11	13	29
169903-C6	VCT.43 p-M6x25-SOFT-C6	C6 - RAL 3000	43	M6	29	17	25	11	13	29
169903-C9	VCT.43 p-M6x25-SOFT-C9	C9 - RAL 9005	43	M6	29	17	25	11	13	29
169903-C17	VCT.43 p-M6x25-SOFT-C17	C17 - RAL 6017	43	M6	29	17	25	11	13	29
169905-C2	VCT.43 p-M6x30-SOFT-C2	C2 - RAL 2004	43	M6	29	17	30	11	13	30
169905-C3	VCT.43 p-M6x30-SOFT-C3	C3 - RAL 7035	43	M6	29	17	30	11	13	30
169905-C4	VCT.43 p-M6x30-SOFT-C4	C4 - RAL 1021	43	M6	29	17	30	11	13	30
169905-C5	VCT.43 p-M6x30-SOFT-C5	C5 - RAL 5024	43	M6	29	17	30	11	13	30
169905-C6	VCT.43 p-M6x30-SOFT-C6	C6 - RAL 3000	43	M6	29	17	30	11	13	30
169905-C9	VCT.43 p-M6x30-SOFT-C9	C9 - RAL 9005	43	M6	29	17	30	11	13	30
169905-C17	VCT.43 p-M6x30-SOFT-C17	C17 - RAL 6017	43	M6	29	17	30	11	13	30
169911-C2	VCT.43 p-M8x16-SOFT-C2	C2 - RAL 2004	43	M8	29	17	16	11	16	31
169911-C3	VCT.43 p-M8x16-SOFT-C3	C3 - RAL 7035	43	M8	29	17	16	11	16	31
169911-C4	VCT.43 p-M8x16-SOFT-C4	C4 - RAL 1021	43	M8	29	17	16	11	16	31
169911-C5	VCT.43 p-M8x16-SOFT-C5	C5 - RAL 5024	43	M8	29	17	16	11	16	31
169911-C6	VCT.43 p-M8x16-SOFT-C6	C6 - RAL 3000	43	M8	29	17	16	11	16	31
169911-C9	VCT.43 p-M8x16-SOFT-C9	C9 - RAL 9005	43	M8	29	17	16	11	16	31
169911-C17	VCT.43 p-M8x16-SOFT-C17	C17 - RAL 6017	43	M8	29	17	16	11	16	31
169912-C2	VCT.43 p-M8x20-SOFT-C2	C2 - RAL 2004	43	M8	29	17	20	11	16	33
169912-C3	VCT.43 p-M8x20-SOFT-C3	C3 - RAL 7035	43	M8	29	17	20	11	16	33
169912-C4	VCT.43 p-M8x20-SOFT-C4	C4 - RAL 1021	43	M8	29	17	20	11	16	33
169912-C5	VCT.43 p-M8x20-SOFT-C5	C5 - RAL 5024	43	M8	29	17	20	11	16	33
169912-C6	VCT.43 p-M8x20-SOFT-C6	C6 - RAL 3000	43	M8	29	17	20	11	16	33
169912-C9	VCT.43 p-M8x20-SOFT-C9	C9 - RAL 9005	43	M8	29	17	20	11	16	33
169912-C17	VCT.43 p-M8x20-SOFT-C17	C17 - RAL 6017	43	M8	29	17	20	11	16	33
169913-C2	VCT.43 p-M8x25-SOFT-C2	C2 - RAL 2004	43	M8	29	17	25	11	16	27
169913-C3	VCT.43 p-M8x25-SOFT-C3	C3 - RAL 7035	43	M8	29	17	25	11	16	27
169913-C4	VCT.43 p-M8x25-SOFT-C4	C4 - RAL 1021	43	M8	29	17	25	11	16	27
169913-C5	VCT.43 p-M8x25-SOFT-C5	C5 - RAL 5024	43	M8	29	17	25	11	16	27
169913-C6	VCT.43 p-M8x25-SOFT-C6	C6 - RAL 3000	43	M8	29	17	25	11	16	27
169913-C9	VCT.43 p-M8x25-SOFT-C9	C9 - RAL 9005	43	M8	29	17	25	11	16	27
169913-C17	VCT.43 p-M8x25-SOFT-C17	C17 - RAL 6017	43	M8	29	17	25	11	16	27
169915-C2	VCT.43 p-M8x30-SOFT-C2	C2 - RAL 2004	43	M8	29	17	30	11	16	36
169915-C3	VCT.43 p-M8x30-SOFT-C3	C3 - RAL 7035	43	M8	29	17	30	11	16	36
169915-C4	VCT.43 p-M8x30-SOFT-C4	C4 - RAL 1021	43	M8	29	17	30	11	16	36
169915-C5	VCT.43 p-M8x30-SOFT-C5	C5 - RAL 5024	43	M8	29	17	30	11	16	36
169915-C6	VCT.43 p-M8x30-SOFT-C6	C6 - RAL 3000	43	M8	29	17	30	11	16	36
169915-C9	VCT.43 p-M8x30-SOFT-C9	C9 - RAL 9005	43	M8	29	17	30	11	16	36
169915-C17	VCT.43 p-M8x30-SOFT-C17	C17 - RAL 6017	43	M8	29	17	30	11	16	36
169916-C2	VCT.43 p-M8x40-SOFT-C2	C2 - RAL 2004	43	M8	29	17	40	11	16	35
169916-C3	VCT.43 p-M8x40-SOFT-C3	C3 - RAL 7035	43	M8	29	17	40	11	16	35
169916-C4	VCT.43 p-M8x40-SOFT-C4	C4 - RAL 1021	43	M8	29	17	40	11	16	34
169916-C5	VCT.43 p-M8x40-SOFT-C5	C5 - RAL 5024	43	M8	29	17	40	11	16	35
169916-C6	VCT.43 p-M8x40-SOFT-C6	C6 - RAL 3000	43	M8	29	17	40	11	16	35
169916-C9	VCT.43 p-M8x40-SOFT-C9	C9 - RAL 9005	43	M8	29	17	40	11	16	35
169916-C17	VCT.43 p-M8x40-SOFT-C17	C17 - RAL 6017	43	M8	29	17	40	11	16	35
169961-C2	VCT.53 p-M8x16-SOFT-C2	C2 - RAL 2004	53	M8	34	19	16	13	16	44
169961-C3	VCT.53 p-M8x16-SOFT-C3	C3 - RAL 7035	53	M8	34	19	16	13	16	44
169961-C4	VCT.53 p-M8x16-SOFT-C4	C4 - RAL 1021	53	M8	34	19	16	13	16	44
169961-C5	VCT.53 p-M8x16-SOFT-C5	C5 - RAL 5024	53	M8	34	19	16	13	16	44
169961-C6	VCT.53 p-M8x16-SOFT-C6	C6 - RAL 3000	53	M8	34	19	16	13	16	44
169961-C9	VCT.53 p-M8x16-SOFT-C9	C9 - RAL 9005	53	M8	34	19	16	13	16	44
169961-C17	VCT.53 p-M8x16-SOFT-C17	C17 - RAL 6017	53	M8	34	19	16	13	16	44
169963-C2	VCT.53 p-M8x20-SOFT-C2	C2 - RAL 2004	53	M8	34	19	20	13	16	53
169963-C3	VCT.53 p-M8x20-SOFT-C3	C3 - RAL 7035	53	M8	34	19	20	13	16	53
169963-C4	VCT.53 p-M8x20-SOFT-C4	C4 - RAL 1021	53	M8	34	19	20	13	16	53
169963-C5	VCT.53 p-M8x20-SOFT-C5	C5 - RAL 5024	53	M8	34	19	20	13	16	53
169963-C6	VCT.53 p-M8x20-SOFT-C6	C6 - RAL 3000	53	M8	34	19	20	13	16	53
169963-C9	VCT.53 p-M8x20-SOFT-C9	C9 - RAL 9005	53	M8	34	19	20	13	16	53
169963-C17	VCT.53 p-M8x20-SOFT-C17	C17 - RAL 6017	53	M8	34	19	20	13	16	53
169965-C2	VCT.53 p-M8x30-SOFT-C2	C2 - RAL 2004	53	M8	34	19	30	13	16	53
169965-C3	VCT.53 p-M8x30-SOFT-C3	C3 - RAL 7035	53	M8	34	19	30	13	16	53
169965-C4	VCT.53 p-M8x30-SOFT-C4	C4 - RAL 1021	53	M8	34	19	30	13	16	53
169965-C5	VCT.53 p-M8x30-SOFT-C5	C5 - RAL 5024	53	M8	34	19	30	13	16	53
169965-C6	VCT.53 p-M8x30-SOFT-C6	C6 - RAL 3000	53	M8	34	19	30	13	16	53
169965-C9	VCT.53 p-M8x30-SOFT-C9	C9 - RAL 9005	53	M8	34	19	30	13	16	53
169965-C17	VCT.53 p-M8x30-SOFT-C17	C17 - RAL 6017	53	M8	34	19	30	13	16	53
169967-C2	VCT.53 p-M8x40-SOFT-C2	C2 - RAL 2004	53	M8	34	19	40	13	16	54
169967-C3	VCT.53 p-M8x40-SOFT-C3	C3 - RAL 7035	53	M8	34	19	40	13	16	54
169967-C4	VCT.53 p-M8x40-SOFT-C4	C4 - RAL 1021	53	M8	34	19	40	13	16	54
169967-C5	VCT.53 p-M8x40-SOFT-C5	C5 - RAL 5024	53	M8	34	19	40	13	16	54
169967-C6	VCT.53 p-M8x40-SOFT-C6	C6 - RAL 3000	53	M8	34	19	40	13	16	54
169967-C9	VCT.53 p-M8x40-SOFT-C9	C9 - RAL 9005	53	M8	34	19	40	13	16	54
169967-C17	VCT.53 p-M8x40-SOFT-C17	C17 - RAL 6017	53	M8	34	19	40	13	16	54
169971-C2	VCT.53 p-M10x20-SOFT-C2	C2 - RAL 2004	53	M10	34	19	20	13	23	53
169971-C3	VCT.53 p-M10x20-SOFT-C3	C3 - RAL 7035	53	M10	34	19	20	13	23	53
169971-C4	VCT.53 p-M10x20-SOFT-C4	C4 - RAL 1021	53	M10	34	19	20	13	23	53
169971-C5	VCT.53 p-M10x20-SOFT-C5	C5 - RAL 5024	53	M10	34	19	20	13	23	53
169971-C6	VCT.53 p-M10x20-SOFT-C6	C6 - RAL 3000	53	M10	34	19	20	13	23	53
169971-C9	VCT.53 p-M10x20-SOFT-C9	C9 - RAL 9005	53	M10	34	19	20	13	23	53
169971-C17	VCT.53 p-M10x20-SOFT-C17	C17 - RAL 6017	53	M10	34	19	20	13	23	53
169973-C2	VCT.53 p-M10x30-SOFT-C2	C2 - RAL 2004	53	M10	34	19	30	13	23	58
169973-C3	VCT.53 p-M10x30-SOFT-C3	C3 - RAL 7035	53	M10	34	19	30	13	23	58
169973-C4	VCT.53 p-M10x30-SOFT-C4	C4 - RAL 1021	53	M10	34	19	30	13	23	58
169973-C5	VCT.53 p-M10x30-SOFT-C5	C5 - RAL 5024	53	M10	34	19	30	13	23	58
169973-C6	VCT.53 p-M10x30-SOFT-C6	C6 - RAL 3000	53	M10	34	19	30	13	23	58
169973-C9	VCT.53 p-M10x30-SOFT-C9	C9 - RAL 9005	53	M10	34	19	30	13	23	58
169973-C17	VCT.53 p-M10x30-SOFT-C17	C17 - RAL 6017	53	M10	34	19	30	13	23	58
169975-C2	VCT.53 p-M10x40-SOFT-C2	C2 - RAL 2004	53	M10	34	19	40	13	23	63
169975-C3	VCT.53 p-M10x40-SOFT-C3	C3 - RAL 7035	53	M10	34	19	40	13	23	63
169975-C4	VCT.53 p-M10x40-SOFT-C4	C4 - RAL 1021	53	M10	34	19	40	13	23	63
169975-C5	VCT.53 p-M10x40-SOFT-C5	C5 - RAL 5024	53	M10	34	19	40	13	23	63
169975-C6	VCT.53 p-M10x40-SOFT-C6	C6 - RAL 3000	53	M10	34	19	40	13	23	63
169975-C9	VCT.53 p-M10x40-SOFT-C9	C9 - RAL 9005	53	M10	34	19	40	13	23	63
169975-C17	VCT.53 p-M10x40-SOFT-C17	C17 - RAL 6017	53	M10	34	19	40	13	23	63
169977-C2	VCT.53 p-M10x50-SOFT-C2	C2 - RAL 2004	53	M10	34	19	50	13	23	68
169977-C3	VCT.53 p-M10x50-SOFT-C3	C3 - RAL 7035	53	M10	34	19	50	13	23	68
169977-C4	VCT.53 p-M10x50-SOFT-C4	C4 - RAL 1021	53	M10	34	19	50	13	23	68
169977-C5	VCT.53 p-M10x50-SOFT-C5	C5 - RAL 5024	53	M10	34	19	50	13	23	68
169977-C6	VCT.53 p-M10x50-SOFT-C6	C6 - RAL 3000	53	M10	34	19	50	13	23	68
169977-C9	VCT.53 p-M10x50-SOFT-C9	C9 - RAL 9005	53	M10	34	19	50	13	23	68
169977-C17	VCT.53 p-M10x50-SOFT-C17	C17 - RAL 6017	53	M10	34	19	50	13	23	68
170021-C2	VCT.66 p-M10x20-SOFT-C2	C2 - RAL 2004	66	M10	38.5	21.5	20	15.5	37	46
170021-C3	VCT.66 p-M10x20-SOFT-C3	C3 - RAL 7035	66	M10	38.5	21.5	20	15.5	37	46
170021-C4	VCT.66 p-M10x20-SOFT-C4	C4 - RAL 1021	66	M10	38.5	21.5	20	15.5	37	46
170021-C5	VCT.66 p-M10x20-SOFT-C5	C5 - RAL 5024	66	M10	38.5	21.5	20	15.5	37	46
170021-C6	VCT.66 p-M10x20-SOFT-C6	C6 - RAL 3000	66	M10	38.5	21.5	20	15.5	37	46
170021-C9	VCT.66 p-M10x20-SOFT-C9	C9 - RAL 9005	66	M10	38.5	21.5	20	15.5	37	46
170021-C17	VCT.66 p-M10x20-SOFT-C17	C17 - RAL 6017	66	M10	38.5	21.5	20	15.5	37	46
170023-C2	VCT.66 p-M10x30-SOFT-C2	C2 - RAL 2004	66	M10	38.5	21.5	30	15.5	37	46
170023-C3	VCT.66 p-M10x30-SOFT-C3	C3 - RAL 7035	66	M10	38.5	21.5	30	15.5	37	46
170023-C4	VCT.66 p-M10x30-SOFT-C4	C4 - RAL 1021	66	M10	38.5	21.5	30	15.5	37	46
170023-C5	VCT.66 p-M10x30-SOFT-C5	C5 - RAL 5024	66	M10	38.5	21.5	30	15.5	37	46
170023-C6	VCT.66 p-M10x30-SOFT-C6	C6 - RAL 3000	66	M10	38.5	21.5	30	15.5	37	46
170023-C9	VCT.66 p-M10x30-SOFT-C9	C9 - RAL 9005	66	M10	38.5	21.5	30	15.5	37	46
170023-C17	VCT.66 p-M10x30-SOFT-C17	C17 - RAL 6017	66	M10	38.5	21.5	30	15.5	37	46
170025-C2	VCT.66 p-M10x40-SOFT-C2	C2 - RAL 2004	66	M10	38.5	21.5	40	15.5	37	46
170025-C3	VCT.66 p-M10x40-SOFT-C3	C3 - RAL 7035	66	M10	38.5	21.5	40	15.5	37	46
170025-C4	VCT.66 p-M10x40-SOFT-C4	C4 - RAL 1021	66	M10	38.5	21.5	40	15.5	37	46
170025-C5	VCT.66 p-M10x40-SOFT-C5	C5 - RAL 5024	66	M10	38.5	21.5	40	15.5	37	46
170025-C6	VCT.66 p-M10x40-SOFT-C6	C6 - RAL 3000	66	M10	38.5	21.5	40	15.5	37	46
170025-C9	VCT.66 p-M10x40-SOFT-C9	C9 - RAL 9005	66	M10	38.5	21.5	40	15.5	37	46
170025-C17	VCT.66 p-M10x40-SOFT-C17	C17 - RAL 6017	66	M10	38.5	21.5	40	15.5	37	46
170027-C2	VCT.66 p-M10x50-SOFT-C2	C2 - RAL 2004	66	M10	38.5	21.5	50	15.5	37	82
170027-C3	VCT.66 p-M10x50-SOFT-C3	C3 - RAL 7035	66	M10	38.5	21.5	50	15.5	37	82
170027-C4	VCT.66 p-M10x50-SOFT-C4	C4 - RAL 1021	66	M10	38.5	21.5	50	15.5	37	82
170027-C5	VCT.66 p-M10x50-SOFT-C5	C5 - RAL 5024	66	M10	38.5	21.5	50	15.5	37	82
170027-C6	VCT.66 p-M10x50-SOFT-C6	C6 - RAL 3000	66	M10	38.5	21.5	50	15.5	37	82
170027-C9	VCT.66 p-M10x50-SOFT-C9	C9 - RAL 9005	66	M10	38.5	21.5	50	15.5	37	82
170027-C17	VCT.66 p-M10x50-SOFT-C17	C17 - RAL 6017	66	M10	38.5	21.5	50	15.5	37	82
170033-C2	VCT.66 p-M12x30-SOFT-C2	C2 - RAL 2004	66	M12	38.5	21.5	30	15.5	46	46
170033-C3	VCT.66 p-M12x30-SOFT-C3	C3 - RAL 7035	66	M12	38.5	21.5	30	15.5	46	46
170033-C4	VCT.66 p-M12x30-SOFT-C4	C4 - RAL 1021	66	M12	38.5	21.5	30	15.5	46	46
170033-C5	VCT.66 p-M12x30-SOFT-C5	C5 - RAL 5024	66	M12	38.5	21.5	30	15.5	46	46
170033-C6	VCT.66 p-M12x30-SOFT-C6	C6 - RAL 3000	66	M12	38.5	21.5	30	15.5	46	46
170033-C9	VCT.66 p-M12x30-SOFT-C9	C9 - RAL 9005	66	M12	38.5	21.5	30	15.5	46	46
170033-C17	VCT.66 p-M12x30-SOFT-C17	C17 - RAL 6017	66	M12	38.5	21.5	30	15.5	46	46
170035-C2	VCT.66 p-M12x40-SOFT-C2	C2 - RAL 2004	66	M12	38.5	21.5	40	15.5	46	46
170035-C3	VCT.66 p-M12x40-SOFT-C3	C3 - RAL 7035	66	M12	38.5	21.5	40	15.5	46	46
170035-C4	VCT.66 p-M12x40-SOFT-C4	C4 - RAL 1021	66	M12	38.5	21.5	40	15.5	46	46
170035-C5	VCT.66 p-M12x40-SOFT-C5	C5 - RAL 5024	66	M12	38.5	21.5	40	15.5	46	46
170035-C6	VCT.66 p-M12x40-SOFT-C6	C6 - RAL 3000	66	M12	38.5	21.5	40	15.5	46	46
170035-C9	VCT.66 p-M12x40-SOFT-C9	C9 - RAL 9005	66	M12	38.5	21.5	40	15.5	46	46
170035-C17	VCT.66 p-M12x40-SOFT-C17	C17 - RAL 6017	66	M12	38.5	21.5	40	15.5	46	46
170037-C2	VCT.66 p-M12x50-SOFT-C2	C2 - RAL 2004	66	M12	38.5	21.5	50	15.5	46	46
170037-C3	VCT.66 p-M12x50-SOFT-C3	C3 - RAL 7035	66	M12	38.5	21.5	50	15.5	46	46
170037-C4	VCT.66 p-M12x50-SOFT-C4	C4 - RAL 1021	66	M12	38.5	21.5	50	15.5	46	46
170037-C5	VCT.66 p-M12x50-SOFT-C5	C5 - RAL 5024	66	M12	38.5	21.5	50	15.5	46	46
170037-C6	VCT.66 p-M12x50-SOFT-C6	C6 - RAL 3000	66	M12	38.5	21.5	50	15.5	46	46
170037-C9	VCT.66 p-M12x50-SOFT-C9	C9 - RAL 9005	66	M12	38.5	21.5	50	15.5	46	46
170037-C17	VCT.66 p-M12x50-SOFT-C17	C17 - RAL 6017	66	M12	38.5	21.5	50	15.5	46	46
170083-C2	VCT.77 p-M12x30-SOFT-C2	C2 - RAL 2004	77	M12	46	26	30	21	68	53
170083-C3	VCT.77 p-M12x30-SOFT-C3	C3 - RAL 7035	77	M12	46	26	30	21	68	53
170083-C4	VCT.77 p-M12x30-SOFT-C4	C4 - RAL 1021	77	M12	46	26	30	21	68	53
170083-C5	VCT.77 p-M12x30-SOFT-C5	C5 - RAL 5024	77	M12	46	26	30	21	68	53
170083-C6	VCT.77 p-M12x30-SOFT-C6	C6 - RAL 3000	77	M12	46	26	30	21	68	53
170083-C9	VCT.77 p-M12x30-SOFT-C9	C9 - RAL 9005	77	M12	46	26	30	21	68	106
170083-C17	VCT.77 p-M12x30-SOFT-C17	C17 - RAL 6017	77	M12	46	26	30	21	68	53
170085-C2	VCT.77 p-M12x40-SOFT-C2	C2 - RAL 2004	77	M12	46	26	40	21	68	53
170085-C3	VCT.77 p-M12x40-SOFT-C3	C3 - RAL 7035	77	M12	46	26	40	21	68	53
170085-C4	VCT.77 p-M12x40-SOFT-C4	C4 - RAL 1021	77	M12	46	26	40	21	68	53
170085-C5	VCT.77 p-M12x40-SOFT-C5	C5 - RAL 5024	77	M12	46	26	40	21	68	53
170085-C6	VCT.77 p-M12x40-SOFT-C6	C6 - RAL 3000	77	M12	46	26	40	21	68	53
170085-C9	VCT.77 p-M12x40-SOFT-C9	C9 - RAL 9005	77	M12	46	26	40	21	68	53
170085-C17	VCT.77 p-M12x40-SOFT-C17	C17 - RAL 6017	77	M12	46	26	40	21	68	53
170087-C2	VCT.77 p-M12x50-SOFT-C2	C2 - RAL 2004	77	M12	46	26	50	21	68	53
170087-C3	VCT.77 p-M12x50-SOFT-C3	C3 - RAL 7035	77	M12	46	26	50	21	68	53
170087-C4	VCT.77 p-M12x50-SOFT-C4	C4 - RAL 1021	77	M12	46	26	50	21	68	53
170087-C5	VCT.77 p-M12x50-SOFT-C5	C5 - RAL 5024	77	M12	46	26	50	21	68	53
170087-C6	VCT.77 p-M12x50-SOFT-C6	C6 - RAL 3000	77	M12	46	26	50	21	68	53
170087-C9	VCT.77 p-M12x50-SOFT-C9	C9 - RAL 9005	77	M12	46	26	50	21	68	53
170087-C17	VCT.77 p-M12x50-SOFT-C17	C17 - RAL 6017	77	M12	46	26	50	21	68	53

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
