Home Clamping Knobs Star and lobe knobs VCT.

VCT.

Lobe knobs

Technopolymer

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

__logo__PP__

__logo__g90__

__logo__PA__

__logo__g15030__

Enquire Now

product image

Black-oxide steel boss, plain hole, with cap

product image

Brass boss, threaded hole, with cap

product image

Zinc-plated steel boss, threaded hole, with cap

product image

Stainless steel boss, threaded hole, with cap

product image

Brass boss, threaded hole, without cap

product image

Stainless steel boss, threaded hole, without cap

product image

Zinc-plated steel boss, threaded hole, without cap

product image

Zinc-plated steel threaded stud, with cap

product image

Stainless steel threaded stud, with cap

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

VCT.25: glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Boss cap

CA.VCT: polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied. Not available for VCT.25.

Available also as accessory sold separately (see table).

Standard executions

VCT-A: black-oxide steel boss, plain blind hole.
VCT-B: brass boss, threaded blind hole (VCT.25 - 95) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
VCT-AZ: zinc-plated steel boss, threaded pass-through hole.
VCT-SST: AISI 303 stainless steel boss, threaded blind hole (VCT.25) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
VCT.FP: brass boss, threaded pass-through hole, without cap.
VCT-AZ-FP: zinc-plated steel boss, threaded pass-through hole, without cap.
VCT-SST-FP: AISI 303 stainless steel boss, threaded pass-through hole, without cap.
VCT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
VCT-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Accessories on request

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, not available for VCT.25 (see table). For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

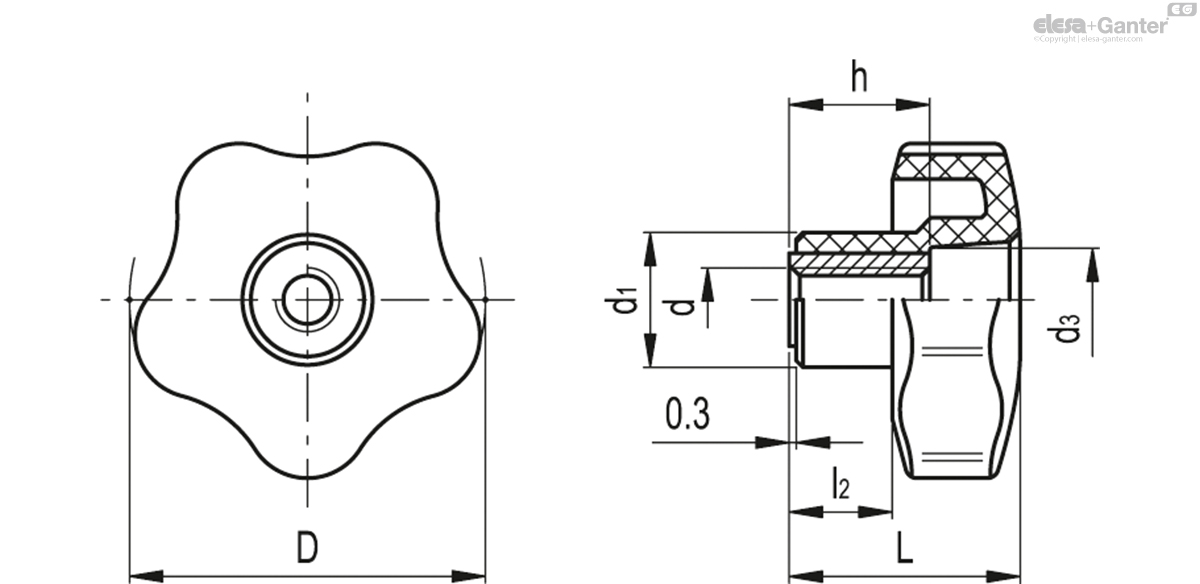

VCT.FP

		D	d_6H	L	d₁	d₃	l₂	h
Code	Description									Actions
69847	VCT.32 FP-M5	32	M5	23	15	10	10	12	13
69848	VCT.32 FP-M6	32	M6	23	15	10	10	12	13
69849	VCT.32 FP-M8	32	M8	23	15	10	10	12	14
69897	VCT.40 FP-M6	40	M6	27	17	12	12	18	24
69898	VCT.40 FP-M8	40	M8	27	17	12	12	18	22
69899	VCT.40 FP-M10	40	M10	27	17	12	12	17	22
69956	VCT.50 FP-M8	50	M8	32	19	15	14	20	35
69957	VCT.50 FP-M10	50	M10	32	19	15	14	20	32
69958	VCT.50 FP-M12	50	M12	32	19	15	14	20	32
70016	VCT.63 FP-M8	63	M8	37	22	19	16	26	55
70017	VCT.63 FP-M10	63	M10	37	22	19	16	26	51
70018	VCT.63 FP-M12	63	M12	37	22	19	16	26	45
70067	VCT.74 FP-M12	74	M12	43.5	26	17	22	26	65
70068	VCT.74 FP-M14	74	M14	43.5	26	17	22	26	68
70069	VCT.74 FP-M16	74	M16	43.5	26	17	22	31	91
70143	VCT.84 FP-M12	84	M12	44	28	24	21	25	71
70145	VCT.84 FP-M16	84	M16	44	28	24	21	25	111
