VCT.

Lobe knobs
Technopolymer
__logo__ELE_OD__ __logo__INOX__ __logo__RoHS__ __logo__PP__ __logo__g90__ __logo__PA__ __logo__g15030__
Enquire Now
product image
VCT-A
Lobe knobs
Black-oxide steel boss, plain hole, with cap
product image
VCT-B
Lobe knobs
Brass boss, threaded hole, with cap
product image
VCT-AZ
Lobe knobs
Zinc-plated steel boss, threaded hole, with cap
product image
VCT-SST
Lobe knobs
Stainless steel boss, threaded hole, with cap
product image
VCT.FP
Lobe knobs
Brass boss, threaded hole, without cap
product image
VCT-SST-FP
Lobe knobs
Stainless steel boss, threaded hole, without cap
product image
VCT-AZ-FP
Lobe knobs
Zinc-plated steel boss, threaded hole, without cap
product image
VCT-p
Lobe knobs
Zinc-plated steel threaded stud, with cap
product image
VCT-SST-p
Lobe knobs
Stainless steel threaded stud, with cap
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

VCT.25: glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Boss cap

  • CA.VCT: polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied. Not available for VCT.25.

Available also as accessory sold separately (see table).

Standard executions

  • VCT-A: black-oxide steel boss, plain blind hole.
  • VCT-B: brass boss, threaded blind hole (VCT.25 - 95) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
  • VCT-AZ: zinc-plated steel boss, threaded pass-through hole.
  • VCT-SST: AISI 303 stainless steel boss, threaded blind hole (VCT.25) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
  • VCT.FP: brass boss, threaded pass-through hole, without cap.
  • VCT-AZ-FP: zinc-plated steel boss, threaded pass-through hole, without cap.
  • VCT-SST-FP: AISI 303 stainless steel boss, threaded pass-through hole, without cap.
  • VCT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
  • VCT-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
Accessories on request

Accessories on request

  • CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, not available for VCT.25 (see table). For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

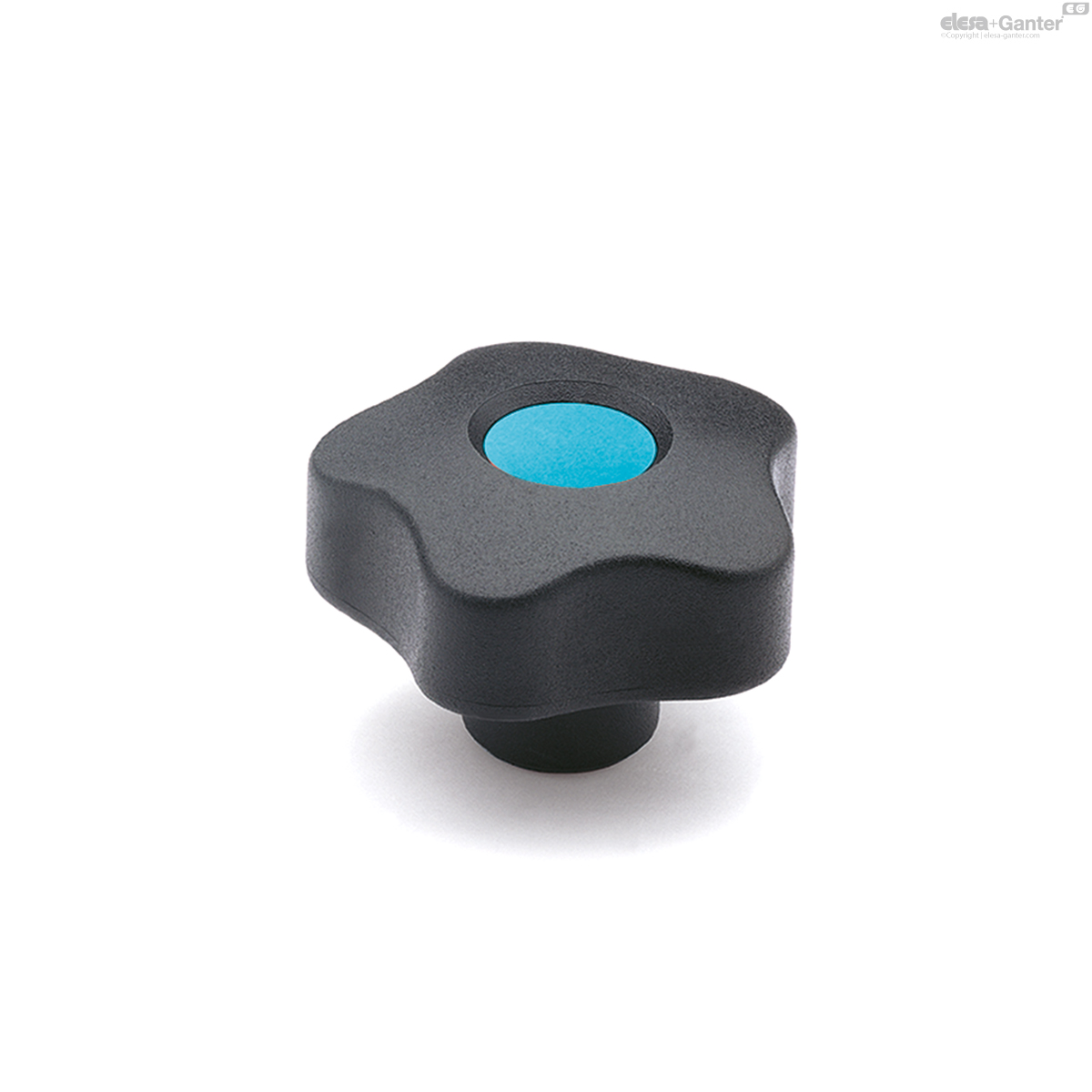

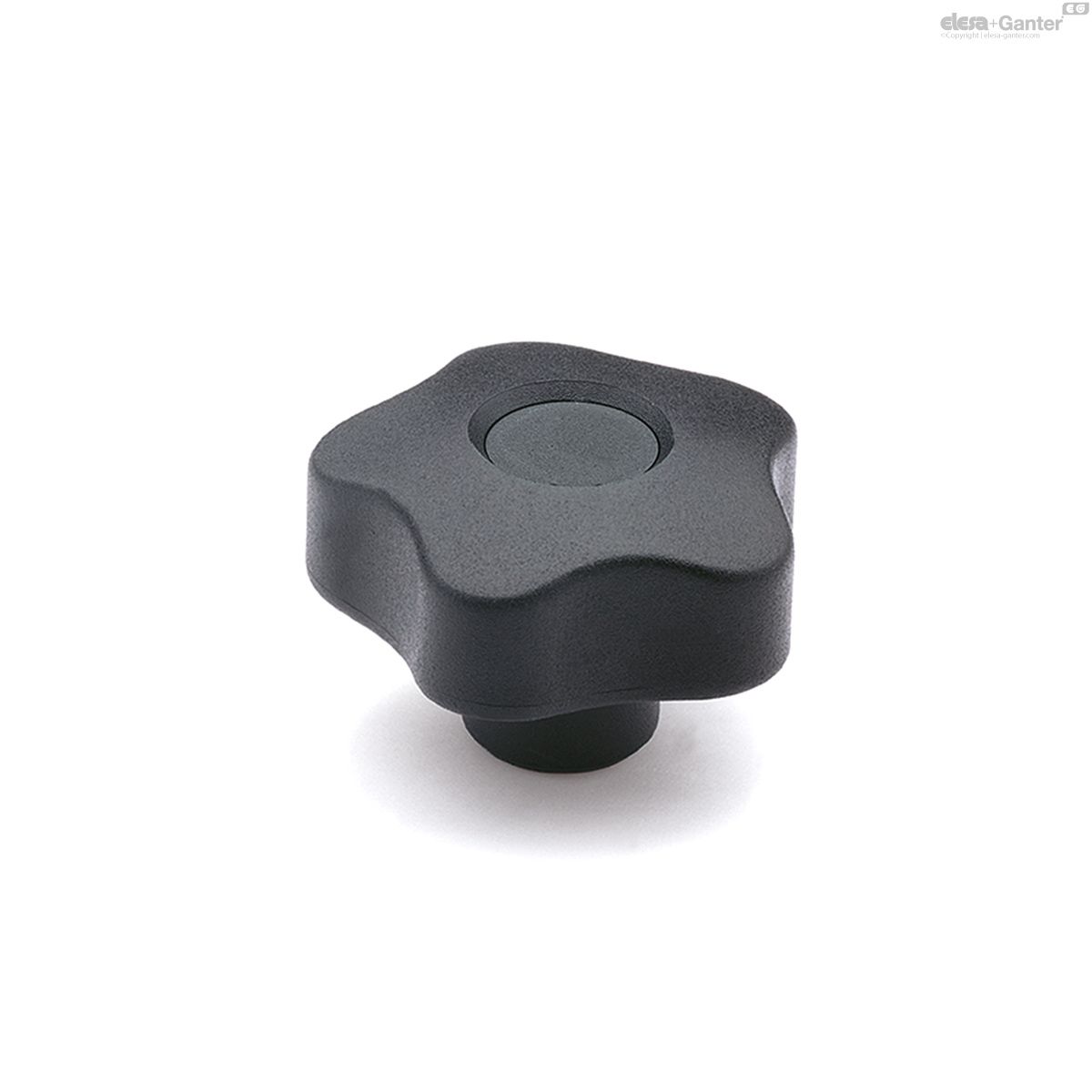

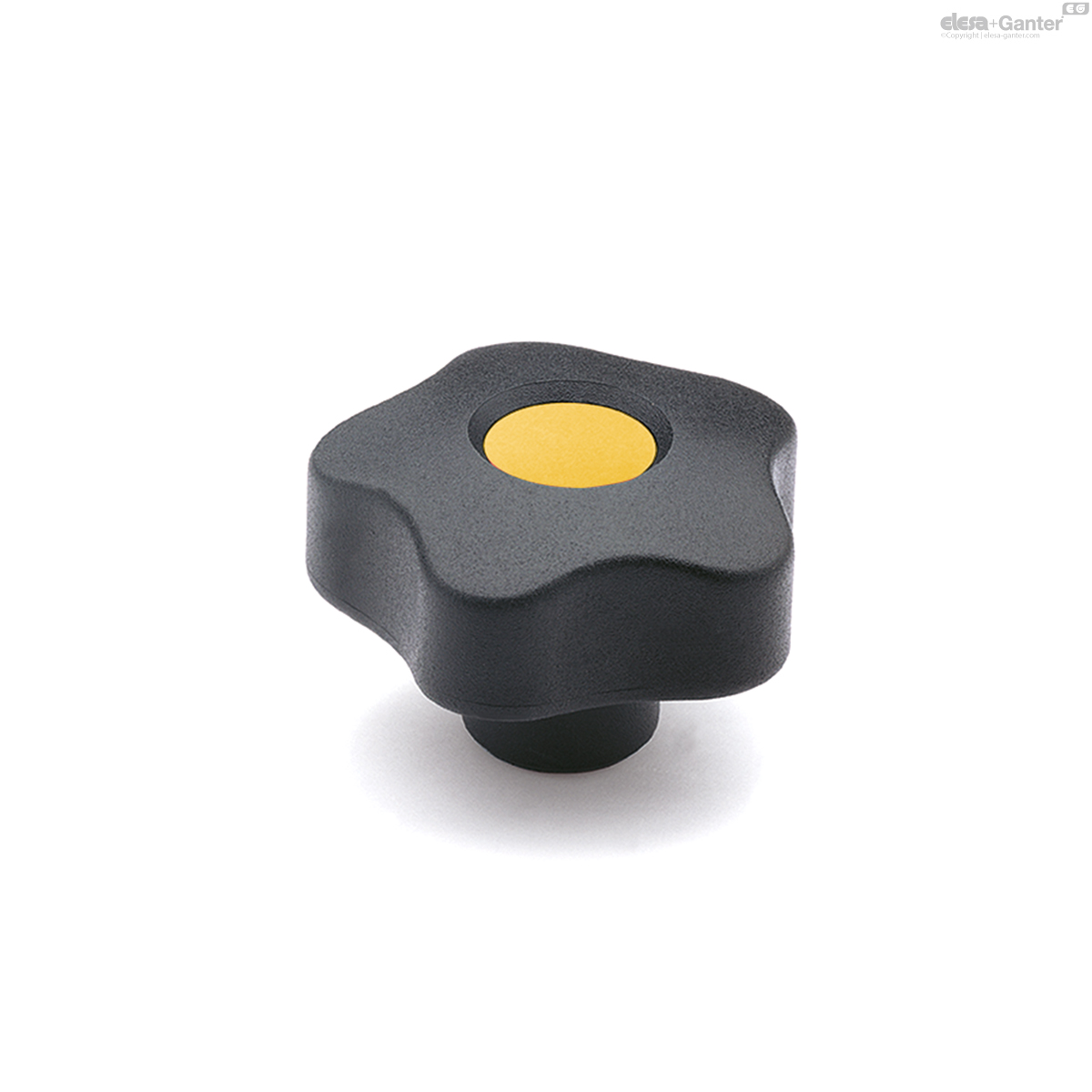

VCT-B

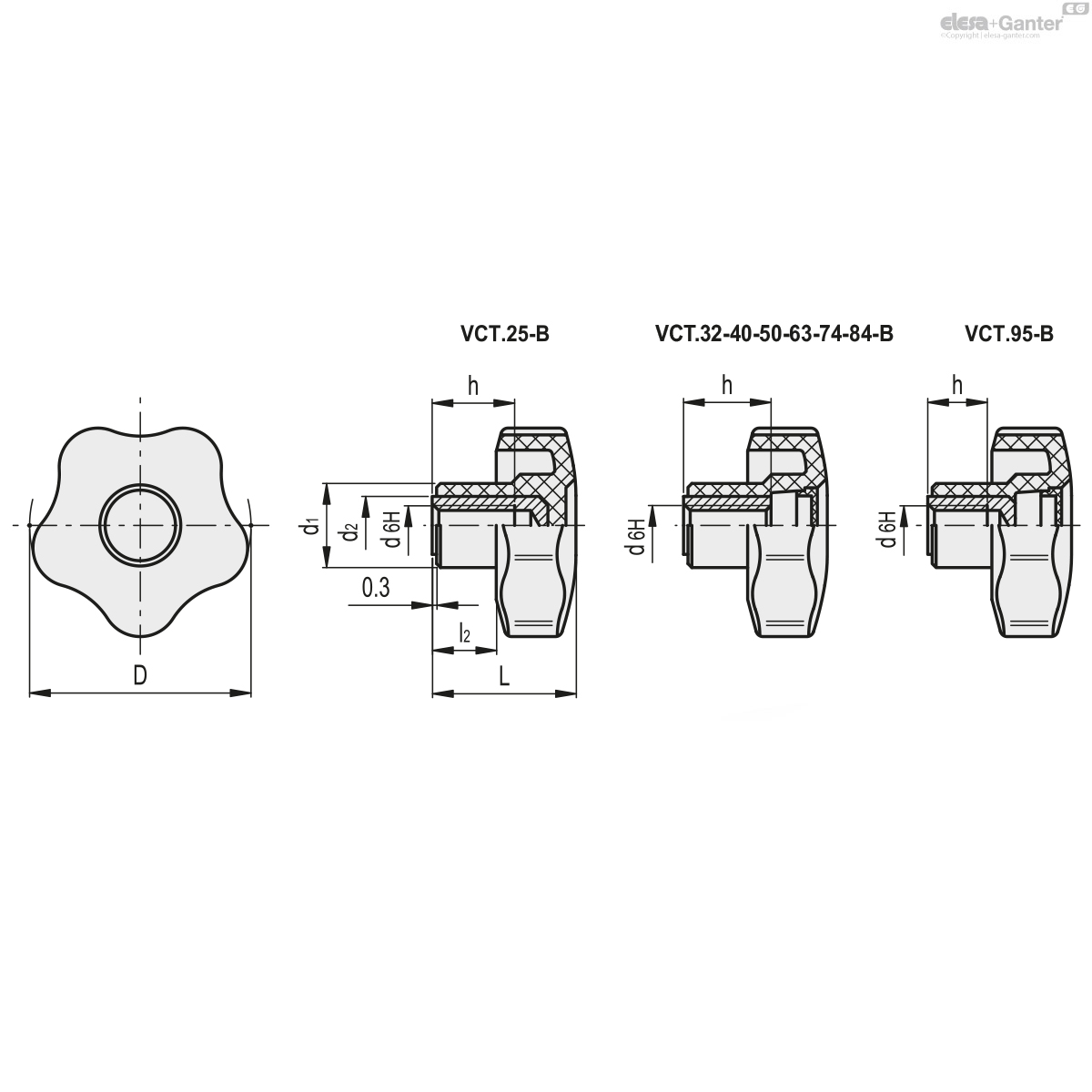

Color D d6H L d1 l2 h C#
[Nm]		 __logo__weight__
Code Description Actions
69811-C9 VCT.25 B-M4-C9 C9 - RAL 9005 25 M4 19 13 8 10 6 9 cart-icon
69812-C9 VCT.25 B-M5-C9 C9 - RAL 9005 25 M5 19 13 8 10 7 8 cart-icon
69813-C9 VCT.25 B-M6-C9 C9 - RAL 9005 25 M6 19 13 8 10 7 10 cart-icon
69843-C2 VCT.32 B-M5-C2 C2 - RAL 2004 32 M5 23 15 10 12 10 12 cart-icon
69843-C3 VCT.32 B-M5-C3 C3 - RAL 7035 32 M5 23 15 10 12 10 12 cart-icon
69843-C4 VCT.32 B-M5-C4 C4 - RAL 1021 32 M5 23 15 10 12 10 12 cart-icon
69843-C5 VCT.32 B-M5-C5 C5 - RAL 5024 32 M5 23 15 10 12 10 12 cart-icon
69843-C6 VCT.32 B-M5-C6 C6 - RAL 3000 32 M5 23 15 10 12 10 13 cart-icon
69843-C9 VCT.32 B-M5-C9 C9 - RAL 9005 32 M5 23 15 10 12 10 13 cart-icon
69843-C17 VCT.32 B-M5-C17 C17 - RAL 6017 32 M5 23 15 10 12 10 12 cart-icon
69844-C2 VCT.32 B-M6-C2 C2 - RAL 2004 32 M6 23 15 10 12 10 12 cart-icon
69844-C3 VCT.32 B-M6-C3 C3 - RAL 7035 32 M6 23 15 10 12 10 12 cart-icon
69844-C4 VCT.32 B-M6-C4 C4 - RAL 1021 32 M6 23 15 10 12 10 12 cart-icon
69844-C5 VCT.32 B-M6-C5 C5 - RAL 5024 32 M6 23 15 10 12 10 12 cart-icon
69844-C6 VCT.32 B-M6-C6 C6 - RAL 3000 32 M6 23 15 10 12 10 12 cart-icon
69844-C9 VCT.32 B-M6-C9 C9 - RAL 9005 32 M6 23 15 10 12 10 13 cart-icon
69844-C17 VCT.32 B-M6-C17 C17 - RAL 6017 32 M6 23 15 10 12 10 11 cart-icon
69845-C2 VCT.32 B-M8-C2 C2 - RAL 2004 32 M8 23 15 10 12 10 13 cart-icon
69845-C3 VCT.32 B-M8-C3 C3 - RAL 7035 32 M8 23 15 10 12 10 12 cart-icon
69845-C4 VCT.32 B-M8-C4 C4 - RAL 1021 32 M8 23 15 10 12 10 13 cart-icon
69845-C5 VCT.32 B-M8-C5 C5 - RAL 5024 32 M8 23 15 10 12 10 14 cart-icon
69845-C6 VCT.32 B-M8-C6 C6 - RAL 3000 32 M8 23 15 10 12 10 12 cart-icon
69845-C9 VCT.32 B-M8-C9 C9 - RAL 9005 32 M8 23 15 10 12 10 14 cart-icon
69845-C17 VCT.32 B-M8-C17 C17 - RAL 6017 32 M8 23 15 10 12 10 12 cart-icon
69893-C2 VCT.40 B-M6-C2 C2 - RAL 2004 40 M6 27 17 12 18 16 26 cart-icon
69893-C3 VCT.40 B-M6-C3 C3 - RAL 7035 40 M6 27 17 12 18 16 23 cart-icon
69893-C4 VCT.40 B-M6-C4 C4 - RAL 1021 40 M6 27 17 12 18 16 26 cart-icon
69893-C5 VCT.40 B-M6-C5 C5 - RAL 5024 40 M6 27 17 12 18 16 23 cart-icon
69893-C6 VCT.40 B-M6-C6 C6 - RAL 3000 40 M6 27 17 12 18 16 23 cart-icon
69893-C9 VCT.40 B-M6-C9 C9 - RAL 9005 40 M6 27 17 12 18 16 24 cart-icon
69893-C17 VCT.40 B-M6-C17 C17 - RAL 6017 40 M6 27 17 12 18 16 26 cart-icon
69894-C2 VCT.40 B-M8-C2 C2 - RAL 2004 40 M8 27 17 12 18 18 21 cart-icon
69894-C3 VCT.40 B-M8-C3 C3 - RAL 7035 40 M8 27 17 12 18 18 21 cart-icon
69894-C4 VCT.40 B-M8-C4 C4 - RAL 1021 40 M8 27 17 12 18 18 21 cart-icon
69894-C5 VCT.40 B-M8-C5 C5 - RAL 5024 40 M8 27 17 12 18 18 21 cart-icon
69894-C6 VCT.40 B-M8-C6 C6 - RAL 3000 40 M8 27 17 12 18 18 21 cart-icon
69894-C9 VCT.40 B-M8-C9 C9 - RAL 9005 40 M8 27 17 12 18 18 23 cart-icon
69894-C17 VCT.40 B-M8-C17 C17 - RAL 6017 40 M8 27 17 12 18 18 21 cart-icon
69895-C2 VCT.40 B-M10-C2 C2 - RAL 2004 40 M10 27 17 12 17 18 21 cart-icon
69895-C3 VCT.40 B-M10-C3 C3 - RAL 7035 40 M10 27 17 12 17 18 21 cart-icon
69895-C4 VCT.40 B-M10-C4 C4 - RAL 1021 40 M10 27 17 12 17 18 21 cart-icon
69895-C5 VCT.40 B-M10-C5 C5 - RAL 5024 40 M10 27 17 12 17 18 21 cart-icon
69895-C6 VCT.40 B-M10-C6 C6 - RAL 3000 40 M10 27 17 12 17 18 21 cart-icon
69895-C9 VCT.40 B-M10-C9 C9 - RAL 9005 40 M10 27 17 12 17 18 21 cart-icon
69895-C17 VCT.40 B-M10-C17 C17 - RAL 6017 40 M10 27 17 12 17 18 21 cart-icon
69953-C2 VCT.50 B-M8-C2 C2 - RAL 2004 50 M8 32 19 14 20 25 38 cart-icon
69953-C3 VCT.50 B-M8-C3 C3 - RAL 7035 50 M8 32 19 14 20 25 38 cart-icon
69953-C4 VCT.50 B-M8-C4 C4 - RAL 1021 50 M8 32 19 14 20 25 38 cart-icon
69953-C5 VCT.50 B-M8-C5 C5 - RAL 5024 50 M8 32 19 14 20 25 33 cart-icon
69953-C6 VCT.50 B-M8-C6 C6 - RAL 3000 50 M8 32 19 14 20 25 34 cart-icon
69953-C9 VCT.50 B-M8-C9 C9 - RAL 9005 50 M8 32 19 14 20 25 35 cart-icon
69953-C17 VCT.50 B-M8-C17 C17 - RAL 6017 50 M8 32 19 14 20 25 38 cart-icon
69954-C2 VCT.50 B-M10-C2 C2 - RAL 2004 50 M10 32 19 14 20 27 32 cart-icon
69954-C3 VCT.50 B-M10-C3 C3 - RAL 7035 50 M10 32 19 14 20 27 32 cart-icon
69954-C4 VCT.50 B-M10-C4 C4 - RAL 1021 50 M10 32 19 14 20 27 32 cart-icon
69954-C5 VCT.50 B-M10-C5 C5 - RAL 5024 50 M10 32 19 14 20 27 32 cart-icon
69954-C6 VCT.50 B-M10-C6 C6 - RAL 3000 50 M10 32 19 14 20 27 32 cart-icon
69954-C9 VCT.50 B-M10-C9 C9 - RAL 9005 50 M10 32 19 14 20 27 32 cart-icon
69954-C17 VCT.50 B-M10-C17 C17 - RAL 6017 50 M10 32 19 14 20 27 32 cart-icon
69955-C2 VCT.50 B-M12-C2 C2 - RAL 2004 50 M12 32 19 14 20 27 32 cart-icon
69955-C3 VCT.50 B-M12-C3 C3 - RAL 7035 50 M12 32 19 14 20 27 32 cart-icon
69955-C4 VCT.50 B-M12-C4 C4 - RAL 1021 50 M12 32 19 14 20 27 32 cart-icon
69955-C5 VCT.50 B-M12-C5 C5 - RAL 5024 50 M12 32 19 14 20 27 32 cart-icon
69955-C6 VCT.50 B-M12-C6 C6 - RAL 3000 50 M12 32 19 14 20 27 32 cart-icon
69955-C9 VCT.50 B-M12-C9 C9 - RAL 9005 50 M12 32 19 14 20 27 32 cart-icon
69955-C17 VCT.50 B-M12-C17 C17 - RAL 6017 50 M12 32 19 14 20 27 32 cart-icon
70012-C2 VCT.63 B-M8-C2 C2 - RAL 2004 63 M8 37 22 16 26 48 59 cart-icon
70012-C3 VCT.63 B-M8-C3 C3 - RAL 7035 63 M8 37 22 16 26 48 59 cart-icon
70012-C4 VCT.63 B-M8-C4 C4 - RAL 1021 63 M8 37 22 16 26 48 59 cart-icon
70012-C5 VCT.63 B-M8-C5 C5 - RAL 5024 63 M8 37 22 16 26 48 59 cart-icon
70012-C6 VCT.63 B-M8-C6 C6 - RAL 3000 63 M8 37 22 16 26 48 59 cart-icon
70012-C9 VCT.63 B-M8-C9 C9 - RAL 9005 63 M8 37 22 16 26 48 59 cart-icon
70012-C17 VCT.63 B-M8-C17 C17 - RAL 6017 63 M8 37 22 16 26 48 59 cart-icon
70013-C2 VCT.63 B-M10-C2 C2 - RAL 2004 63 M10 37 22 16 26 50 42 cart-icon
70013-C3 VCT.63 B-M10-C3 C3 - RAL 7035 63 M10 37 22 16 26 50 54 cart-icon
70013-C4 VCT.63 B-M10-C4 C4 - RAL 1021 63 M10 37 22 16 26 50 52 cart-icon
70013-C5 VCT.63 B-M10-C5 C5 - RAL 5024 63 M10 37 22 16 26 50 53 cart-icon
70013-C6 VCT.63 B-M10-C6 C6 - RAL 3000 63 M10 37 22 16 26 50 51 cart-icon
70013-C9 VCT.63 B-M10-C9 C9 - RAL 9005 63 M10 37 22 16 26 50 51 cart-icon
70013-C17 VCT.63 B-M10-C17 C17 - RAL 6017 63 M10 37 22 16 26 50 42 cart-icon
70014-C2 VCT.63 B-M12-C2 C2 - RAL 2004 63 M12 37 22 16 26 50 46 cart-icon
70014-C3 VCT.63 B-M12-C3 C3 - RAL 7035 63 M12 37 22 16 26 50 46 cart-icon
70014-C4 VCT.63 B-M12-C4 C4 - RAL 1021 63 M12 37 22 16 26 50 46 cart-icon
70014-C5 VCT.63 B-M12-C5 C5 - RAL 5024 63 M12 37 22 16 26 50 46 cart-icon
70014-C6 VCT.63 B-M12-C6 C6 - RAL 3000 63 M12 37 22 16 26 50 46 cart-icon
70014-C9 VCT.63 B-M12-C9 C9 - RAL 9005 63 M12 37 22 16 26 50 46 cart-icon
70014-C17 VCT.63 B-M12-C17 C17 - RAL 6017 63 M12 37 22 16 26 50 46 cart-icon
70062-C2 VCT.74 B-M12-C2 C2 - RAL 2004 74 M12 43.5 26 22 26 60 65 cart-icon
70062-C3 VCT.74 B-M12-C3 C3 - RAL 7035 74 M12 43.5 26 22 26 60 65 cart-icon
70062-C4 VCT.74 B-M12-C4 C4 - RAL 1021 74 M12 43.5 26 22 26 60 65 cart-icon
70062-C5 VCT.74 B-M12-C5 C5 - RAL 5024 74 M12 43.5 26 22 26 60 65 cart-icon
70062-C6 VCT.74 B-M12-C6 C6 - RAL 3000 74 M12 43.5 26 22 26 60 65 cart-icon
70062-C9 VCT.74 B-M12-C9 C9 - RAL 9005 74 M12 43.5 26 22 26 60 65 cart-icon
70062-C17 VCT.74 B-M12-C17 C17 - RAL 6017 74 M12 43.5 26 22 26 60 65 cart-icon
70063-C2 VCT.74 B-M14-C2 C2 - RAL 2004 74 M14 43.5 26 22 26 65 81 cart-icon
70063-C3 VCT.74 B-M14-C3 C3 - RAL 7035 74 M14 43.5 26 22 26 65 81 cart-icon
70063-C4 VCT.74 B-M14-C4 C4 - RAL 1021 74 M14 43.5 26 22 26 65 81 cart-icon
70063-C5 VCT.74 B-M14-C5 C5 - RAL 5024 74 M14 43.5 26 22 26 65 81 cart-icon
70063-C6 VCT.74 B-M14-C6 C6 - RAL 3000 74 M14 43.5 26 22 26 65 81 cart-icon
70063-C9 VCT.74 B-M14-C9 C9 - RAL 9005 74 M14 43.5 26 22 26 65 81 cart-icon
70063-C17 VCT.74 B-M14-C17 C17 - RAL 6017 74 M14 43.5 26 22 26 65 81 cart-icon
70064-C2 VCT.74 B-M16-C2 C2 - RAL 2004 74 M16 43.5 26 22 31 69 92 cart-icon
70064-C3 VCT.74 B-M16-C3 C3 - RAL 7035 74 M16 43.5 26 22 31 69 91 cart-icon
70064-C4 VCT.74 B-M16-C4 C4 - RAL 1021 74 M16 43.5 26 22 31 69 91 cart-icon
70064-C5 VCT.74 B-M16-C5 C5 - RAL 5024 74 M16 43.5 26 22 31 69 91 cart-icon
70064-C6 VCT.74 B-M16-C6 C6 - RAL 3000 74 M16 43.5 26 22 31 69 91 cart-icon
70064-C9 VCT.74 B-M16-C9 C9 - RAL 9005 74 M16 43.5 26 22 31 69 91 cart-icon
70064-C17 VCT.74 B-M16-C17 C17 - RAL 6017 74 M16 43.5 26 22 31 69 91 cart-icon
70097-C2 VCT.95 B-M16-C2 C2 - RAL 2004 95 M16 46 32 21 22 100 109 cart-icon
70097-C3 VCT.95 B-M16-C3 C3 - RAL 7035 95 M16 46 32 21 22 100 109 cart-icon
70097-C4 VCT.95 B-M16-C4 C4 - RAL 1021 95 M16 46 32 21 22 100 109 cart-icon
70097-C5 VCT.95 B-M16-C5 C5 - RAL 5024 95 M16 46 32 21 22 100 109 cart-icon
70097-C6 VCT.95 B-M16-C6 C6 - RAL 3000 95 M16 46 32 21 22 100 109 cart-icon
70097-C9 VCT.95 B-M16-C9 C9 - RAL 9005 95 M16 46 32 21 22 100 104 cart-icon
70097-C17 VCT.95 B-M16-C17 C17 - RAL 6017 95 M16 46 32 21 22 100 109 cart-icon
70133-C2 VCT.84 B-M12-C2 C2 - RAL 2004 84 M12 44 28 21 25 65 109 cart-icon
70133-C3 VCT.84 B-M12-C3 C3 - RAL 7035 84 M12 44 28 21 25 65 109 cart-icon
70133-C4 VCT.84 B-M12-C4 C4 - RAL 1021 84 M12 44 28 21 25 65 109 cart-icon
70133-C5 VCT.84 B-M12-C5 C5 - RAL 5024 84 M12 44 28 21 25 65 109 cart-icon
70133-C6 VCT.84 B-M12-C6 C6 - RAL 3000 84 M12 44 28 21 25 65 109 cart-icon
70133-C9 VCT.84 B-M12-C9 C9 - RAL 9005 84 M12 44 28 21 25 65 104 cart-icon
70133-C17 VCT.84 B-M12-C17 C17 - RAL 6017 84 M12 44 28 21 25 65 109 cart-icon
70135-C2 VCT.84 B-M16-C2 C2 - RAL 2004 84 M16 44 28 21 25 75 93 cart-icon
70135-C3 VCT.84 B-M16-C3 C3 - RAL 7035 84 M16 44 28 21 25 75 93 cart-icon
70135-C4 VCT.84 B-M16-C4 C4 - RAL 1021 84 M16 44 28 21 25 75 93 cart-icon
70135-C5 VCT.84 B-M16-C5 C5 - RAL 5024 84 M16 44 28 21 25 75 93 cart-icon
70135-C6 VCT.84 B-M16-C6 C6 - RAL 3000 84 M16 44 28 21 25 75 93 cart-icon
70135-C9 VCT.84 B-M16-C9 C9 - RAL 9005 84 M16 44 28 21 25 75 93 cart-icon
70135-C17 VCT.84 B-M16-C17 C17 - RAL 6017 84 M16 44 28 21 25 75 93 cart-icon
form-enquire-bg

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.

    Attachment File

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    logo-text
    Related Products
    Proud Australian Distributor for World-Leading Brands Content
    movex elesa-ganter
