Home Clamping Knobs Star and lobe knobs VCT.

VCT.

Lobe knobs

Technopolymer

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

__logo__PP__

__logo__g90__

__logo__PA__

__logo__g15030__

Enquire Now

vct-a

Black-oxide steel boss, plain hole, with cap

vct-b

Brass boss, threaded hole, with cap

vct-az

Zinc-plated steel boss, threaded hole, with cap

vct-sst

Stainless steel boss, threaded hole, with cap

vct-fp

Brass boss, threaded hole, without cap

vct-sst-fp

Stainless steel boss, threaded hole, without cap

vct-az-fp

Zinc-plated steel boss, threaded hole, without cap

vct-p

Zinc-plated steel threaded stud, with cap

vct-sst-p

Stainless steel threaded stud, with cap

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

VCT.25: glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Boss cap

CA.VCT: polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied. Not available for VCT.25.

Available also as accessory sold separately (see table).

Standard executions

VCT-A: black-oxide steel boss, plain blind hole.
VCT-B: brass boss, threaded blind hole (VCT.25 - 95) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
VCT-AZ: zinc-plated steel boss, threaded pass-through hole.
VCT-SST: AISI 303 stainless steel boss, threaded blind hole (VCT.25) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
VCT.FP: brass boss, threaded pass-through hole, without cap.
VCT-AZ-FP: zinc-plated steel boss, threaded pass-through hole, without cap.
VCT-SST-FP: AISI 303 stainless steel boss, threaded pass-through hole, without cap.
VCT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
VCT-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Accessories on request

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, not available for VCT.25 (see table). For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

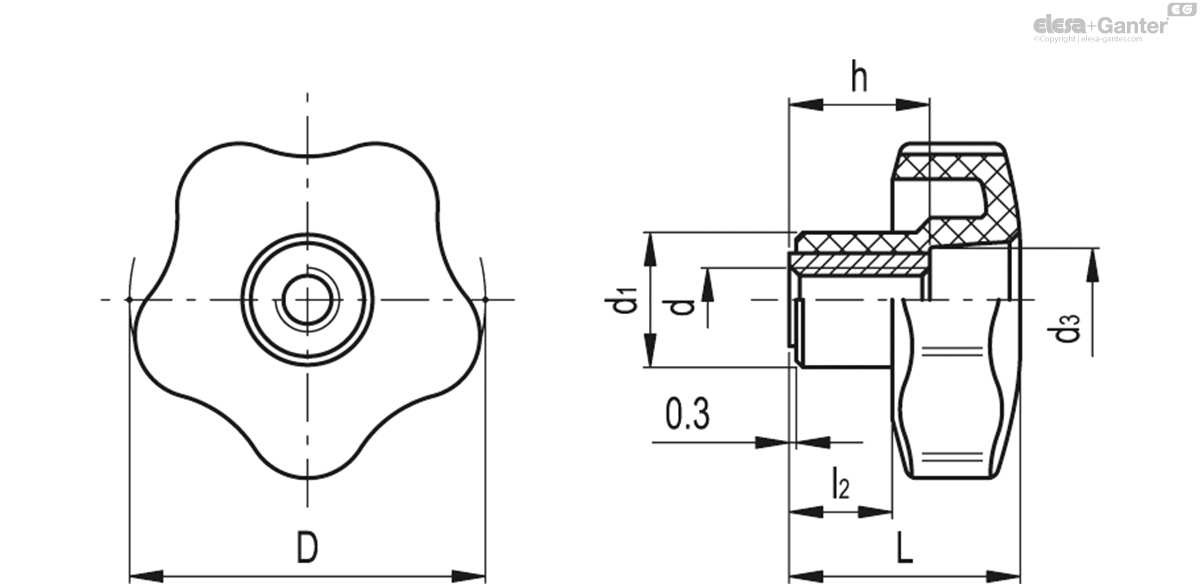

VCT-AZ-FP

		D	d_6H	L	d₁	d₃	l₂	h
Code	Description									Actions
69746	VCT.32 AZ-FP-M6	32	M6	23	15	10	10	12	13
69756	VCT.40 AZ-FP-M8	40	M8	27	17	12	12	18	21
69766	VCT.50 AZ-FP-M8	50	M8	32	19	15	14	20	33
69767	VCT.50 AZ-FP-M10	50	M10	32	19	15	14	20	32
69776	VCT.63 AZ-FP-M12	63	M12	37	22	19	16	26	44
69786	VCT.74 AZ-FP-M12	74	M12	43.5	26	17	22	31	60
69796	VCT.84 AZ-FP-M16	84	M16	44	28	24	21	25	108
