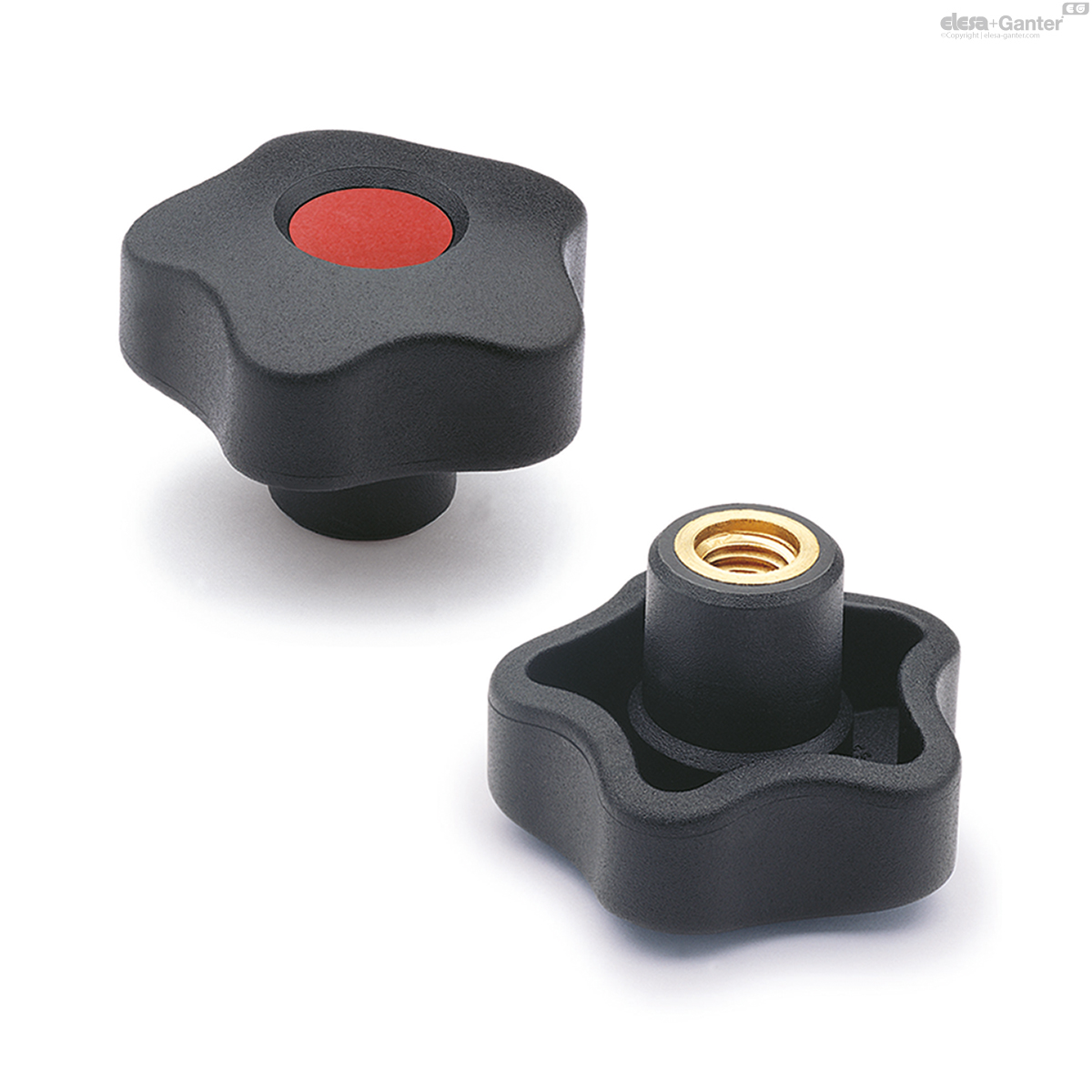

VCT.
Lobe knobs
Technopolymer
VCT-A
Lobe knobs
Black-oxide steel boss, plain hole, with cap
VCT-B
Lobe knobs
Brass boss, threaded hole, with cap
VCT-AZ
Lobe knobs
Zinc-plated steel boss, threaded hole, with cap
VCT-SST
Lobe knobs
Stainless steel boss, threaded hole, with cap

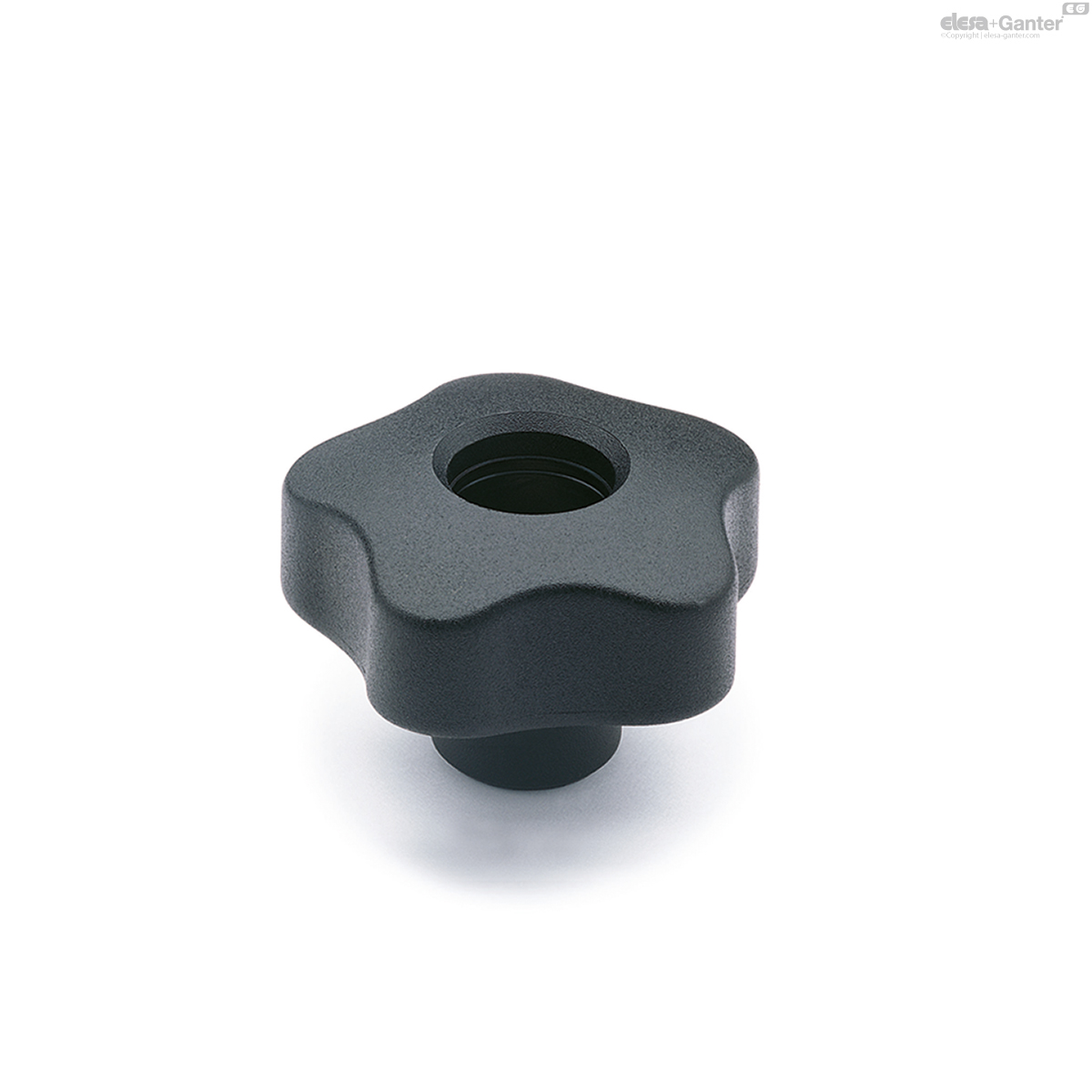

VCT.FP
Lobe knobs
Brass boss, threaded hole, without cap
VCT-SST-FP
Lobe knobs
Stainless steel boss, threaded hole, without cap
VCT-AZ-FP
Lobe knobs
Zinc-plated steel boss, threaded hole, without cap

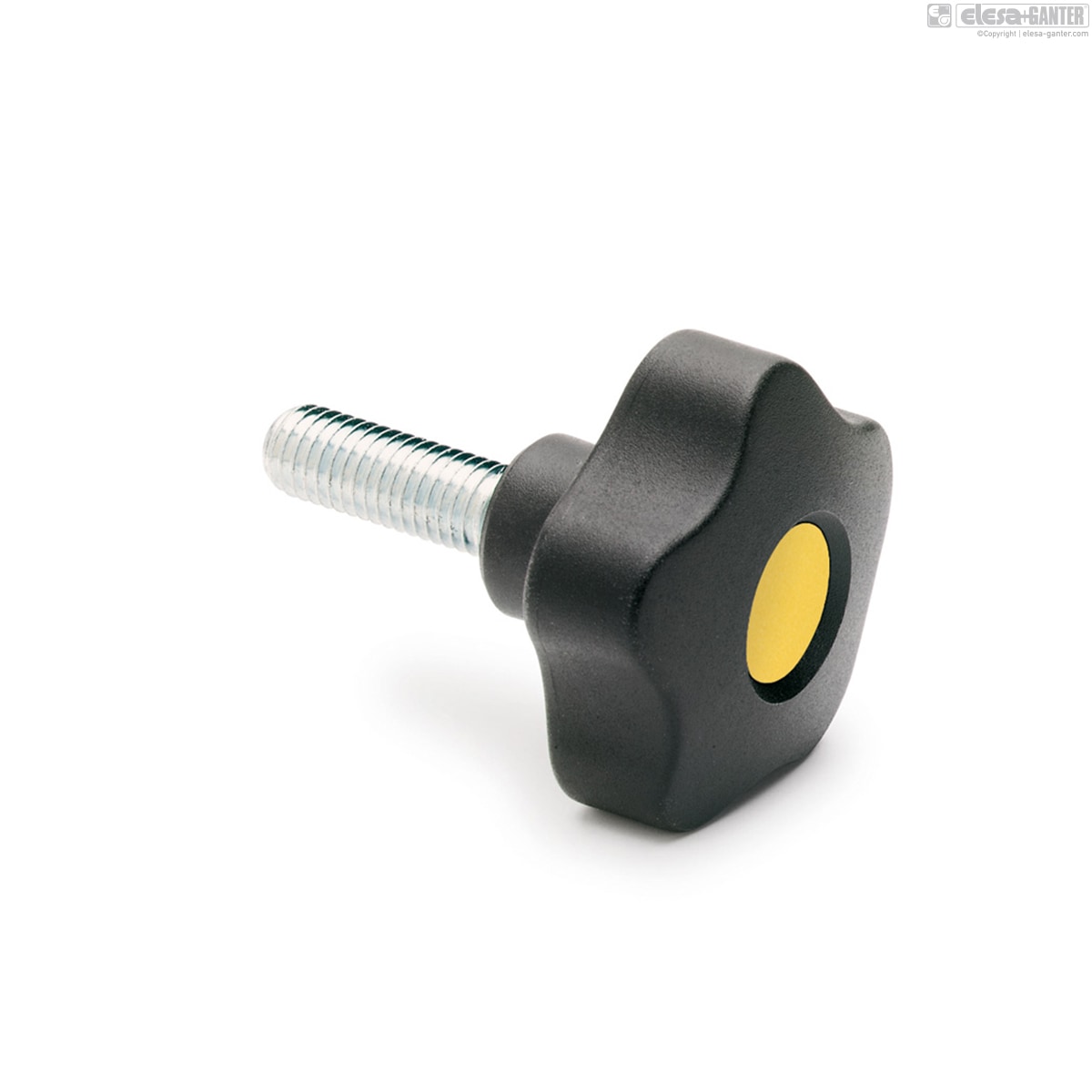

VCT-p
Lobe knobs
Zinc-plated steel threaded stud, with cap

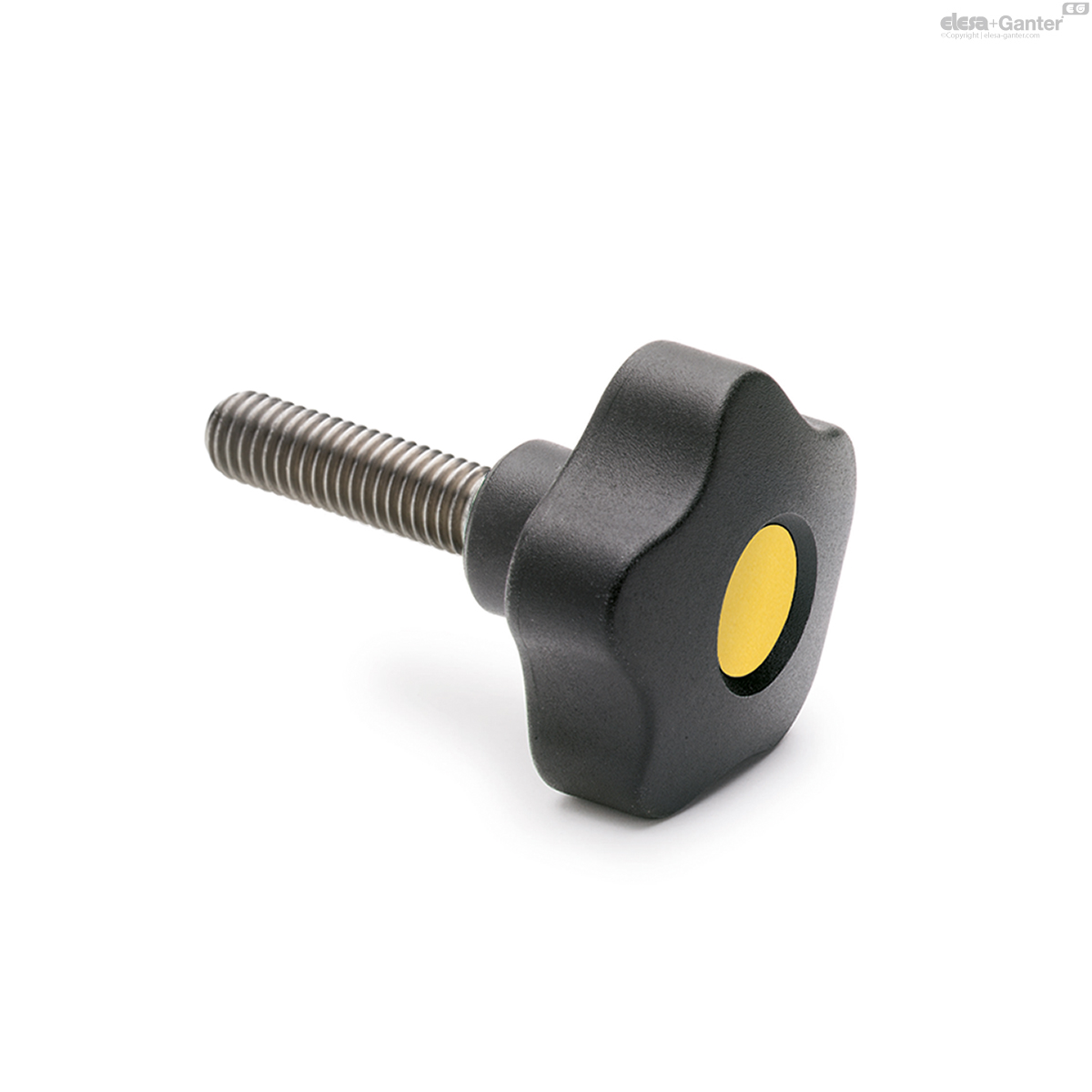

VCT-SST-p
Lobe knobs
Stainless steel threaded stud, with cap
Description
Main specifications
Material
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
VCT.25: glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Boss cap
- CA.VCT:Â polypropylene-based (PP) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied. Not available for VCT.25.
Available also as accessory sold separately (see table).
Standard executions
- VCT-A: black-oxide steel boss, plain blind hole.
- VCT-B:Â brass boss, threaded blind hole (VCT.25 - 95) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
- VCT-AZ:Â zinc-plated steel boss, threaded pass-through hole.
- VCT-SST:Â AISI 303 stainless steel boss, threaded blind hole (VCT.25) or threaded pass-through hole (VCT.32 - 40 - 50 - 63 - 74 - 84).
- VCT.FP:Â brass boss, threaded pass-through hole, without cap.
- VCT-AZ-FP:Â zinc-plated steel boss, threaded pass-through hole, without cap.
- VCT-SST-FP:Â AISI 303 stainless steel boss, threaded pass-through hole, without cap.
- VCT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
- VCT-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
Accessories on request
Accessories on request
- CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, not available for VCT.25 (see table). For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

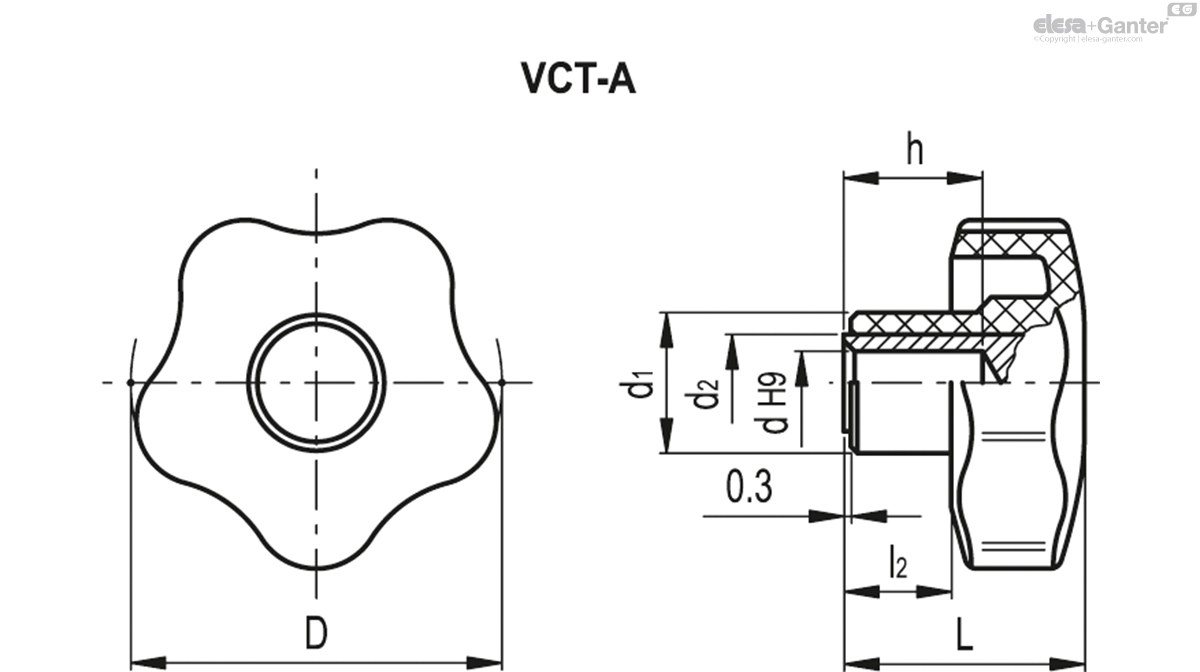

VCT-A
| Color | D | dH9 | L | d1 | d2 | l2 | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||

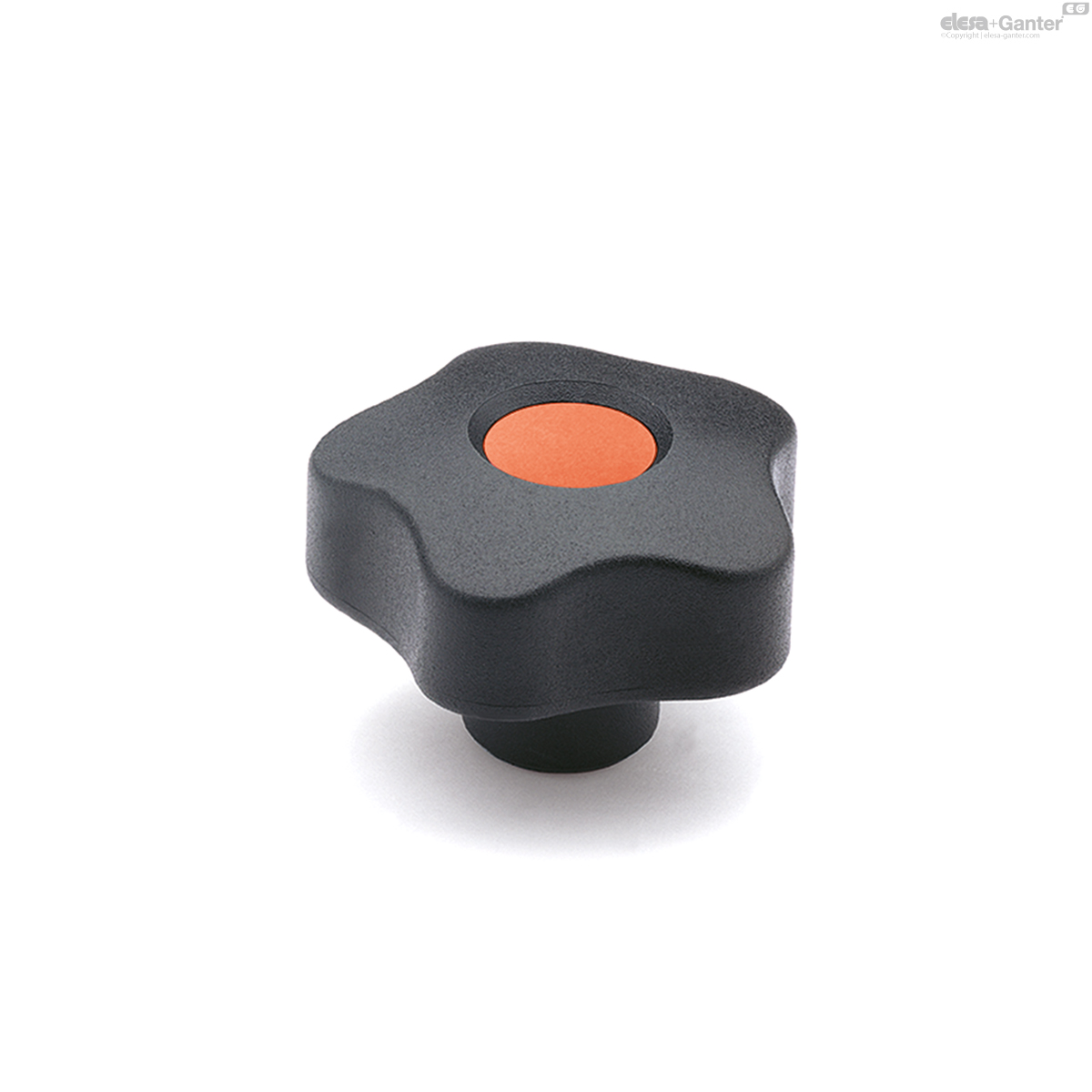

| 69841-C2 | VCT.32 A-6-C2 | C2 - RAL 2004 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|
| 69841-C3 | VCT.32 A-6-C3 | C3 - RAL 7035 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|

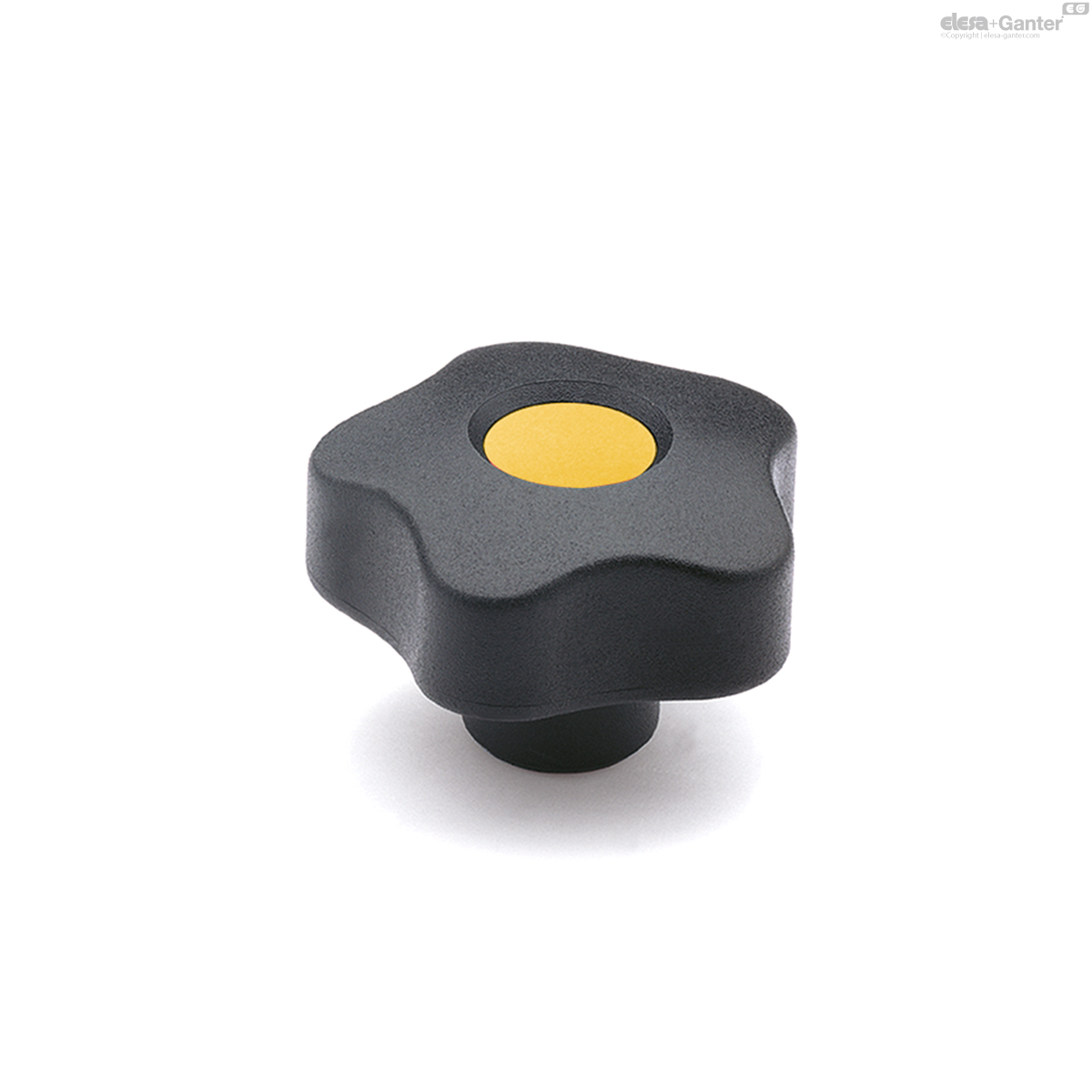

| 69841-C4 | VCT.32 A-6-C4 | C4 - RAL 1021 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|
| 69841-C5 | VCT.32 A-6-C5 | C5 - RAL 5024 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|
| 69841-C6 | VCT.32 A-6-C6 | C6 - RAL 3000 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|
| 69841-C9 | VCT.32 A-6-C9 | C9 - RAL 9005 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|

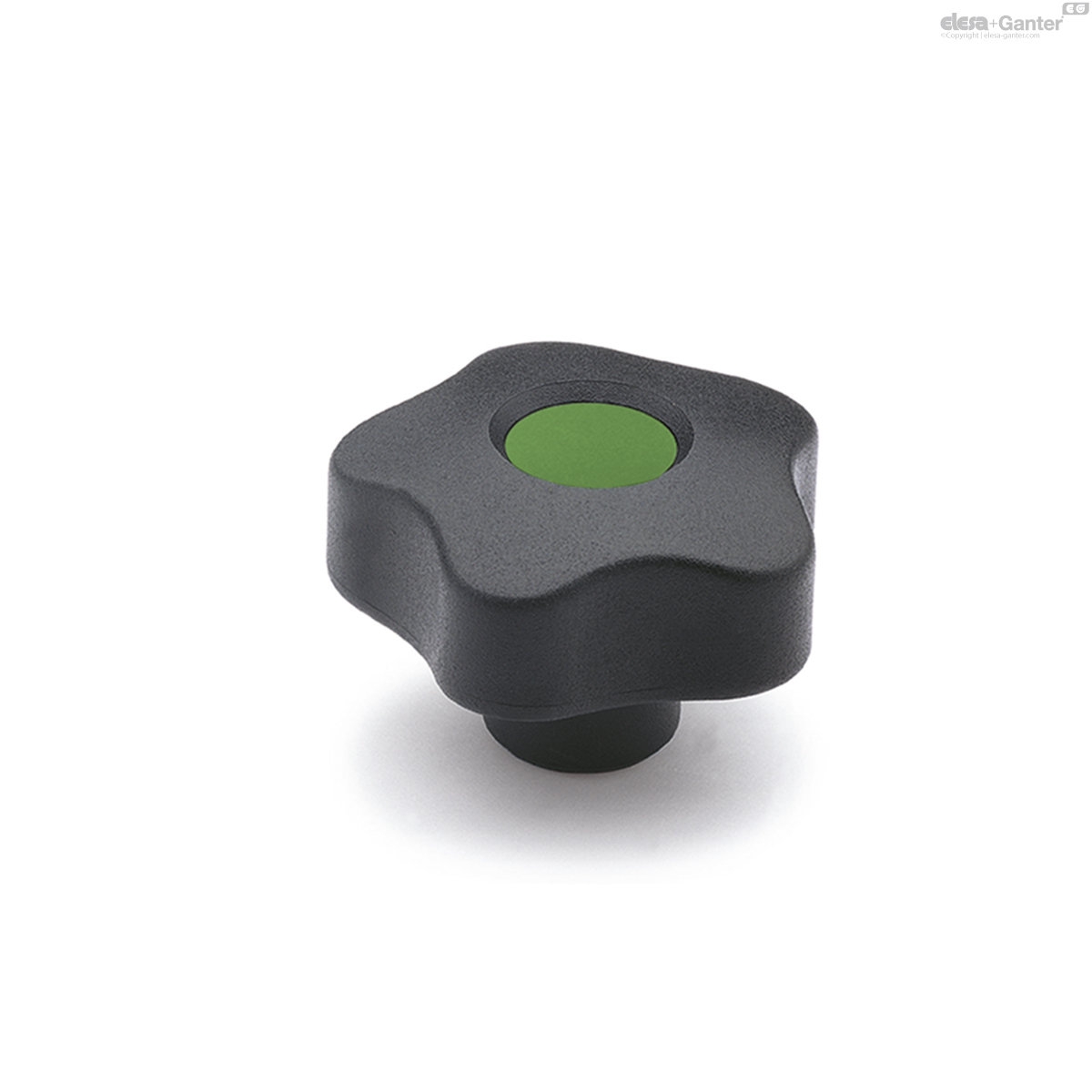

| 69841-C17 | VCT.32 A-6-C17 | C17 - RAL 6017 | 32 | 6 | 23 | 15 | 12 | 10 | 12 | 14 |
|
| 69892-C2 | VCT.40 A-8-C2 | C2 - RAL 2004 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69892-C3 | VCT.40 A-8-C3 | C3 - RAL 7035 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69892-C4 | VCT.40 A-8-C4 | C4 - RAL 1021 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69892-C5 | VCT.40 A-8-C5 | C5 - RAL 5024 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69892-C6 | VCT.40 A-8-C6 | C6 - RAL 3000 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69892-C9 | VCT.40 A-8-C9 | C9 - RAL 9005 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69892-C17 | VCT.40 A-8-C17 | C17 - RAL 6017 | 40 | 8 | 27 | 17 | 12 | 12 | 14 | 28 |
|
| 69951-C2 | VCT.50 A-8-C2 | C2 - RAL 2004 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69951-C3 | VCT.50 A-8-C3 | C3 - RAL 7035 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69951-C4 | VCT.50 A-8-C4 | C4 - RAL 1021 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69951-C5 | VCT.50 A-8-C5 | C5 - RAL 5024 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69951-C6 | VCT.50 A-8-C6 | C6 - RAL 3000 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69951-C9 | VCT.50 A-8-C9 | C9 - RAL 9005 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69951-C17 | VCT.50 A-8-C17 | C17 - RAL 6017 | 50 | 8 | 32 | 19 | 12 | 14 | 14 | 36 |
|
| 69952-C2 | VCT.50 A-10-C2 | C2 - RAL 2004 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 34 |
|
| 69952-C3 | VCT.50 A-10-C3 | C3 - RAL 7035 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 34 |
|
| 69952-C4 | VCT.50 A-10-C4 | C4 - RAL 1021 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 34 |
|
| 69952-C5 | VCT.50 A-10-C5 | C5 - RAL 5024 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 34 |
|
| 69952-C6 | VCT.50 A-10-C6 | C6 - RAL 3000 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 34 |
|
| 69952-C9 | VCT.50 A-10-C9 | C9 - RAL 9005 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 38 |
|
| 69952-C17 | VCT.50 A-10-C17 | C17 - RAL 6017 | 50 | 10 | 32 | 19 | 15 | 14 | 16 | 34 |
|
| 70001-C2 | VCT.63 A-8-C2 | C2 - RAL 2004 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70001-C3 | VCT.63 A-8-C3 | C3 - RAL 7035 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70001-C4 | VCT.63 A-8-C4 | C4 - RAL 1021 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70001-C5 | VCT.63 A-8-C5 | C5 - RAL 5024 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70001-C6 | VCT.63 A-8-C6 | C6 - RAL 3000 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70001-C9 | VCT.63 A-8-C9 | C9 - RAL 9005 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70001-C17 | VCT.63 A-8-C17 | C17 - RAL 6017 | 63 | 8 | 37 | 22 | 15 | 16 | 20 | 56 |
|
| 70002-C2 | VCT.63 A-10-C2 | C2 - RAL 2004 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70002-C3 | VCT.63 A-10-C3 | C3 - RAL 7035 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70002-C4 | VCT.63 A-10-C4 | C4 - RAL 1021 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70002-C5 | VCT.63 A-10-C5 | C5 - RAL 5024 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70002-C6 | VCT.63 A-10-C6 | C6 - RAL 3000 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70002-C9 | VCT.63 A-10-C9 | C9 - RAL 9005 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70002-C17 | VCT.63 A-10-C17 | C17 - RAL 6017 | 63 | 10 | 37 | 22 | 16 | 16 | 21 | 54 |
|
| 70003-C2 | VCT.63 A-12-C2 | C2 - RAL 2004 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 63 |
|
| 70003-C3 | VCT.63 A-12-C3 | C3 - RAL 7035 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 63 |
|
| 70003-C4 | VCT.63 A-12-C4 | C4 - RAL 1021 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 63 |
|
| 70003-C5 | VCT.63 A-12-C5 | C5 - RAL 5024 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 63 |
|
| 70003-C6 | VCT.63 A-12-C6 | C6 - RAL 3000 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 63 |
|
| 70003-C9 | VCT.63 A-12-C9 | C9 - RAL 9005 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 61 |
|
| 70003-C17 | VCT.63 A-12-C17 | C17 - RAL 6017 | 63 | 12 | 37 | 22 | 16 | 16 | 21 | 63 |
|
| 70051-C2 | VCT.74 A-8-C2 | C2 - RAL 2004 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70051-C3 | VCT.74 A-8-C3 | C3 - RAL 7035 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70051-C4 | VCT.74 A-8-C4 | C4 - RAL 1021 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70051-C5 | VCT.74 A-8-C5 | C5 - RAL 5024 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70051-C6 | VCT.74 A-8-C6 | C6 - RAL 3000 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70051-C9 | VCT.74 A-8-C9 | C9 - RAL 9005 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70051-C17 | VCT.74 A-8-C17 | C17 - RAL 6017 | 74 | 8 | 43.5 | 26 | 15 | 22 | 20 | 69 |
|
| 70052-C2 | VCT.74 A-10-C2 | C2 - RAL 2004 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70052-C3 | VCT.74 A-10-C3 | C3 - RAL 7035 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70052-C4 | VCT.74 A-10-C4 | C4 - RAL 1021 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70052-C5 | VCT.74 A-10-C5 | C5 - RAL 5024 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70052-C6 | VCT.74 A-10-C6 | C6 - RAL 3000 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70052-C9 | VCT.74 A-10-C9 | C9 - RAL 9005 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70052-C17 | VCT.74 A-10-C17 | C17 - RAL 6017 | 74 | 10 | 43.5 | 26 | 15 | 22 | 20 | 88 |
|
| 70053-C2 | VCT.74 A-12-C2 | C2 - RAL 2004 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70053-C3 | VCT.74 A-12-C3 | C3 - RAL 7035 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70053-C4 | VCT.74 A-12-C4 | C4 - RAL 1021 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70053-C5 | VCT.74 A-12-C5 | C5 - RAL 5024 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70053-C6 | VCT.74 A-12-C6 | C6 - RAL 3000 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70053-C9 | VCT.74 A-12-C9 | C9 - RAL 9005 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70053-C17 | VCT.74 A-12-C17 | C17 - RAL 6017 | 74 | 12 | 43.5 | 26 | 15 | 22 | 20 | 107 |
|
| 70055-C2 | VCT.74 A-16-C2 | C2 - RAL 2004 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 68 |
|
| 70055-C3 | VCT.74 A-16-C3 | C3 - RAL 7035 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 68 |
|
| 70055-C4 | VCT.74 A-16-C4 | C4 - RAL 1021 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 68 |
|
| 70055-C5 | VCT.74 A-16-C5 | C5 - RAL 5024 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 68 |
|
| 70055-C6 | VCT.74 A-16-C6 | C6 - RAL 3000 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 68 |
|
| 70055-C9 | VCT.74 A-16-C9 | C9 - RAL 9005 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 74 |
|
| 70055-C17 | VCT.74 A-16-C17 | C17 - RAL 6017 | 74 | 16 | 43.5 | 26 | 20 | 22 | 20 | 68 |
|
| 70123-C2 | VCT.84 A-12-C2 | C2 - RAL 2004 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 109 |
|
| 70123-C3 | VCT.84 A-12-C3 | C3 - RAL 7035 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 109 |
|
| 70123-C4 | VCT.84 A-12-C4 | C4 - RAL 1021 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 109 |
|
| 70123-C5 | VCT.84 A-12-C5 | C5 - RAL 5024 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 109 |
|
| 70123-C6 | VCT.84 A-12-C6 | C6 - RAL 3000 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 109 |
|
| 70123-C9 | VCT.84 A-12-C9 | C9 - RAL 9005 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 104 |
|
| 70123-C17 | VCT.84 A-12-C17 | C17 - RAL 6017 | 84 | 12 | 44 | 28 | 20 | 21 | 25 | 109 |
|
| 70125-C2 | VCT.84 A-16-C2 | C2 - RAL 2004 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 79 |
|
| 70125-C3 | VCT.84 A-16-C3 | C3 - RAL 7035 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 79 |
|
| 70125-C4 | VCT.84 A-16-C4 | C4 - RAL 1021 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 79 |
|
| 70125-C5 | VCT.84 A-16-C5 | C5 - RAL 5024 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 79 |
|
| 70125-C6 | VCT.84 A-16-C6 | C6 - RAL 3000 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 79 |
|
| 70125-C9 | VCT.84 A-16-C9 | C9 - RAL 9005 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 82 |
|
| 70125-C17 | VCT.84 A-16-C17 | C17 - RAL 6017 | 84 | 16 | 44 | 28 | 20 | 21 | 25 | 79 |
|
