VCRT.

Shortened lobe knobs

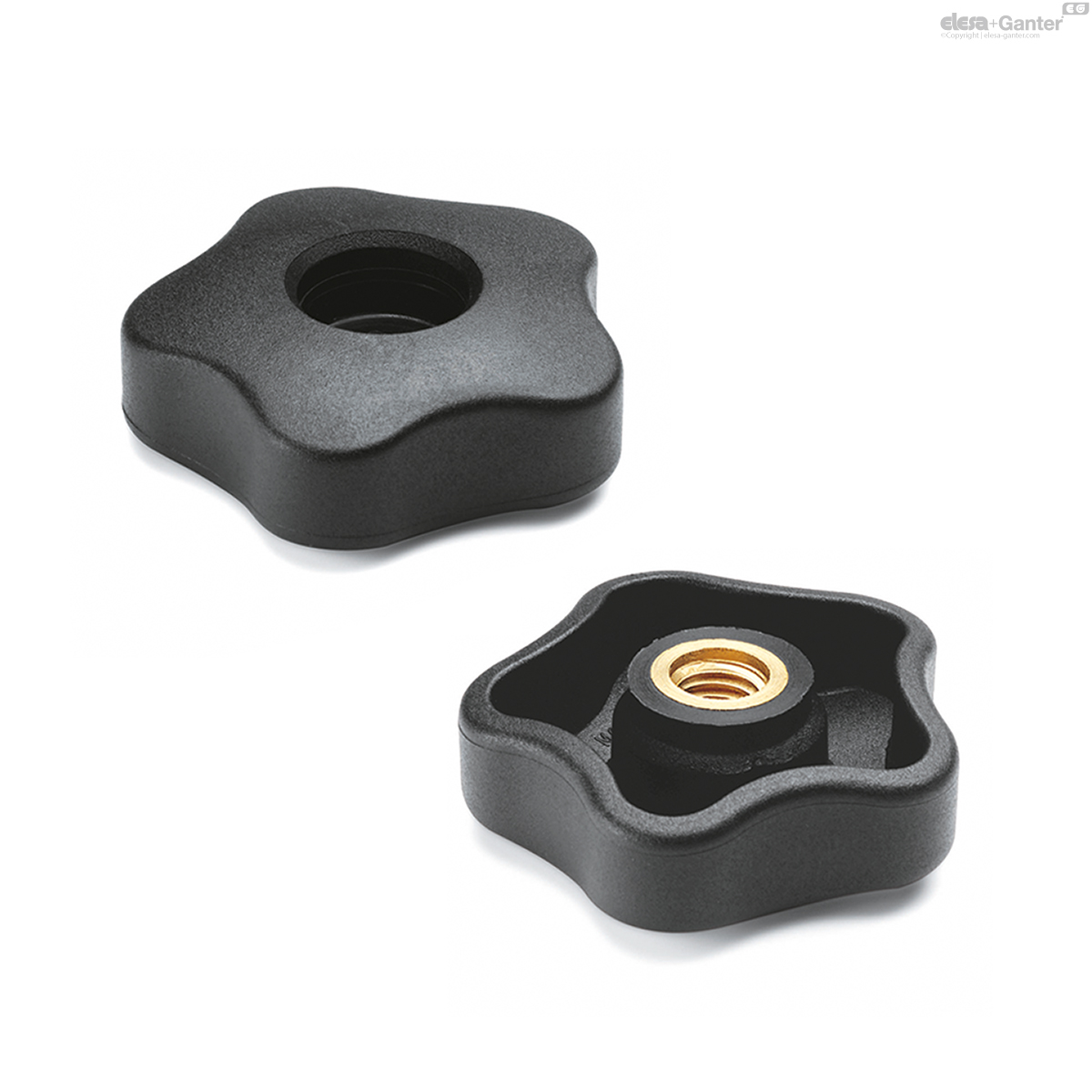

Technopolymer, square or threaded hole

Enquire Now

Description

Main specifications

Glass reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Special execution on request

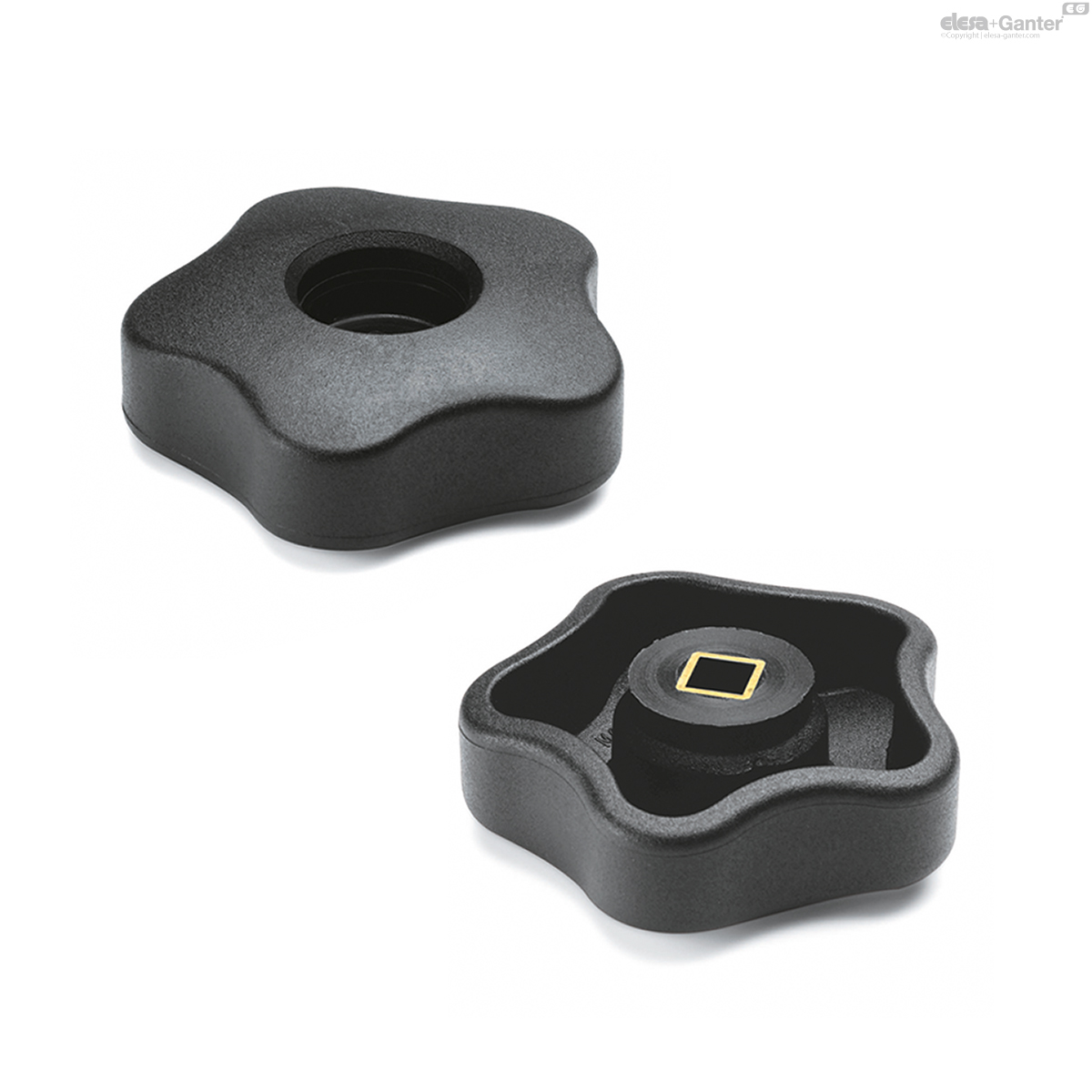

Square pass-through hole without brass reinforcement.

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

		D	s_H9	h_+0.5	h	L	d₁	d₃	l₂
Code	Description										Actions
168975	VCRT.25 N-4x4	25	4	-	-	12	13	8.5	1	7
168986	VCRT.32 N-5x5	32	5	6.5	-	14	15	11	1	15
168987	VCRT.32 N-6x6	32	6	6.5	-	14	15	11	1	15
169001	VCRT.40 N-6x6	40	6	9.5	10	17	17	12.5	1	16
169101	VCRT.50 N-6x6	50	6	9.5	10	20	19	15.5	1.2	26
169111	VCRT.50 N-7x7	50	7	9.5	10	20	19	15.5	1.2	25
169201	VCRT.63 N-6x6	63	6	9.5	10	21.5	24	19.5	1.3	36
169211	VCRT.63 N-7x7	63	7	9.5	10	21.5	24	19.5	1.3	36
169221	VCRT.63 N-8x8	63	8	9.5	10	21.5	24	19.5	1.3	35
169311	VCRT.74 N-7x7	74	7	13.5	14	24.5	26.5	19.5	2	55
169321	VCRT.74 N-8x8	74	8	13.5	14	24.5	26.5	19.5	2	51
169331	VCRT.74 N-9x9	74	9	13.5	14	24.5	26.5	19.5	2	51
169341	VCRT.74 N-10x10	74	10	13.5	14	24.5	26.5	19.5	2	51
169421	VCRT.95 N-8x8	95	8	13.5	14	29.5	32	18	4.5	82
169441	VCRT.95 N-10x10	95	10	13.5	14	29.5	32	18	4.5	82
