Lobe knobs
Technopolymer, hub with plain or threaded hole
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
Zinc-plated steel hub.
- VCHT-FP-AZ:Â H7 reamed pass-through hole.
- VCHT-FP-AZ-M:Â threaded pass-through hole.
Accessories
Accessories on request
CA.VCT:Â polypropylene-based (PP) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.
Other executions
Special execution on request
Handwheels with stainless steel hub.

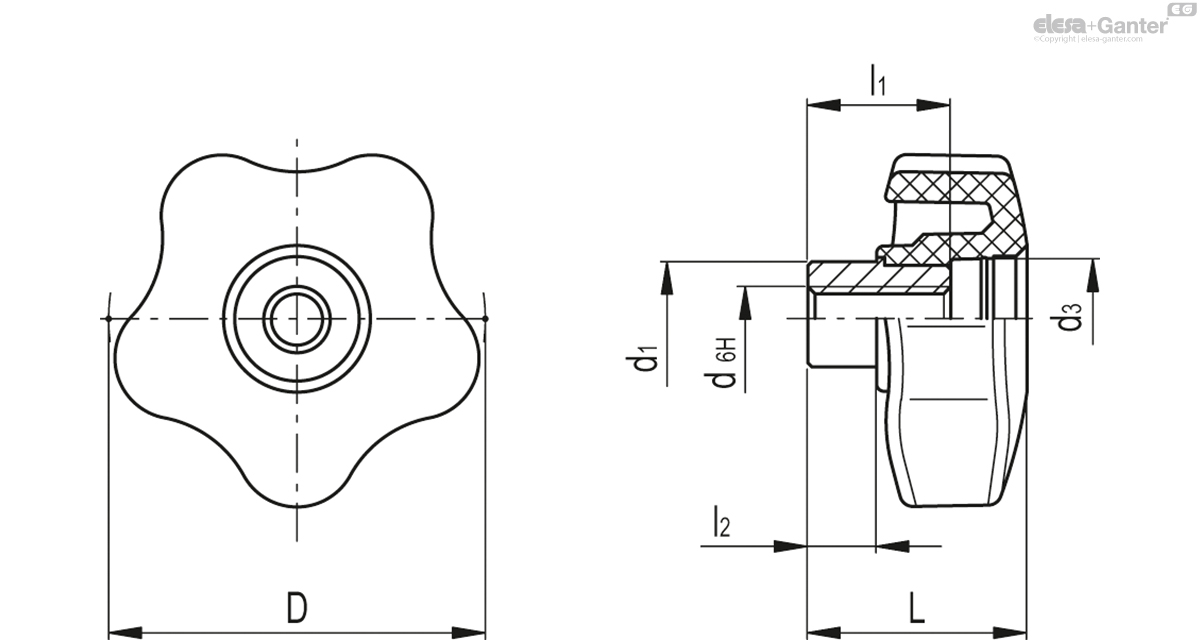

VCHT-FP-AZ-M
| D | d6H | L | d1 | d3 | l1 | l2 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 168786 | VCHT.25 FP-AZ-M4 | 25 | M4 | 19 | 10 | 8.5 | 15 | 7 | 17 |
|
| 168787 | VCHT.25 FP-AZ-M5 | 25 | M5 | 19 | 10 | 8.5 | 15 | 7 | 17 |
|
| 168806 | VCHT.32 FP-AZ-M5 | 32 | M5 | 22.5 | 12 | 10 | 16.5 | 8.5 | 17 |
|
| 168807 | VCHT.32 FP-AZ-M6 | 32 | M6 | 22.5 | 12 | 10 | 16.5 | 8.5 | 16 |
|
| 168826 | VCHT.40 FP-AZ-M6 | 40 | M6 | 27 | 14 | 12 | 20 | 10 | 30 |
|
| 168827 | VCHT.40 FP-AZ-M8 | 40 | M8 | 27 | 14 | 12 | 20 | 10 | 29 |
|
| 168846 | VCHT.50 FP-AZ-M8 | 50 | M8 | 30 | 18 | 15 | 20 | 10 | 46 |
|
| 168847 | VCHT.50 FP-AZ-M10 | 50 | M10 | 30 | 18 | 15 | 20 | 10 | 45 |
|
| 168866 | VCHT.63 FP-AZ-M10 | 63 | M10 | 35.5 | 20 | 19 | 29 | 14 | 76 |
|
| 168867 | VCHT.63 FP-AZ-M12 | 63 | M12 | 35.5 | 20 | 19 | 29 | 14 | 68 |
|
| 168886 | VCHT.74 FP-AZ-M12 | 74 | M12 | 39.5 | 25 | 17 | 29 | 15 | 95 |
|
| 168887 | VCHT.74 FP-AZ-M16 | 74 | M16 | 39.5 | 25 | 17 | 29 | 15 | 91 |
|
