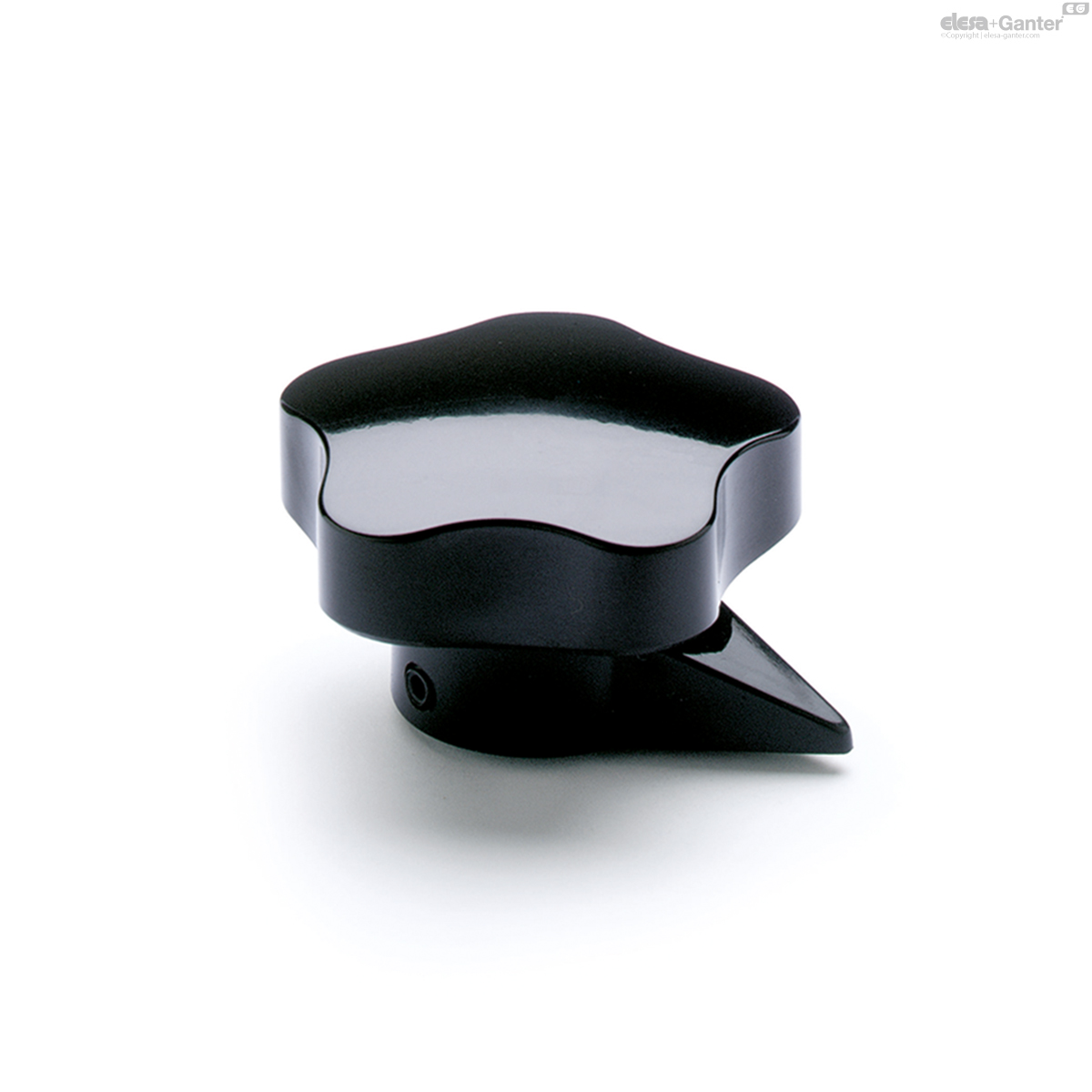

VC.192+IN
Lobe knobs
with pointer, Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Index
Polyamide based (PA) technopolymer.
Standard executions
- VC.192-B+IN: brass boss, plain blind hole.
- VC.192-A+IN: black-oxide steel boss, plain blind hole.
Assembly by means of supplied transversal grub screws UNI 5929-85 (grub screws with hexagon socket and cup end).

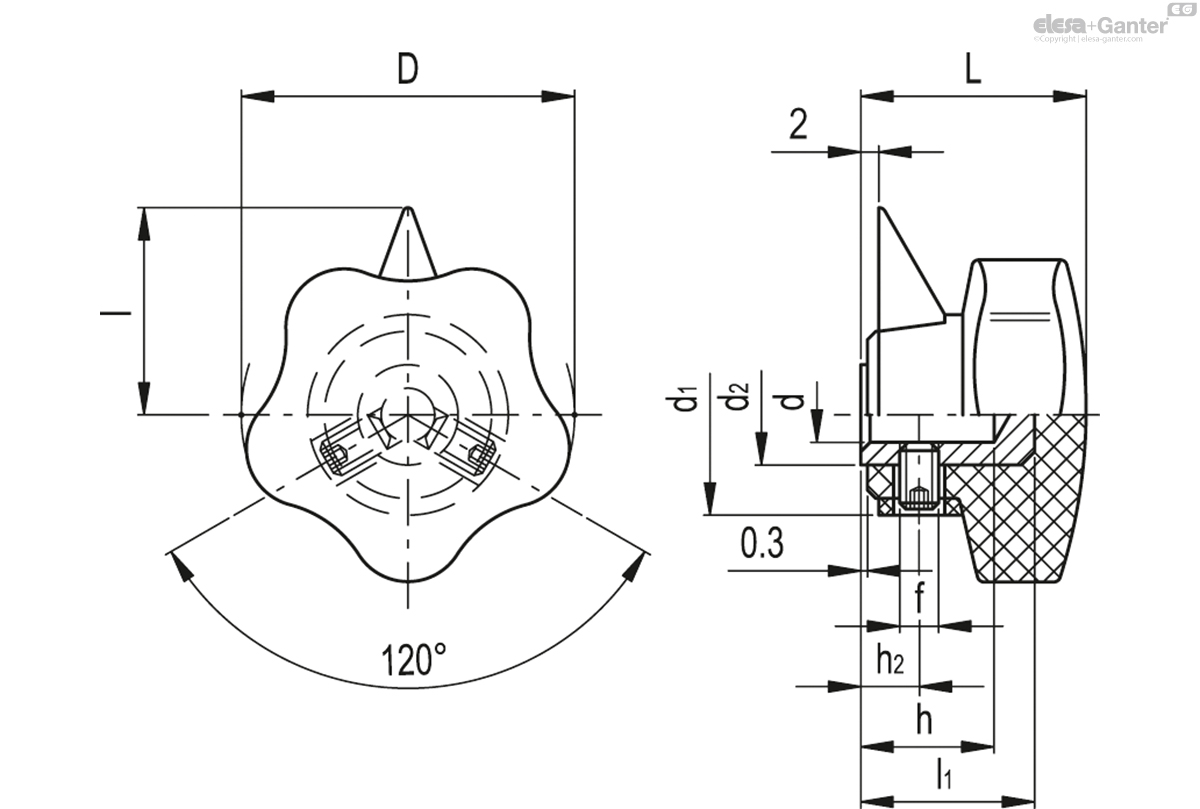

| D | dH9 | L | l | l1 | d1 | d2 | h | h2 | f |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||
| 66321 | VC.192/40 B-6+IN | 40 | 6 | 27 | 25 | 17 | 25 | 14 | 14 | 6 | M4 | 41 |
|
| 66431 | VC.192/50 A-8+IN | 50 | 8 | 33 | 31 | 25 | 30 | 15 | 20 | 7 | M5 | 69 |
|
| 66531 | VC.192/60 A-8+IN | 60 | 8 | 37 | 38 | 25 | 32 | 15 | 20 | 7 | M5 | 94 |
|
| 66631 | VC.192/70 A-10+IN | 70 | 10 | 44 | 45 | 31 | 35 | 18 | 25 | 11 | M6 | 151 |
|
| 66711 | VC.192/85 A-10+IN | 85 | 10 | 55 | 50 | 38 | 41 | 22 | 25 | 14 | M6 | 248 |
|
