VC.192

Lobe knobs

Duroplast, easy cleaning

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

__logo__PF__

__logo__g11020__

Enquire Now

product image

Black-oxide steel boss, plain hole

product image

Brass boss, plain or threaded hole

product image

Stainless steel boss, threaded hole

product image

Zinc-plated steel threaded stud

product image

Stainless steel threaded stud

Description

Main specifications

Material

Phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

VC.192-A: black-oxide steel boss, plain blind hole.
VC.192-B: brass boss, plain or threaded blind hole.
VC.192-SST: AISI 303 stainless steel boss, threaded blind hole.
VC.192-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
VC.192-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

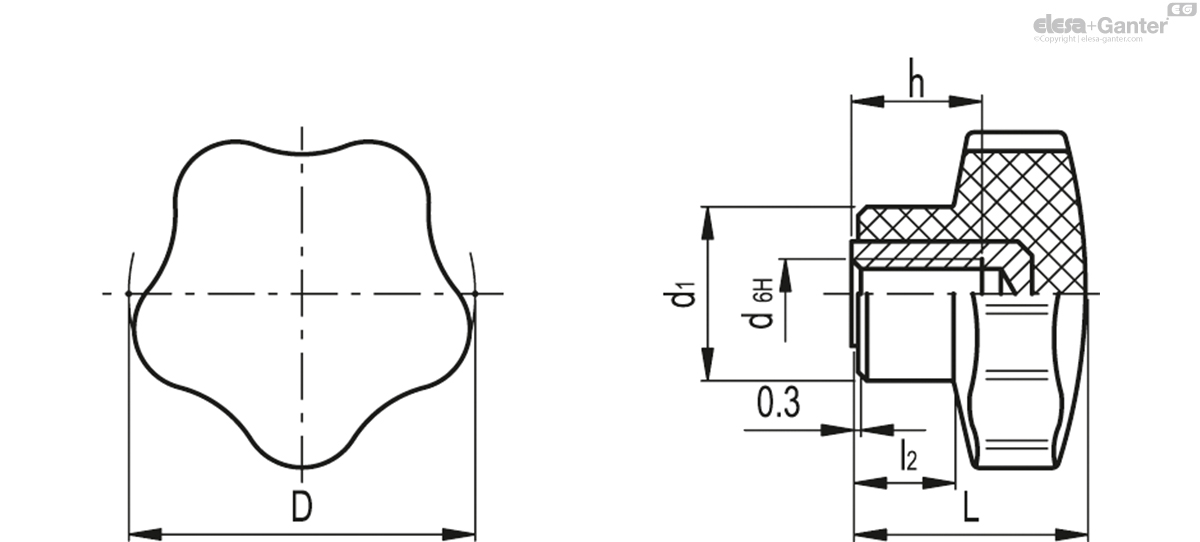

VC.192-SST

		D	d_6H	L	d₁	l₂	h
Code	Description								Actions
66226	VC.192/30-SST-M6	32	M6	23	19	11	12	22
66346	VC.192/40-SST-M8	40	M8	27	21	12	13	34
66476	VC.192/50-SST-M10	50	M10	33	25	14	17	59
66556	VC.192/60-SST-M12	60	M12	37	27	17	20	81
