VC.192

Lobe knobs
Duroplast, easy cleaning
__logo__ELE_OD__ __logo__INOX__ __logo__RoHS__ __logo__PF__ __logo__g11020__
Enquire Now
product image
VC.192-A
Lobe knobs
Black-oxide steel boss, plain hole
product image
VC.192-B
Lobe knobs
Brass boss, plain or threaded hole
product image
VC.192-SST
Lobe knobs
Stainless steel boss, threaded hole
product image
VC.192-p
Lobe knobs
Zinc-plated steel threaded stud
product image
VC.192-SST-p
Lobe knobs
Stainless steel threaded stud
  • product-image
  • product-image

Description

Main specifications

Material

Phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

  • VC.192-A: black-oxide steel boss, plain blind hole.
  • VC.192-B: brass boss, plain or threaded blind hole.
  • VC.192-SST: AISI 303 stainless steel boss, threaded blind hole.
  • VC.192-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
  • VC.192-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

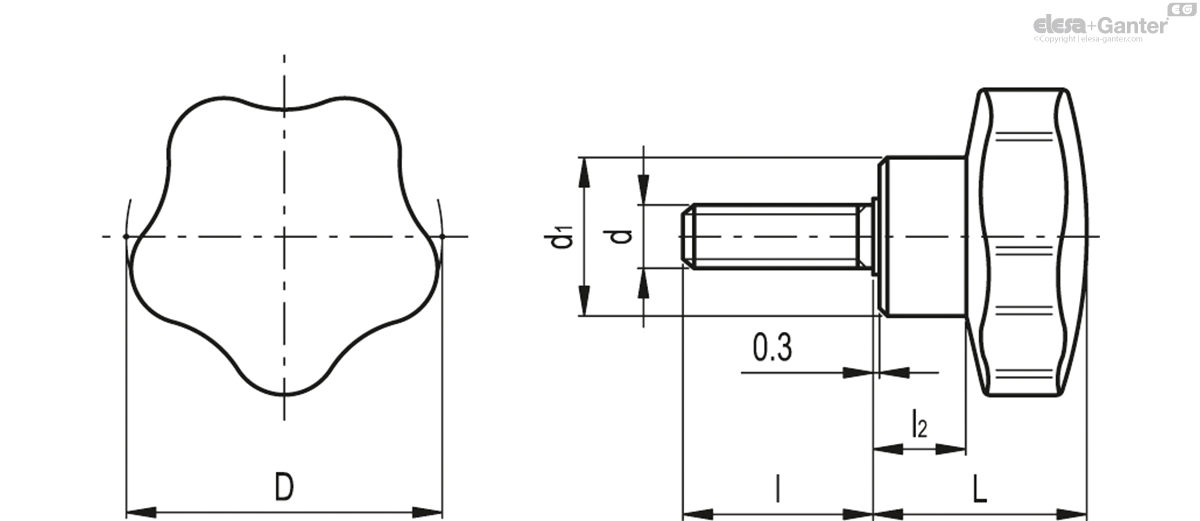

VC.192-p

D d6g L d1 l l2 __logo__weight__
Code Description Actions
66121 VC.192/25 p-M5x10 25 M5 21 15 10 9 11 cart-icon
66122 VC.192/25 p-M5x16 25 M5 21 15 16 9 12 cart-icon
66131 VC.192/25 p-M6x10 25 M6 21 15 10 9 14 cart-icon
66132 VC.192/25 p-M6x16 25 M6 21 15 16 9 14 cart-icon
66133 VC.192/25 p-M6x20 25 M6 21 15 20 9 14 cart-icon
66134 VC.192/25 p-M6x30 25 M6 21 15 30 9 18 cart-icon
66231 VC.192/30 p-M6x10 32 M6 23 19 10 11 21 cart-icon
66232 VC.192/30 p-M6x16 32 M6 23 19 16 11 24 cart-icon
66233 VC.192/30 p-M6x20 32 M6 23 19 20 11 22 cart-icon
66234 VC.192/30 p-M6x35 32 M6 23 19 35 11 27 cart-icon
66241 VC.192/30 p-M8x20 32 M8 23 19 20 11 27 cart-icon
66242 VC.192/30 p-M8x30 32 M8 23 19 30 11 29 cart-icon
66243 VC.192/30 p-M8x40 32 M8 23 19 40 11 32 cart-icon
66351 VC.192/40 p-M6x10 40 M6 27 21 10 12 29 cart-icon
66352 VC.192/40 p-M6x20 40 M6 27 21 20 12 34 cart-icon
66353 VC.192/40 p-M6x30 40 M6 27 21 30 12 37 cart-icon
66361 VC.192/40 p-M8x16 40 M8 27 21 16 12 38 cart-icon
66362 VC.192/40 p-M8x25 40 M8 27 21 25 12 42 cart-icon
66363 VC.192/40 p-M8x35 40 M8 27 21 35 12 46 cart-icon
66364 VC.192/40 p-M8x45 40 M8 27 21 45 12 48 cart-icon
66481 VC.192/50 p-M8x16 50 M8 33 25 16 14 56 cart-icon
66482 VC.192/50 p-M8x20 50 M8 33 25 20 14 64 cart-icon
66483 VC.192/50 p-M8x25 50 M8 33 25 25 14 63 cart-icon
66484 VC.192/50 p-M8x30 50 M8 33 25 30 14 64 cart-icon
66485 VC.192/50 p-M8x40 50 M8 33 25 40 14 64 cart-icon
66491 VC.192/50 p-M10x20 50 M10 33 25 20 14 69 cart-icon
66492 VC.192/50 p-M10x30 50 M10 33 25 30 14 73 cart-icon
66493 VC.192/50 p-M10x40 50 M10 33 25 40 14 74 cart-icon
66494 VC.192/50 p-M10x50 50 M10 33 25 50 14 79 cart-icon
66561 VC.192/60 p-M10x20 60 M10 37 27 20 17 93 cart-icon
66562 VC.192/60 p-M10x30 60 M10 37 27 30 17 92 cart-icon
66563 VC.192/60 p-M10x40 60 M10 37 27 40 17 97 cart-icon
66564 VC.192/60 p-M10x50 60 M10 37 27 50 17 101 cart-icon
66571 VC.192/60 p-M12x25 60 M12 37 27 25 17 102 cart-icon
66572 VC.192/60 p-M12x30 60 M12 37 27 30 17 105 cart-icon
66573 VC.192/60 p-M12x40 60 M12 37 27 40 17 113 cart-icon
66574 VC.192/60 p-M12x50 60 M12 37 27 50 17 119 cart-icon
66651 VC.192/70 p-M12x30 70 M12 44 30 30 20 144 cart-icon
66652 VC.192/70 p-M12x50 70 M12 44 30 50 20 155 cart-icon
66653 VC.192/70 p-M12x60 70 M12 44 30 60 20 165 cart-icon
66654 VC.192/70 p-M12x70 70 M12 44 30 70 20 172 cart-icon
66661 VC.192/70 p-M14x50 70 M14 44 30 50 20 182 cart-icon
66662 VC.192/70 p-M14x70 70 M14 44 30 70 20 213 cart-icon
66731 VC.192/85 p-M16x50 85 M16 55 35 50 30 268 cart-icon
