UCF Locking collar Watertight Solid
Bearings supports
Description
Description
The UCF watertight bearings - solid version are made in reinforced polyamide with good mechanical strength and excellent resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol.
The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert.
Bearings are made in chrome steel, with 2,5° adjustment.
They can be used at temperature between 0°C and +80°C.
Basic features
| Series: | UCF |
|---|---|
| Type: | Watertight (cap) |
| Fixation: | 4-holes |
| Material: | Plastic |
| Version: | Solid |
| Fixing method: | Locking collar (eccentric ring) |
| Unit of measure: | Ea |
| Box: | - |
UCF Locking collar Watertight Solid

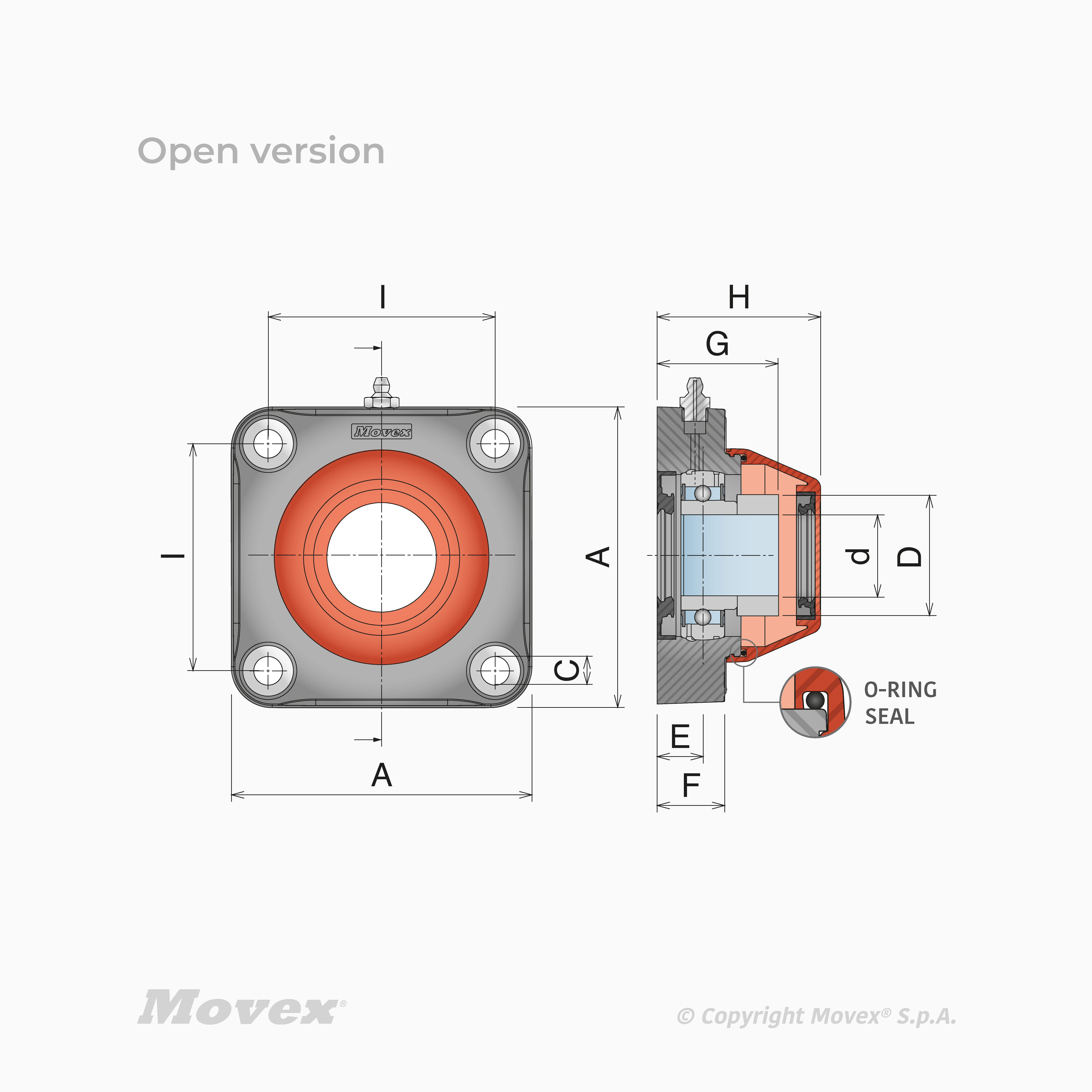

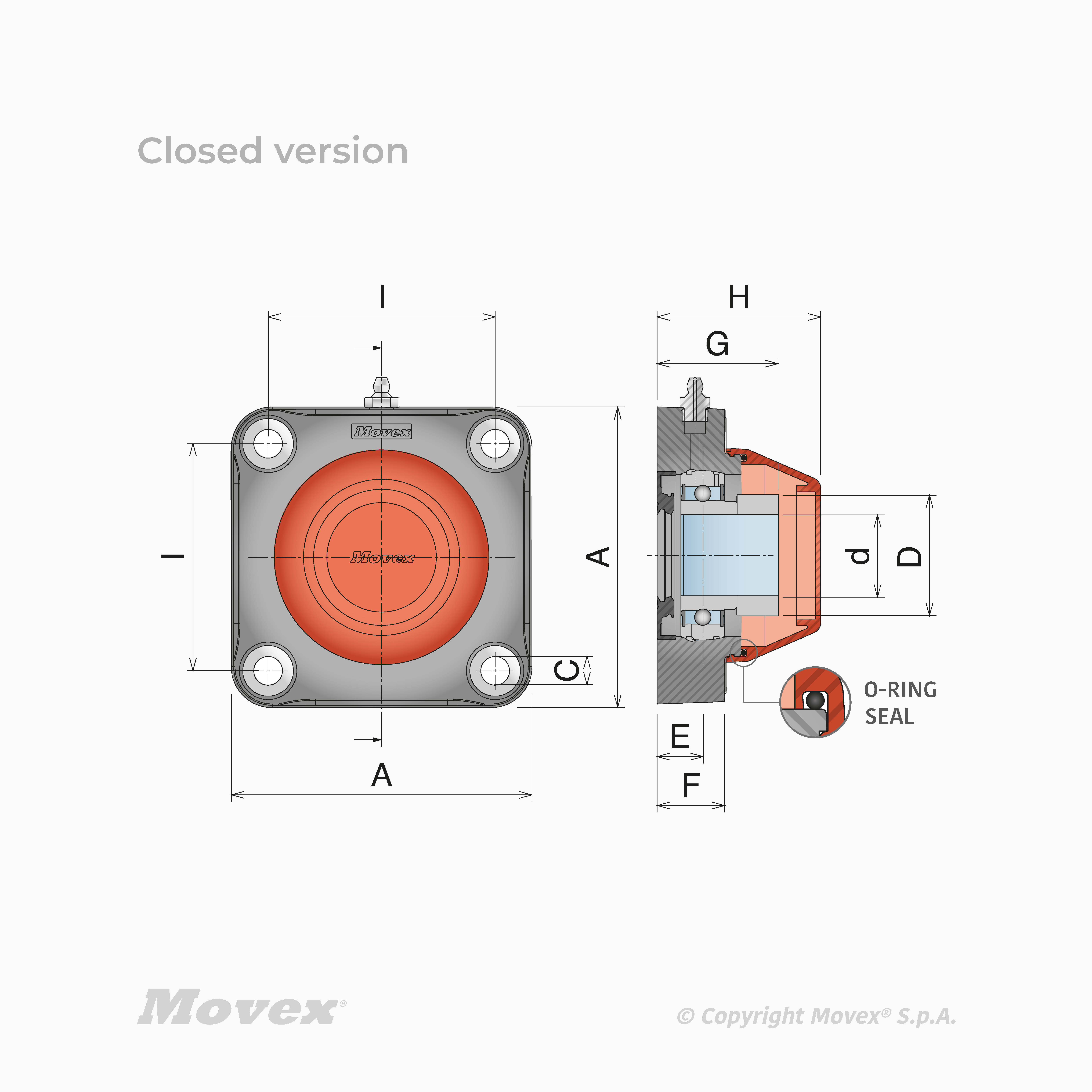

| A | Operating Temperature °C | D | E | C | F | G | H | Bearing material | Watertight (Safety cap) | Shaft diameter | I (holes distance) | Shaft adjustment | Housing | Bearing | Spacers | Grease nipple | Washers | Cap | Seal | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||||||
| P83201 | 98 mm | 0÷90 °C | 38.1 mm | 16 mm | 11 mm | 22 mm | 39.4 mm | 51.5 mm | Chrome steel | Yes, closed cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal |
|
| P83202 | 110 mm | 0÷90 °C | 44.5 mm | 17 mm | 11 mm | 25 mm | 44.7 mm | 60.5 mm | Chrome steel | Yes, closed cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal |
|
| P83204 | 110 mm | 0÷90 °C | 60.3 mm | 19.5 mm | 11 mm | 25 mm | 54.2 mm | 65.5 mm | Chrome steel | Yes, closed cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal |
|
| P83213 | 118 mm | 0÷90 °C | 55.6 mm | 20 mm | 11 mm | 25 mm | 50.4 mm | 65.5 mm | Chrome steel | Yes, closed cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal |
|
| P83301 | 98 mm | 0÷90 °C | 38.1 mm | 16 mm | 11 mm | 22 mm | 39.4 mm | 51.5 mm | Chrome steel | Yes, open cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P83302 | 110 mm | 0÷90 °C | 44.5 mm | 17 mm | 11 mm | 25 mm | 44.7 mm | 60.5 mm | Chrome steel | Yes, open cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P83304 | 110 mm | 0÷90 °C | 60.3 mm | 19.5 mm | 11 mm | 25 mm | 54.2 mm | 65.5 mm | Chrome steel | Yes, open cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P83313 | 118 mm | 0÷90 °C | 55.6 mm | 20 mm | 11 mm | 25 mm | 50.4 mm | 65.5 mm | Chrome steel | Yes, open cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
