UCF-H Grub screw Watertight Solid
Bearings supports
Description
Description
The UCF-H watertight bearings - solid version are made in reinforced polypropylene and stainless steel cover with high mechanical strength and excellent resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol.
The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert.
Bearings are made in chrome steel, with 2,5° adjustment.
They can be used at temperature between 0°C and +80°C.
Basic features
| Series: | UCF-H |
|---|---|
| Type: | Watertight (cap) |
| Fixation: | 4-holes |
| Material: | Plastic |
| Version: | Solid |
| Fixing method: | Grub screw |
| Unit of measure: | Ea |
| Box: | - |
UCF-H Grub screw Watertight Solid

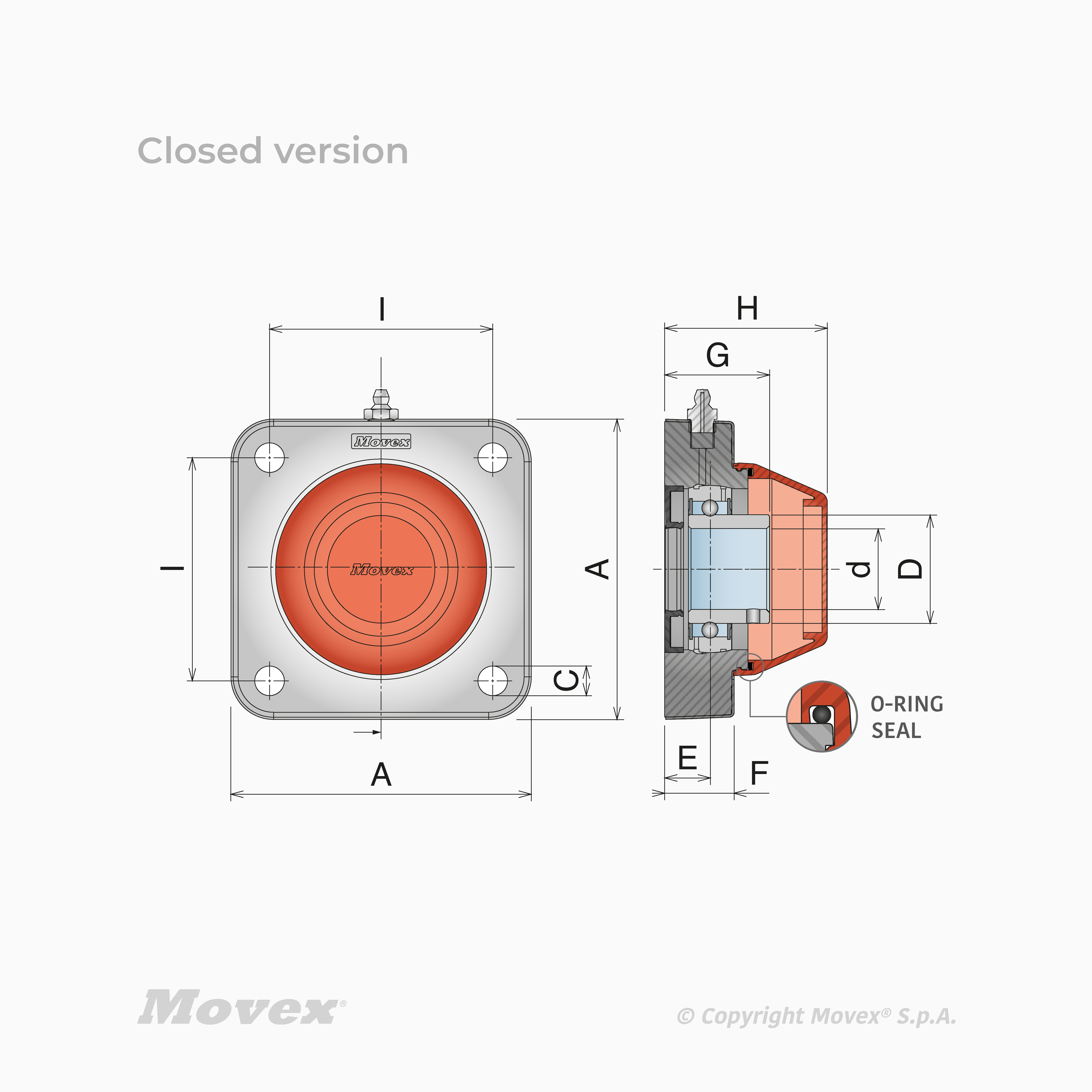

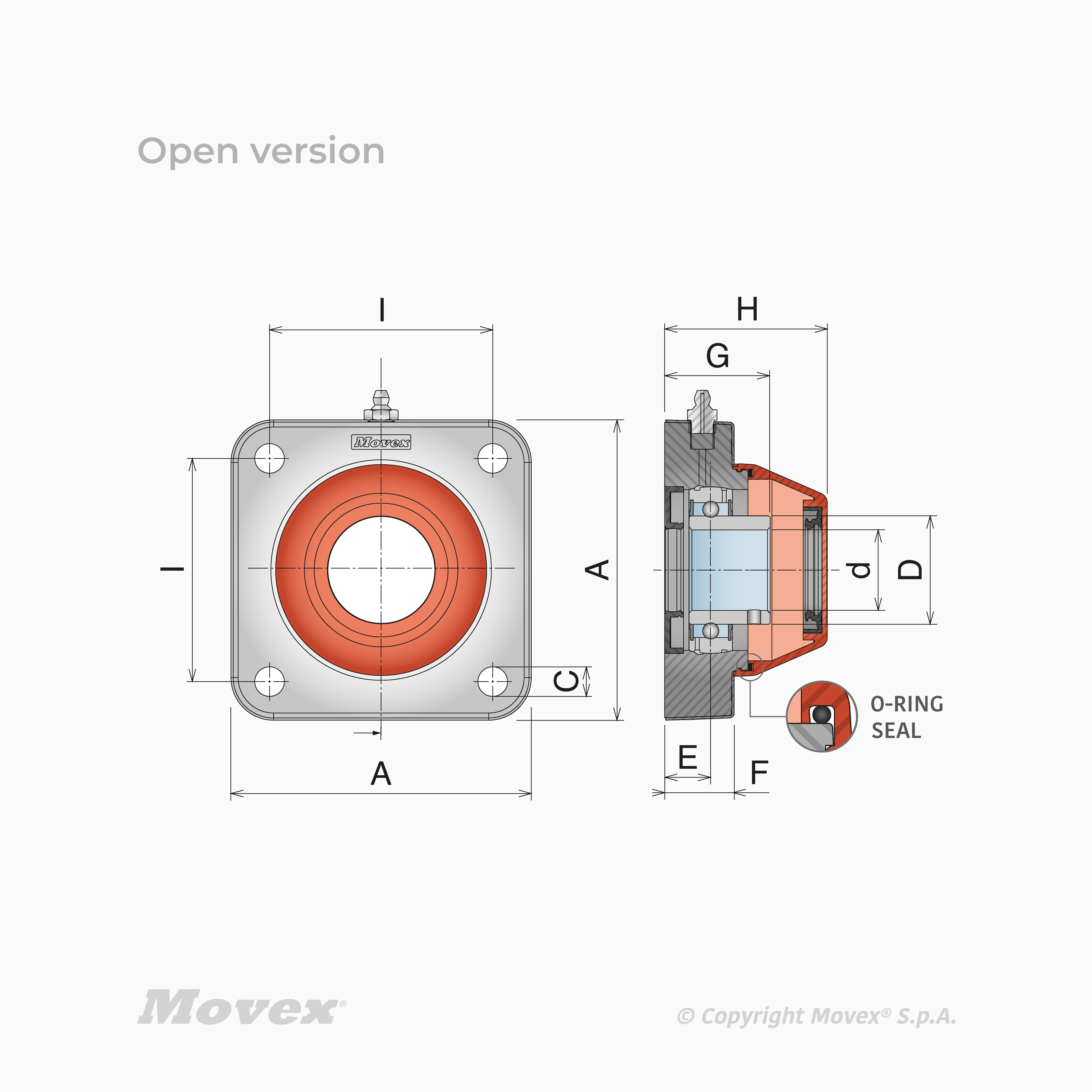

| A | Operating Temperature °C | D | E | C | F | G | H | Bearing material | Watertight (Safety cap) | Shaft diameter | I (holes distance) | Shaft adjustment | Housing | Bearing | Spacers | Grease nipple | Cap | Seal | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||||||
| P83002H | 117 mm | 5÷100 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | 60.5 mm | Chrome steel | Yes, closed cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene close cap with O-ring seal | NBR bottom seal |
|
| P83002LH | 117 mm | 5÷100 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | 60.5 mm | Chrome steel "Long life" | Yes, closed cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene close cap with O-ring seal | NBR bottom seal |
|
| P83004H | 117 mm | 5÷100 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | 65.5 mm | Chrome steel | Yes, closed cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene close cap with O-ring seal | NBR bottom seal |
|
| P83004LH | 117 mm | 5÷100 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | 65.5 mm | Chrome steel "Long life" | Yes, closed cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene close cap with O-ring seal | NBR bottom seal |
|
| P83102H | 117 mm | 5÷100 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | 60.5 mm | Chrome steel | Yes, open cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P83102LH | 117 mm | 5÷100 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | 60.5 mm | Chrome steel "Long life" | Yes, open cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P83104H | 117 mm | 5÷100 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | 65.5 mm | Chrome steel | Yes, open cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P83104LH | 117 mm | 5÷100 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | 65.5 mm | Chrome steel "Long life" | Yes, open cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polypropylene & cover in SS | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
