TCC-A

Hole reduction sleeve

for TCC clamps, technopolymer

Enquire Now

TCC-A

Hole reduction sleeve

For round tubes

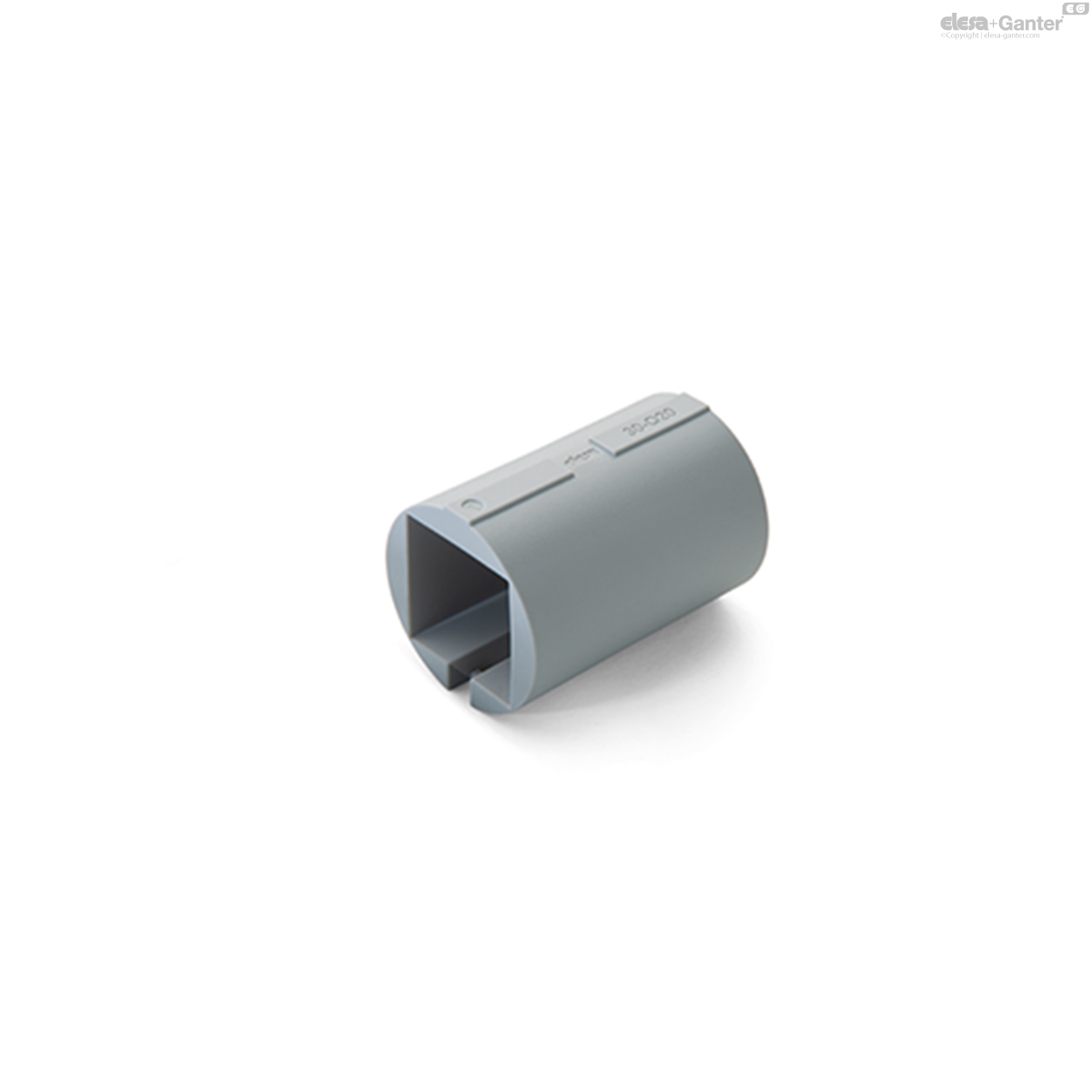

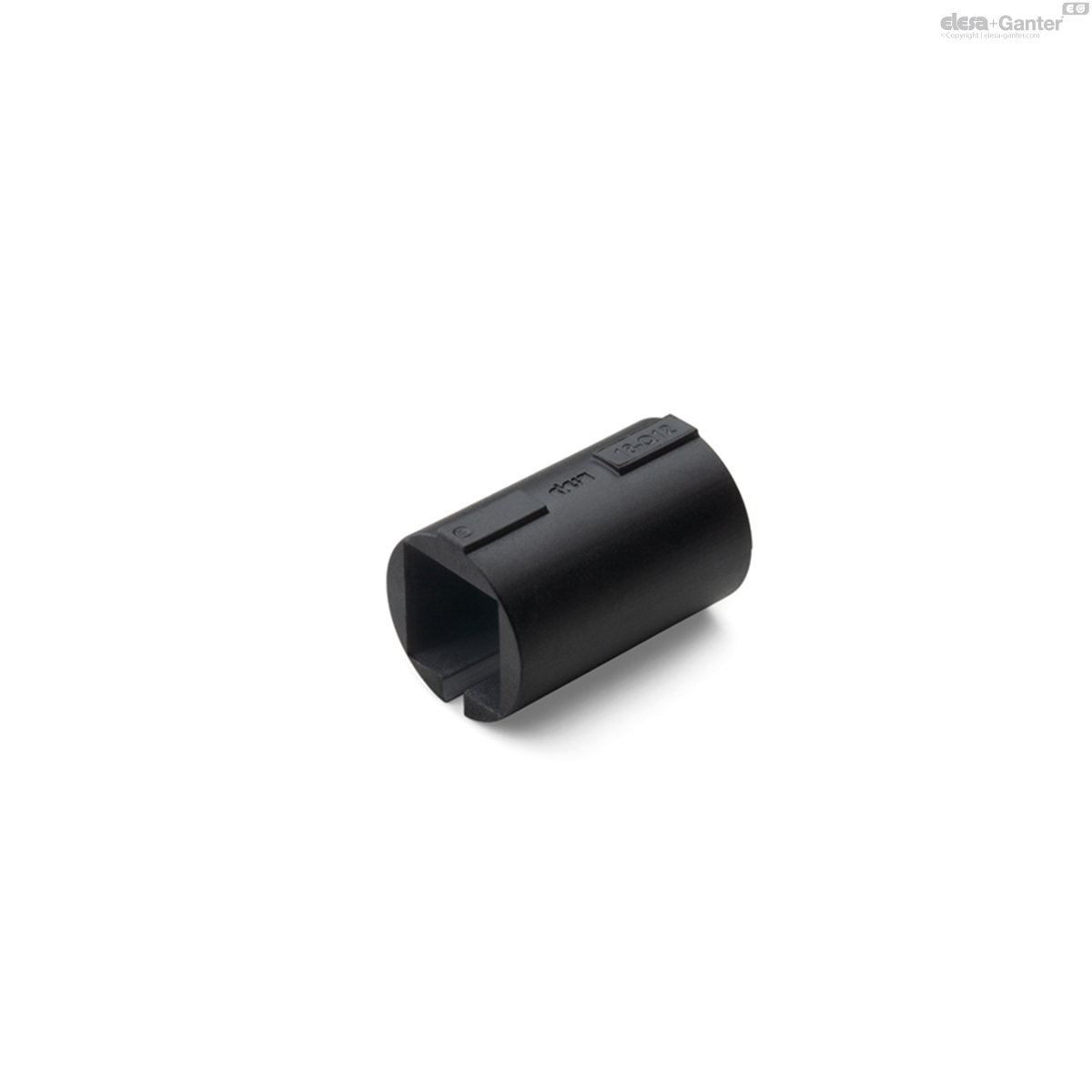

TCC-A-Q

Hole reduction sleeve

For square tubes

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

General information

Standard executions

TCC-A: for round tubes with diameter of 'd1' ±0,2mm.

TCC-A-Q: for square section tubes 's' ±0,2mm.

Technical data

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the maximum torque of 5 Nm for TCC-A-18 and 12 Nm for TCC-A-30.

TCC-A-Q

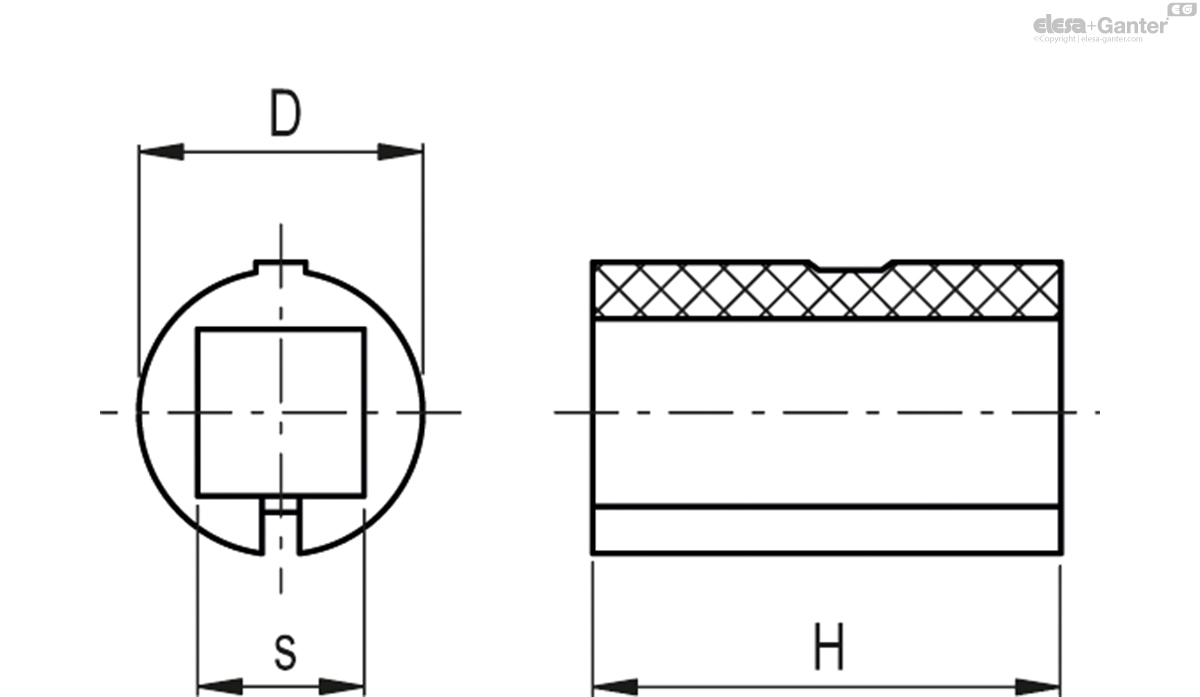

		Color	D	H	s
Code	Description						Actions
600107-C9	TCC-AQ-18-10-C9	C9 - RAL 9005	18	29	10	8
600107-C33	TCC-AQ-18-10-C33	C33 - RAL 7040	18	29	10	8
600108-C9	TCC-AQ-18-12-C9	C9 - RAL 9005	18	29	12	8
600108-C33	TCC-AQ-18-12-C33	C33 - RAL 7040	18	29	12	8
600207-C9	TCC-AQ-30-20-C9	C9 - RAL 9005	30	45	20	15
600207-C33	TCC-AQ-30-20-C33	C33 - RAL 7040	30	45	20	15
