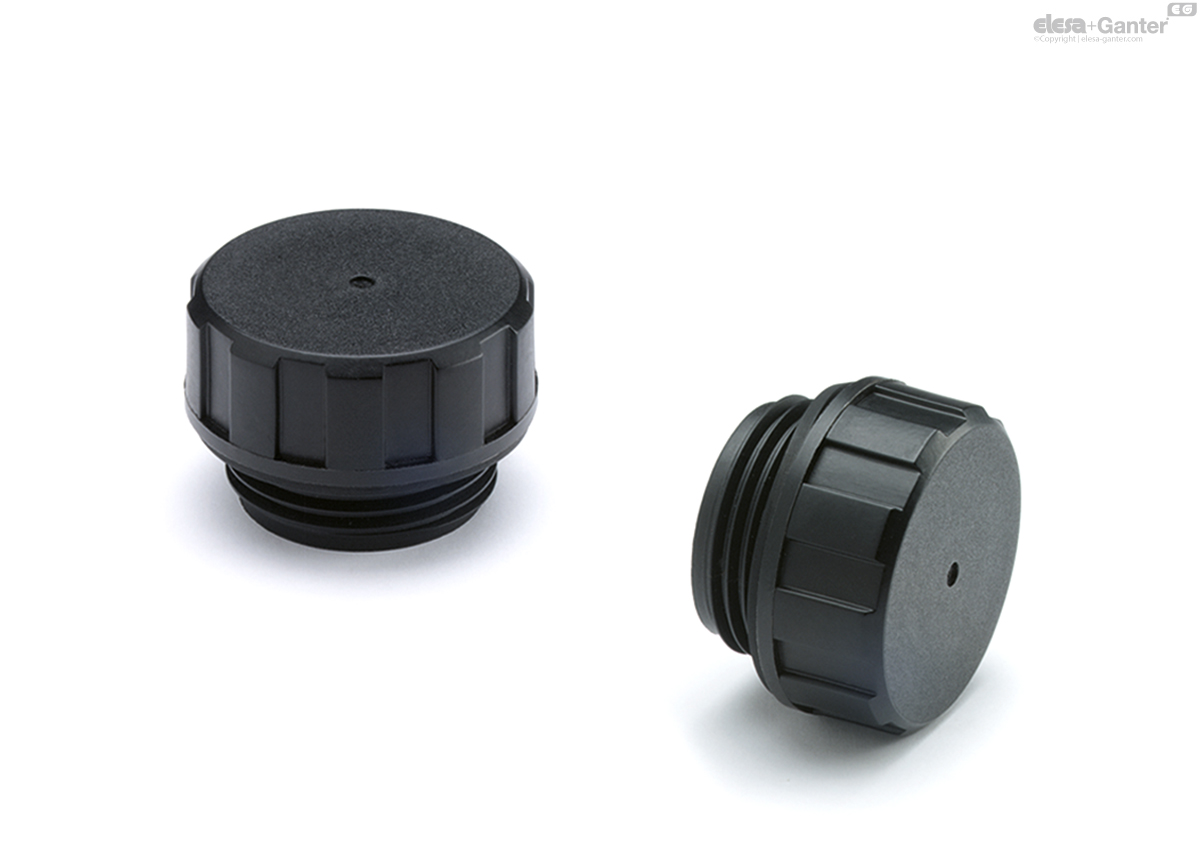

T.440
Plugs
Technopolymer up to 100°C
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C.
Special executions
Special executions on request
Words, marks and graphic symbols can be tampoprinted on the cap.

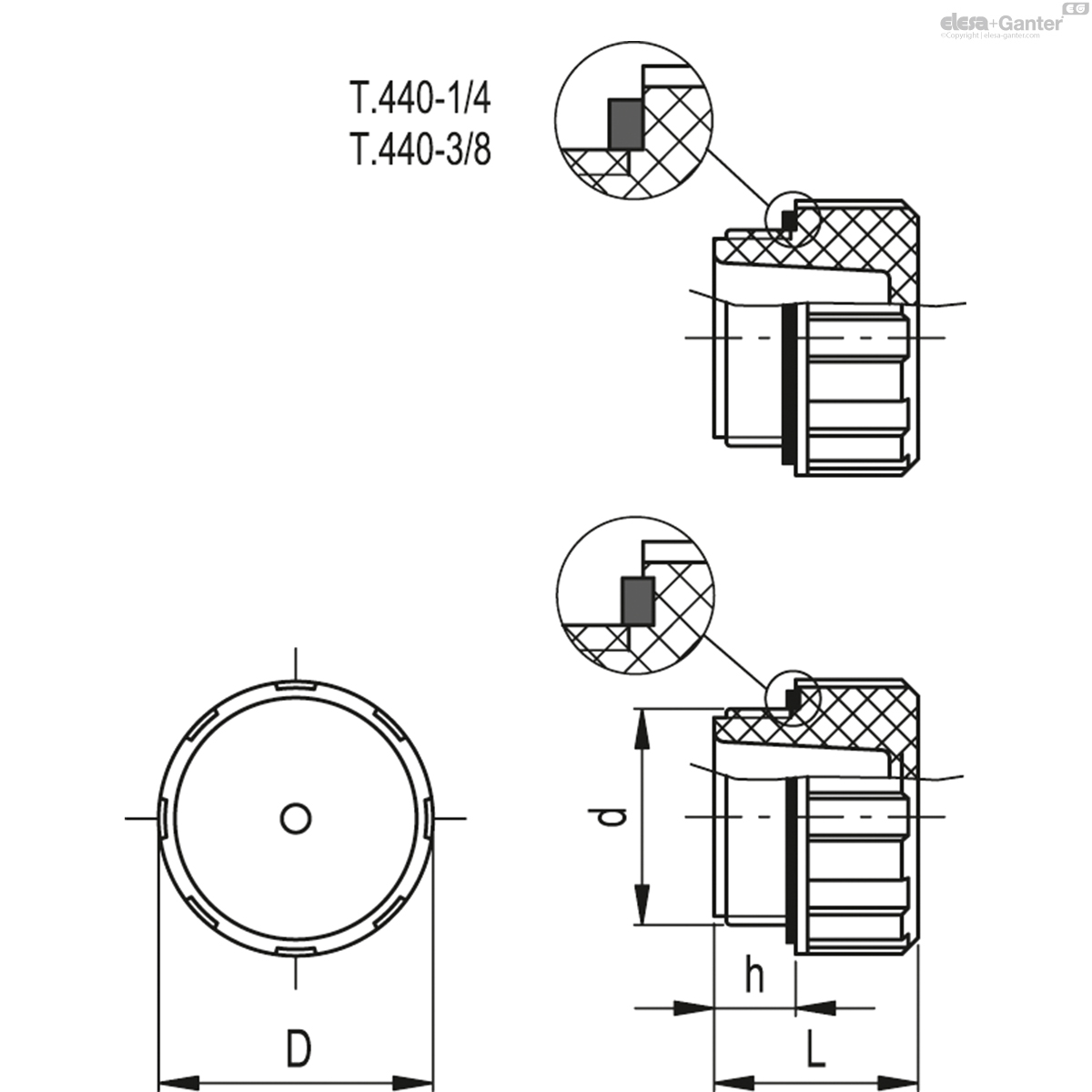

| d | h | D | L |  |
|||
|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||
| 157111 | T.440-1/4 | G 1/4 | 9 | 20.5 | 19 | 6 |
|
| 157121 | T.440-3/8 | G 3/8 | 9 | 25 | 21 | 10 |
|
| 157131 | T.440-1/2 | G 1/2 | 11 | 28.5 | 25 | 13 |
|
| 157141 | T.440-3/4 | G 3/4 | 12 | 34.5 | 27 | 20 |
|
| 157151 | T.440-1 | G 1 | 13 | 42.5 | 28.5 | 30 |
|
| 157161 | T.440-1¼ | G1 1/4 | 13 | 52 | 32 | 51 |
|
| 157171 | T.440-1½ | G1 1/2 | 13 | 57.5 | 34 | 60 |
|
