SM.
Stems for adjustable feet
Steel or stainless steel

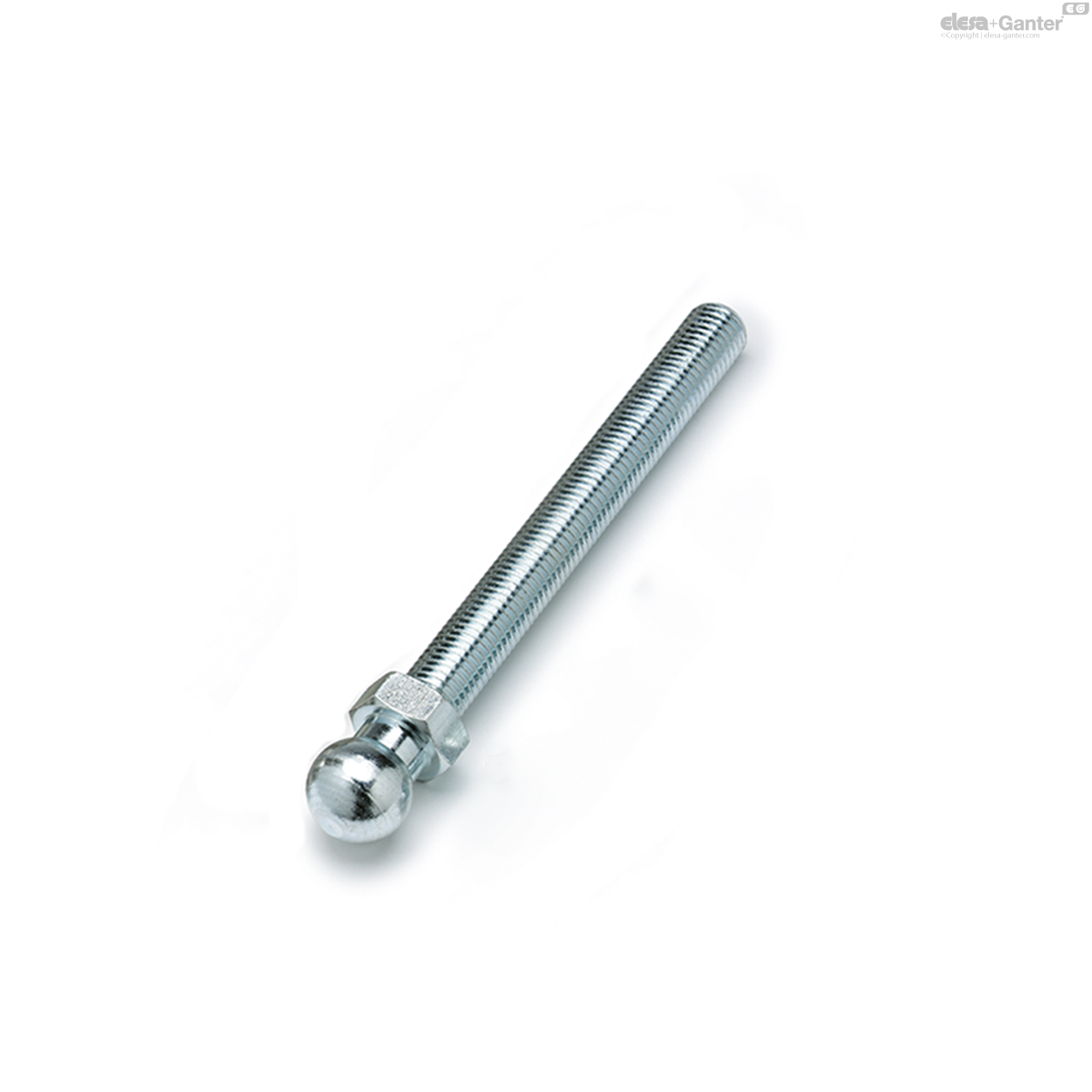

SM.
Stems for adjustable feet
Zinc-plated steel

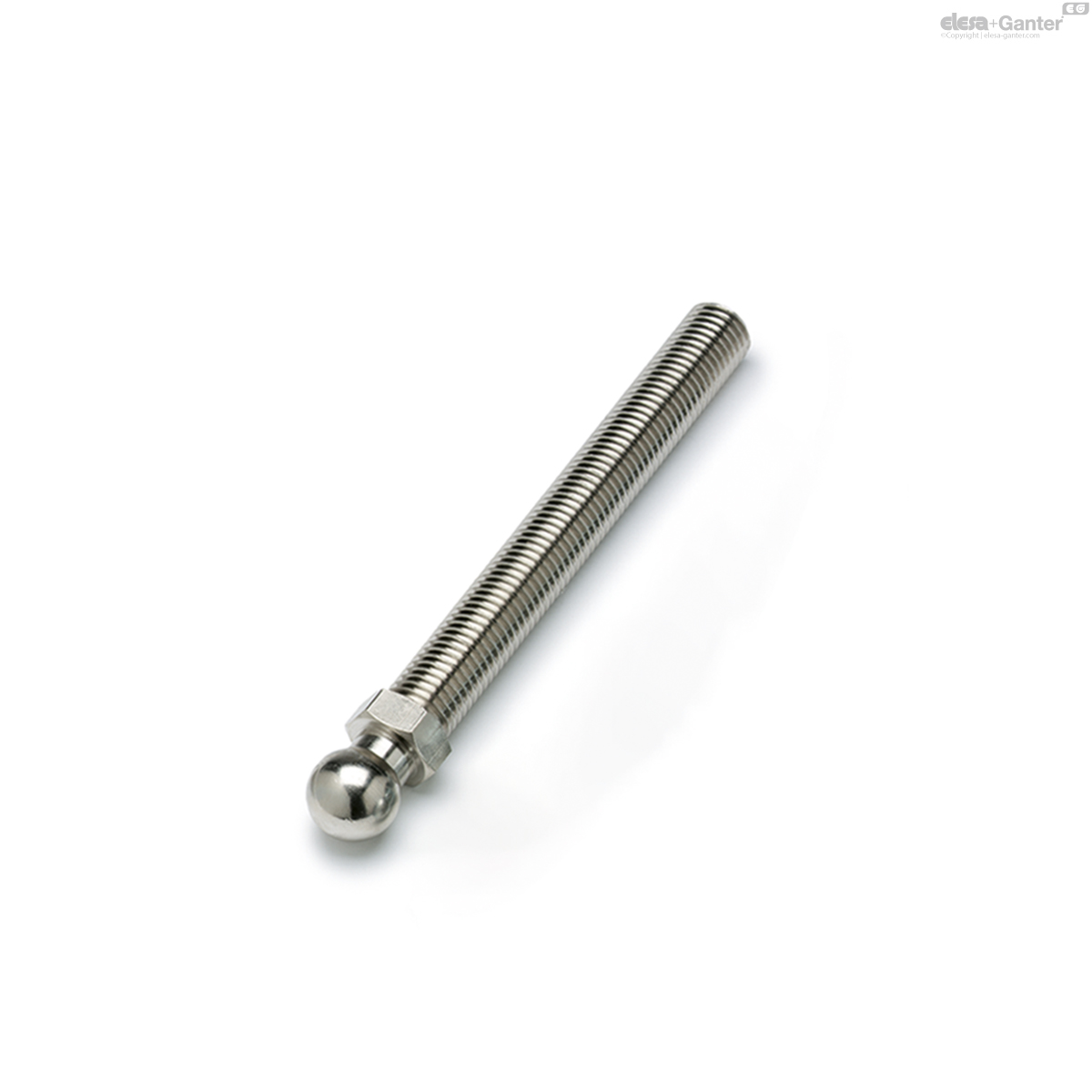

SM-SST
Stems for adjustable feet
AISI 304 stainless steel
Description
Main specifications
Standard executions
- SM: zinc-plated steel spheric articulated and threaded stem with regulation hexagon.
- SM-SST: AISI 304 stainless steel spheric articulated and threaded stem with regulation hexagon.
General information
Note
To choose the base see:
table of the possible combinations Bases/Stems
The stems are usually supplied in a packing of four pieces compacted by means of a shrink film to avoid any damaging movement during transport.
For big quantities, the stems are supplied in wooden boxes and are placed in order, to avoid any damaging movement during transport.
SM.

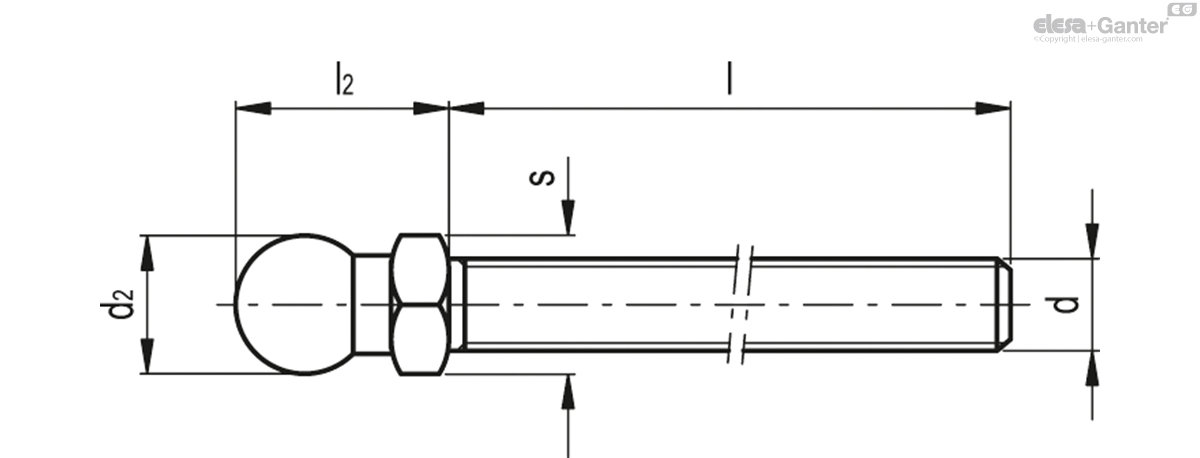

| d | l | l2 | d2 | s |  |
|||
|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||
| 301521 | SM-8.5-M8x43 | M8 | 43 | 13.5 | 8.5 | 10 | 20 |
|
| 301525 | SM-8.5-M8x68 | M8 | 68 | 13.5 | 8.5 | 10 | 27 |
|
| 301621 | SM-8.5-M10x43 | M10 | 43 | 13.5 | 8.5 | 10 | 27 |
|
| 301625 | SM-8.5-M10x68 | M10 | 68 | 13.5 | 8.5 | 10 | 39 |
|
| 301631 | SM-8.5-M10x98 | M10 | 98 | 13.5 | 8.5 | 10 | 54 |
|
| 301721 | SM-8.5-M12x43 | M12 | 43 | 13.5 | 8.5 | 12 | 37 |
|
| 301725 | SM-8.5-M12x68 | M12 | 68 | 13.5 | 8.5 | 12 | 54 |
|
| 301731 | SM-8.5-M12x98 | M12 | 98 | 13.5 | 8.5 | 12 | 75 |
|
| 302121 | SM-14-M8x43 | M8 | 43 | 19.5 | 13.9 | 14 | 33 |
|
| 302125 | SM-14-M8x68 | M8 | 68 | 19.5 | 13.9 | 14 | 44 |
|
| 302221 | SM-14-M10x43 | M10 | 43 | 19.5 | 13.9 | 14 | 40 |
|
| 302225 | SM-14-M10x68 | M10 | 68 | 19.5 | 13.9 | 14 | 51 |
|
| 302231 | SM-14-M10x98 | M10 | 98 | 19.5 | 13.9 | 14 | 66 |
|
| 302321 | SM-14-M12x43 | M12 | 43 | 19.5 | 13.9 | 14 | 49 |
|
| 302325 | SM-14-M12x68 | M12 | 68 | 19.5 | 13.9 | 14 | 66 |
|
| 302331 | SM-14-M12x98 | M12 | 98 | 19.5 | 13.9 | 14 | 86 |
|
| 302421 | SM-14-M14x68 | M14 | 68 | 19.5 | 13.9 | 14 | 82 |
|
| 302431 | SM-14-M14x98 | M14 | 98 | 19.5 | 13.9 | 14 | 110 |
|
| 302441 | SM-14-M14x148 | M14 | 148 | 19.5 | 13.9 | 14 | 157 |
|
| 302521 | SM-14-M16x68 | M16 | 68 | 19.5 | 13.9 | 16 | 106 |
|
| 302525 | SM-14-M16x108 | M16 | 108 | 19.5 | 13.9 | 16 | 157 |
|
| 302541 | SM-14-M16x148 | M16 | 148 | 19.5 | 13.9 | 16 | 208 |
|
| 302561 | SM-14-M16x168 | M16 | 168 | 19.5 | 13.9 | 16 | 233 |
|
| 302621 | SM-24-M16x58 | M16 | 58 | 37 | 23.9 | 24 | 177 |
|
| 302625 | SM-24-M16x98 | M16 | 98 | 37 | 23.9 | 24 | 228 |
|
| 302641 | SM-24-M16x138 | M16 | 138 | 37 | 23.9 | 24 | 280 |
|
| 302661 | SM-24-M16x158 | M16 | 158 | 37 | 23.9 | 24 | 306 |
|
| 302725 | SM-24-M20x98 | M20 | 98 | 37 | 23.9 | 24 | 296 |
|
| 302741 | SM-24-M20x138 | M20 | 138 | 37 | 23.9 | 24 | 378 |
|
| 302761 | SM-24-M20x158 | M20 | 158 | 37 | 23.9 | 24 | 416 |
|
| 302781 | SM-24-M20x198 | M20 | 198 | 37 | 23.9 | 24 | 495 |
|
| 302825 | SM-24-M24x98 | M24 | 98 | 37 | 23.9 | 24 | 378 |
|
| 302861 | SM-24-M24x158 | M24 | 158 | 37 | 23.9 | 24 | 549 |
|
| 302881 | SM-24-M24x198 | M24 | 198 | 37 | 23.9 | 24 | 662 |
|
