Home Leveling feet S400B S400B Ø80 Heavy Split

S400B Ø80 Heavy Split

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	80 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

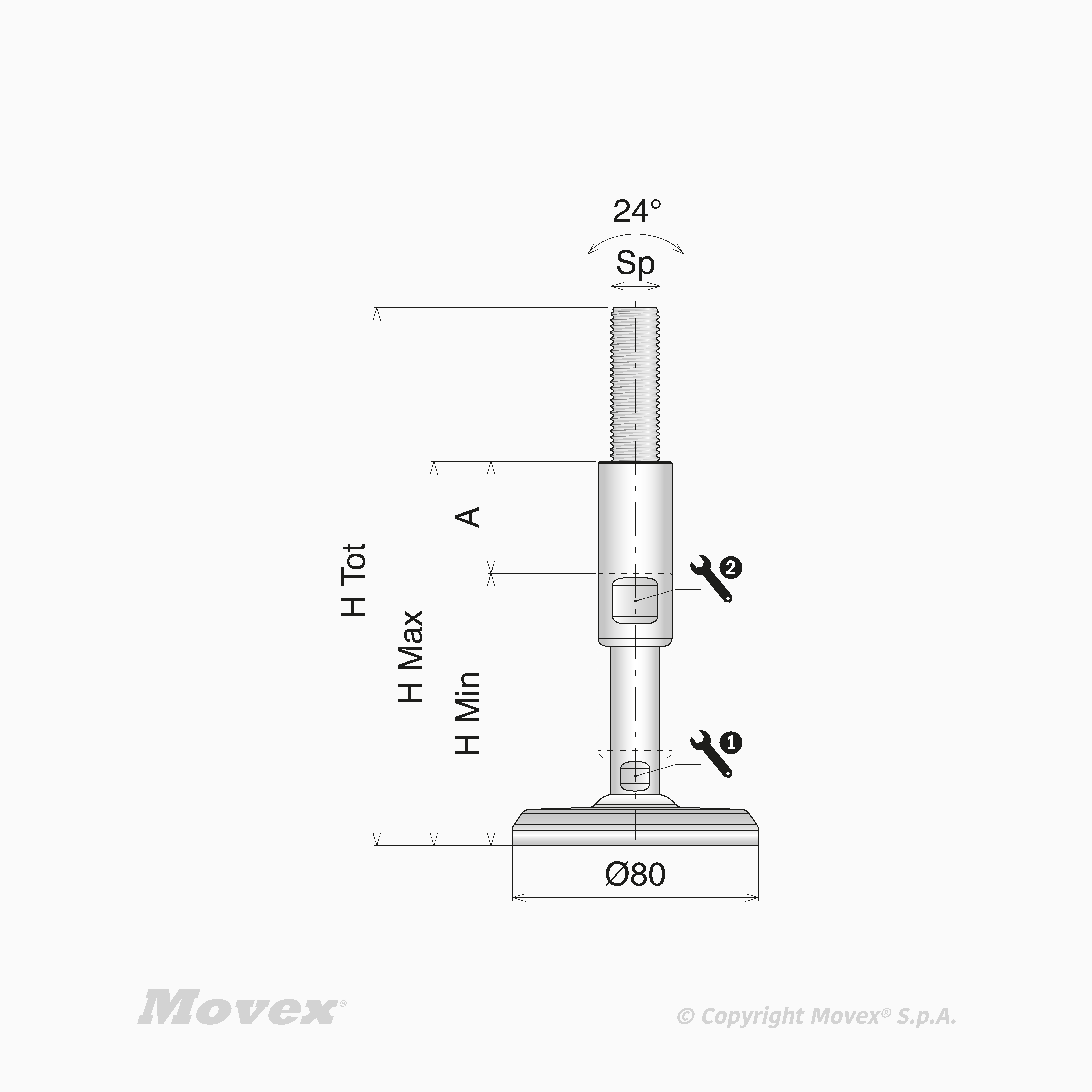

S400B Ø80 Heavy Split

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry	Temperature range wet
Code													Actions
P902697	45 mm	Standard	Stainless steel	M12	176.5	Heavy Split	97.5 mm	142.5 mm	10 mm	17 mm	-30÷400 °C	-30÷130 °C
P902698	65 mm	Standard	Stainless steel	M12	226.5	Heavy Split	127.5 mm	192.5 mm	10 mm	17 mm	-30÷400 °C	-30÷130 °C
P902699	45 mm	Standard	Stainless steel	M16	176.5	Heavy Split	96.5 mm	141.5 mm	13 mm	19 mm	-30÷400 °C	-30÷130 °C
P902700	65 mm	Standard	Stainless steel	M16	226.5	Heavy Split	126.5 mm	191.5 mm	13 mm	19 mm	-30÷400 °C	-30÷130 °C
P902701	45 mm	Standard	Stainless steel	M20	176.5	Heavy Split	96.5 mm	141.5 mm	17 mm	24 mm	-30÷400 °C	-30÷130 °C
P902702	65 mm	Standard	Stainless steel	M20	226.5	Heavy Split	126.5 mm	191.5 mm	17 mm	24 mm	-30÷400 °C	-30÷130 °C
P902703	45 mm	Standard	Stainless steel	M24	176.5	Heavy Split	96.5 mm	141.5 mm	19 mm	30 mm	-30÷400 °C	-30÷130 °C
P902704	65 mm	Standard	Stainless steel	M24	226.5	Heavy Split	126.5 mm	191.5 mm	19 mm	30 mm	-30÷400 °C	-30÷130 °C
P902705	45 mm	Standard	Stainless steel	M30	176.5	Heavy Split	96.5 mm	141.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902706	65 mm	Standard	Stainless steel	M30	226.5	Heavy Split	126.5 mm	191.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902707	65 mm	Standard	Stainless steel	M30	286.5	Heavy Split	186.5 mm	251.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902708	45 mm	Standard	Stainless steel	M36	176.5	Heavy Split	96.5 mm	141.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
P902709	65 mm	Standard	Stainless steel	M36	226.5	Heavy Split	126.5 mm	191.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
P902710	65 mm	Standard	Stainless steel	M36	286.5	Heavy Split	186.5 mm	251.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
