Home Leveling feet S400B S400B Ø60 Heavy Anti-Slip

S400B Ø60 Heavy Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	60 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

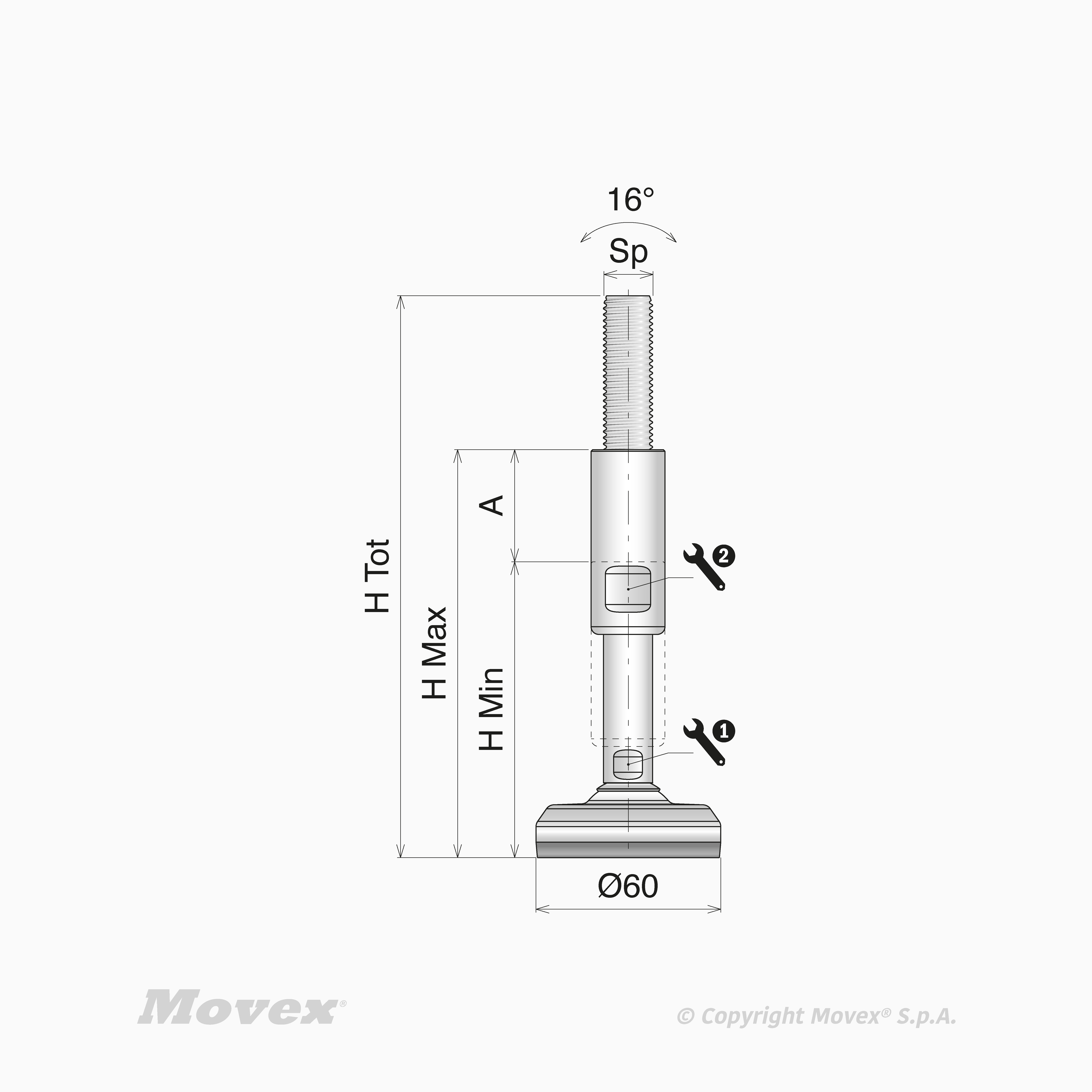

S400B Ø60 Heavy Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902473	45 mm	Standard	Stainless steel	M12	182.5	Heavy	102.5 mm	147.5 mm	10 mm	17 mm Max Load 12000 N	-25÷100 °C
P902474	65 mm	Standard	Stainless steel	M12	232.5	Heavy	132.5 mm	132.5 mm	10 mm	17 mm	-25÷100 °C
P902475	45 mm	Standard	Stainless steel	M16	182.5	Heavy	102.5 mm	147.5 mm	13 mm	19 mm	-25÷100 °C
P902476	65 mm	Standard	Stainless steel	M16	232.5	Heavy	132.5 mm	132.5 mm	13 mm	19 mm	-25÷100 °C
P902477	45 mm	Standard	Stainless steel	M20	182.5	Heavy	102.5 mm	147.5 mm	17 mm	24 mm	-25÷100 °C
P902478	65 mm	Standard	Stainless steel	M20	232.5	Heavy	132.5 mm	132.5 mm	17 mm	24 mm	-25÷100 °C
P902479	45 mm	Standard	Stainless steel	M24	182.5	Heavy	102.5 mm	147.5 mm	19 mm	30 mm	-25÷100 °C
P902480	65 mm	Standard	Stainless steel	M24	232.5	Heavy	132.5 mm	132.5 mm	19 mm	30 mm	-25÷100 °C
P902481	45 mm	Standard	Stainless steel	M30	182.5	Heavy	102.5 mm	147.5 mm	24 mm	36 mm	-25÷100 °C
P902482	65 mm	Standard	Stainless steel	M30	232.5	Heavy	132.5 mm	132.5 mm	24 mm	36 mm	-25÷100 °C
P902483	65 mm	Standard	Stainless steel	M30	292.5	Heavy	192.5 mm	257.5 mm	24 mm	36 mm	-25÷100 °C
P902484	45 mm	Standard	Stainless steel	M36	182.5	Heavy	102.5 mm	147.5 mm	30 mm	42 mm	-25÷100 °C
P902485	65 mm	Standard	Stainless steel	M36	232.5	Heavy	132.5 mm	132.5 mm	30 mm	42 mm	-25÷100 °C
P902486	65 mm	Standard	Stainless steel	M36	292.5	Heavy	192.5 mm	257.5 mm	30 mm	42 mm	-25÷100 °C
