Expansion Insert

Part 420

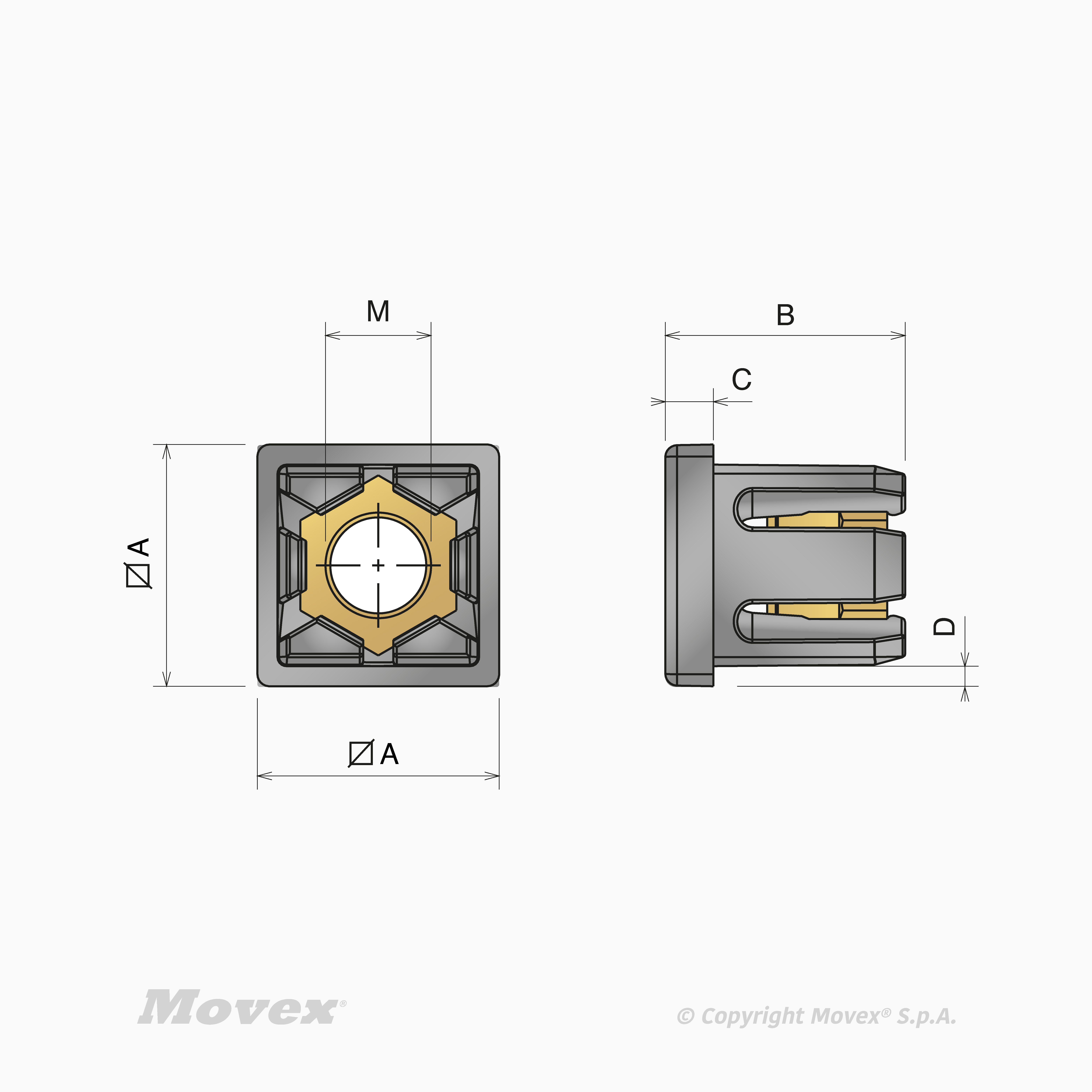

	Type	Material	A	B	Thread	C	D	Part	Temperature range dry	Temperature range wet
Code	All Plastic Plastic + brass	All Reinforced polyamide Reinforced polyamide + Brass	All 20 mm 40 mm	All 20 mm 40 mm	All M10 M8	All 4 mm 5 mm	All 1.5 2	All P420	All -20÷120 °C	All -20÷120 °C	Actions
P42001	Plastic + brass	Reinforced polyamide + Brass	20 mm	20 mm	M8	4 mm	1.5	P420	-20÷120 °C	-20÷120 °C
P42002	Plastic + brass	Reinforced polyamide + Brass	20 mm	20 mm	M10	4 mm	1.5	P420	-20÷120 °C	-20÷120 °C
P42003	Plastic + brass	Reinforced polyamide + Brass	20 mm	20 mm	M8	4 mm	2	P420	-20÷120 °C	-20÷120 °C
P42004	Plastic + brass	Reinforced polyamide + Brass	20 mm	20 mm	M10	4 mm	2	P420	-20÷120 °C	-20÷120 °C
P42005	Plastic + brass	Reinforced polyamide + Brass	40 mm	40 mm	M8	5 mm	2	P420	-20÷120 °C	-20÷120 °C
P42006	Plastic + brass	Reinforced polyamide + Brass	40 mm	40 mm	M10	5 mm	2	P420	-20÷120 °C	-20÷120 °C
P42015	Plastic	Reinforced polyamide	40 mm	40 mm	M8	5 mm	2	P420	-20÷120 °C	-20÷120 °C
P42016	Plastic	Reinforced polyamide	40 mm	40 mm	M10	5 mm	2	P420	-20÷120 °C	-20÷120 °C

•
