Description
Basic features
| Type: | Threaded bushings |
|---|---|
| Material: | Stainless steel |
| Unit of measure: | Ea |
| Box: | - |

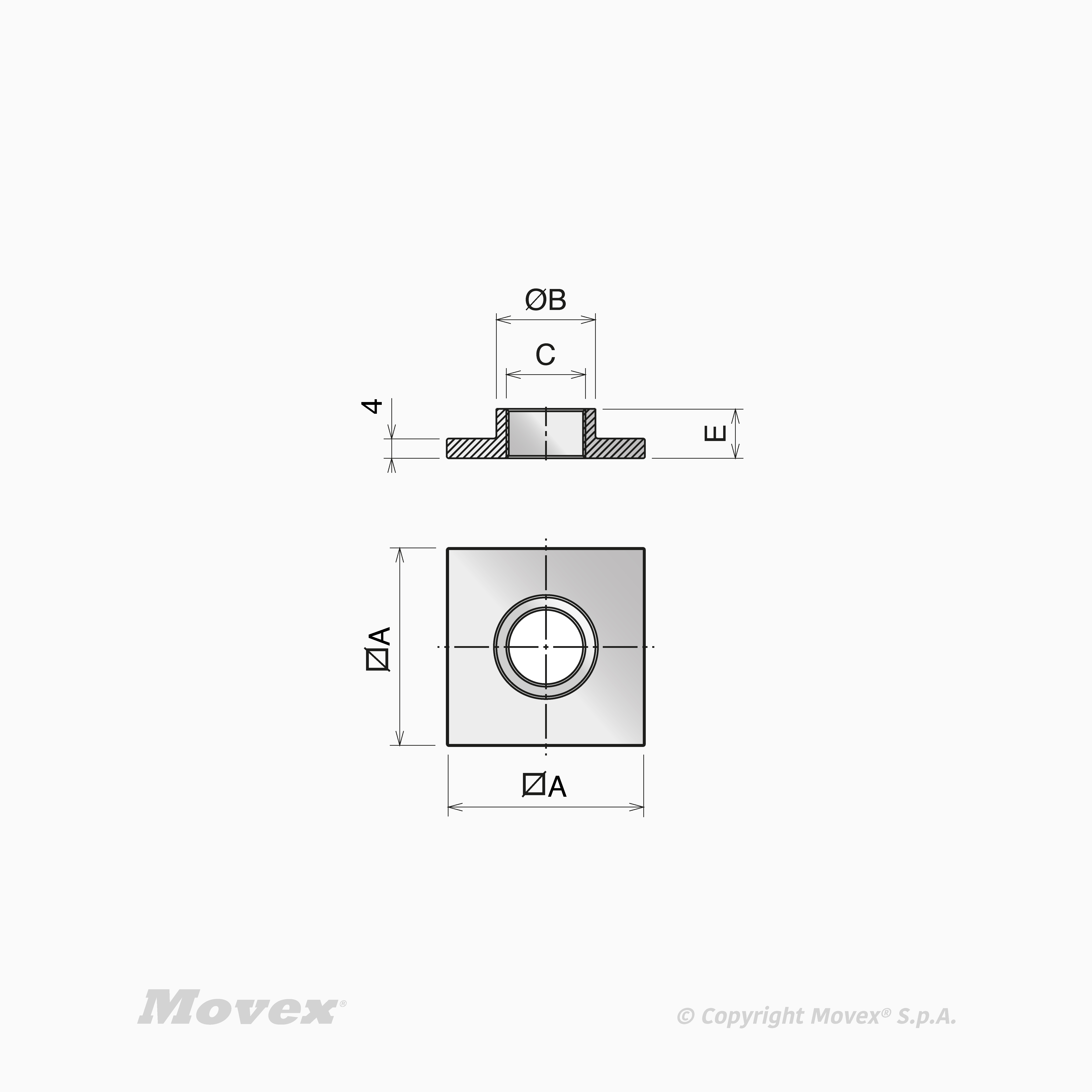

Part 428
| Material | A | B | C | E | Part | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P42801 | Stainless steel AISI 304 | 40 mm | 20 mm | M16 | 10 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42802 | Stainless steel AISI 304 | 40 mm | 23 mm | M20 | 11.5 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42803 | Stainless steel AISI 304 | 45 mm | 20 mm | M16 | 10 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42804 | Stainless steel AISI 304 | 45 mm | 23 mm | M20 | 11.5 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42805 | Stainless steel AISI 304 | 50 mm | 20 mm | M16 | 10 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42806 | Stainless steel AISI 304 | 50 mm | 23 mm | M20 | 11.5 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42807 | Stainless steel AISI 304 | 60 mm | 20 mm | M16 | 10 mm | P428 | -30÷400 °C | -30÷130 °C |
|
| P42808 | Stainless steel AISI 304 | 60 mm | 23 mm | M20 | 11.5 mm | P428 | -30÷400 °C | -30÷130 °C |
|
