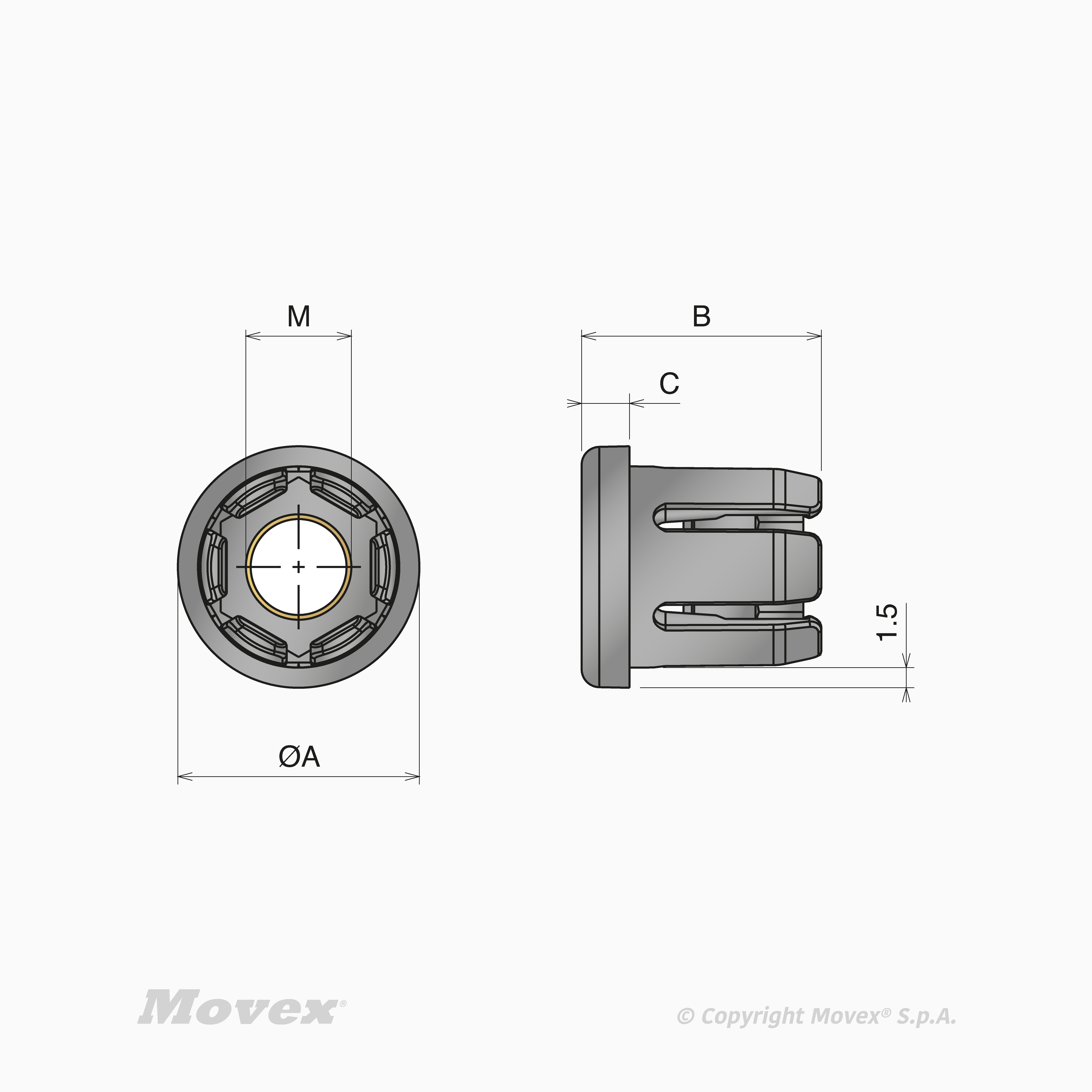

Expansion Insert

Part 419

	Type	Material	A	B	Thread	C	Part	Temperature range dry	Temperature range wet
Code	All Plastic Plastic + brass	All Reinforced polyamide Reinforced polyamide + Brass	All 20 mm 38 mm 42,4 mm	All 19 mm 20 mm 40 mm	All M10 M8	All 3 mm 4 mm 5 mm	All P419	All -20÷120 °C	All -20÷120 °C	Actions
P41901	Plastic + brass	Reinforced polyamide + Brass	20 mm	20 mm	M8	4 mm	P419	-20÷120 °C	-20÷120 °C
P41902	Plastic + brass	Reinforced polyamide + Brass	20 mm	20 mm	M10	4 mm	P419	-20÷120 °C	-20÷120 °C
P41903	Plastic + brass	Reinforced polyamide + Brass	38 mm	40 mm	M8	5 mm	P419	-20÷120 °C	-20÷120 °C
P41904	Plastic + brass	Reinforced polyamide + Brass	38 mm	40 mm	M10	5 mm	P419	-20÷120 °C	-20÷120 °C
P41905	Plastic + brass	Reinforced polyamide + Brass	42,4 mm	40 mm	M8	5 mm	P419	-20÷120 °C	-20÷120 °C
P41906	Plastic + brass	Reinforced polyamide + Brass	42,4 mm	40 mm	M10	5 mm	P419	-20÷120 °C	-20÷120 °C
P41907	Plastic + brass	Reinforced polyamide + Brass	20 mm	19 mm	M8	3 mm	P419	-20÷120 °C	-20÷120 °C
P41908	Plastic + brass	Reinforced polyamide + Brass	20 mm	19 mm	M10	3 mm	P419	-20÷120 °C	-20÷120 °C
P41913	Plastic	Reinforced polyamide	38 mm	40 mm	M8	5 mm	P419	-20÷120 °C	-20÷120 °C
P41914	Plastic	Reinforced polyamide	38 mm	40 mm	M10	5 mm	P419	-20÷120 °C	-20÷120 °C
P41915	Plastic	Reinforced polyamide	42,4 mm	40 mm	M8	5 mm	P419	-20÷120 °C	-20÷120 °C
P41916	Plastic	Reinforced polyamide	42,4 mm	40 mm	M10	5 mm	P419	-20÷120 °C	-20÷120 °C

•
