Tube Insert

Part 415

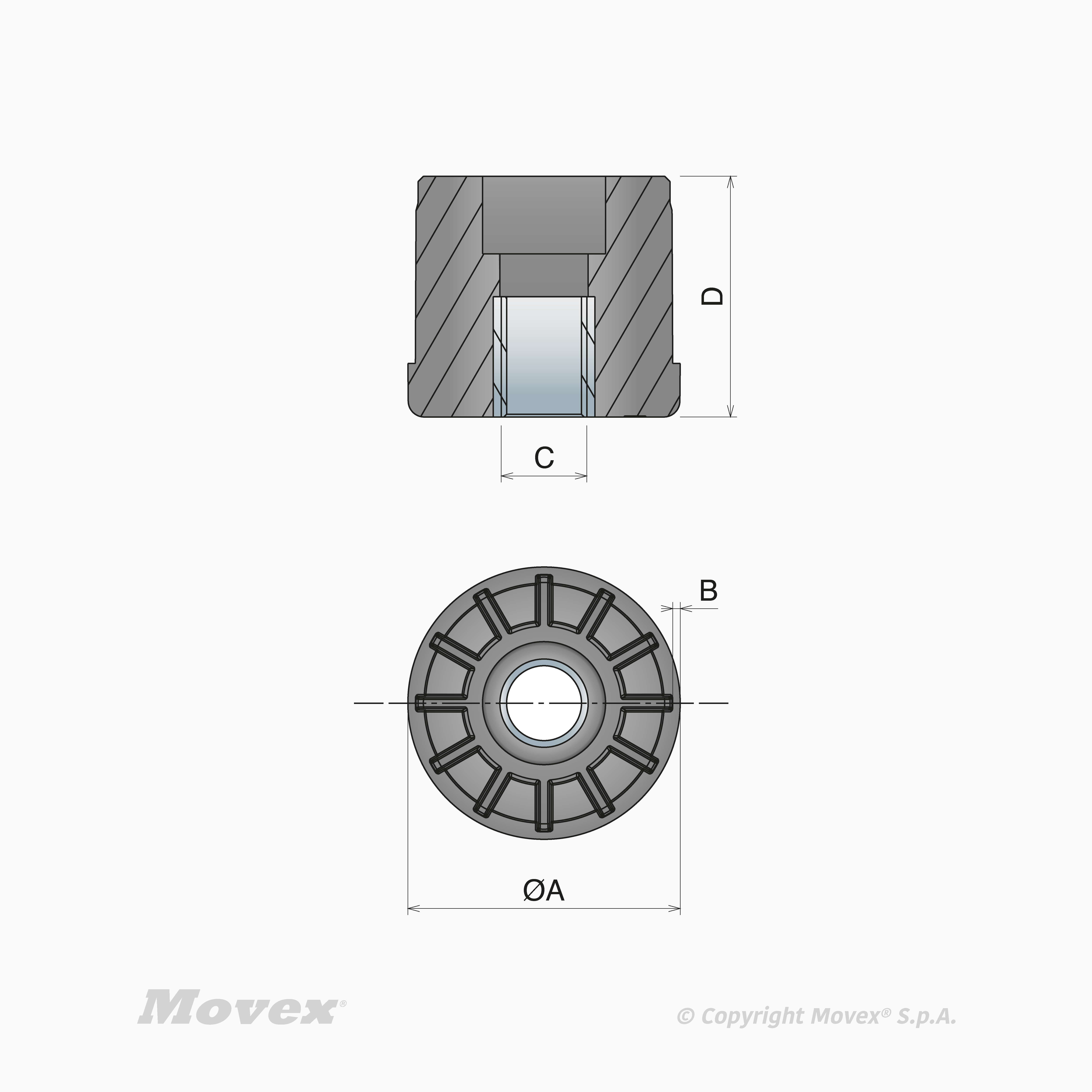

	Material	A	B	C	D	Part	Temperature range dry	Temperature range wet
Code	All Reinforced polyamide + Brass	All 20 mm 25 mm 30 mm 38 mm 40 mm 42,4 mm 45 mm 48,3 mm 50 mm 50,9 mm 60,3 mm	All 1 mm 1.2 mm 1.5 mm 2 mm 2.5 mm 3 mm	All M10 M12 M14 M16 M20 M8	All 23 26 33 40 43 45 48 50 55	All P415	All -20÷120 °C	All -20÷120 °C	Actions
P41501	Reinforced polyamide + Brass	48,3 mm	1.5 mm	M16	48	P415	-20÷120 °C	-20÷120 °C
P41502	Reinforced polyamide + Brass	48,3 mm	1.5 mm	M20	48	P415	-20÷120 °C	-20÷120 °C
P41503	Reinforced polyamide + Brass	50 mm	1.5 mm	M16	45	P415	-20÷120 °C	-20÷120 °C
P41504	Reinforced polyamide + Brass	50 mm	1.5 mm	M20	45	P415	-20÷120 °C	-20÷120 °C
P41505	Reinforced polyamide + Brass	60,3 mm	2 mm	M16	55	P415	-20÷120 °C	-20÷120 °C
P41506	Reinforced polyamide + Brass	60,3 mm	2 mm	M20	55	P415	-20÷120 °C	-20÷120 °C
P41507	Reinforced polyamide + Brass	30 mm	1 mm	M10	33	P415	-20÷120 °C	-20÷120 °C
P41508	Reinforced polyamide + Brass	30 mm	1 mm	M12	33	P415	-20÷120 °C	-20÷120 °C
P41509	Reinforced polyamide + Brass	30 mm	1 mm	M14	33	P415	-20÷120 °C	-20÷120 °C
P41510	Reinforced polyamide + Brass	30 mm	1 mm	M16	33	P415	-20÷120 °C	-20÷120 °C
P41511	Reinforced polyamide + Brass	30 mm	1.5 mm	M10	33	P415	-20÷120 °C	-20÷120 °C
P41512	Reinforced polyamide + Brass	30 mm	1.5 mm	M12	33	P415	-20÷120 °C	-20÷120 °C
P41513	Reinforced polyamide + Brass	30 mm	1.5 mm	M14	33	P415	-20÷120 °C	-20÷120 °C
P41514	Reinforced polyamide + Brass	30 mm	1.5 mm	M16	33	P415	-20÷120 °C	-20÷120 °C
P41515	Reinforced polyamide + Brass	30 mm	2 mm	M10	33	P415	-20÷120 °C	-20÷120 °C
P41516	Reinforced polyamide + Brass	30 mm	2 mm	M12	33	P415	-20÷120 °C	-20÷120 °C
P41517	Reinforced polyamide + Brass	30 mm	2 mm	M14	33	P415	-20÷120 °C	-20÷120 °C
P41518	Reinforced polyamide + Brass	30 mm	2 mm	M16	33	P415	-20÷120 °C	-20÷120 °C
P41519	Reinforced polyamide + Brass	30 mm	2.5 mm	M10	33	P415	-20÷120 °C	-20÷120 °C
P41520	Reinforced polyamide + Brass	30 mm	2.5 mm	M12	33	P415	-20÷120 °C	-20÷120 °C
P41521	Reinforced polyamide + Brass	30 mm	2.5 mm	M14	33	P415	-20÷120 °C	-20÷120 °C
P41522	Reinforced polyamide + Brass	30 mm	2.5 mm	M16	33	P415	-20÷120 °C	-20÷120 °C
P41523	Reinforced polyamide + Brass	38 mm	1.5 mm	M10	40	P415	-20÷120 °C	-20÷120 °C
P41524	Reinforced polyamide + Brass	38 mm	1.5 mm	M12	40	P415	-20÷120 °C	-20÷120 °C
P41525	Reinforced polyamide + Brass	38 mm	1.5 mm	M14	40	P415	-20÷120 °C	-20÷120 °C
P41526	Reinforced polyamide + Brass	38 mm	1.5 mm	M16	40	P415	-20÷120 °C	-20÷120 °C
P41527	Reinforced polyamide + Brass	38 mm	2 mm	M10	40	P415	-20÷120 °C	-20÷120 °C
P41528	Reinforced polyamide + Brass	38 mm	2 mm	M12	40	P415	-20÷120 °C	-20÷120 °C
P41529	Reinforced polyamide + Brass	38 mm	2 mm	M14	40	P415	-20÷120 °C	-20÷120 °C
P41530	Reinforced polyamide + Brass	38 mm	2 mm	M16	40	P415	-20÷120 °C	-20÷120 °C
P41531	Reinforced polyamide + Brass	38 mm	2.5 mm	M10	40	P415	-20÷120 °C	-20÷120 °C
P41532	Reinforced polyamide + Brass	38 mm	2.5 mm	M12	40	P415	-20÷120 °C	-20÷120 °C
P41533	Reinforced polyamide + Brass	38 mm	2.5 mm	M14	40	P415	-20÷120 °C	-20÷120 °C
P41534	Reinforced polyamide + Brass	38 mm	2.5 mm	M16	40	P415	-20÷120 °C	-20÷120 °C
P41535	Reinforced polyamide + Brass	42,4 mm	1.5 mm	M10	43	P415	-20÷120 °C	-20÷120 °C
P41536	Reinforced polyamide + Brass	42,4 mm	1.5 mm	M12	43	P415	-20÷120 °C	-20÷120 °C
P41537	Reinforced polyamide + Brass	42,4 mm	1.5 mm	M14	43	P415	-20÷120 °C	-20÷120 °C
P41538	Reinforced polyamide + Brass	42,4 mm	1.5 mm	M16	43	P415	-20÷120 °C	-20÷120 °C
P41539	Reinforced polyamide + Brass	42,4 mm	1.5 mm	M20	43	P415	-20÷120 °C	-20÷120 °C
P41540	Reinforced polyamide + Brass	42,4 mm	2 mm	M10	43	P415	-20÷120 °C	-20÷120 °C
P41541	Reinforced polyamide + Brass	42,4 mm	2 mm	M12	43	P415	-20÷120 °C	-20÷120 °C
P41542	Reinforced polyamide + Brass	42,4 mm	2 mm	M14	43	P415	-20÷120 °C	-20÷120 °C
P41543	Reinforced polyamide + Brass	42,4 mm	2 mm	M16	43	P415	-20÷120 °C	-20÷120 °C
P41544	Reinforced polyamide + Brass	42,4 mm	2 mm	M20	43	P415	-20÷120 °C	-20÷120 °C
P41545	Reinforced polyamide + Brass	42,4 mm	2.5 mm	M10	43	P415	-20÷120 °C	-20÷120 °C
P41546	Reinforced polyamide + Brass	42,4 mm	2.5 mm	M12	43	P415	-20÷120 °C	-20÷120 °C
P41547	Reinforced polyamide + Brass	42,4 mm	2.5 mm	M14	43	P415	-20÷120 °C	-20÷120 °C
P41548	Reinforced polyamide + Brass	42,4 mm	2.5 mm	M16	43	P415	-20÷120 °C	-20÷120 °C
P41549	Reinforced polyamide + Brass	42,4 mm	2.5 mm	M20	43	P415	-20÷120 °C	-20÷120 °C
P41550	Reinforced polyamide + Brass	48,3 mm	1.5 mm	M10	48	P415	-20÷120 °C	-20÷120 °C
P41551	Reinforced polyamide + Brass	48,3 mm	1.5 mm	M12	48	P415	-20÷120 °C	-20÷120 °C
P41552	Reinforced polyamide + Brass	48,3 mm	1.5 mm	M14	48	P415	-20÷120 °C	-20÷120 °C
P41553	Reinforced polyamide + Brass	48,3 mm	2 mm	M10	55	P415	-20÷120 °C	-20÷120 °C
P41554	Reinforced polyamide + Brass	48,3 mm	2 mm	M12	55	P415	-20÷120 °C	-20÷120 °C
P41555	Reinforced polyamide + Brass	48,3 mm	2 mm	M14	55	P415	-20÷120 °C	-20÷120 °C
P41556	Reinforced polyamide + Brass	48,3 mm	2 mm	M16	55	P415	-20÷120 °C	-20÷120 °C
P41557	Reinforced polyamide + Brass	48,3 mm	2 mm	M20	55	P415	-20÷120 °C	-20÷120 °C
P41558	Reinforced polyamide + Brass	48,3 mm	2.5 mm	M10	45	P415	-20÷120 °C	-20÷120 °C
P41559	Reinforced polyamide + Brass	48,3 mm	2.5 mm	M12	45	P415	-20÷120 °C	-20÷120 °C
P41560	Reinforced polyamide + Brass	48,3 mm	2.5 mm	M14	45	P415	-20÷120 °C	-20÷120 °C
P41561	Reinforced polyamide + Brass	48,3 mm	2.5 mm	M16	45	P415	-20÷120 °C	-20÷120 °C
P41562	Reinforced polyamide + Brass	48,3 mm	2.5 mm	M20	45	P415	-20÷120 °C	-20÷120 °C
P41563	Reinforced polyamide + Brass	50 mm	1.5 mm	M10	45	P415	-20÷120 °C	-20÷120 °C
P41564	Reinforced polyamide + Brass	50 mm	1.5 mm	M12	45	P415	-20÷120 °C	-20÷120 °C
P41565	Reinforced polyamide + Brass	50 mm	1.5 mm	M14	45	P415	-20÷120 °C	-20÷120 °C
P41566	Reinforced polyamide + Brass	50,9 mm	1.5 mm	M10	50	P415	-20÷120 °C	-20÷120 °C
P41567	Reinforced polyamide + Brass	50,9 mm	1.5 mm	M12	50	P415	-20÷120 °C	-20÷120 °C
P41568	Reinforced polyamide + Brass	50,9 mm	1.5 mm	M14	50	P415	-20÷120 °C	-20÷120 °C
P41569	Reinforced polyamide + Brass	50,9 mm	1.5 mm	M16	50	P415	-20÷120 °C	-20÷120 °C
P41570	Reinforced polyamide + Brass	50,9 mm	1.5 mm	M20	50	P415	-20÷120 °C	-20÷120 °C
P41571	Reinforced polyamide + Brass	50,9 mm	2 mm	M10	45	P415	-20÷120 °C	-20÷120 °C
P41572	Reinforced polyamide + Brass	50,9 mm	2 mm	M12	45	P415	-20÷120 °C	-20÷120 °C
P41573	Reinforced polyamide + Brass	50,9 mm	2 mm	M14	45	P415	-20÷120 °C	-20÷120 °C
P41574	Reinforced polyamide + Brass	50,9 mm	2 mm	M16	45	P415	-20÷120 °C	-20÷120 °C
P41575	Reinforced polyamide + Brass	50,9 mm	2 mm	M20	45	P415	-20÷120 °C	-20÷120 °C
P41576	Reinforced polyamide + Brass	50,9 mm	2.5 mm	M10	45	P415	-20÷120 °C	-20÷120 °C
P41577	Reinforced polyamide + Brass	50,9 mm	2.5 mm	M12	45	P415	-20÷120 °C	-20÷120 °C
P41578	Reinforced polyamide + Brass	50,9 mm	2.5 mm	M14	45	P415	-20÷120 °C	-20÷120 °C
P41579	Reinforced polyamide + Brass	50,9 mm	2.5 mm	M16	45	P415	-20÷120 °C	-20÷120 °C
P41580	Reinforced polyamide + Brass	50,9 mm	2.5 mm	M20	45	P415	-20÷120 °C	-20÷120 °C
P41581	Reinforced polyamide + Brass	60,3 mm	1.5 mm	M10	55	P415	-20÷120 °C	-20÷120 °C
P41582	Reinforced polyamide + Brass	60,3 mm	1.5 mm	M12	55	P415	-20÷120 °C	-20÷120 °C
P41583	Reinforced polyamide + Brass	60,3 mm	1.5 mm	M14	55	P415	-20÷120 °C	-20÷120 °C
P41584	Reinforced polyamide + Brass	60,3 mm	1.5 mm	M16	55	P415	-20÷120 °C	-20÷120 °C
P41585	Reinforced polyamide + Brass	60,3 mm	1.5 mm	M20	55	P415	-20÷120 °C	-20÷120 °C
P41586	Reinforced polyamide + Brass	60,3 mm	2 mm	M10	55	P415	-20÷120 °C	-20÷120 °C
P41587	Reinforced polyamide + Brass	60,3 mm	2 mm	M12	55	P415	-20÷120 °C	-20÷120 °C
P41588	Reinforced polyamide + Brass	60,3 mm	2 mm	M14	55	P415	-20÷120 °C	-20÷120 °C
P41589	Reinforced polyamide + Brass	60,3 mm	2.5 mm	M10	55	P415	-20÷120 °C	-20÷120 °C
P41590	Reinforced polyamide + Brass	60,3 mm	2.5 mm	M12	55	P415	-20÷120 °C	-20÷120 °C
P41591	Reinforced polyamide + Brass	60,3 mm	2.5 mm	M14	55	P415	-20÷120 °C	-20÷120 °C
P41592	Reinforced polyamide + Brass	60,3 mm	2.5 mm	M16	55	P415	-20÷120 °C	-20÷120 °C
P41593	Reinforced polyamide + Brass	60,3 mm	2.5 mm	M20	55	P415	-20÷120 °C	-20÷120 °C
P415001	Reinforced polyamide + Brass	20 mm	2 mm	M8	23	P415	-20÷120 °C	-20÷120 °C
P415002	Reinforced polyamide + Brass	25 mm	2 mm	M8	26	P415	-20÷120 °C	-20÷120 °C
P415003	Reinforced polyamide + Brass	25 mm	2 mm	M10	26	P415	-20÷120 °C	-20÷120 °C
P415004	Reinforced polyamide + Brass	25 mm	2 mm	M12	26	P415	-20÷120 °C	-20÷120 °C
P415005	Reinforced polyamide + Brass	40 mm	3 mm	M8	40	P415	-20÷120 °C	-20÷120 °C
P415006	Reinforced polyamide + Brass	40 mm	3 mm	M10	40	P415	-20÷120 °C	-20÷120 °C
P415007	Reinforced polyamide + Brass	40 mm	3 mm	M12	40	P415	-20÷120 °C	-20÷120 °C
P415008	Reinforced polyamide + Brass	40 mm	3 mm	M14	40	P415	-20÷120 °C	-20÷120 °C
P415009	Reinforced polyamide + Brass	40 mm	3 mm	M16	40	P415	-20÷120 °C	-20÷120 °C
P415010	Reinforced polyamide + Brass	45 mm	3 mm	M10	48	P415	-20÷120 °C	-20÷120 °C
P415011	Reinforced polyamide + Brass	45 mm	3 mm	M12	48	P415	-20÷120 °C	-20÷120 °C
P415012	Reinforced polyamide + Brass	45 mm	3 mm	M14	48	P415	-20÷120 °C	-20÷120 °C
P415013	Reinforced polyamide + Brass	45 mm	3 mm	M16	48	P415	-20÷120 °C	-20÷120 °C
P415014	Reinforced polyamide + Brass	45 mm	3 mm	M20	48	P415	-20÷120 °C	-20÷120 °C
P415015	Reinforced polyamide + Brass	50 mm	3 mm	M10	45	P415	-20÷120 °C	-20÷120 °C
P415016	Reinforced polyamide + Brass	50 mm	3 mm	M12	45	P415	-20÷120 °C	-20÷120 °C
P415017	Reinforced polyamide + Brass	50 mm	3 mm	M14	45	P415	-20÷120 °C	-20÷120 °C
P415018	Reinforced polyamide + Brass	50 mm	3 mm	M16	45	P415	-20÷120 °C	-20÷120 °C
P415019	Reinforced polyamide + Brass	50 mm	3 mm	M20	45	P415	-20÷120 °C	-20÷120 °C
P415020	Reinforced polyamide + Brass	60,3 mm	1.2 mm	M10	55	P415	-20÷120 °C	-20÷120 °C
P415021	Reinforced polyamide + Brass	60,3 mm	1.2 mm	M12	55	P415	-20÷120 °C	-20÷120 °C
P415022	Reinforced polyamide + Brass	60,3 mm	1.2 mm	M14	55	P415	-20÷120 °C	-20÷120 °C
P415023	Reinforced polyamide + Brass	60,3 mm	1.2 mm	M16	55	P415	-20÷120 °C	-20÷120 °C
P415024	Reinforced polyamide + Brass	60,3 mm	1.2 mm	M20	55	P415	-20÷120 °C	-20÷120 °C

•
