Home Operating Elements Crank handles MT-AT

MT-AT

Crank handles

Technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

Black-oxide steel boss, H9 reamed hole.

MT-AT: with revolving handle I.621+x in technopolymer, not removable.
MT-AT+IR: with fold-away handle IR.620 in technopolymer.

General information

Features and applications

The reticular structure of the crank arm and the technopolymer used make this handle very strong and therefore suitable for transmitting high torque values.

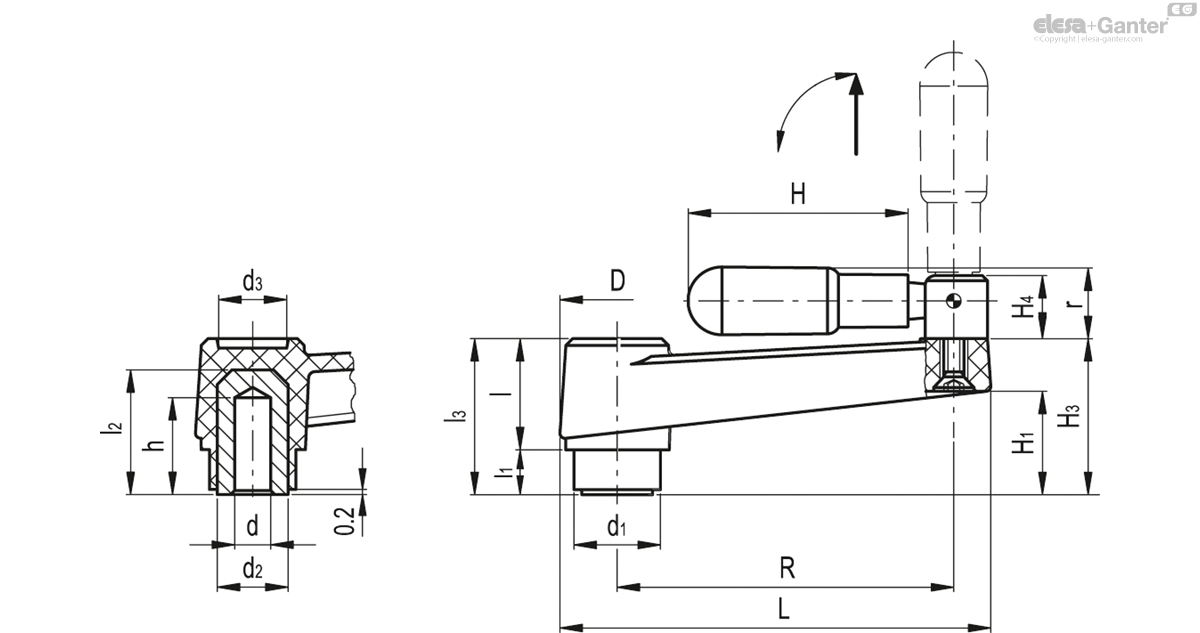

MT-AT+IR

		R	d_H9	L	D	d₁	d₂	d₃	l	l₁	l₂	l₃	h	H	H₁	H₃	H₄	r	C# [Nm]	L# [J]
Code	Description																					Actions
44117	MT.64-AT+IR	64	8	86	26.5	20	15	16	22.5	9	25	31.5	20	45	17.5	31	14	16	120	11	91
44217	MT.80-AT+IR	80	10	106	30	24	18	17	26	11	31	37	25	60	23.5	37	14	16.5	200	15	124
44317	MT.100-AT+IR	100	12	128	33.5	24	18	21	30.5	10	31	40.5	24	65	25	39	18.5	20.5	210	27	187
44417	MT.130-AT+IR	130	14	162	39	34	26	25	35	14	43	49	30	65	34	49	18.5	20.5	350	45	333
44517	MT.160-AT+IR	160	16	197	44	34.5	26	27	39.5	15	43	54.5	30	80	36	54	18.5	22	470	55	384
