Revolving handle, drilled hub

MT-AS

Crank handles

Revolving handle, boss with square hole

MT+IR

Crank handles

Fold-away handle, drilled hub

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Self-adhesive front plate

Anodised aluminium.

Standard executions

MT.: with revolving handle I.780+x in technopolymer. Black-oxide steel hub, H9 blind hole or H7 reamed pass-through hole.
MT-AS: with revolving handle I.780+x in technopolymer. Black-oxide steel boss with H9 square pass-through hole.

MT.50-AS H9 square pass-through hole with brass reinforcement.

MT+IR: with fold-away handle IR.780. Black-oxide steel hub, H9 blind hole or H7 reamed pass-through hole.

General information

Features and applications

The reticular structure of the crank arm and the technopolymer used make this handle very strong and therefore suitable for transmitting high torque values.

Accessories on request

Axial retaining washer GN 184.

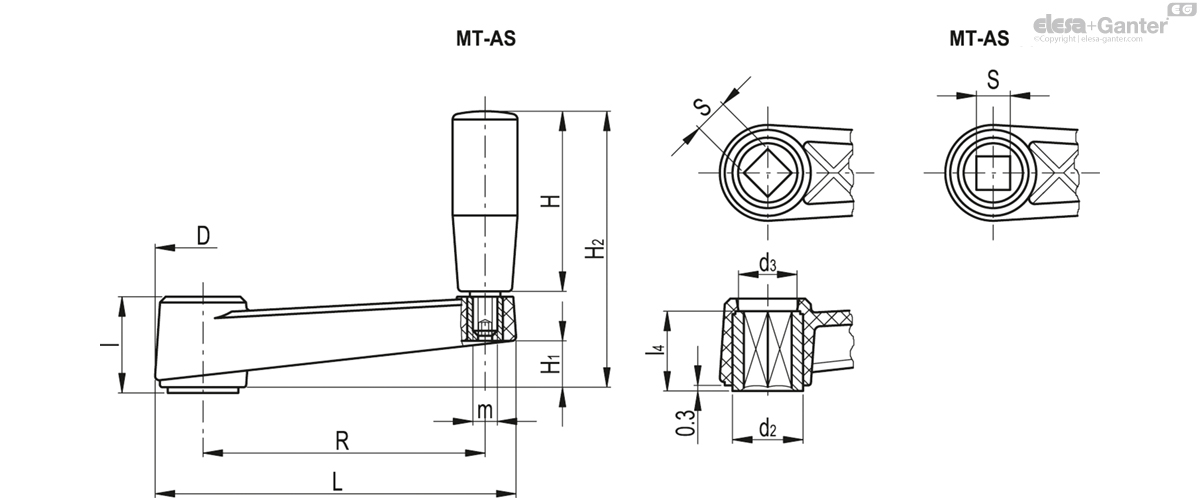

MT-AS

		R	S_H9	L	D	d₂	d₃	l	l₄	H	H₁	H₂	m	C# [Nm]	L# [J]
Code	Description																Actions
44052	MT.50 AS-6x6	50	6	69	23	-	13	21	18	28	10	49	-	60	7	35
44111	MT.64 AS-8x8	64	8	86	27	18	16	23	19	40	10	63	M6	120	11	81
44211	MT.80 AS-10x10	80	10	105	30	20	17	26	22	50	13	76	M6	180	15	111
44311	MT.100 AS-12x12	100	12	128	34	25	21	30	27	65	15	96	M8	200	27	203
44411	MT.130 AS-14x14	130	14	162	40	28	25	35	30	80	20	115	M8	350	45	278
44511	MT.160 AS-17x17	160	17	198	45	30	27	40	34	90	23	130	M10	450	55	340
