MPG-S

Guide rail clamps

Technopolymer and stainless steel

__logo__INOX__

__logo__RoHS__

__logo__PA__

__logo__g10030__

Enquire Now

mpg-c-s

Guide rail clamps

For round guides

mpg-c-s-p

Guide rail clamps

For round guides, with pin

mpg-t-s

Guide rail clamps

For trapezoidal guides

mpg-t-s-p

Guide rail clamps

For trapezoidal guides, with pin

mpg-r-s

Guide rail clamps

For rectangular guides

mpg-r-s-p

Guide rail clamps

For rectangular guides, with pin

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

AISI 304 stainless steel screws and nuts.

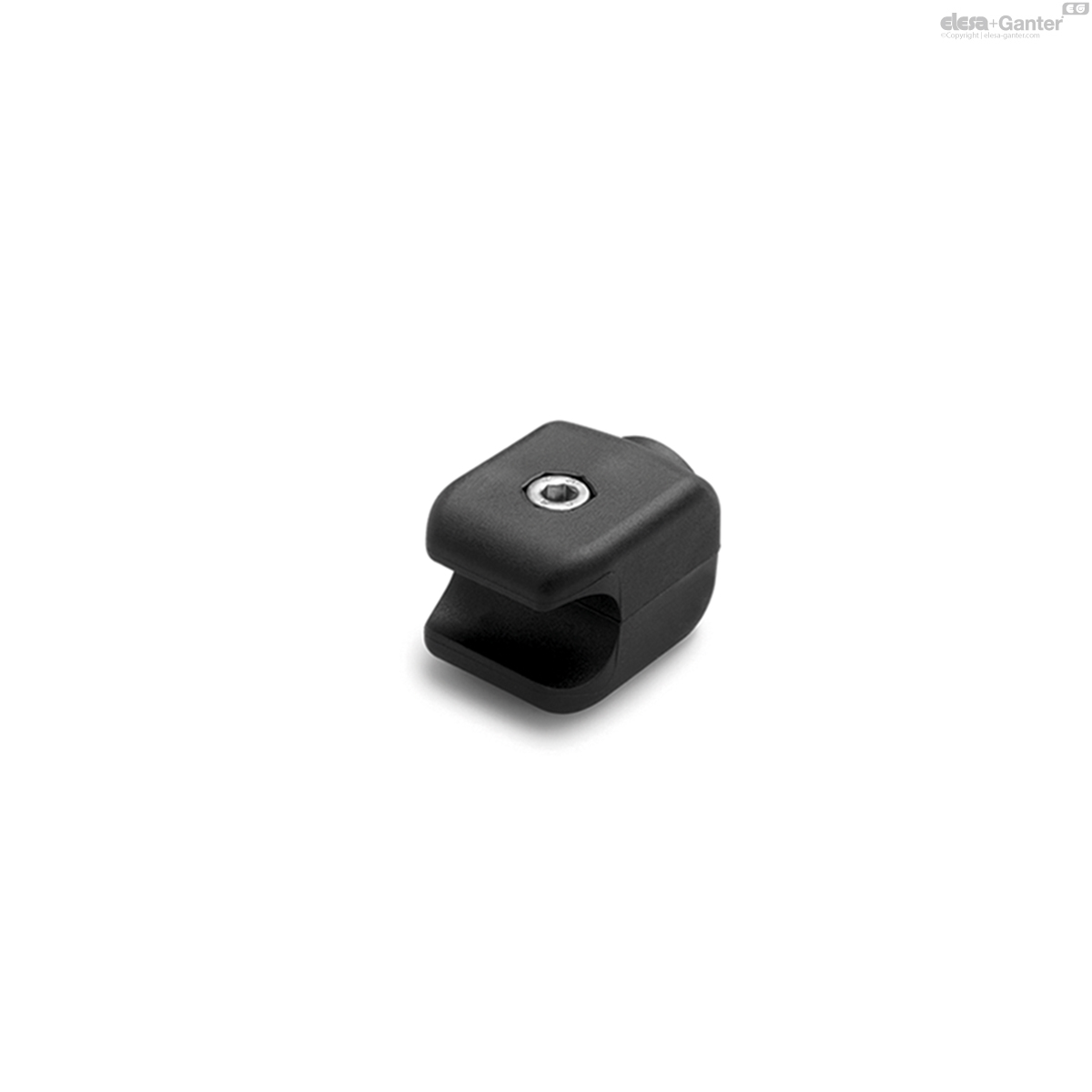

MPG-C-S: housings for round guides, without pin.

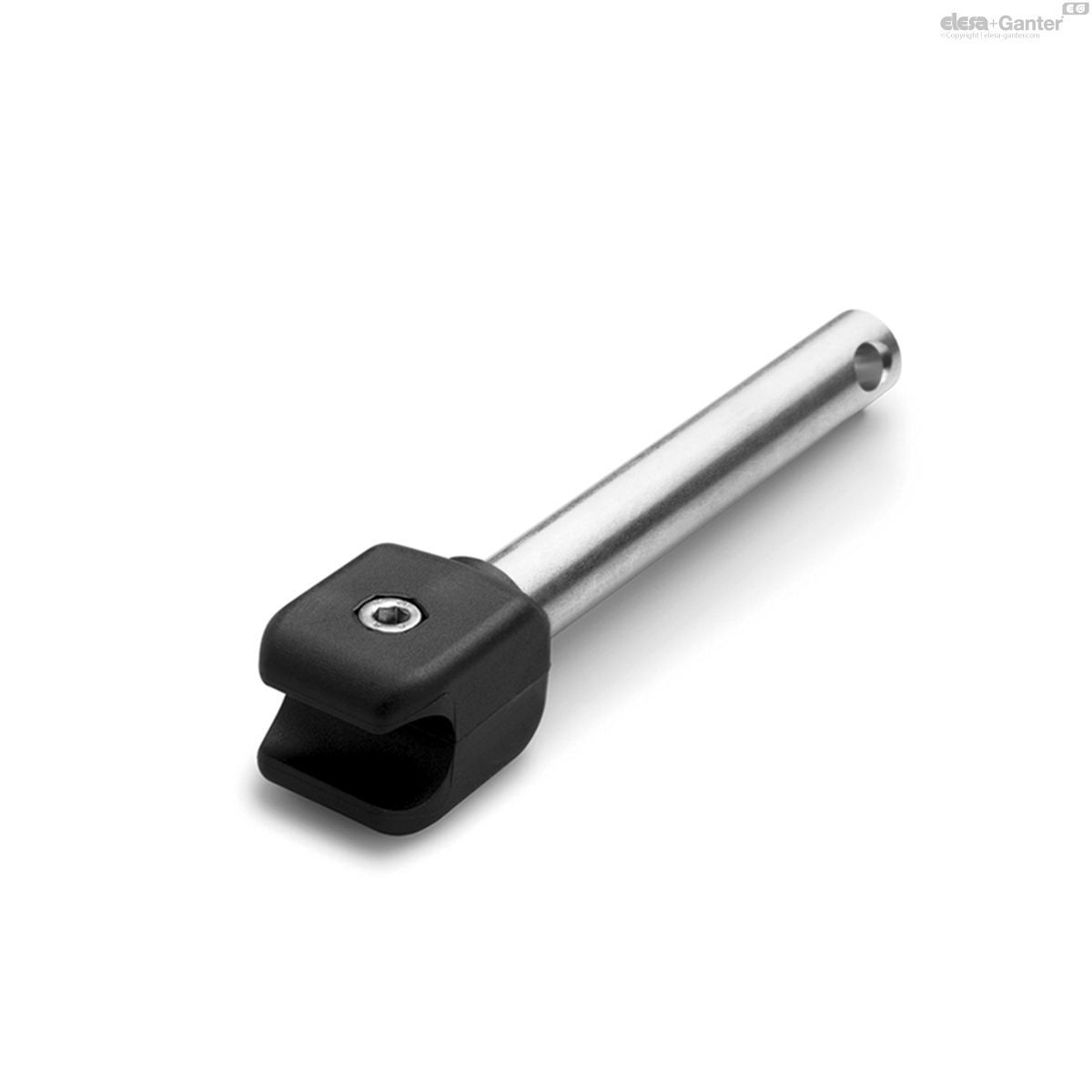

MPG-C-S-P: housings for round guides with AISI 304 stainless steel pin.

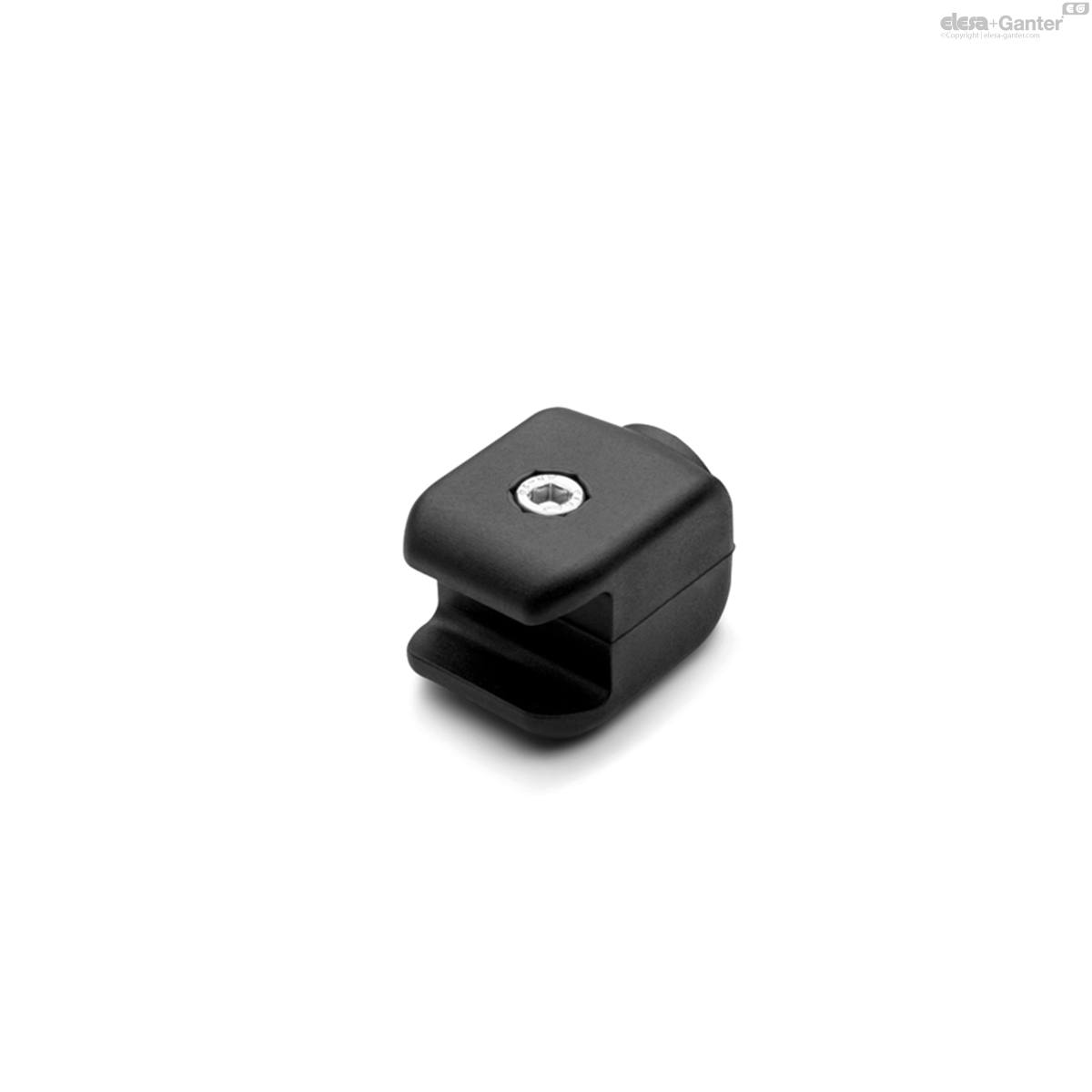

MPG-T-S: housings for standard trapezoidal guides, without pin.

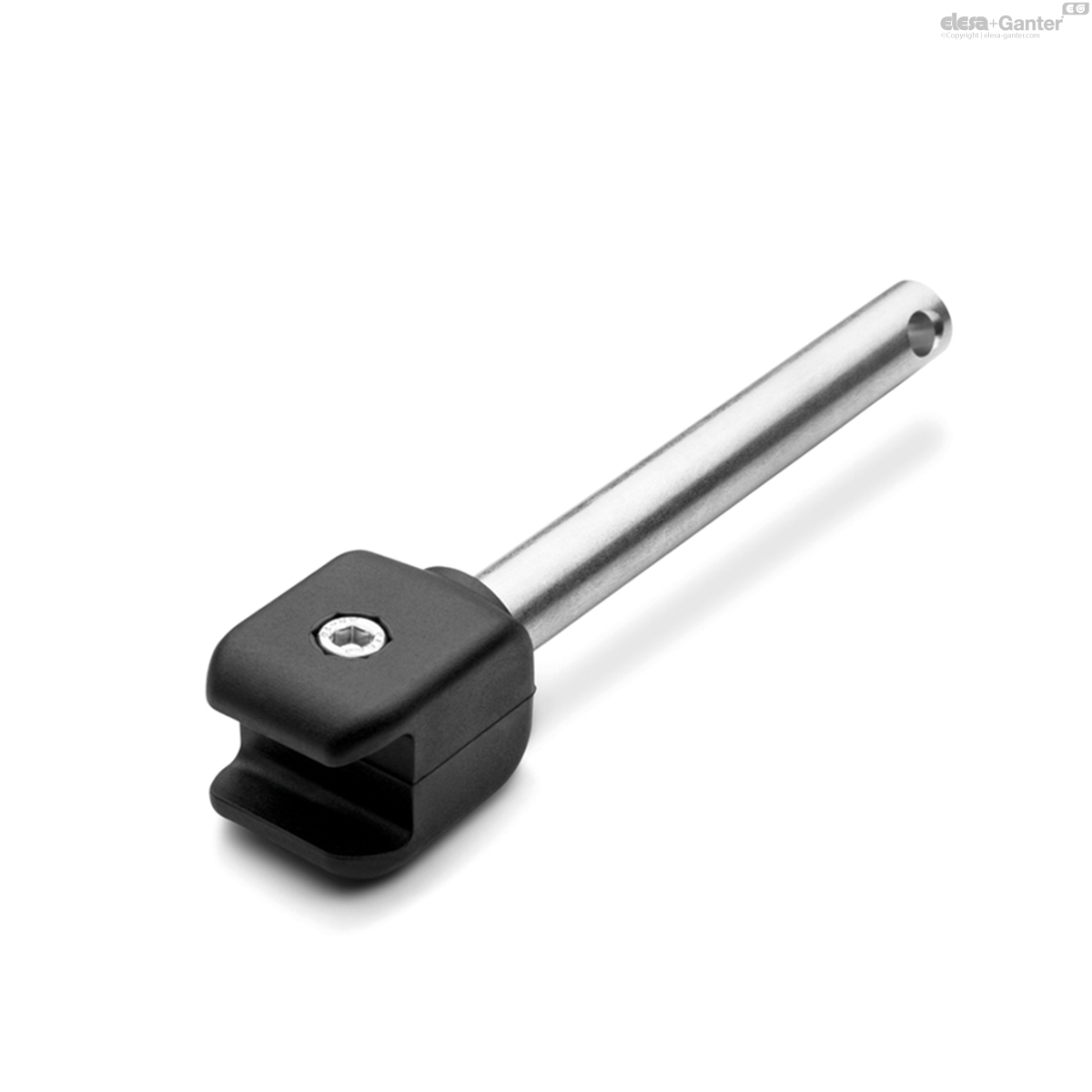

MPG-T-S-P: housings for standard trapezoidal guides with AISI 304 stainless steel pin.

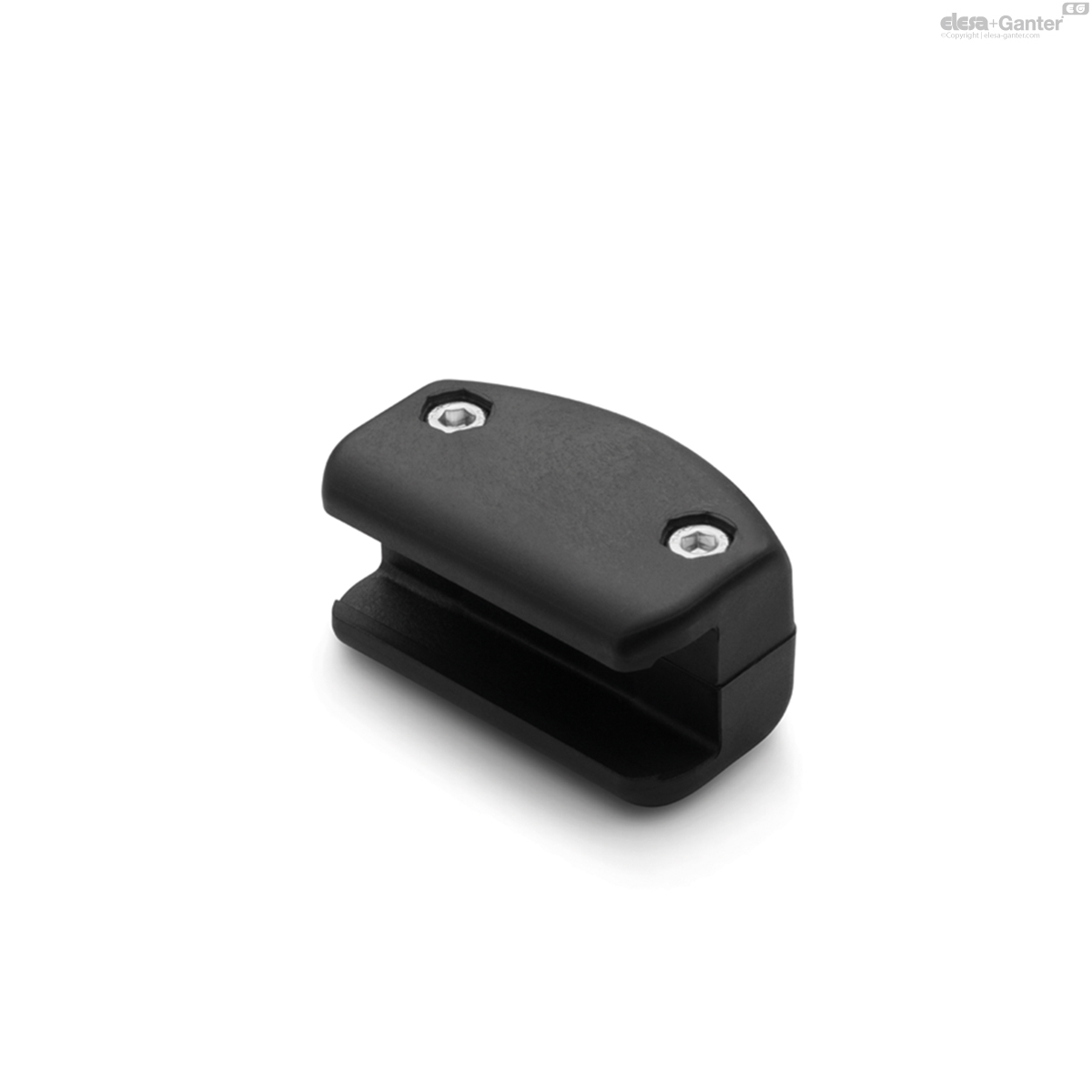

MPG-R-S: housings for rectangular guides, without pin.

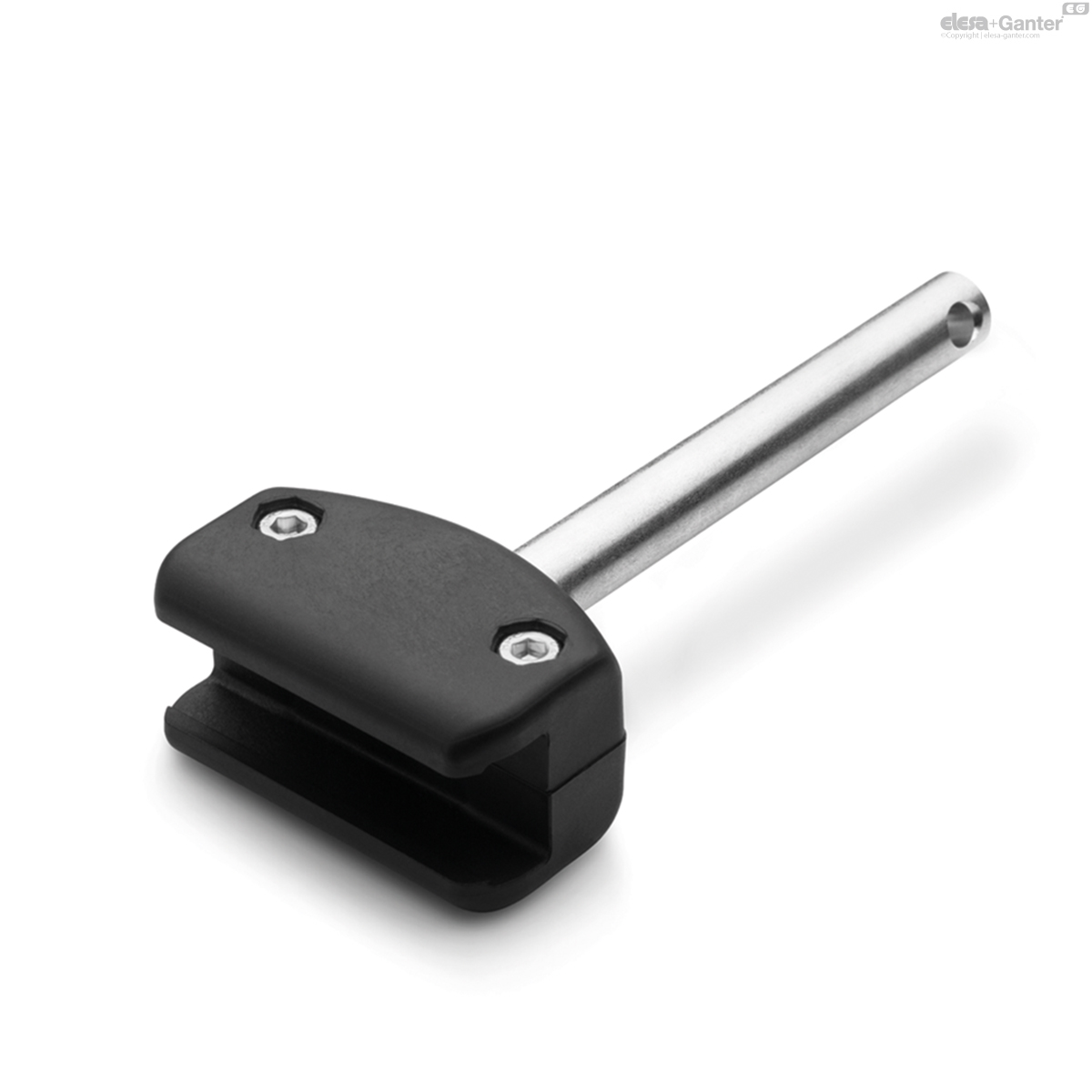

MPG-R-S-P: housings for rectangular guides with AISI 304 stainless steel pin.

General information

Features and applications

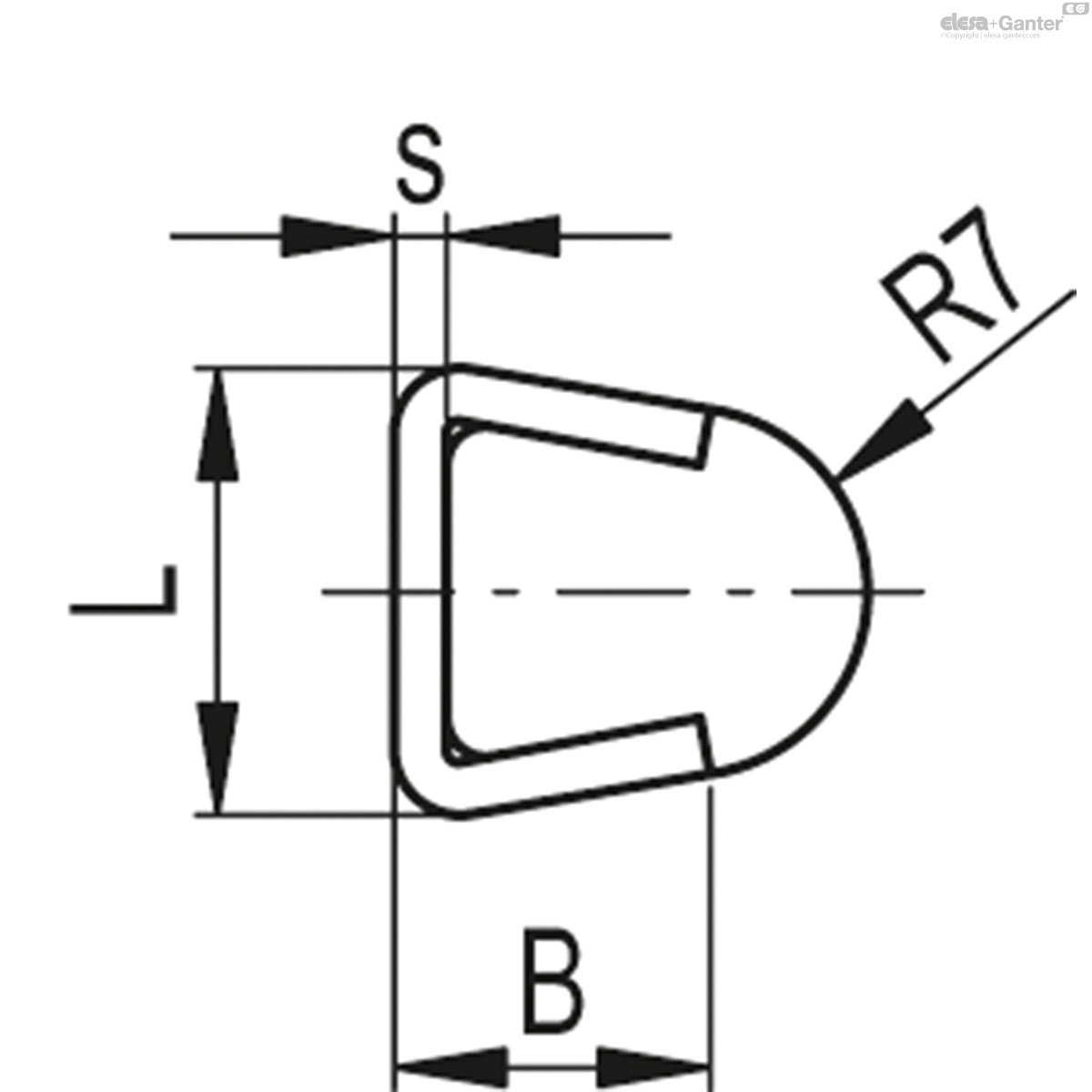

MPG-T-S and MPG-T-S-P executions can be used with the side guides having an AISI 304 stainless steel bracket of thickness 1.5 or 2 mm.

s	B	L
1.5	17.5	16
2	18	17

MPG-C-S

		d₁
Code	Description			Actions
419810	MPG-C-S-8	8	38
419811	MPG-C-S-10	10	37
419812	MPG-C-S-12	12	35
419813	MPG-C-S-14	14	35
