MI.204

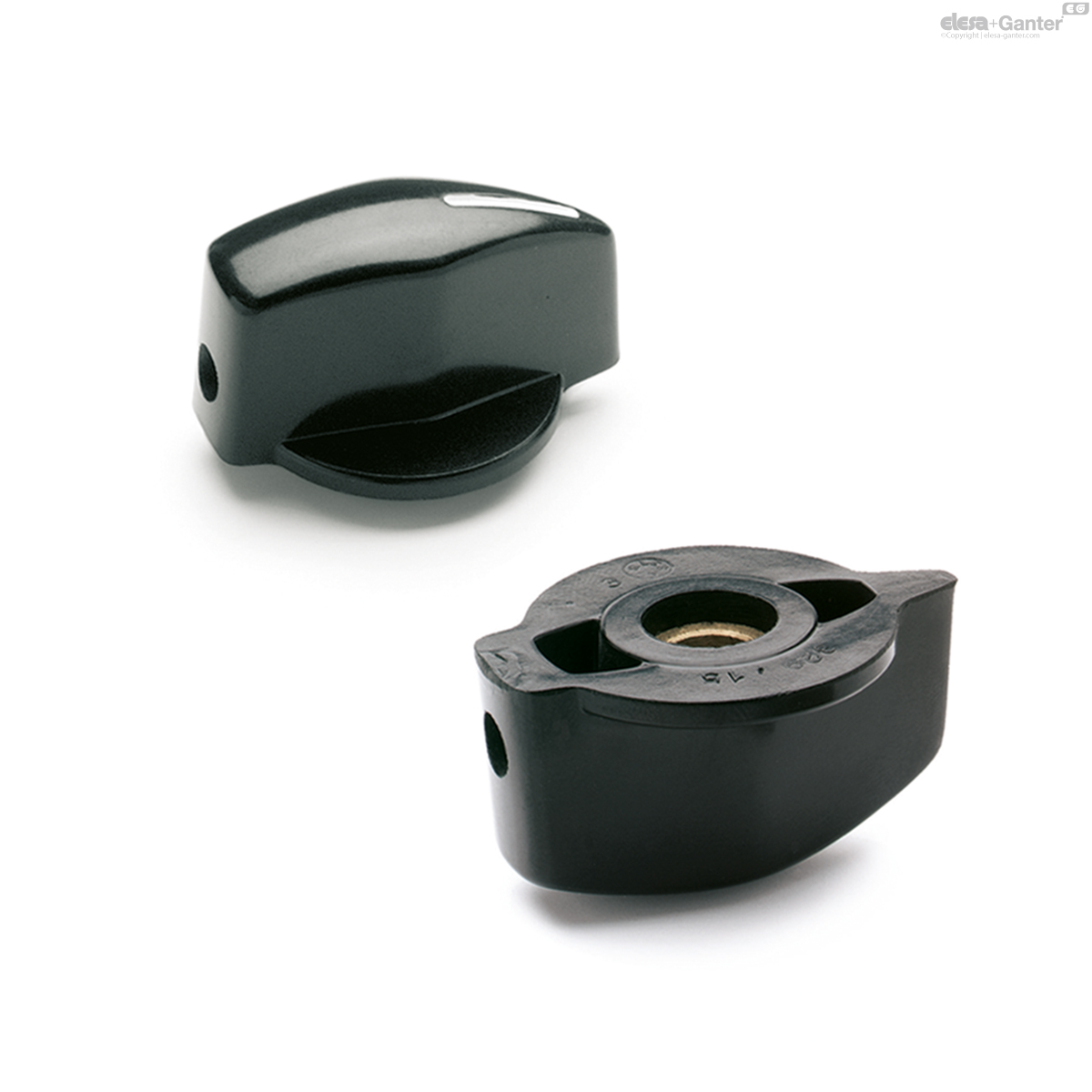

Indicator knobs
Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Index
White line.
Standard execution
Brass boss, plain blind hole.
Secured via a cylindrical-headed transversal grub screw with hexagon socket and stainless steel cup end.
Supplied.

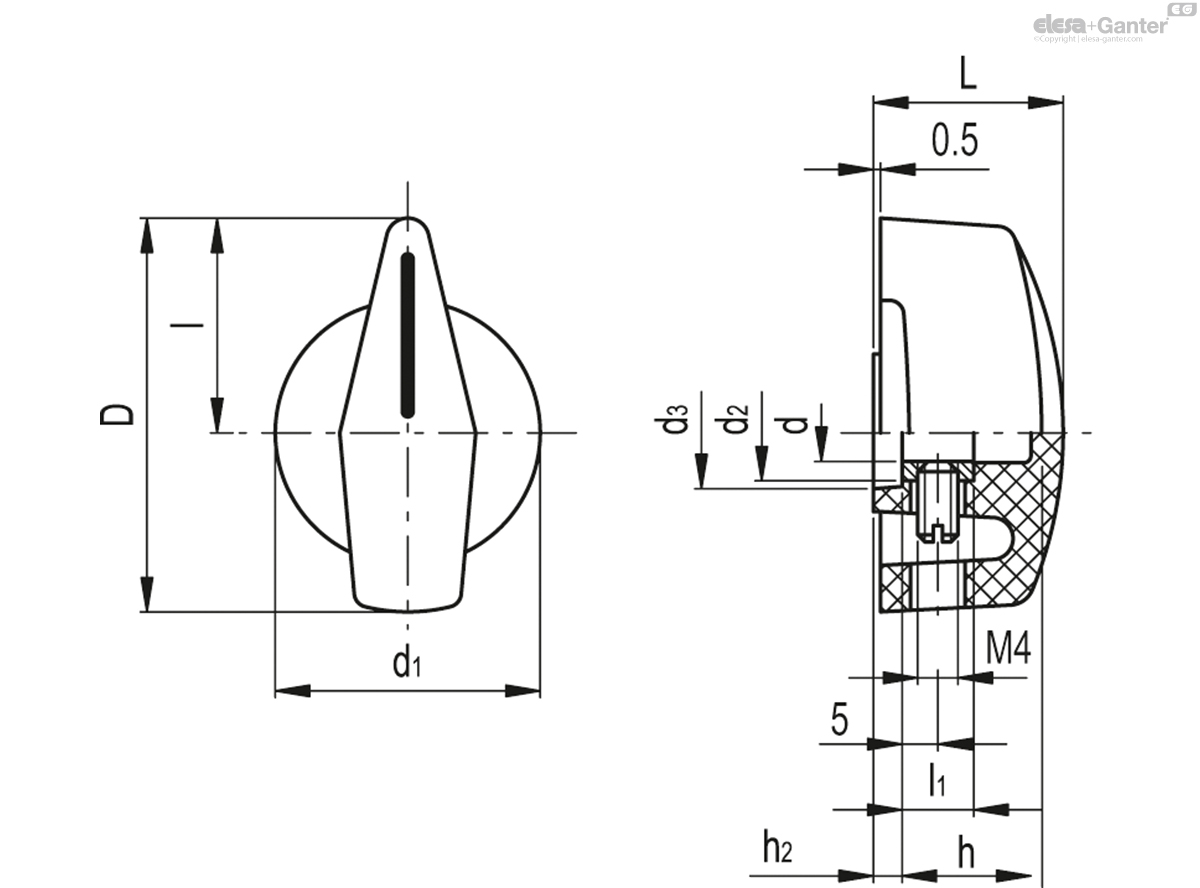

| D | dD9 | L | l | l1 | d1 | d2 | d3 | h | h2 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||
| 40201 | MI.204/45 B-6 | 45 | 6 | 25 | 24 | 10 | 35 | 10 | 15 | 15 | 7 | 20 |
|
| 40202 | MI.204/45 B-8 | 45 | 8 | 25 | 24 | 10 | 35 | 12 | 12 | 18 | 3 | 21 |
|
| 40301 | MI.204/55 B-6 | 55 | 6 | 26 | 30 | 10 | 37 | 12 | 12 | 18 | 3 | 29 |
|
| 40302 | MI.204/55 B-8 | 55 | 8 | 26 | 30 | 10 | 37 | 15 | 15 | 18 | 3 | 30 |
|
