M.990

Guard safety handles

Technopolymer

Enquire Now

Description

Main specifications

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Screw cover

Technopolymer in standard colours: black, orange, grey, yellow, light-blue, red, matte finish, snap-in assembly, removable by a screwdriver.

Standard execution

Pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.

General information

Features and applications

M.990 handles have been especially designed to fit machine guards or automation systems with double-leaf door. The special closed design of the handle represents a safety element for the operator’s fingers. Moreover, the coloured cover improves the visibility of the handle and offers the possibility of product customisation.

Technical data

Tensile stress: F1 value reported in the table is the result of breaking tests carried out with an appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Maximum tightening torque for screw assembly 3 Nm.

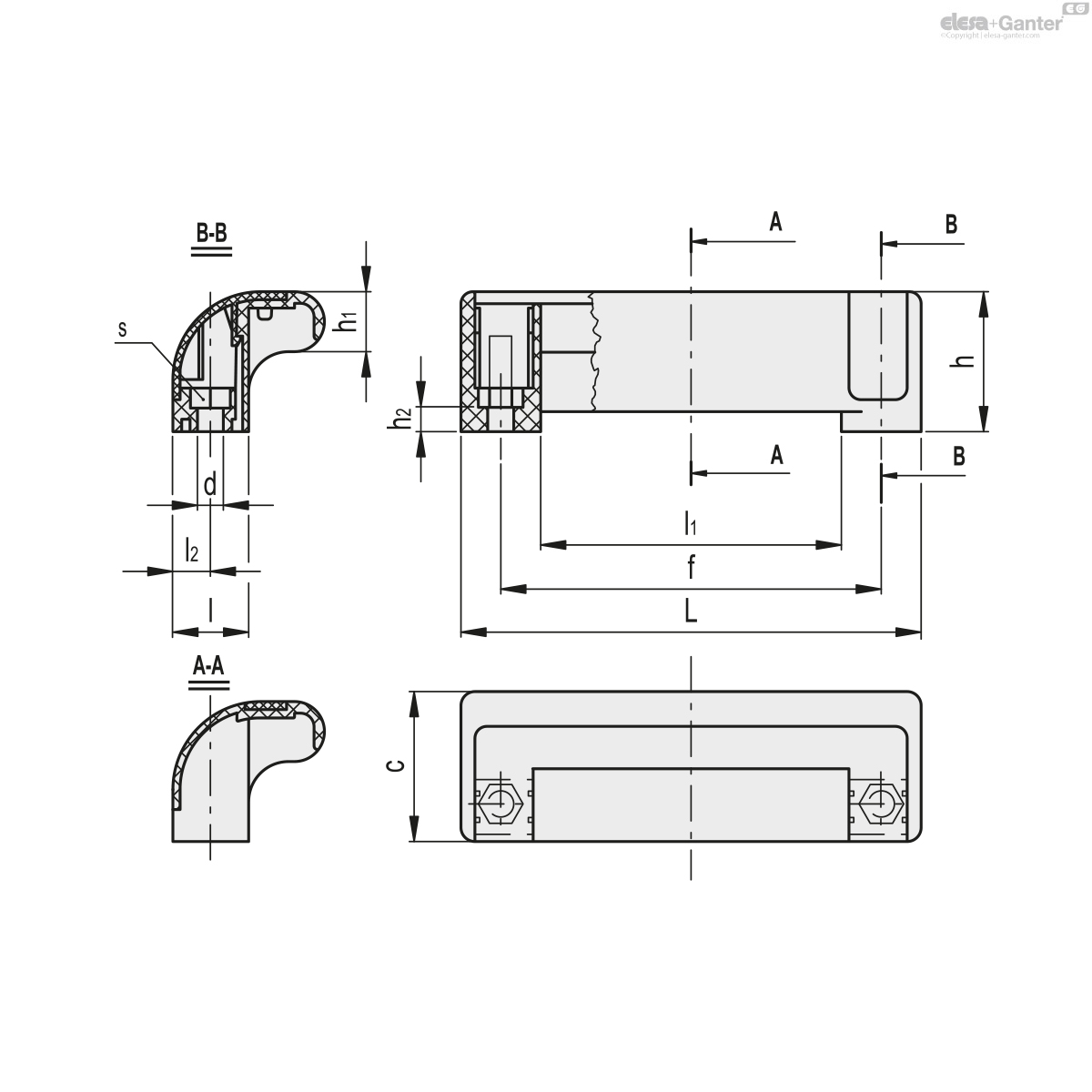

		Color	L	f_±0.5	d	s	h	h₁	h₂	c	l	l₁	l₂	F1 [N]
Code	Description															Actions

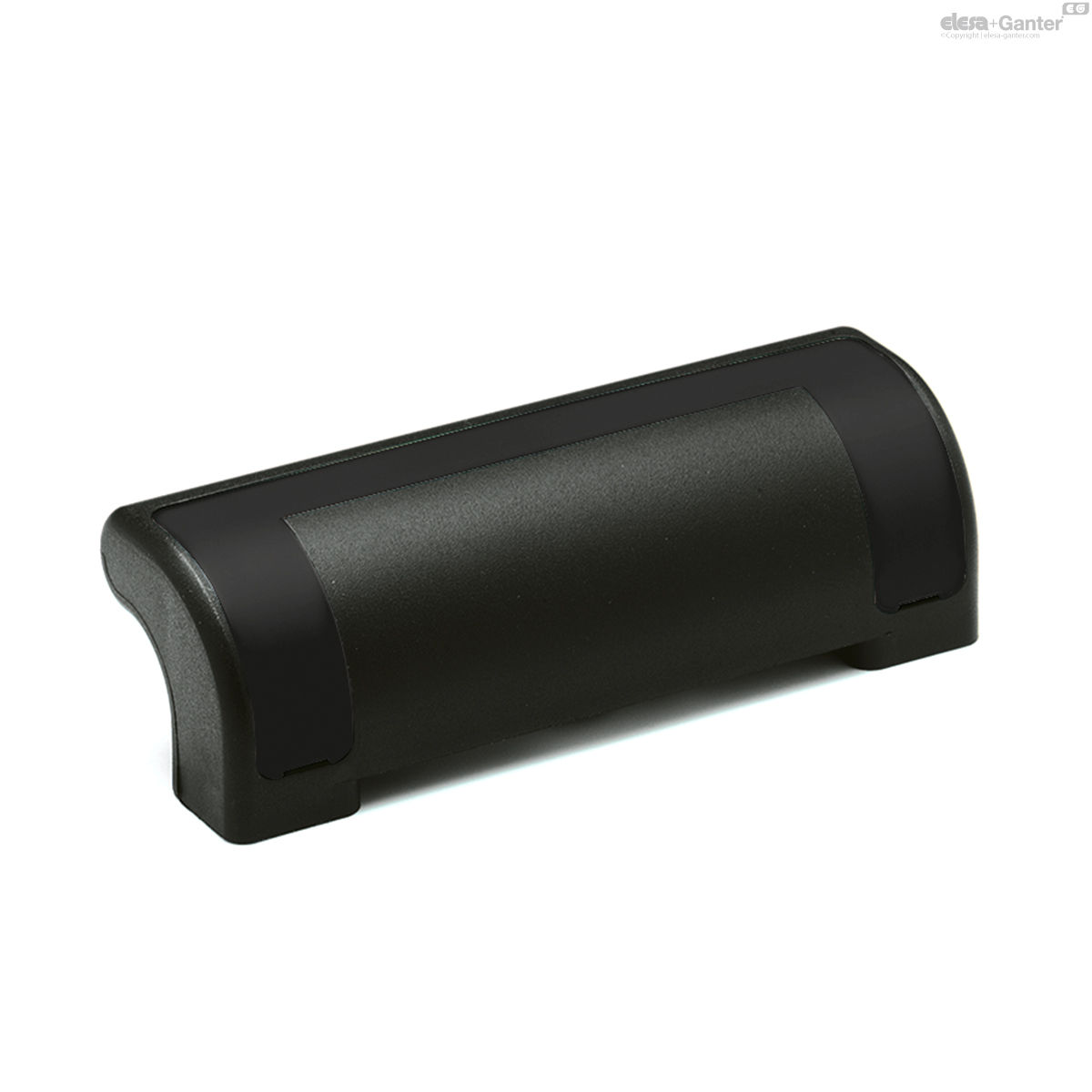

138511	M.990/115 EH-6-C9	C9 - RAL 9005	115	95.5	6.5	10	35	15	6	37.5	19	75.5	9.5	900	43

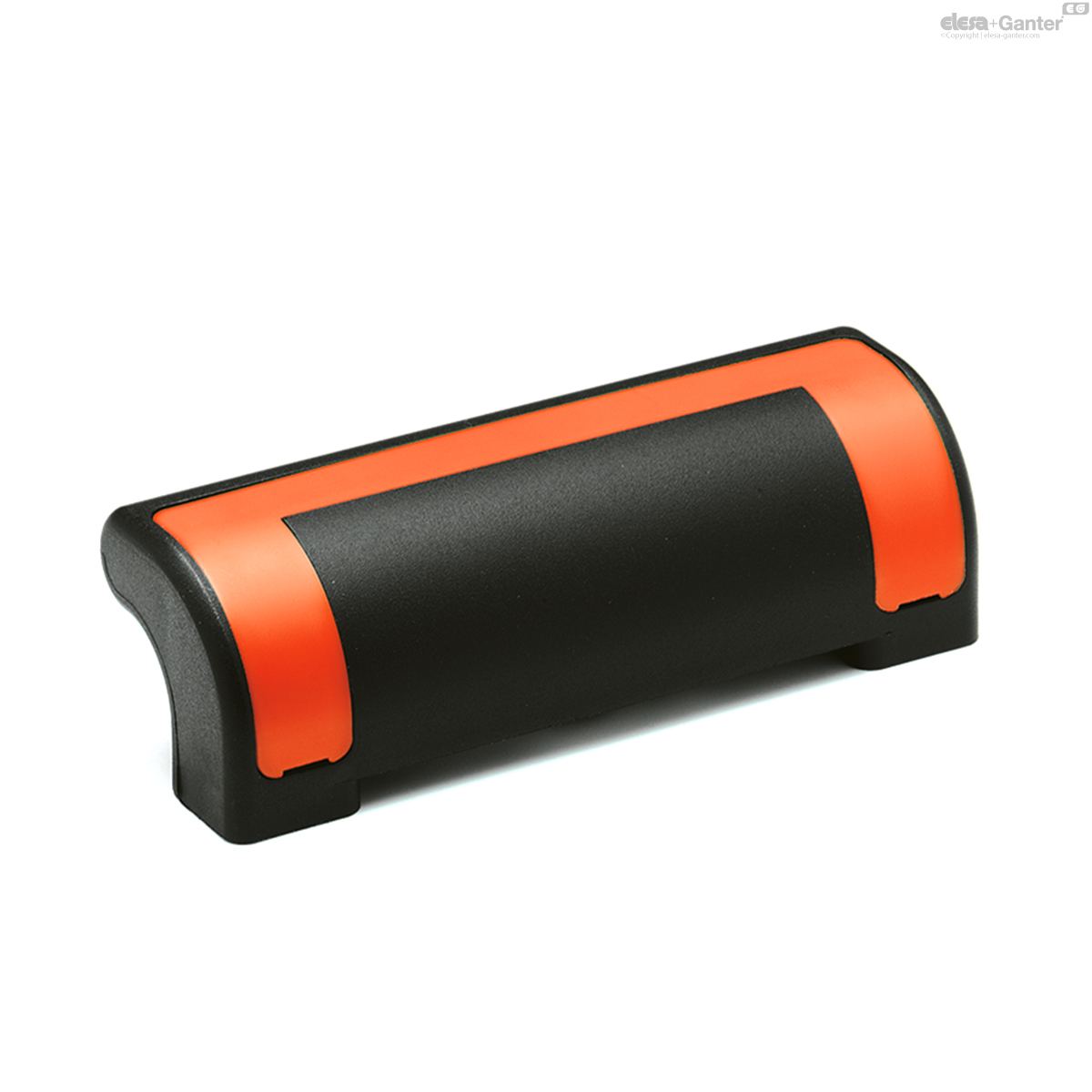

138512	M.990/115 EH-6-C2	C2 - RAL 2004	115	95.5	6.5	10	35	15	6	37.5	19	75.5	9.5	900	37
138513	M.990/115 EH-6-C3	C3 - RAL 7035	115	95.5	6.5	10	35	15	6	37.5	19	75.5	9.5	900	37

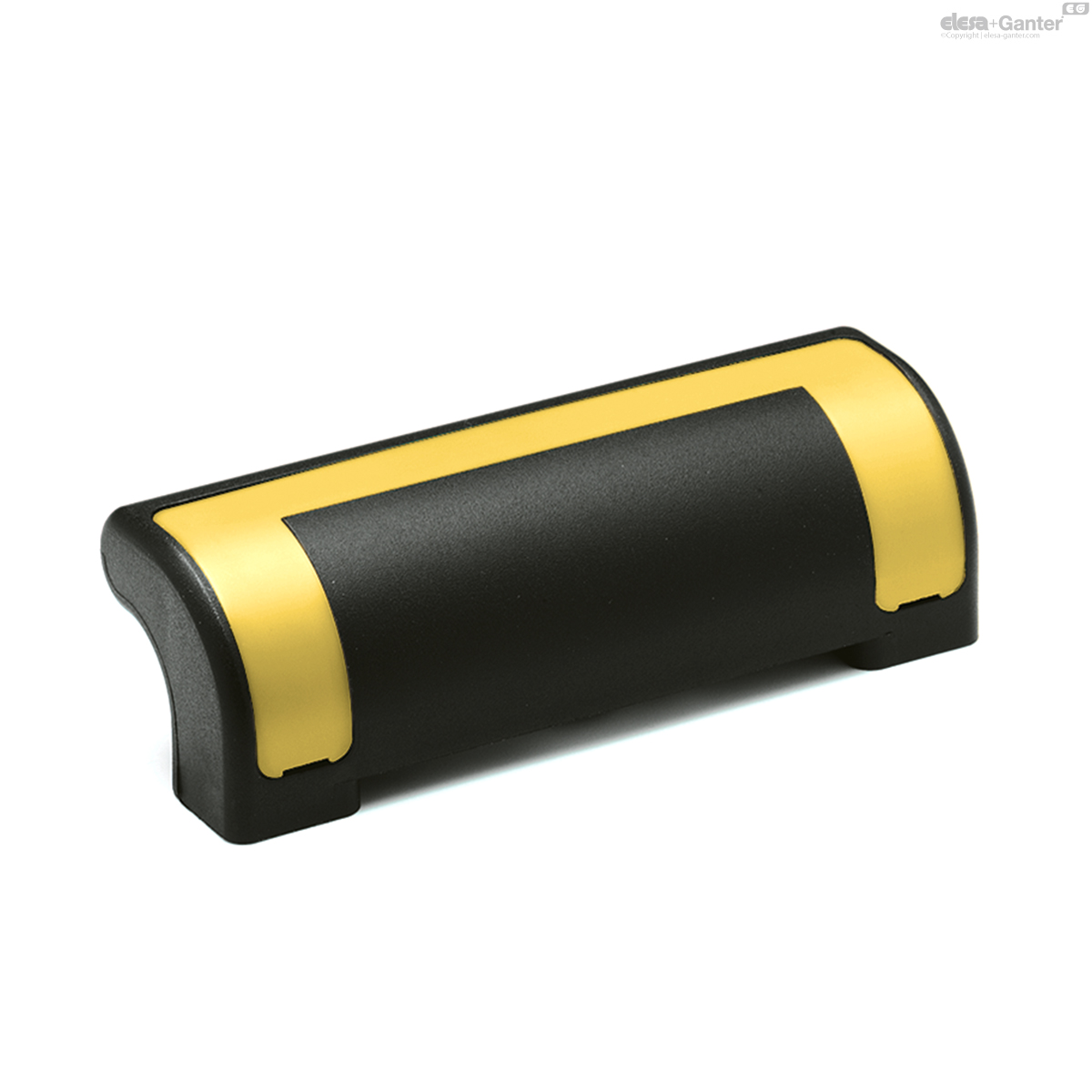

138514	M.990/115 EH-6-C4	C4 - RAL 1021	115	95.5	6.5	10	35	15	6	37.5	19	75.5	9.5	900	33
138515	M.990/115 EH-6-C5	C5 - RAL 5024	115	95.5	6.5	10	35	15	6	37.5	19	75.5	9.5	900	41

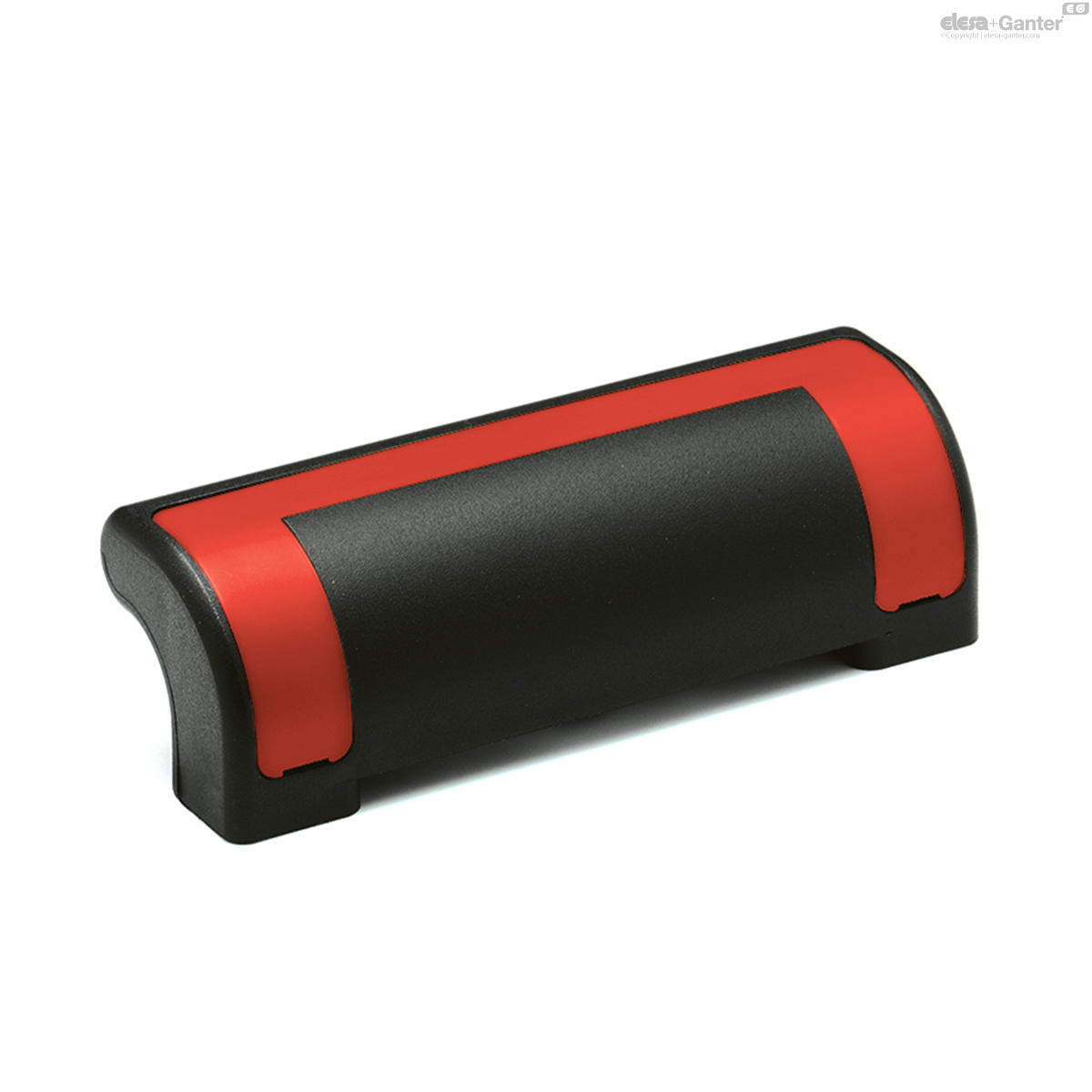

138516	M.990/115 EH-6-C6	C6 - RAL 3000	115	95.5	6.5	10	35	15	6	37.5	19	75.5	9.5	900	36
