Levelling elements for ground mounting

Technopolymer base, steel stem

Enquire Now

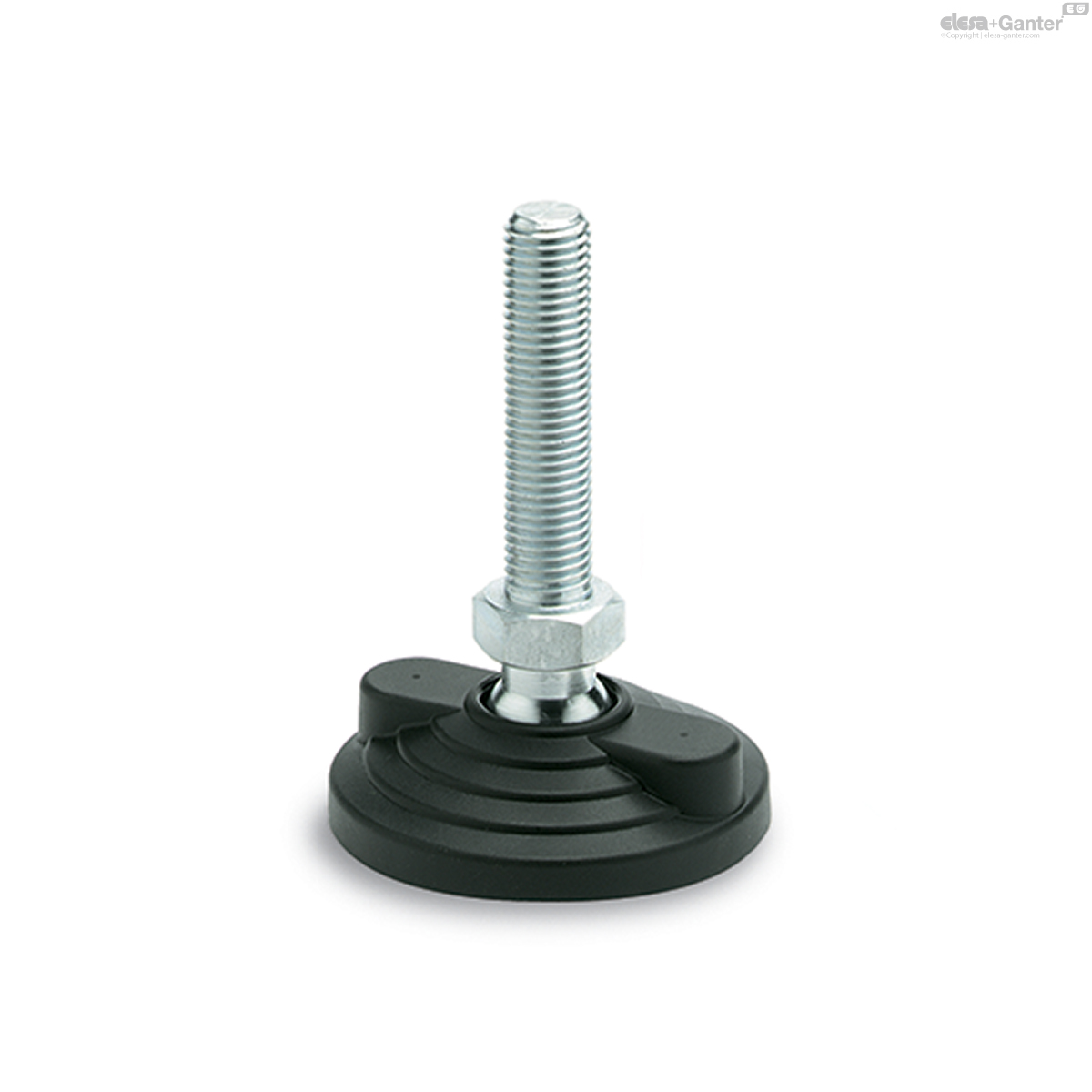

LV.F

Levelling elements for ground mounting

Without no-slip disk

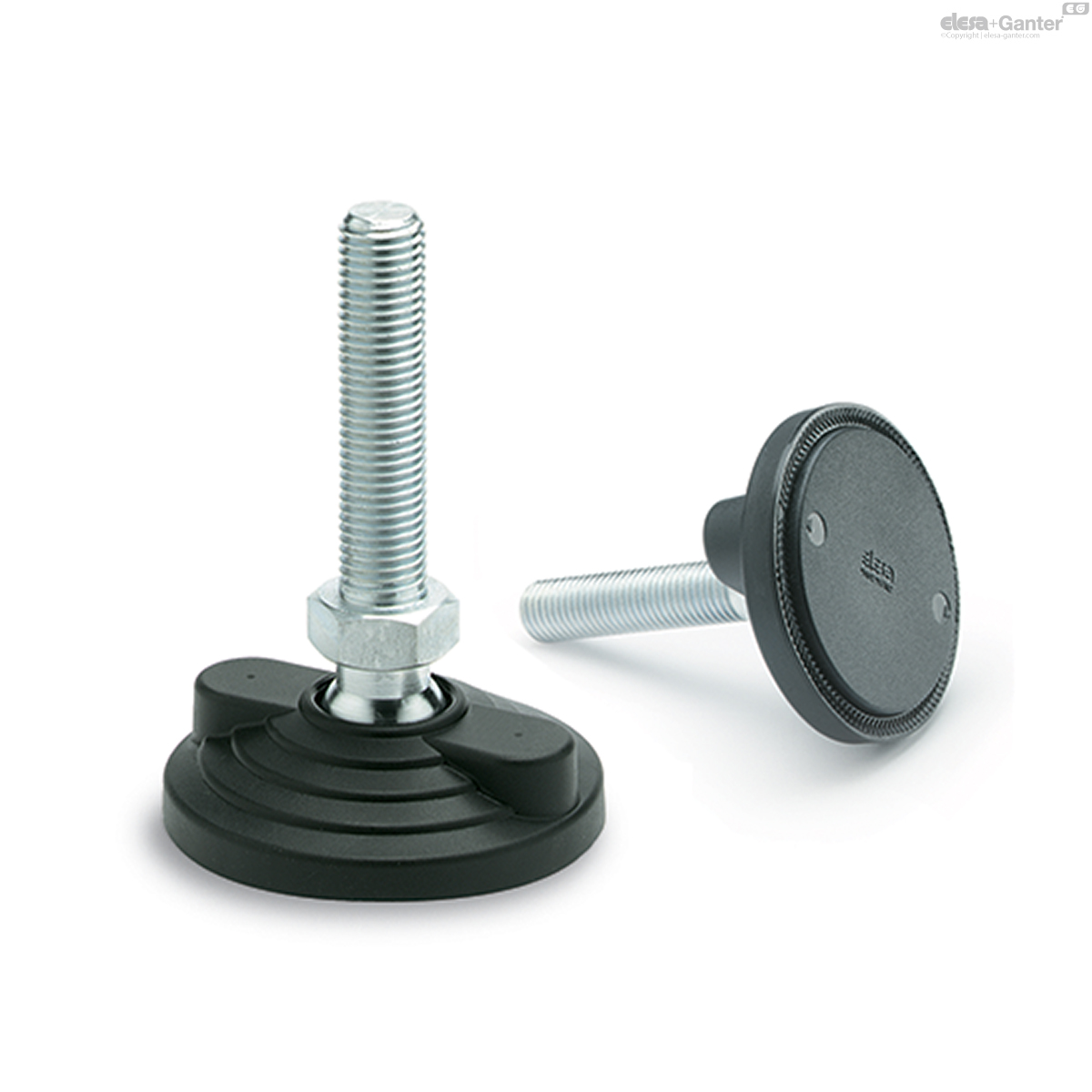

LV.F-AS

Levelling elements for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded zinc-plated steel with regulation hexagon.

Standard executions

LV.F: without no-slip disk.

LV.F-AS: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig. 1).

General information

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk-).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

Zinc-plated steel nut (see Nuts NT.-).

LV.F

		D	d	d₁	L	Articulation Ø	l	l₁	d₂	h	h₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description															Actions
311121	LV.F-80-14-M8x43	80	M8	54	76	14	43	33	8.5	24	23	14	14	16000	97
311125	LV.F-80-14-M8x68	80	M8	54	101	14	68	33	8.5	24	23	14	14	16000	104
311221	LV.F-80-14-M10x43	80	M10	54	76	14	43	33	8.5	24	23	14	14	16000	104
311225	LV.F-80-14-M10x68	80	M10	54	101	14	68	33	8.5	24	23	14	14	16000	116
311231	LV.F-80-14-M10x98	80	M10	54	131	14	98	33	8.5	24	23	14	14	16000	130
311321	LV.F-80-14-M12x43	80	M12	54	76	14	43	33	8.5	24	23	14	14	16000	113
311325	LV.F-80-14-M12x68	80	M12	54	101	14	68	33	8.5	24	23	14	14	16000	130
311331	LV.F-80-14-M12x98	80	M12	54	131	14	98	33	8.5	24	23	14	14	16000	151
311421	LV.F-80-14-M14X68	80	M14	54	101	14	68	33	8.5	24	23	14	14	16000	130
311431	LV.F-80-14-M14X98	80	M14	54	131	14	98	33	8.5	24	23	14	14	16000	151
311441	LV.F-80-14-M14X148	80	M14	54	181	14	148	33	8.5	24	23	14	14	16000	223
311521	LV.F-80-14-M16x68	80	M16	54	101	14	68	33	8.5	24	23	16	14	16000	173
311525	LV.F-80-14-M16x108	80	M16	54	141	14	108	33	8.5	24	23	16	14	16000	223
311541	LV.F-80-14-M16x148	80	M16	54	181	14	148	33	8.5	24	23	16	14	16000	276
311561	LV.F-80-14-M16x168	80	M16	54	201	14	168	33	8.5	24	23	16	14	16000	300
311621	LV.F-80-24-M16x58	80	M16	54	101	24	58	43	8.5	24	23	24	24	18000	230
311625	LV.F-80-24-M16x98	80	M16	54	141	24	98	43	8.5	24	23	24	24	18000	284
311641	LV.F-80-24-M16x138	80	M16	54	181	24	138	43	8.5	24	23	24	24	18000	335
311661	LV.F-80-24-M16x158	80	M16	54	201	24	158	43	8.5	24	23	24	24	18000	340
311725	LV.F-80-24-M20x98	80	M20	54	141	24	98	43	8.5	24	23	24	24	18000	357
311741	LV.F-80-24-M20x138	80	M20	54	181	24	138	43	8.5	24	23	24	24	18000	432
311761	LV.F-80-24-M20x158	80	M20	54	201	24	158	43	8.5	24	23	24	24	18000	480
311781	LV.F-80-24-M20x198	80	M20	54	241	24	198	43	8.5	24	23	24	24	18000	556
311825	LV.F-80-24-M24x98	80	M24	54	141	24	98	43	8.5	24	23	24	24	18000	440
311861	LV.F-80-24-M24x158	80	M24	54	201	24	158	43	8.5	24	23	24	24	18000	555
311881	LV.F-80-24-M24x198	80	M24	54	241	24	198	43	8.5	24	23	24	24	18000	790
312451	LV.F-100-14-M8x43	100	M8	70	76	14	43	33	12.5	24	23	14	14	18000	132
312453	LV.F-100-14-M8x68	100	M8	70	101	14	68	33	12.5	24	23	14	14	18000	139
312461	LV.F-100-14-M10x43	100	M10	70	76	14	43	33	12.5	24	23	14	14	18000	139
312463	LV.F-100-14-M10x68	100	M10	70	101	14	68	33	12.5	24	23	14	14	18000	151
312465	LV.F-100-14-M10x98	100	M10	70	131	14	98	33	12.5	24	23	14	14	18000	166
312471	LV.F-100-14-M12x43	100	M12	70	76	14	43	33	12.5	24	23	14	14	18000	148
312473	LV.F-100-14-M12x68	100	M12	70	101	14	68	33	12.5	24	23	14	14	18000	165
312475	LV.F-100-14-M12x98	100	M12	70	131	14	98	33	12.5	24	23	14	14	18000	186
312477	LV.F-100-14-M14X68	100	M14	70	101	14	68	33	12.5	24	23	14	14	18000	165
312479	LV.F-100-14-M14X98	100	M14	70	131	14	98	33	12.5	24	23	14	14	18000	186
312480	LV.F-100-14-M14X148	100	M14	70	181	14	148	33	12.5	24	23	14	14	18000	258
312481	LV.F-100-14-M16x68	100	M16	70	101	14	68	33	12.5	24	23	16	14	18000	205
312483	LV.F-100-14-M16x108	100	M16	70	141	14	108	33	12.5	24	23	16	14	18000	258
312485	LV.F-100-14-M16x148	100	M16	70	181	14	148	33	12.5	24	23	16	14	18000	312
312487	LV.F-100-14-M16x168	100	M16	70	201	14	168	33	12.5	24	23	16	14	18000	336
312521	LV.F-100-24-M16x58	100	M16	70	101	24	58	43	12.5	24	23	24	24	25000	271
312525	LV.F-100-24-M16x98	100	M16	70	141	24	98	43	12.5	24	23	24	24	25000	325
312541	LV.F-100-24-M16x138	100	M16	70	181	24	138	43	12.5	24	23	24	24	25000	376
312561	LV.F-100-24-M16x158	100	M16	70	201	24	158	43	12.5	24	23	24	24	25000	381
312625	LV.F-100-24-M20x98	100	M20	70	141	24	98	43	12.5	24	23	24	24	25000	398
312641	LV.F-100-24-M20x138	100	M20	70	181	24	138	43	12.5	24	23	24	24	25000	473
312661	LV.F-100-24-M20x158	100	M20	70	201	24	158	43	12.5	24	23	24	24	25000	521
312681	LV.F-100-24-M20x198	100	M20	70	241	24	198	43	12.5	24	23	24	24	25000	597
312725	LV.F-100-24-M24x98	100	M24	70	141	24	98	43	12.5	24	23	24	24	25000	481
312761	LV.F-100-24-M24x158	100	M24	70	201	24	158	43	12.5	24	23	24	24	25000	596
312781	LV.F-100-24-M24x198	100	M24	70	241	24	198	43	12.5	24	23	24	24	25000	831
313521	LV.F-125-24-M16x58	125	M16	95	125	24	58	67	12.5	24	23	24	24	28000	374
313525	LV.F-125-24-M16x98	125	M16	95	165	24	98	67	12.5	24	23	24	24	28000	428
313541	LV.F-125-24-M16x138	125	M16	95	205	24	138	67	12.5	24	23	24	24	28000	479
313561	LV.F-125-24-M16x158	125	M16	95	225	24	158	67	12.5	24	23	24	24	28000	484
313625	LV.F-125-24-M20x98	125	M20	95	165	24	98	67	12.5	24	23	24	24	28000	501
313641	LV.F-125-24-M20x138	125	M20	95	205	24	138	67	12.5	24	23	24	24	28000	576
313661	LV.F-125-24-M20x158	125	M20	95	225	24	158	67	12.5	24	23	24	24	28000	624
313681	LV.F-125-24-M20x198	125	M20	95	265	24	198	67	12.5	24	23	24	24	28000	700
313725	LV.F-125-24-M24x98	125	M24	95	165	24	98	67	12.5	24	23	24	24	28000	584
313761	LV.F-125-24-M24x158	125	M24	95	225	24	158	67	12.5	24	23	24	24	28000	699
313781	LV.F-125-24-M24x198	125	M24	95	265	24	198	67	12.5	24	23	24	24	28000	934
