IZP.

Knurled control knobs

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Anodised aluminium

Plain blind hole. Assembly by means of a supplied stainless steel transversal grub screw UNI 5929 (grub screw with hexagon socket and cup end).

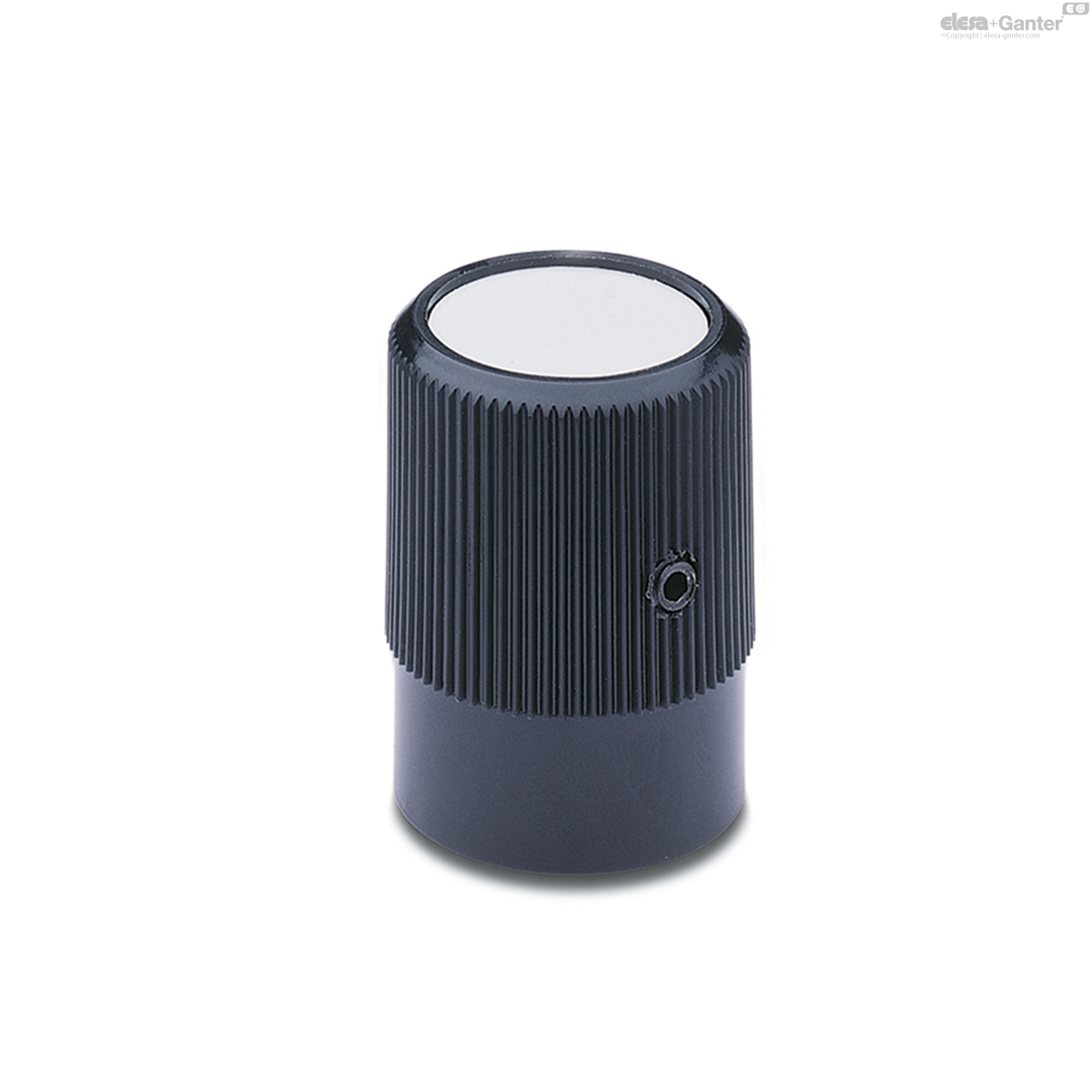

IZP.: plain knob.

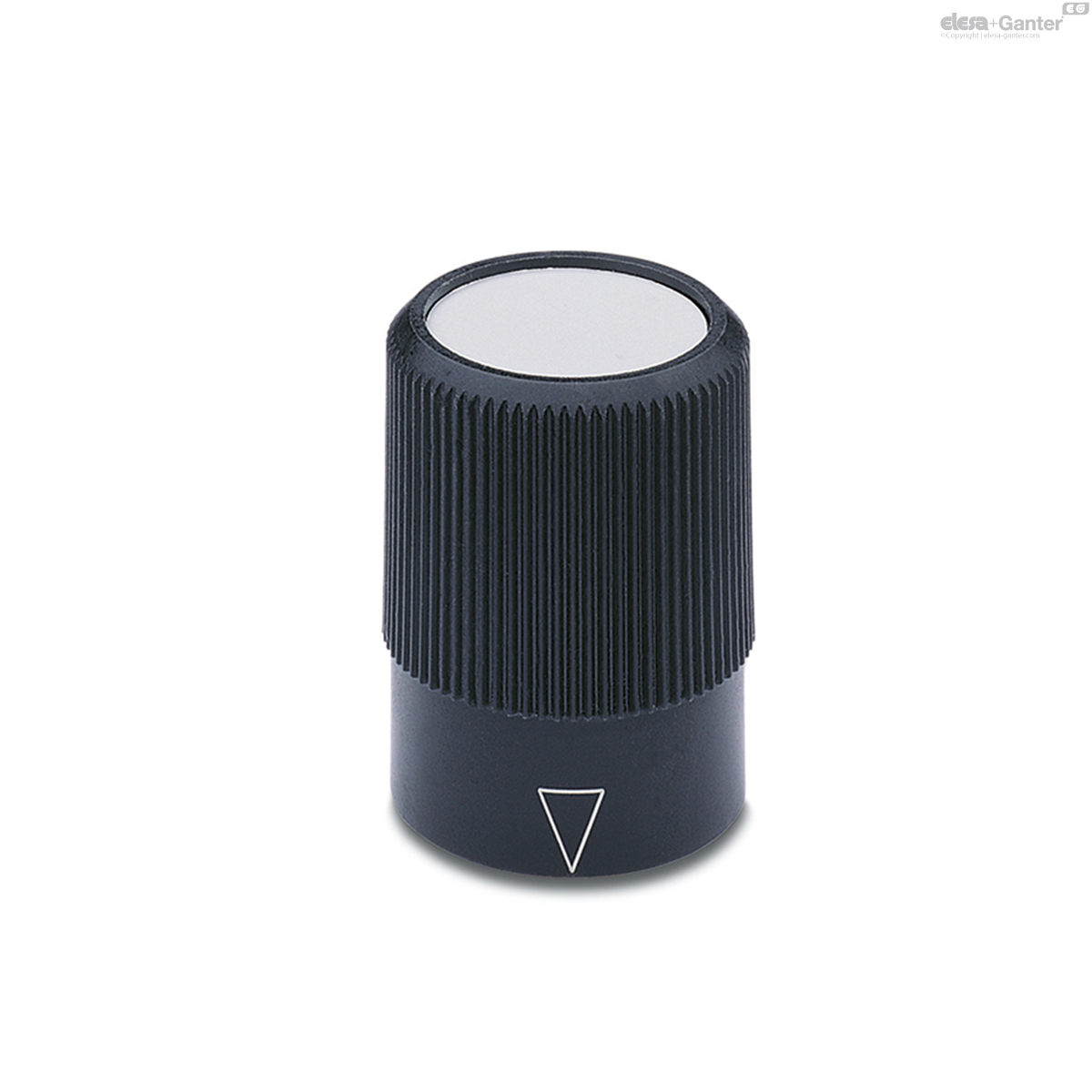

IZP+K: knob with triangular index.
IZP+GS: knob with standard graduation, 20 marks, numbering from 0 to 9 increases as the knob is turned clockwise.

Laser-engraved precision graduations.

Special executions on request

The front plate can be customized with words, marks, graphic symbols, etc.

On the plain surface of the knob high precision graduations (see Graduations) can be laser-engraved.

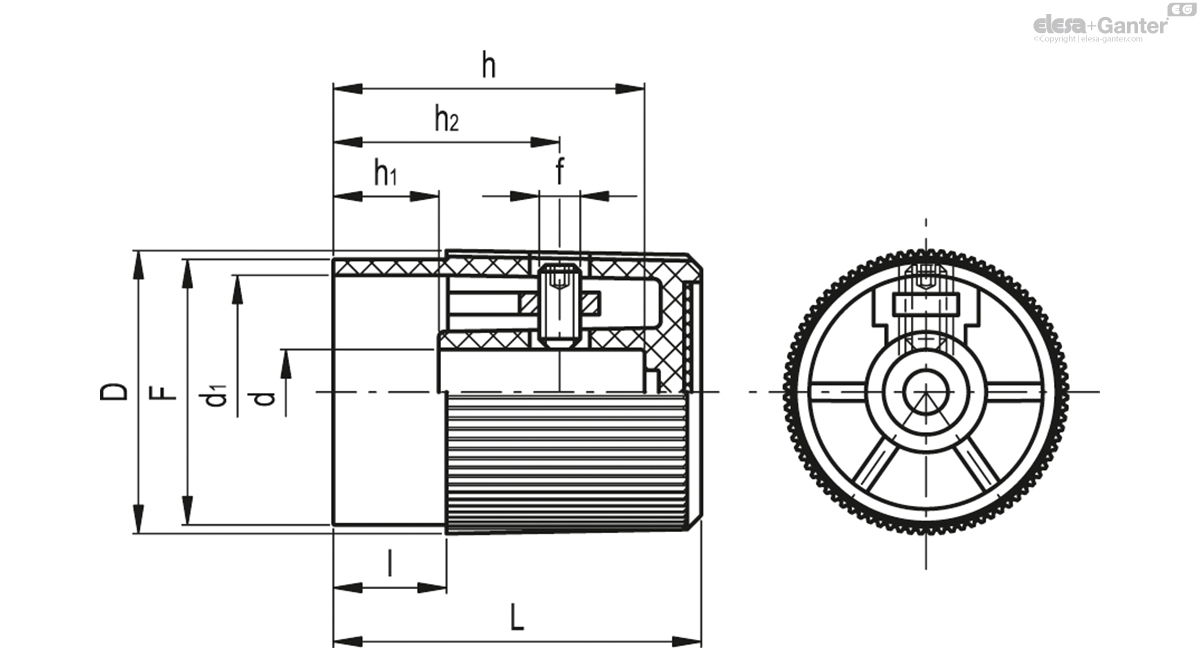

		D	d_H10	L	F	l	d₁	h	h₁	h₂	f
Code	Description												Actions
31011	IZP.25 N-6	27	6	30	25	12	22	24	12	18	M4	12
31111	IZP.30 N-8	32	8	38	30	13	25	30	13	23	M4	23
31211	IZP.35 N-10	35	10	45	33	15	28	37	15	27	M5	31
31311	IZP.40 N-12	40	12	52	38	16	33	44	16	32	M5	42
