I.622

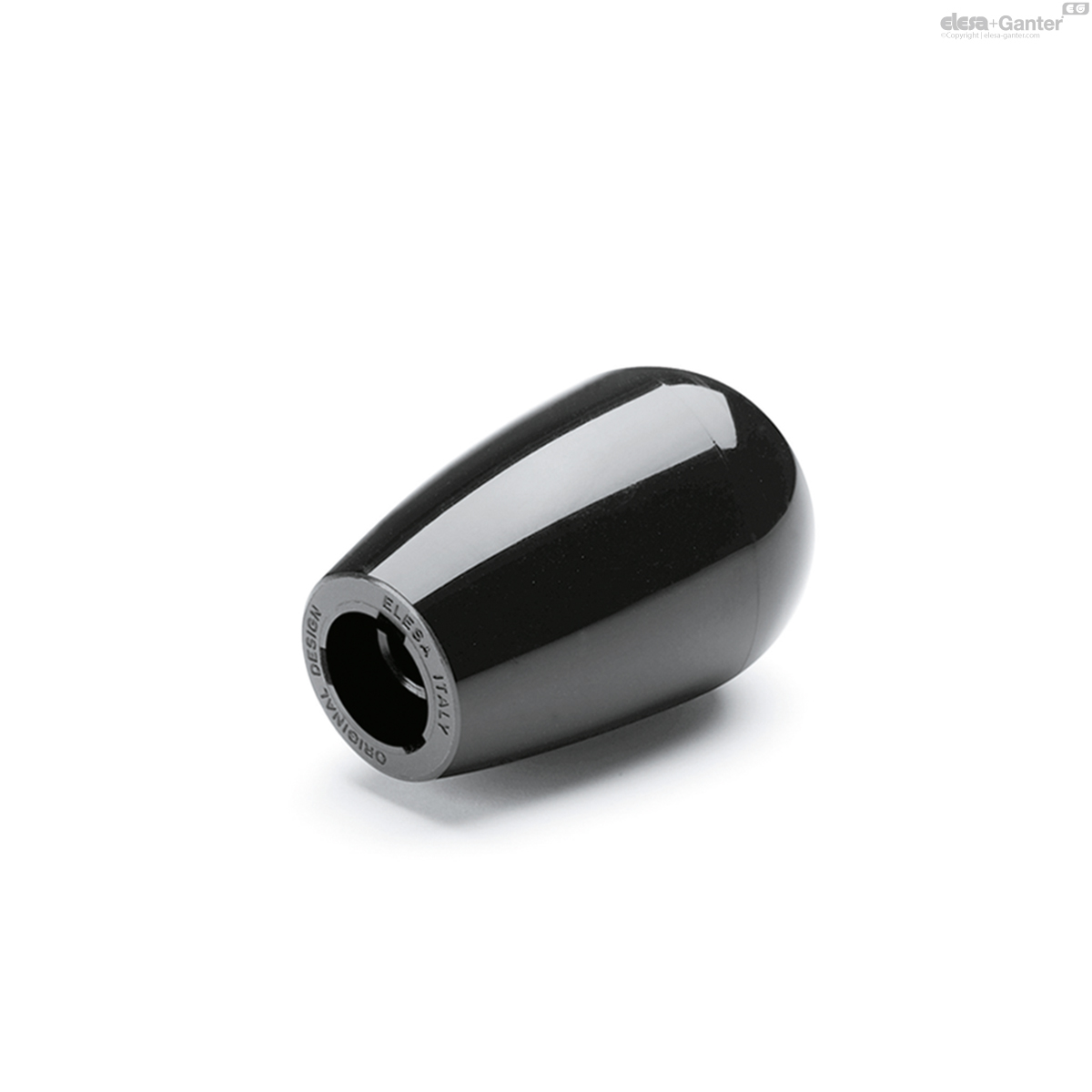

Tapered handles
Technopolymer
Description
Main specifications
Material
Polyamide based (PA) technopolymer, in Elecolors colours, glossy finish.
Standard execution
Threaded blind hole.
Special executions on request
Special executions on request
Different RAL colours.

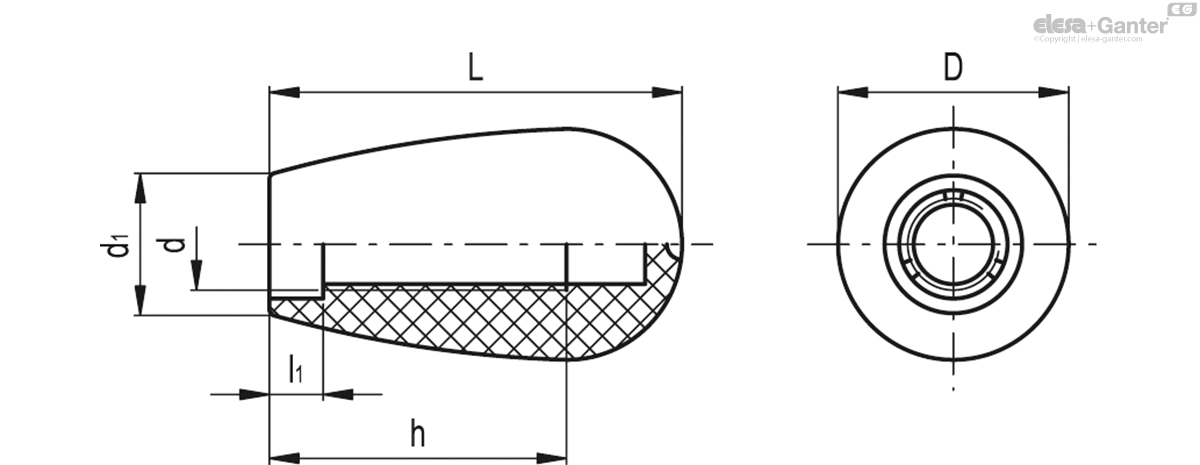

| Color | D | L | d | d1 | h | l1 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 120911 | I.622/25-M6-C9 | C9 - RAL 9005 | 16 | 25 | M6 | 12 | 16 | 3.5 | 4 |
|

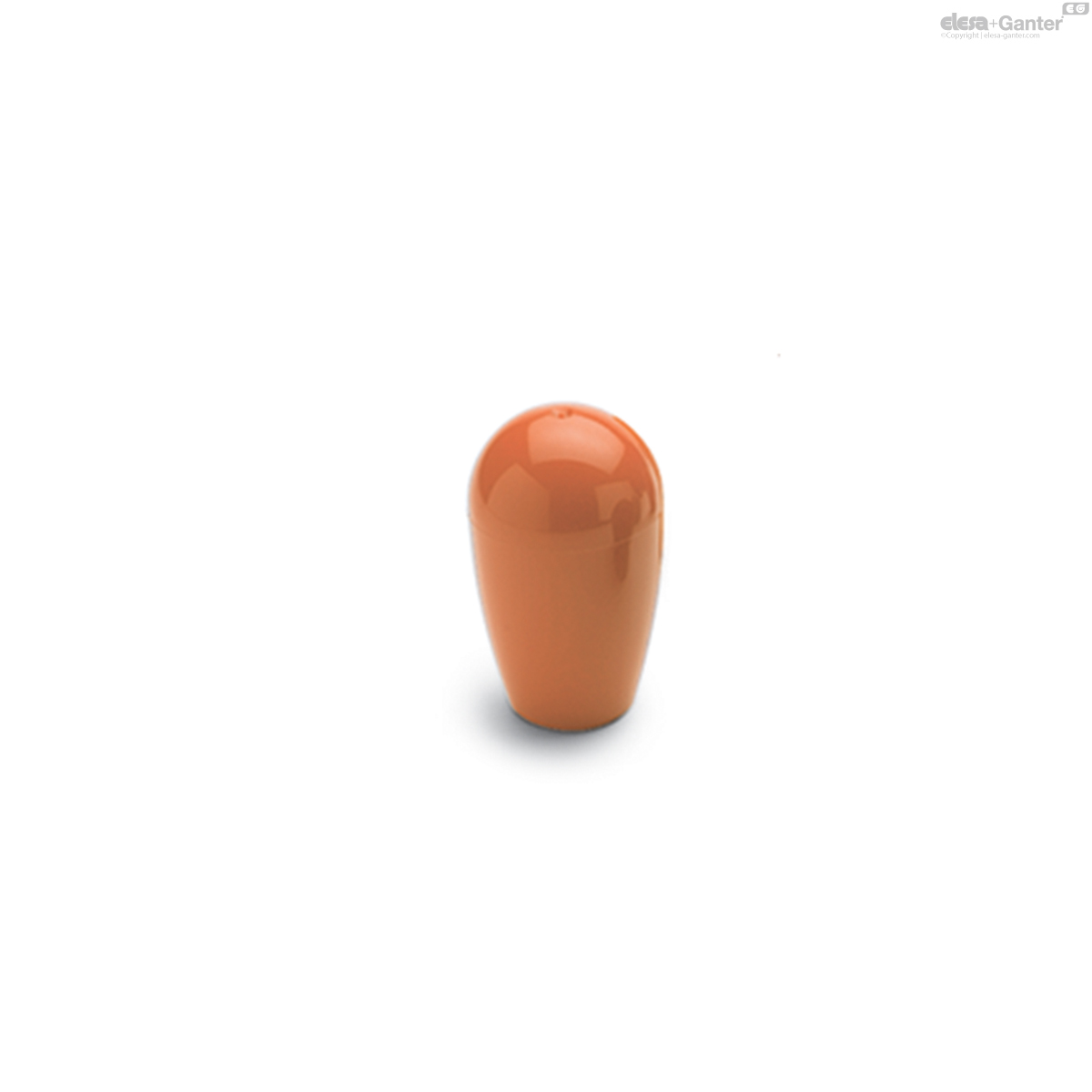

| 120912 | I.622/25-M6-C2 | C2 - RAL 2004 | 16 | 25 | M6 | 12 | 16 | 3.5 | 4 |
|
| 120913 | I.622/25-M6-C3 | C3 - RAL 7035 | 16 | 25 | M6 | 12 | 16 | 3.5 | 5 |
|

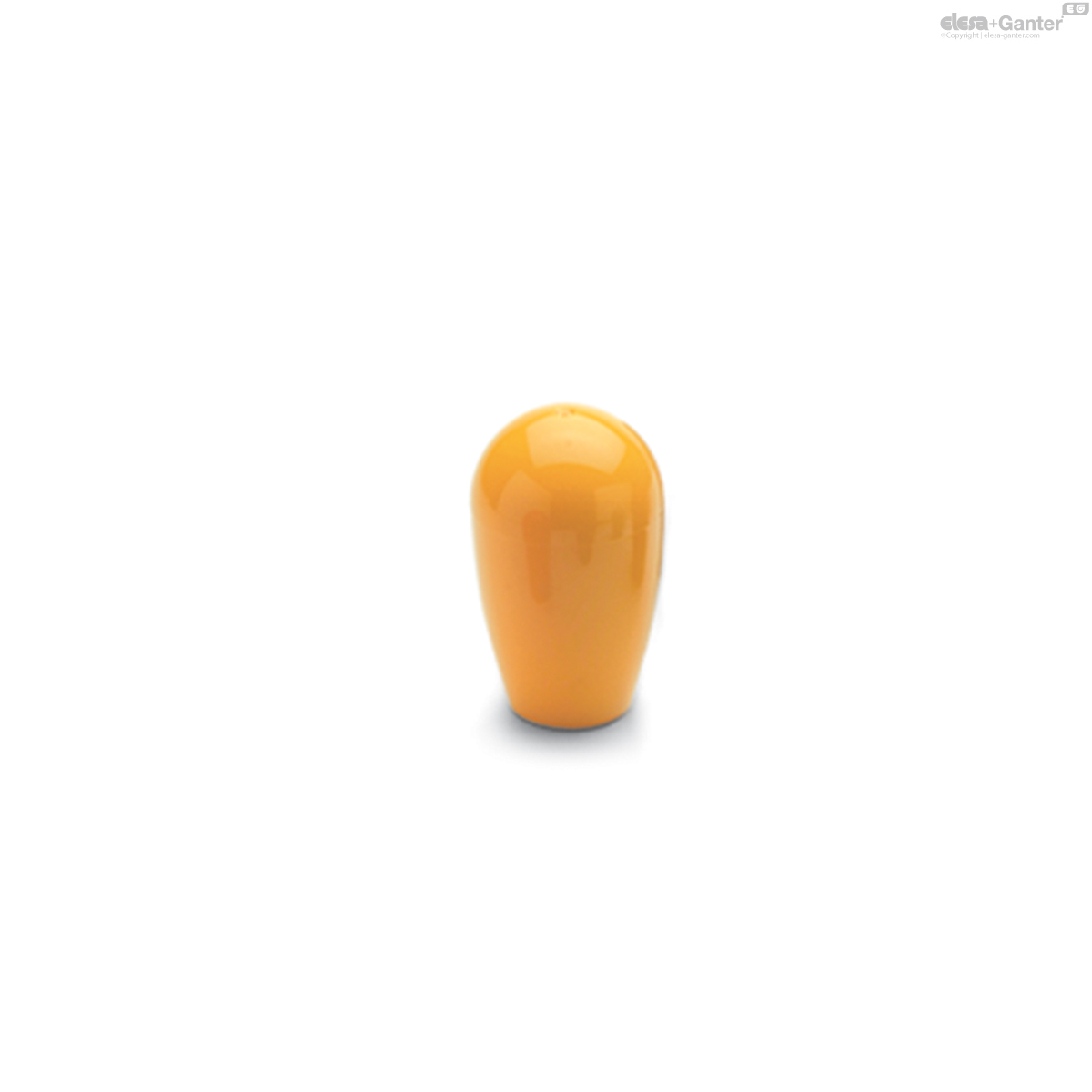

| 120914 | I.622/25-M6-C4 | C4 - RAL 1021 | 16 | 25 | M6 | 12 | 16 | 3.5 | 4 |
|

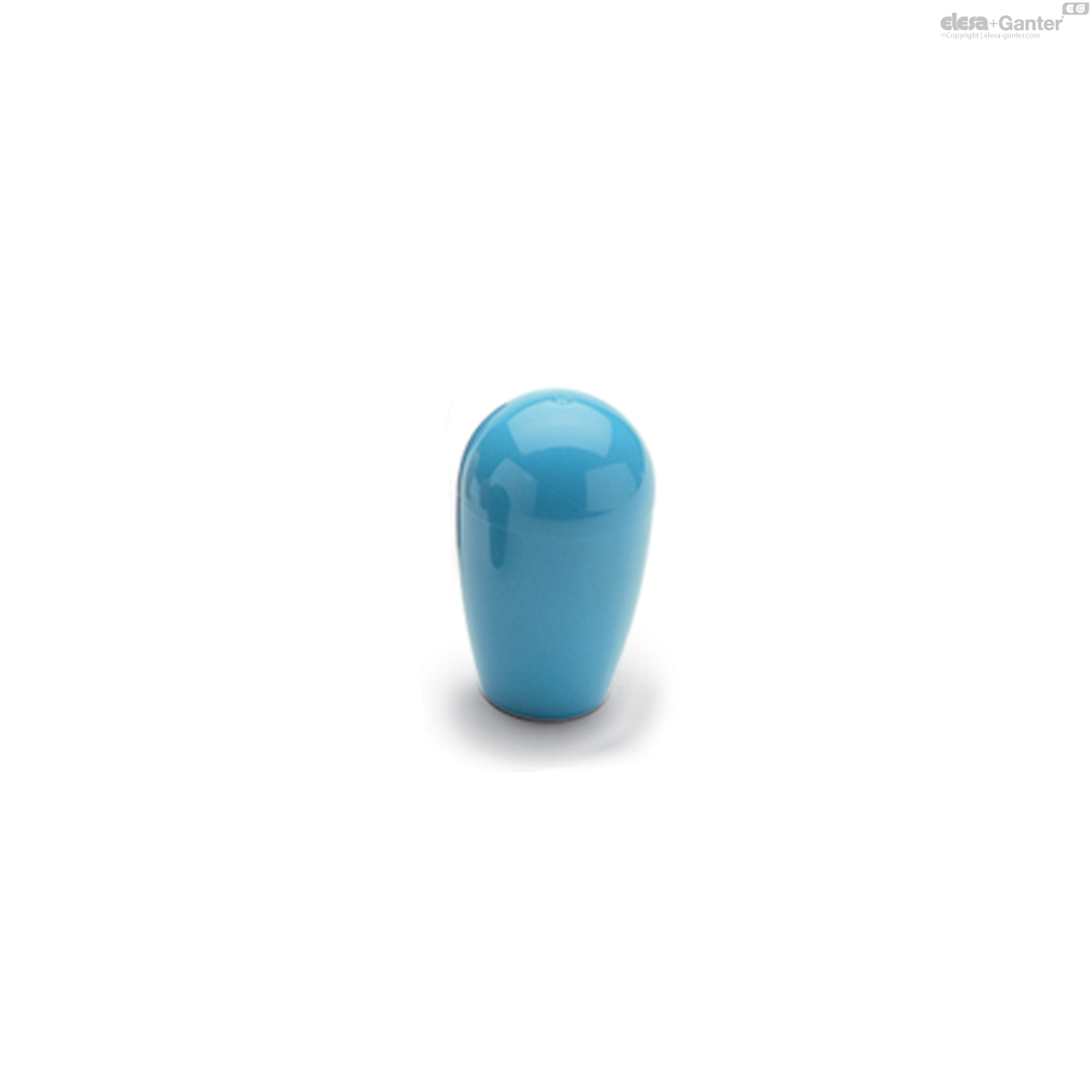

| 120915 | I.622/25-M6-C5 | C5 - RAL 5024 | 16 | 25 | M6 | 12 | 16 | 3.5 | 4 |
|

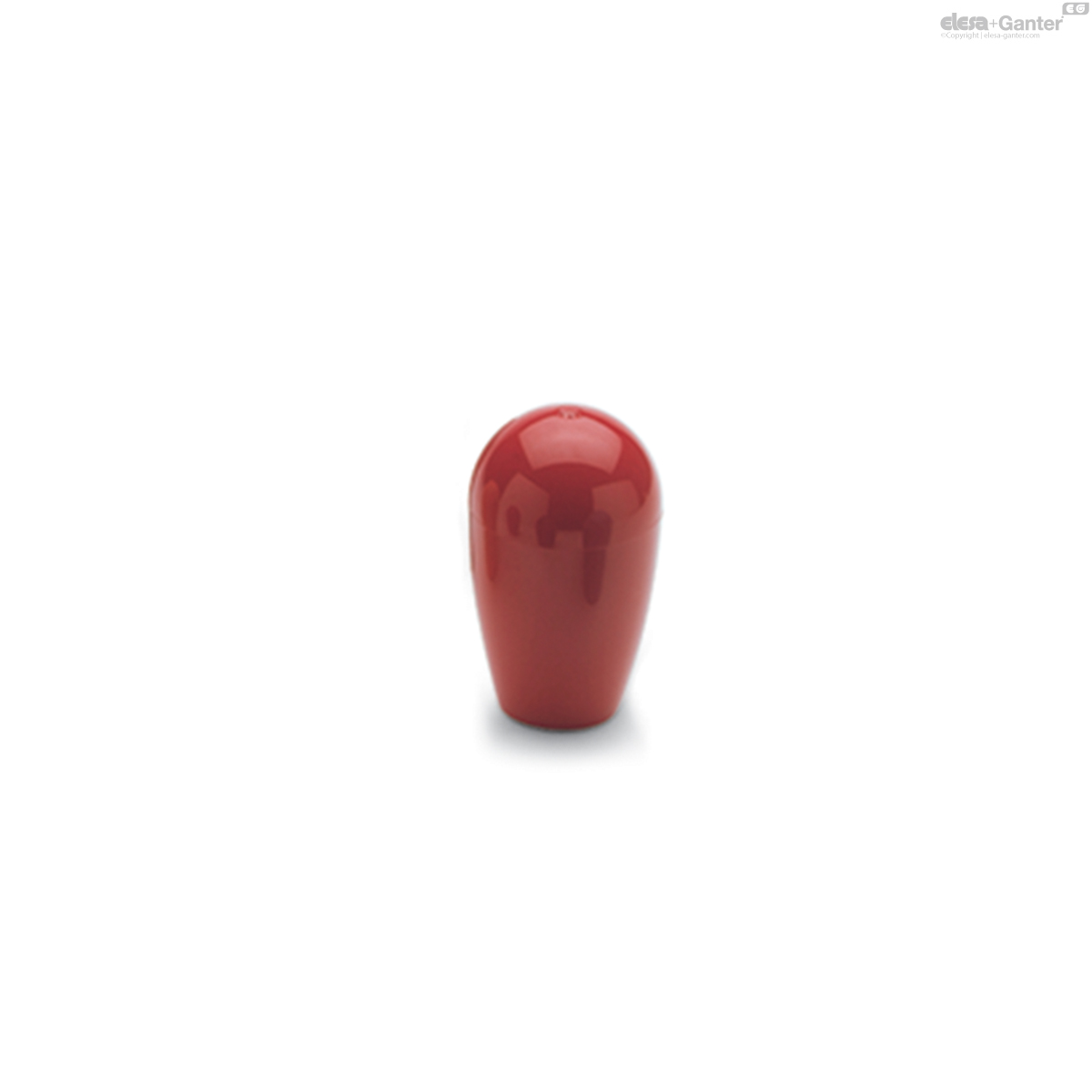

| 120916 | I.622/25-M6-C6 | C6 - RAL 3000 | 16 | 25 | M6 | 12 | 16 | 3.5 | 5 |
|
| 120917 | I.622/25-M6-C17 | C17 - RAL 6017 | 16 | 25 | M6 | 12 | 16 | 3.5 | 4 |
|
| 120951 | I.622/30-M8-C9 | C9 - RAL 9005 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120952 | I.622/30-M8-C2 | C2 - RAL 2004 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120953 | I.622/30-M8-C3 | C3 - RAL 7035 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120954 | I.622/30-M8-C4 | C4 - RAL 1021 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120955 | I.622/30-M8-C5 | C5 - RAL 5024 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120956 | I.622/30-M8-C6 | C6 - RAL 3000 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120957 | I.622/30-M8-C17 | C17 - RAL 6017 | 20 | 32 | M8 | 14 | 20 | 3.5 | 8 |
|
| 120991 | I.622/40-M8-C9 | C9 - RAL 9005 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 120992 | I.622/40-M8-C2 | C2 - RAL 2004 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 120993 | I.622/40-M8-C3 | C3 - RAL 7035 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 120994 | I.622/40-M8-C4 | C4 - RAL 1021 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 120995 | I.622/40-M8-C5 | C5 - RAL 5024 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 120996 | I.622/40-M8-C6 | C6 - RAL 3000 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 120997 | I.622/40-M8-C17 | C17 - RAL 6017 | 26 | 42 | M8 | 17 | 30 | 5 | 17 |
|
| 121001 | I.622/40-M10-C9 | C9 - RAL 9005 | 26 | 42 | M10 | 17 | 30 | 5 | 16 |
|
| 121002 | I.622/40-M10-C2 | C2 - RAL 2004 | 26 | 42 | M10 | 17 | 30 | 5 | 16 |
|
| 121003 | I.622/40-M10-C3 | C3 - RAL 7035 | 26 | 42 | M10 | 17 | 30 | 5 | 16 |
|
| 121004 | I.622/40-M10-C4 | C4 - RAL 1021 | 26 | 42 | M10 | 17 | 30 | 5 | 16 |
|
| 121005 | I.622/40-M10-C5 | C5 - RAL 5024 | 26 | 42 | M10 | 17 | 30 | 5 | 16 |
|
| 121006 | I.622/40-M10-C6 | C6 - RAL 3000 | 26 | 42 | M10 | 17 | 30 | 5 | 17 |
|
| 121007 | I.622/40-M10-C17 | C17 - RAL 6017 | 26 | 42 | M10 | 17 | 30 | 5 | 16 |
|
| 121061 | I.622/55-M10-C9 | C9 - RAL 9005 | 34 | 54.5 | M10 | 21 | 35 | 8 | 40 |
|
| 121062 | I.622/55-M10-C2 | C2 - RAL 2004 | 34 | 54.5 | M10 | 21 | 35 | 8 | 39 |
|
| 121063 | I.622/55-M10-C3 | C3 - RAL 7035 | 34 | 54.5 | M10 | 21 | 35 | 8 | 39 |
|
| 121064 | I.622/55-M10-C4 | C4 - RAL 1021 | 34 | 54.5 | M10 | 21 | 35 | 8 | 40 |
|
| 121065 | I.622/55-M10-C5 | C5 - RAL 5024 | 34 | 54.5 | M10 | 21 | 35 | 8 | 40 |
|
| 121066 | I.622/55-M10-C6 | C6 - RAL 3000 | 34 | 54.5 | M10 | 21 | 35 | 8 | 40 |
|
| 121067 | I.622/55-M10-C17 | C17 - RAL 6017 | 34 | 54.5 | M10 | 21 | 35 | 8 | 39 |
|
| 121071 | I.622/55-M12-C9 | C9 - RAL 9005 | 34 | 54.5 | M12 | 21 | 35 | 8 | 38 |
|
| 121072 | I.622/55-M12-C2 | C2 - RAL 2004 | 34 | 54.5 | M12 | 21 | 35 | 8 | 37 |
|
| 121073 | I.622/55-M12-C3 | C3 - RAL 7035 | 34 | 54.5 | M12 | 21 | 35 | 8 | 37 |
|
| 121074 | I.622/55-M12-C4 | C4 - RAL 1021 | 34 | 54.5 | M12 | 21 | 35 | 8 | 37 |
|
| 121075 | I.622/55-M12-C5 | C5 - RAL 5024 | 34 | 54.5 | M12 | 21 | 35 | 8 | 37 |
|
| 121076 | I.622/55-M12-C6 | C6 - RAL 3000 | 34 | 54.5 | M12 | 21 | 35 | 8 | 37 |
|
| 121077 | I.622/55-M12-C17 | C17 - RAL 6017 | 34 | 54.5 | M12 | 21 | 35 | 8 | 37 |
|
