I.147

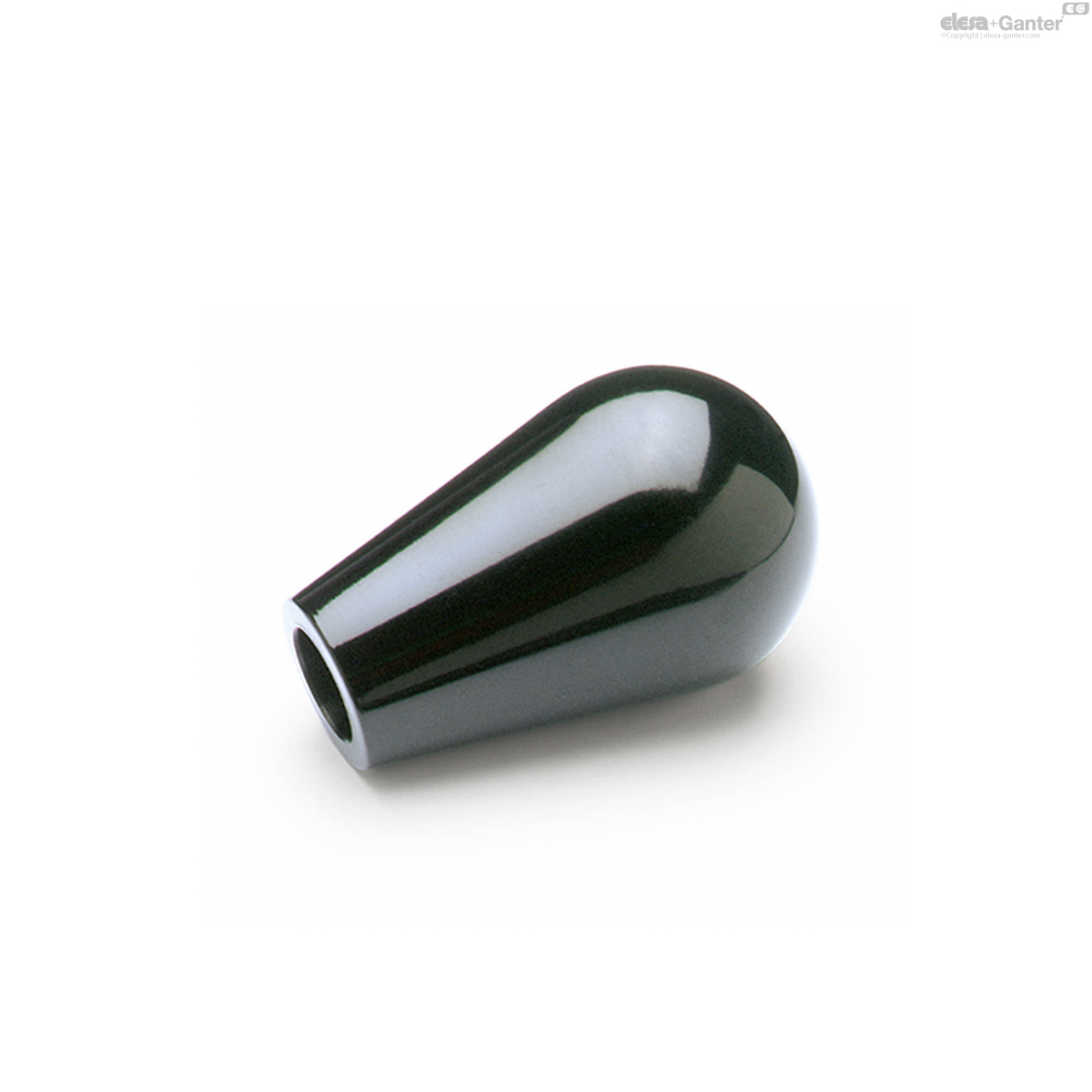

Tapered handles
Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Standard execution
Threaded blind hole.

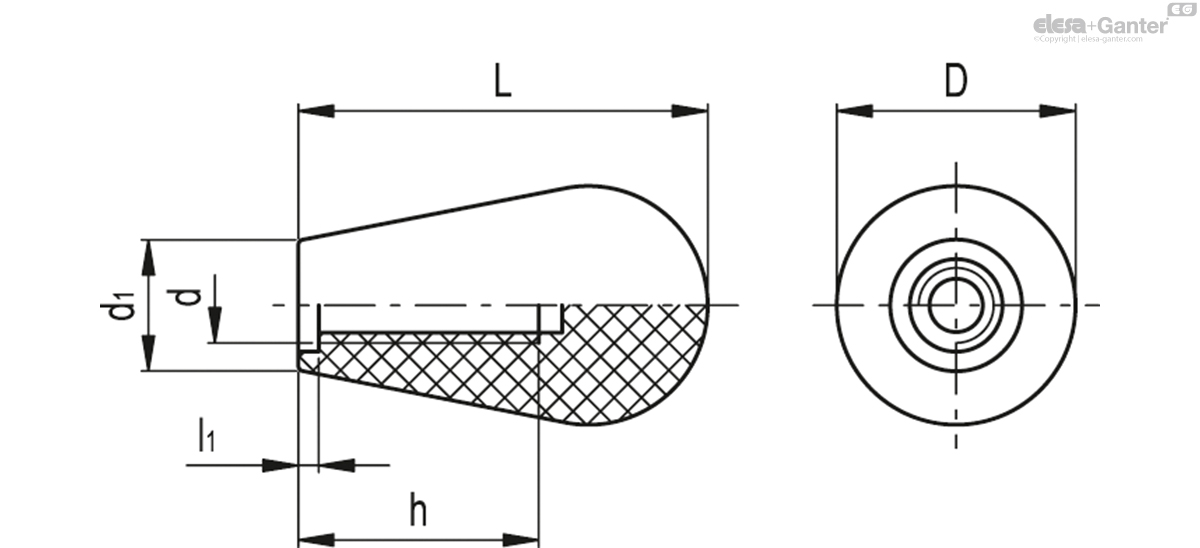

| D | L | d | d1 | h | l1 |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 19801 | I.147/40-M6 | 24 | 40 | M6 | 14 | 25 | 3 | 18 |
|
| 19802 | I.147/40-M8 | 24 | 40 | M8 | 14 | 28 | 3.5 | 17 |
|
| 19901 | I.147/50-M8 | 29 | 47 | M8 | 16 | 28 | 3.5 | 25 |
|
| 19902 | I.147/50-M10 | 29 | 47 | M10 | 16 | 28 | 3.5 | 24 |
|
| 20001 | I.147/60-M10 | 35 | 60 | M10 | 19 | 35 | 8 | 46 |
|
| 20002 | I.147/60-M12 | 35 | 60 | M12 | 19 | 35 | 8 | 44 |
|
| 20101 | I.147/75-M14 | 39 | 77 | M14 | 22 | 45 | 6 | 73 |
|
