GN 844

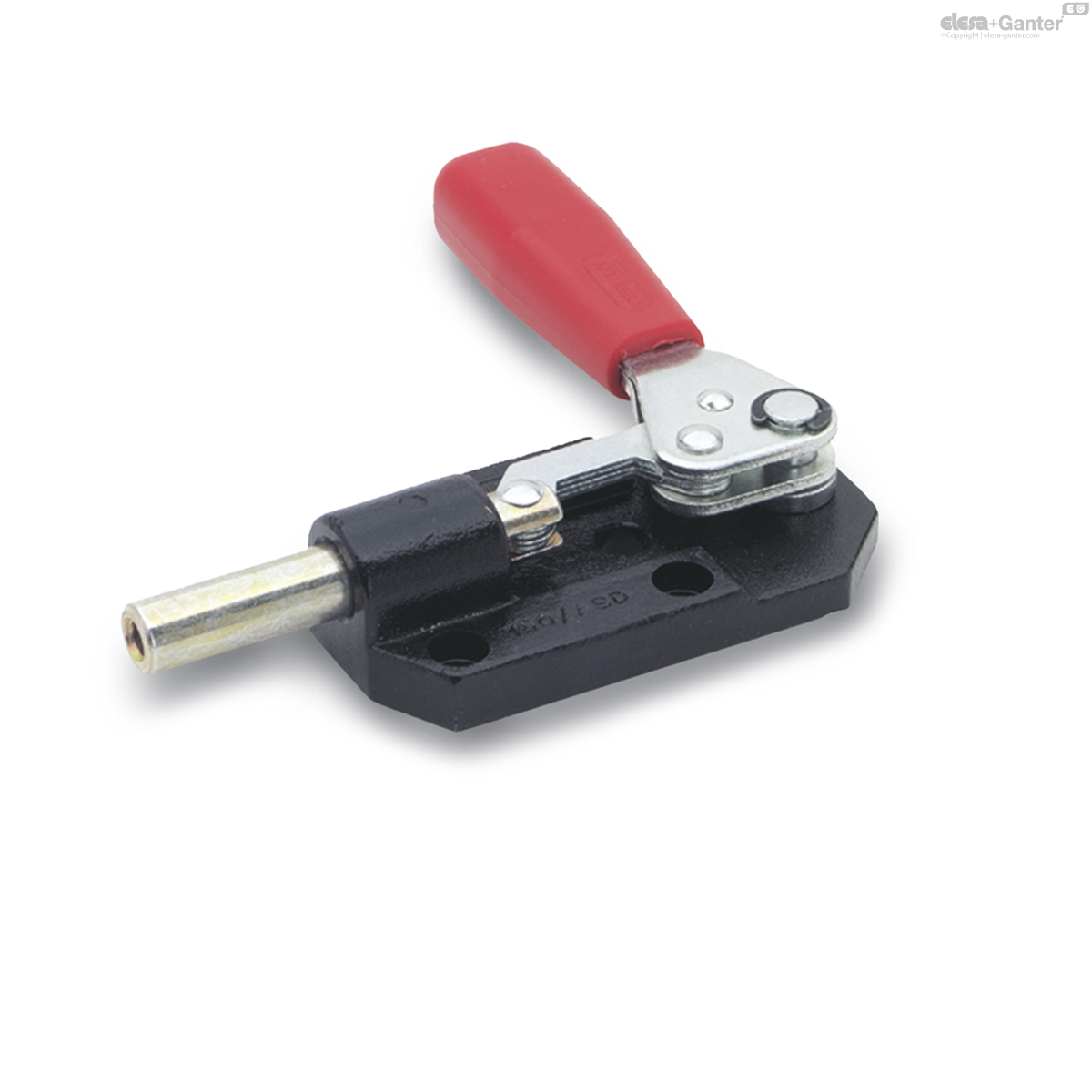

Heavy duty push-pull type toggle clamps

for push-pull clamping

Enquire Now

Description

Specification

Types

Type ASD: Clamping by turning handle counter-clockwise

Type ASS: Clamping by turning handle clockwise

Body

Steel

forged

manganese phosphated

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Plunger

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Information

GN 844 heavy duty push-pull type toggle clamps are known for their low height in all clamping positions. They can be used for very high holding forces thanks to their massive and sturdy body.

General information for toggle clamps -

Accessory

Spindle assemblies-

GN 844

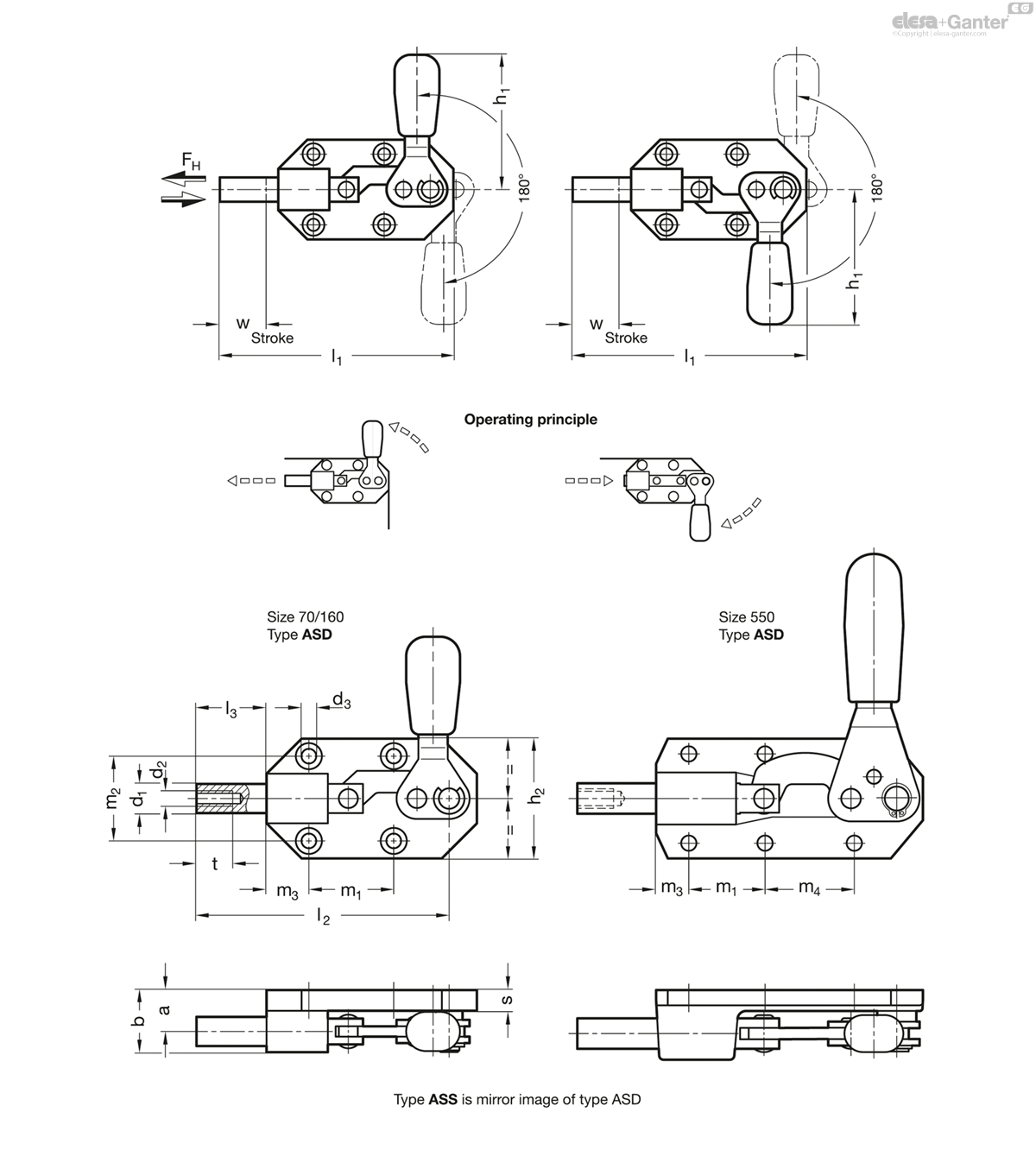

	Size	F_H in N	a	b	d₁	d₂	d₃	h₁ ≈	h₂	l₁ ≈	l₂ ≈	l₃ ≈	m₁	m₂	m₃	m₄	s	t	w
Code																					Actions
GN 844-70-ASD	70	900	12	19.5	8.5	M 6	4.3	49	36	86	77	22	26	26	13	-	6	12	20	162
GN 844-70-ASS	70	900	12	19.5	8.5	M 6	4.3	49	36	86	77	22	26	26	13	-	6	12	20	150
GN 844-160-ASD	160	1300	15	25	11	M 6	5.5	79	46	117	107	32	36.5	33.5	11.5	-	7	12	30	320
GN 844-160-ASS	160	1300	15	25	11	M 6	5.5	79	46	117	107	32	36.5	33.5	11.5	-	7	12	30	350
GN 844-550-ASD	550	4500	20	32	14	M 8	7	113	55	165	153	42	35	41	15	41	7	16	42	700
GN 844-550-ASS	550	4500	20	32	14	M 8	7	113	55	165	153	42	35	41	15	41	7	16	42	700
